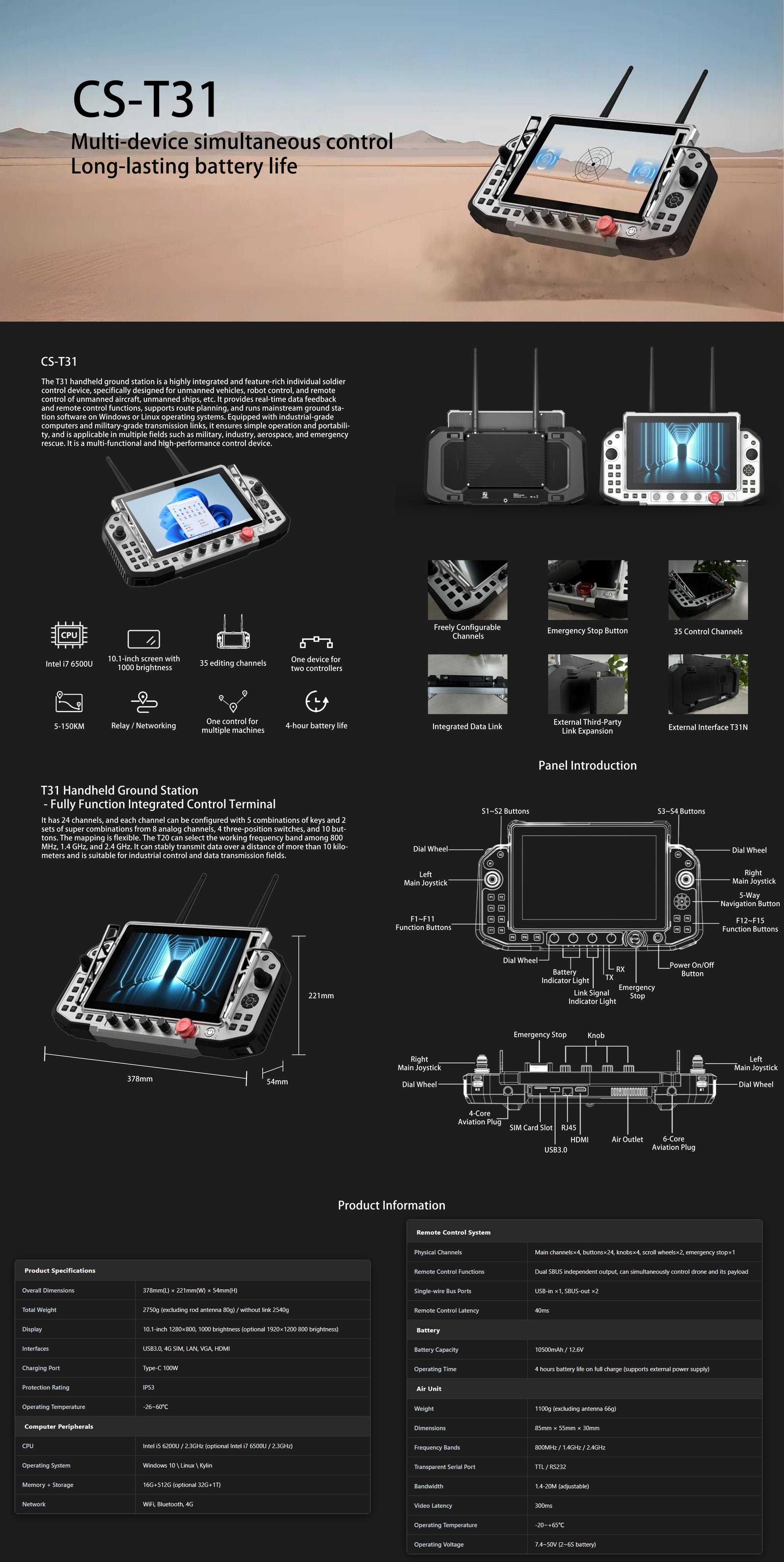

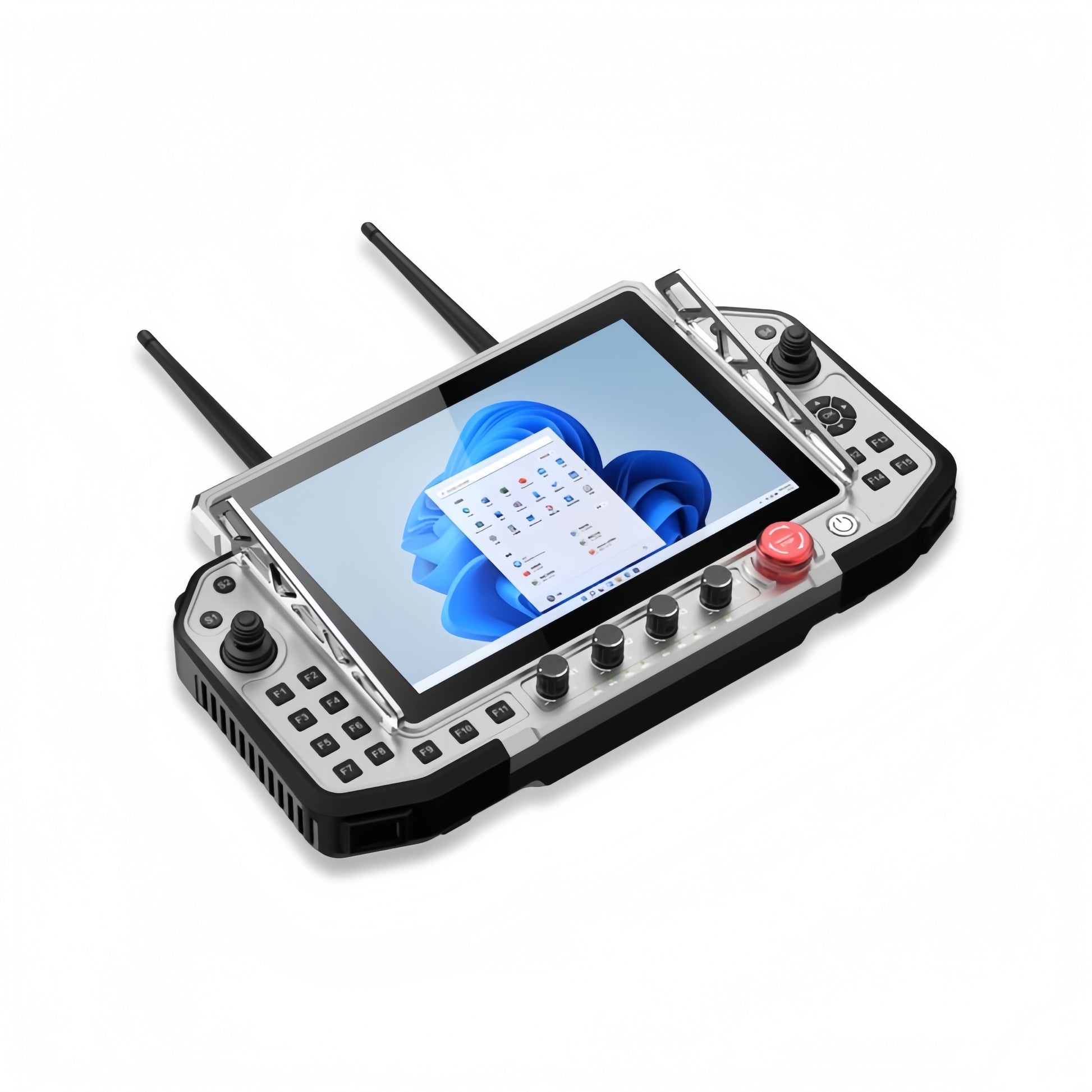

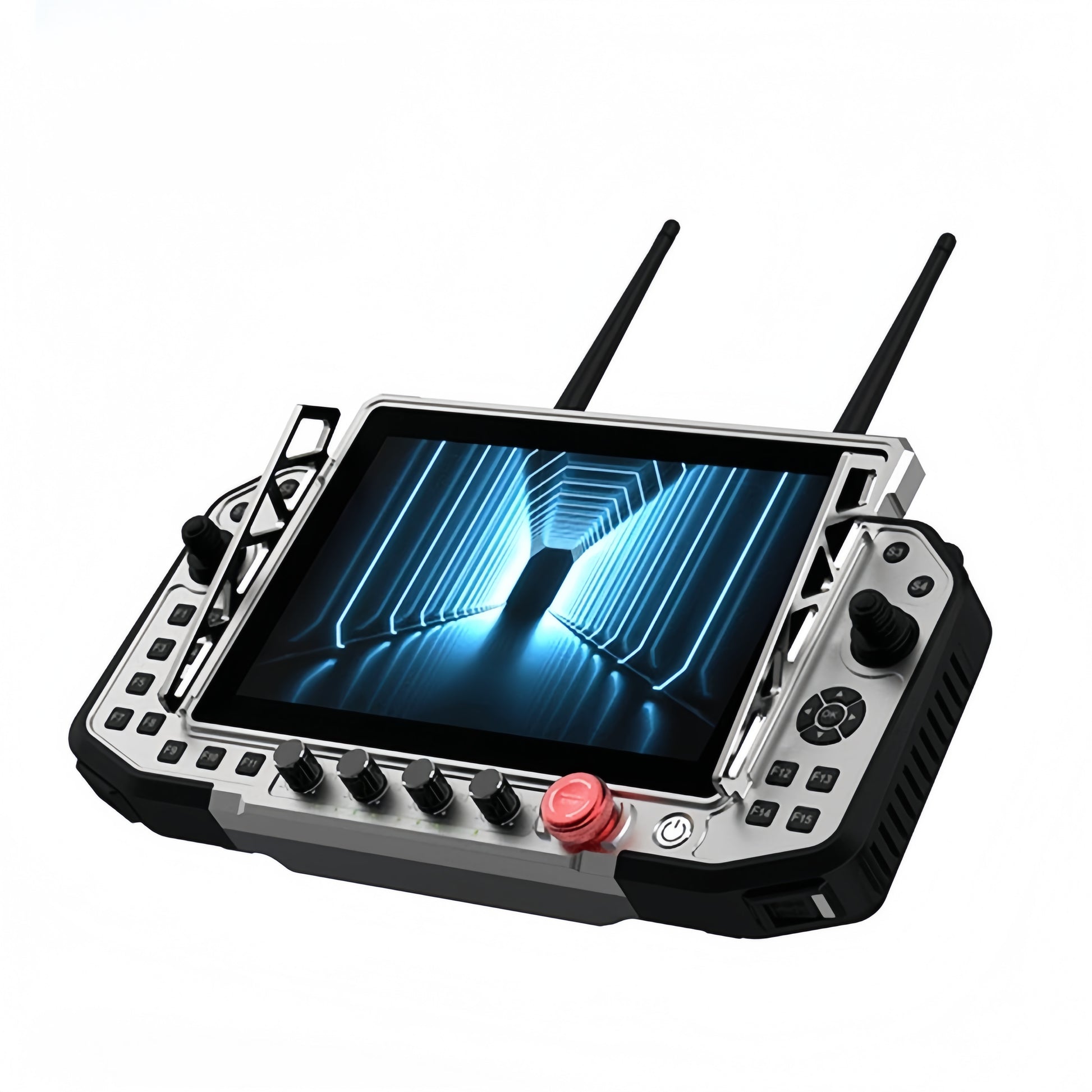

Croskylink CS-T31 Remote Control Ground Control Station (GCS) Lightweight Handheld Robotics Controller

CS-T31 Handheld Ground Station – Key Features

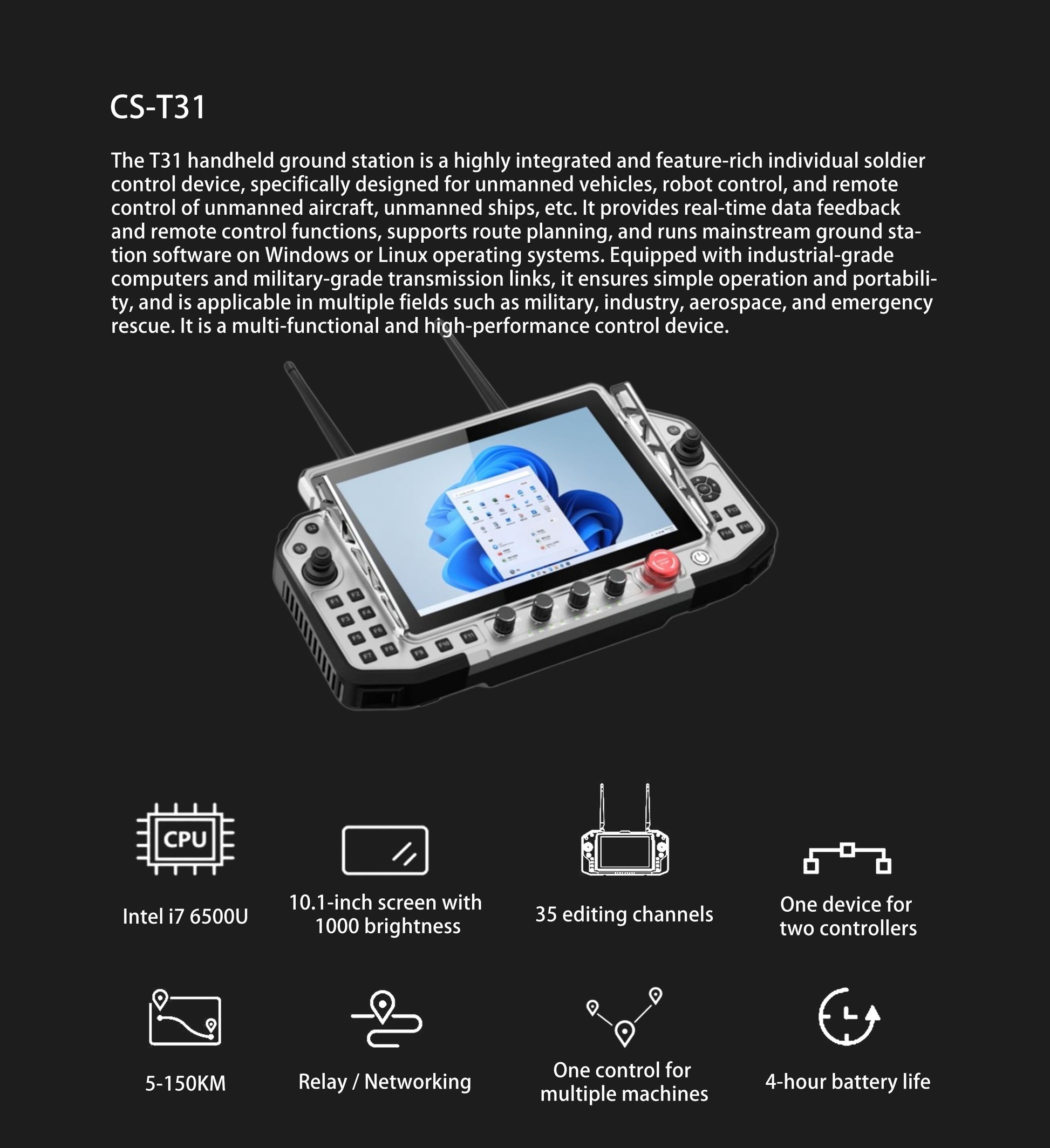

• Highly Integrated Tri‑Band All‑in‑One Data Link – Purpose‑built for unmanned ground vehicles, robots, UAVs, USVs, and gimbal control. Integrates tri‑band wireless link (800MHz / 1.4GHz / 2.4GHz) with up to 40 MHz bandwidth, supporting transparent transmission and network expansion (up to 8 video feeds). Communication range up to 15 km, eliminating frequency interference and compatibility issues.

• Innovative Soft‑Key Configuration & Open Architecture – Each function key supports single‑state, dual‑state, tri‑state, combined, and super composite modes; simulates linear output and multi‑mode switching. Equipment compartment features abundant interfaces (including CAN bus) for seamless third‑party integration and compatibility with mainstream data links. Serial protocols available for secondary development.

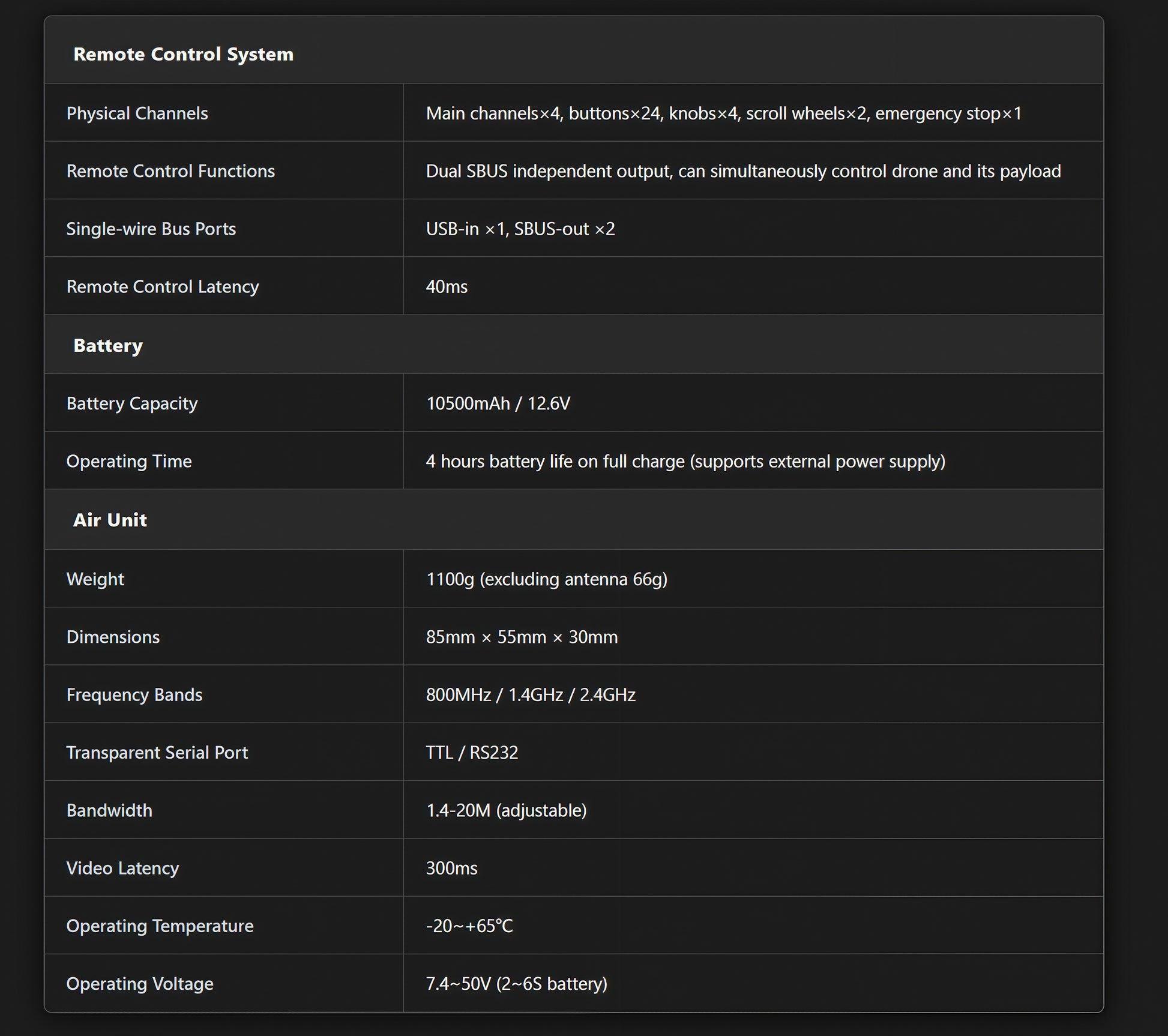

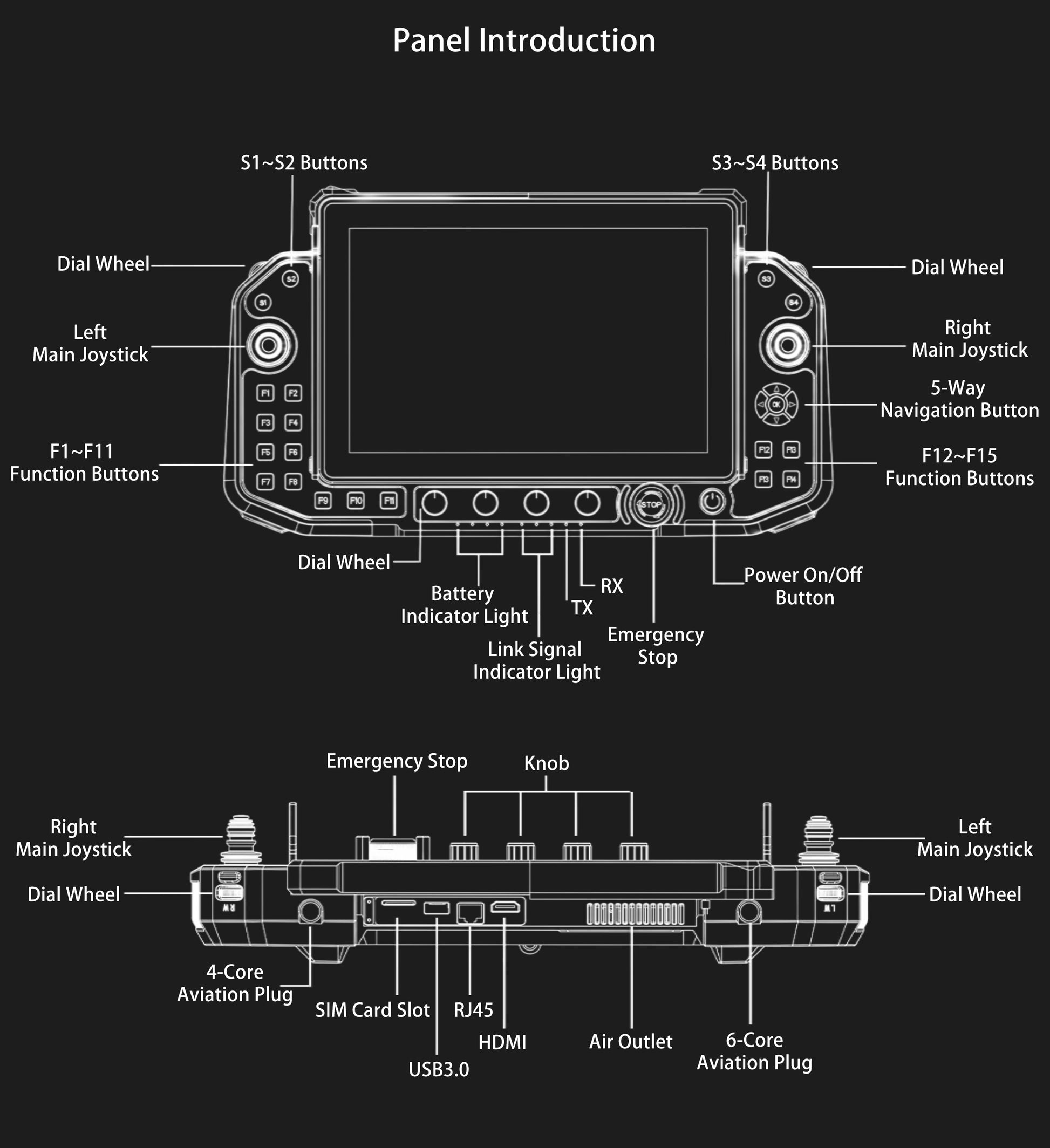

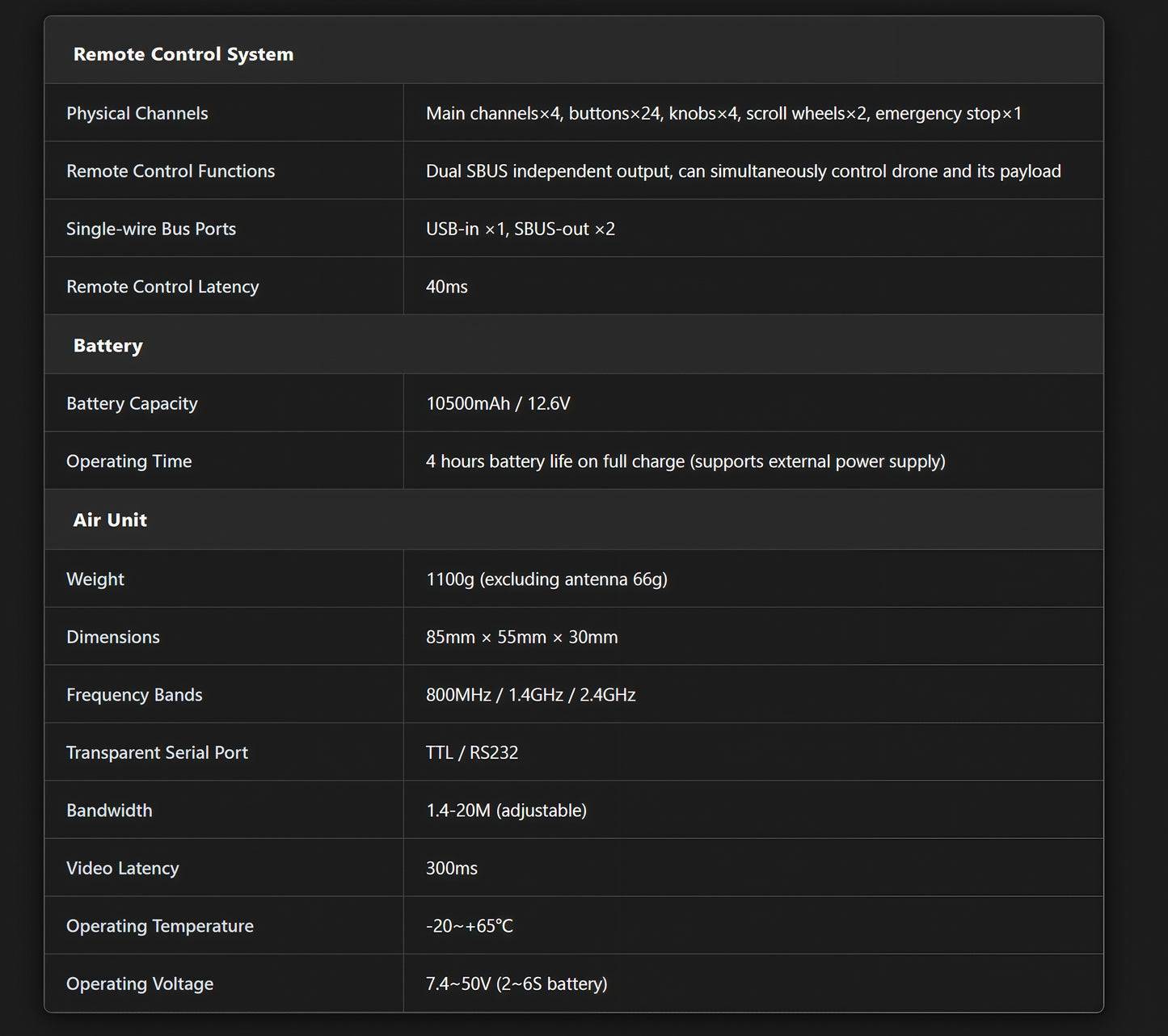

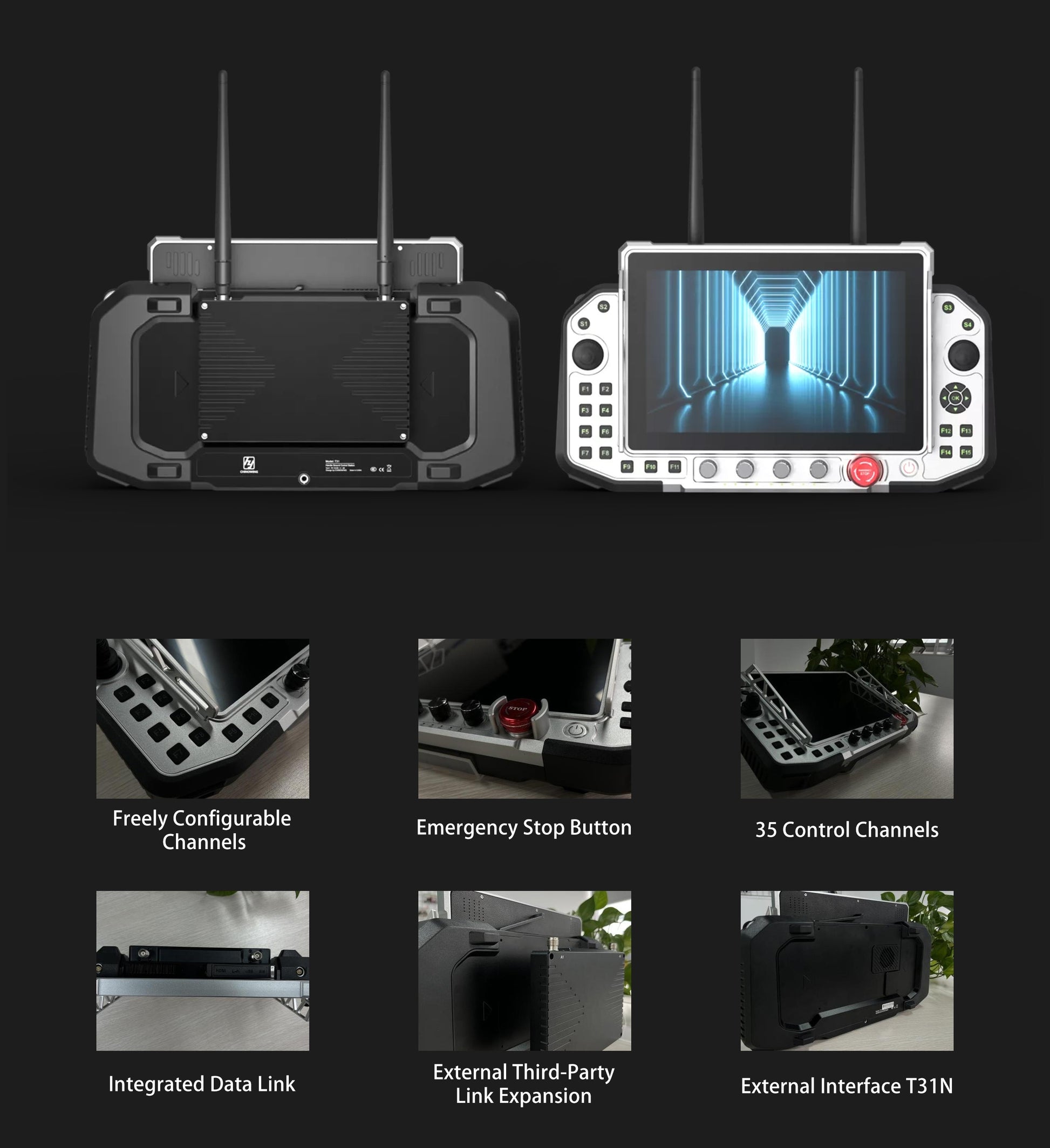

• Rich Physical Channels & Dual SBUS Outputs – Equipped with 2 Hall‑effect joysticks, 4 rotary knobs, 2 scroll wheels, 25 keys, emergency stop, and PTZ control keys – totaling 35 physical channels. Dual independent SBUS outputs enable simultaneous control of UAV and payload, with expansion support for up to 8 video feeds.

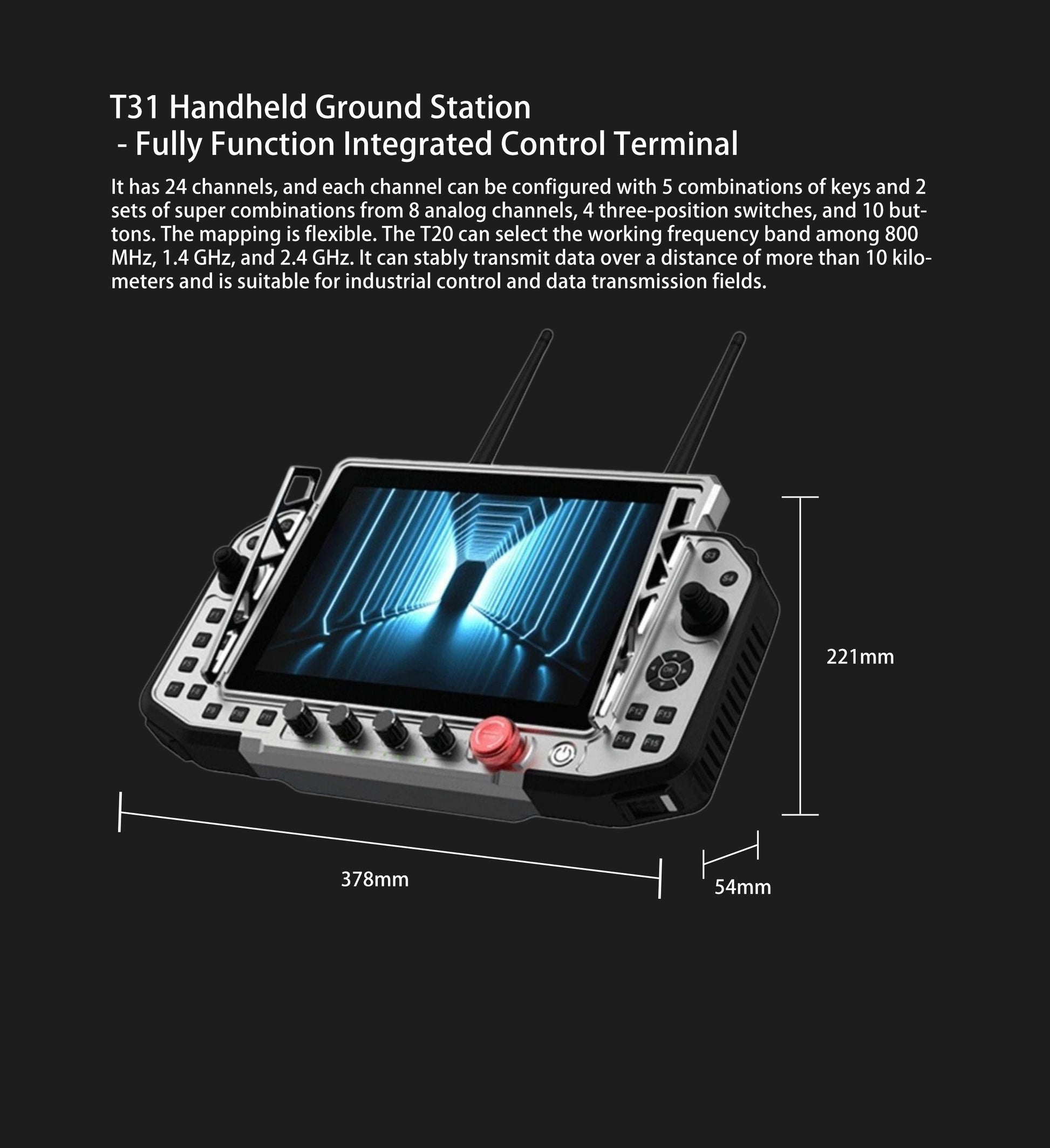

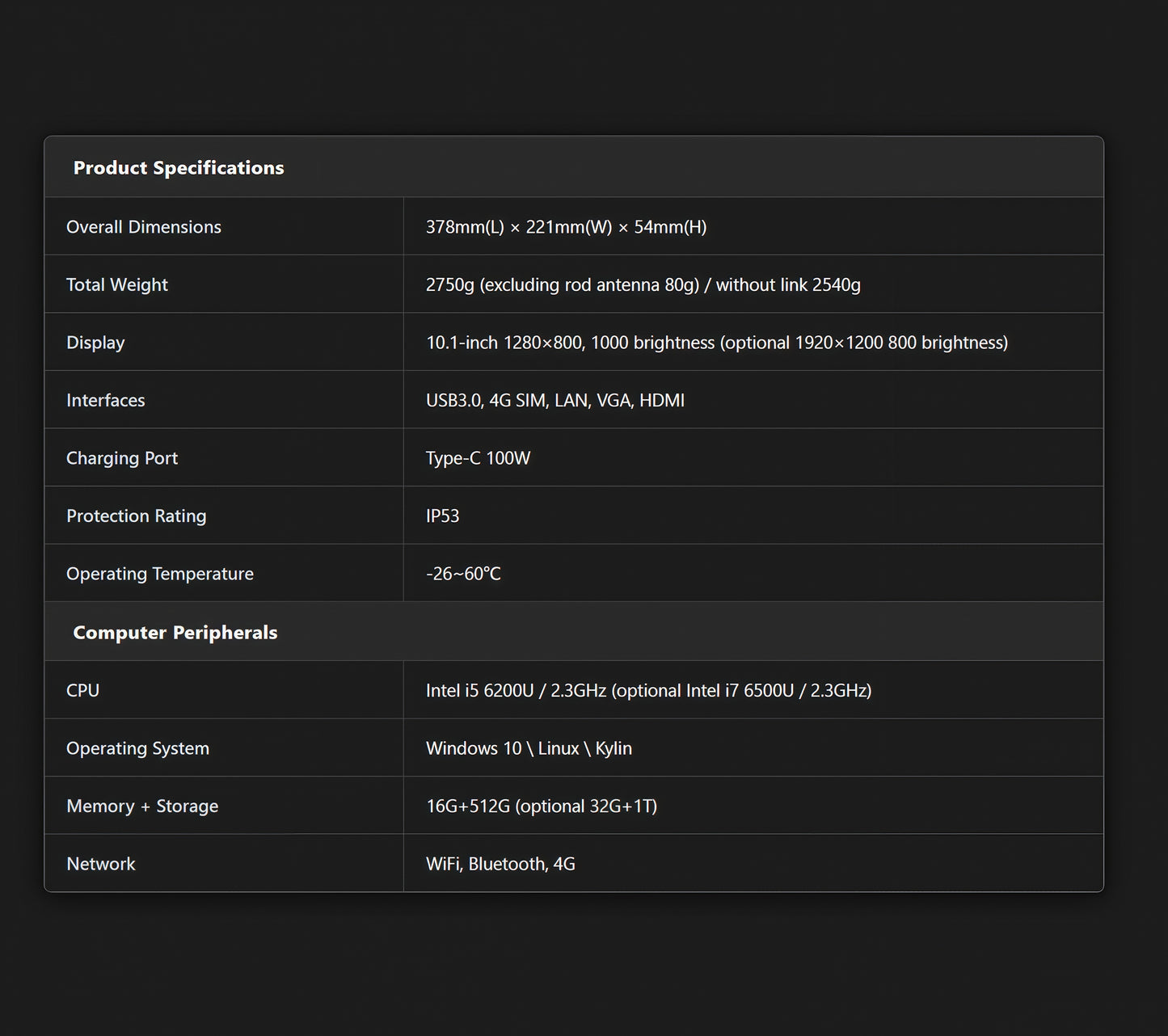

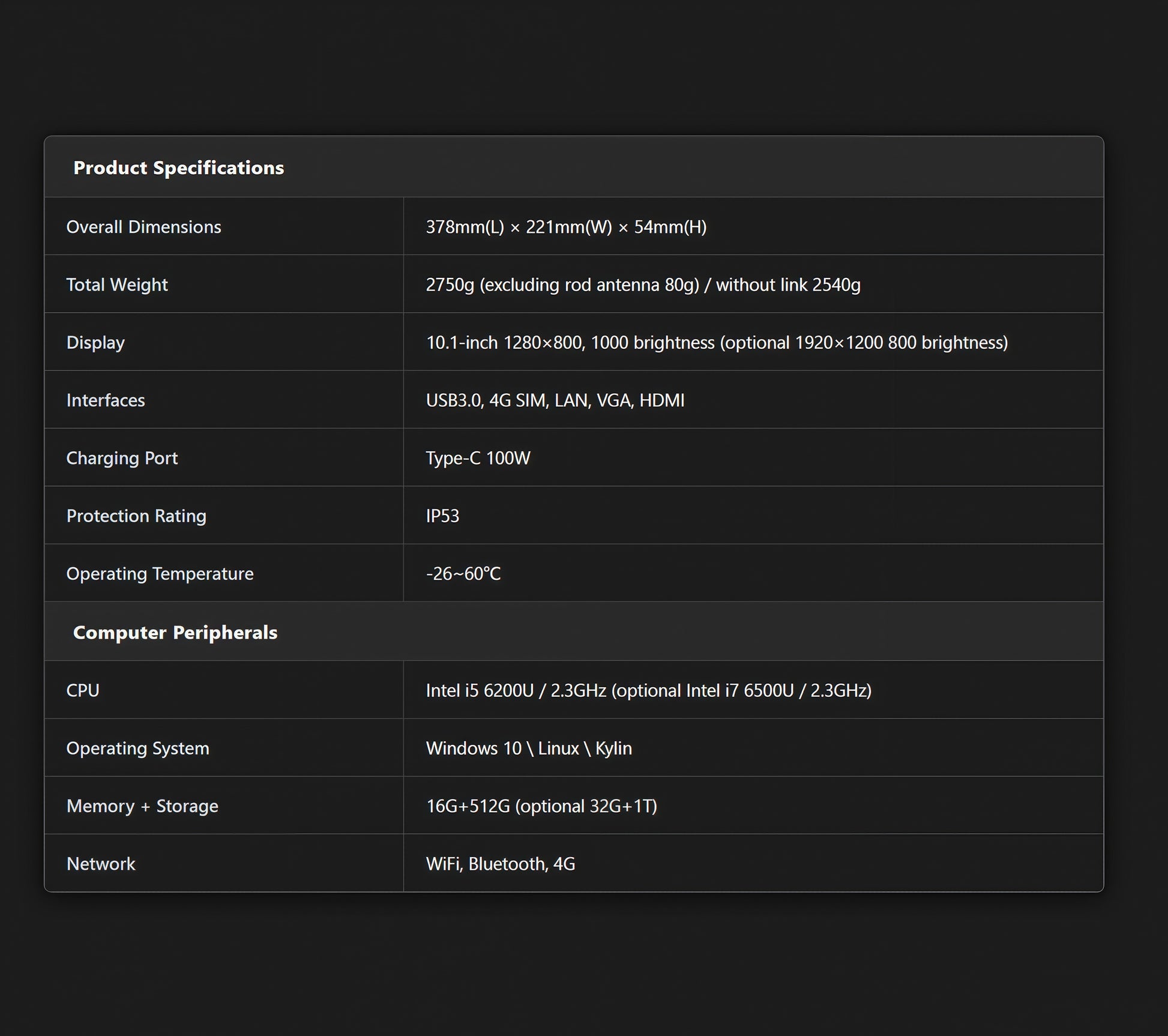

• Industrial‑Grade Computing & High‑Brightness Display – Powered by Intel i7‑6500U, 16GB RAM, 512GB SSD, and Windows 10. 10.1‑inch high‑brightness screen (1920×800, 1000 nits) remains readable under direct sunlight. Aviation‑grade aluminum housing weighs only 2.8 kg; 10050mAh battery delivers 3.5 hours of operation with TYPE‑C 100W fast charging.
