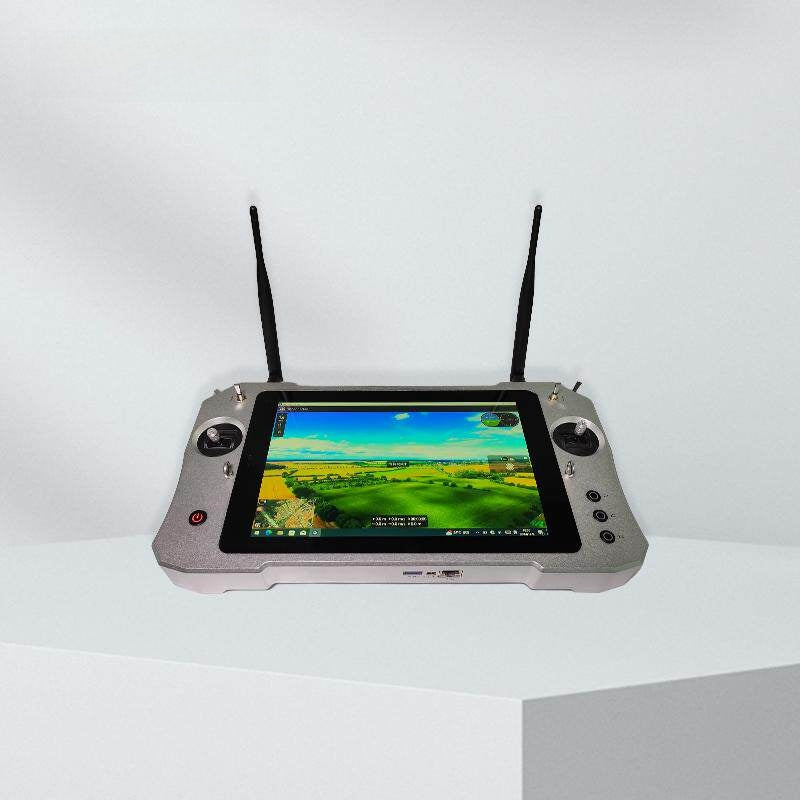

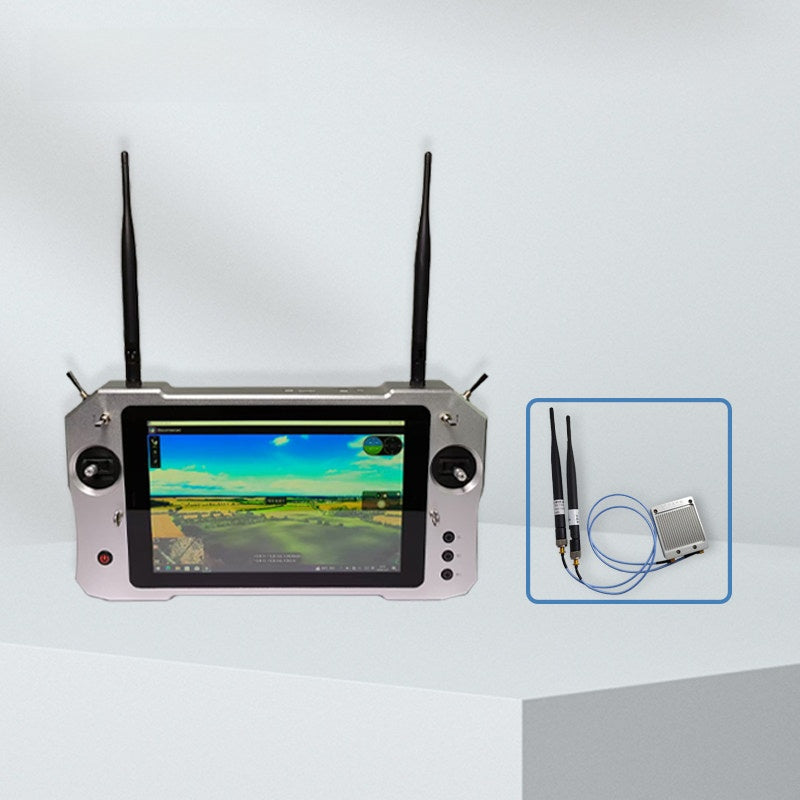

Croskylink CS-26-WinPad Remote Control Handheld Ground Station Digital Graphic Integrated Windows 10 20km Controller

CS-26-WinPad Handheld Ground Station – Key Features

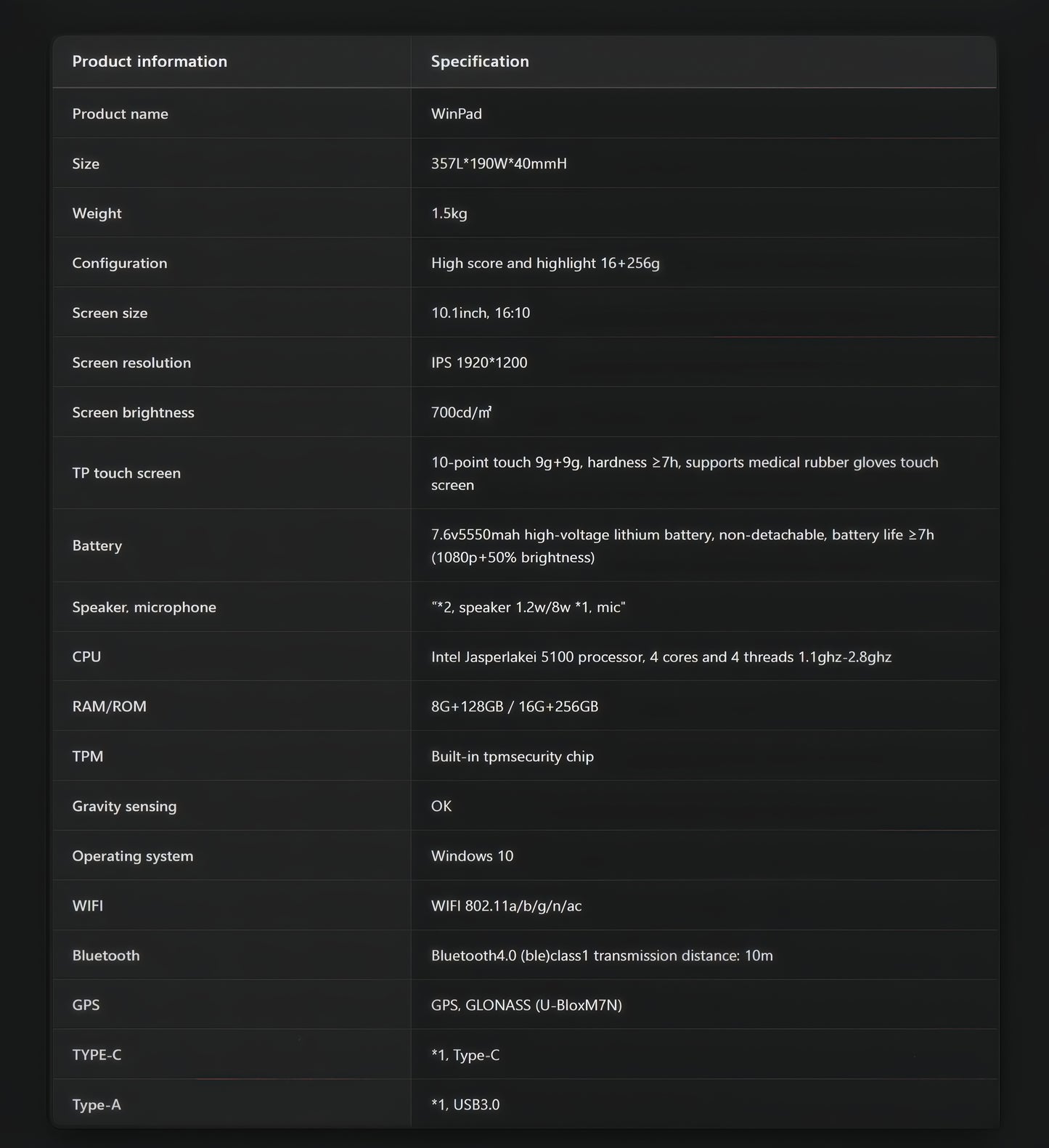

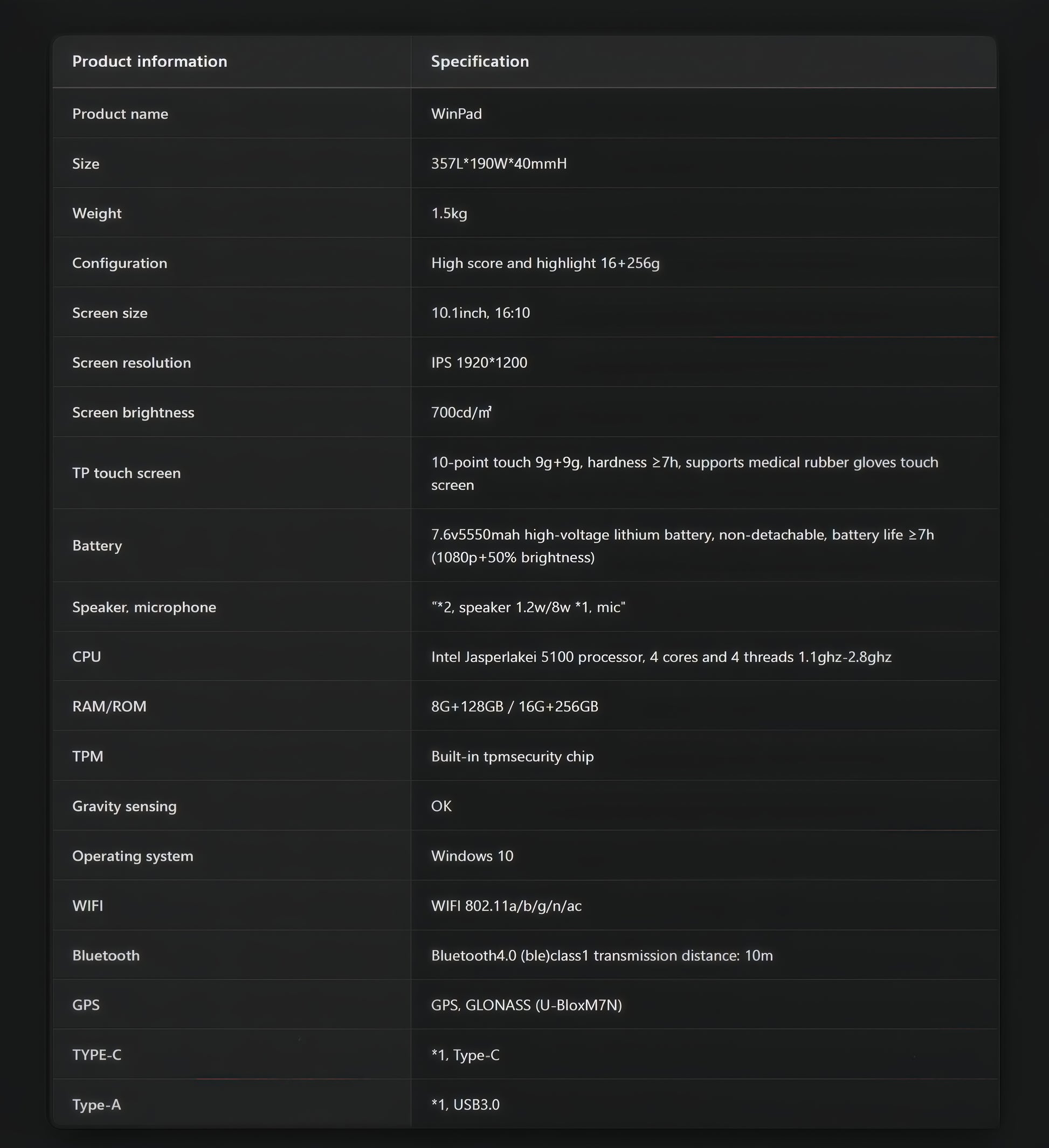

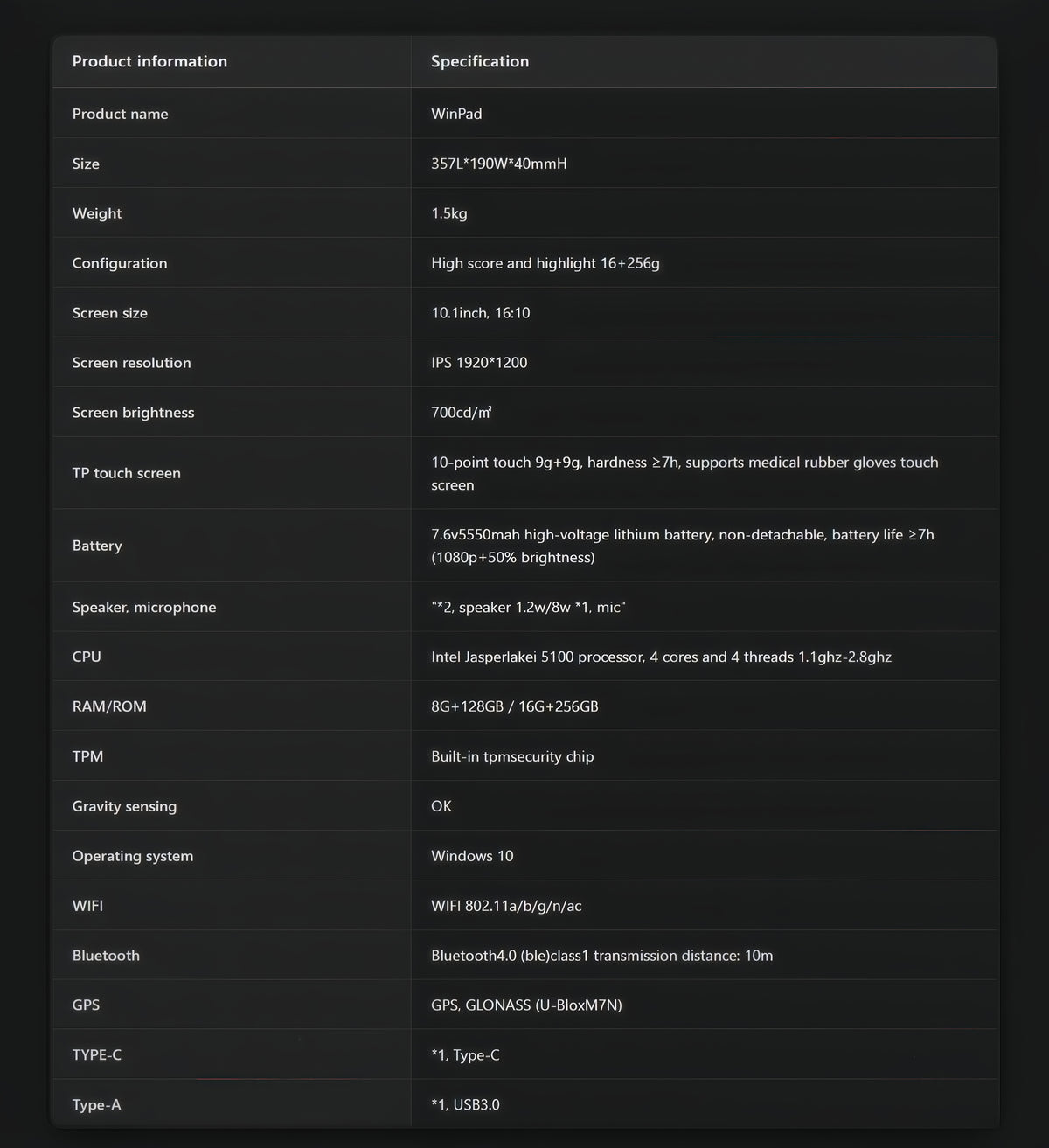

• Windows‑Based Professional Platform – Powered by Intel Jasper Lake N5100 (4C/4T, 1.1–2.8 GHz), available with 8+128GB or 16+256GB storage, built‑in TPM security chip, and pre‑installed Windows 10 – ensures broad compatibility with industry‑standard ground control and telemetry software.

• High‑Brightness Outdoor Touchscreen – 10.1‑inch IPS display (1920×1200) with 700 cd/m² luminance, sunlight‑readable; 10‑point capacitive touch supports medical‑grade glove operation, ideal for harsh field conditions.

• Rugged Military‑Grade Enclosure – IP68 dust/water proof, certified to MIL‑STD‑810G, 3C, CE, RoHS, and salt‑spray tested; operating temperature range ‑20°C to +60°C, built to withstand dust, rain, and high humidity.

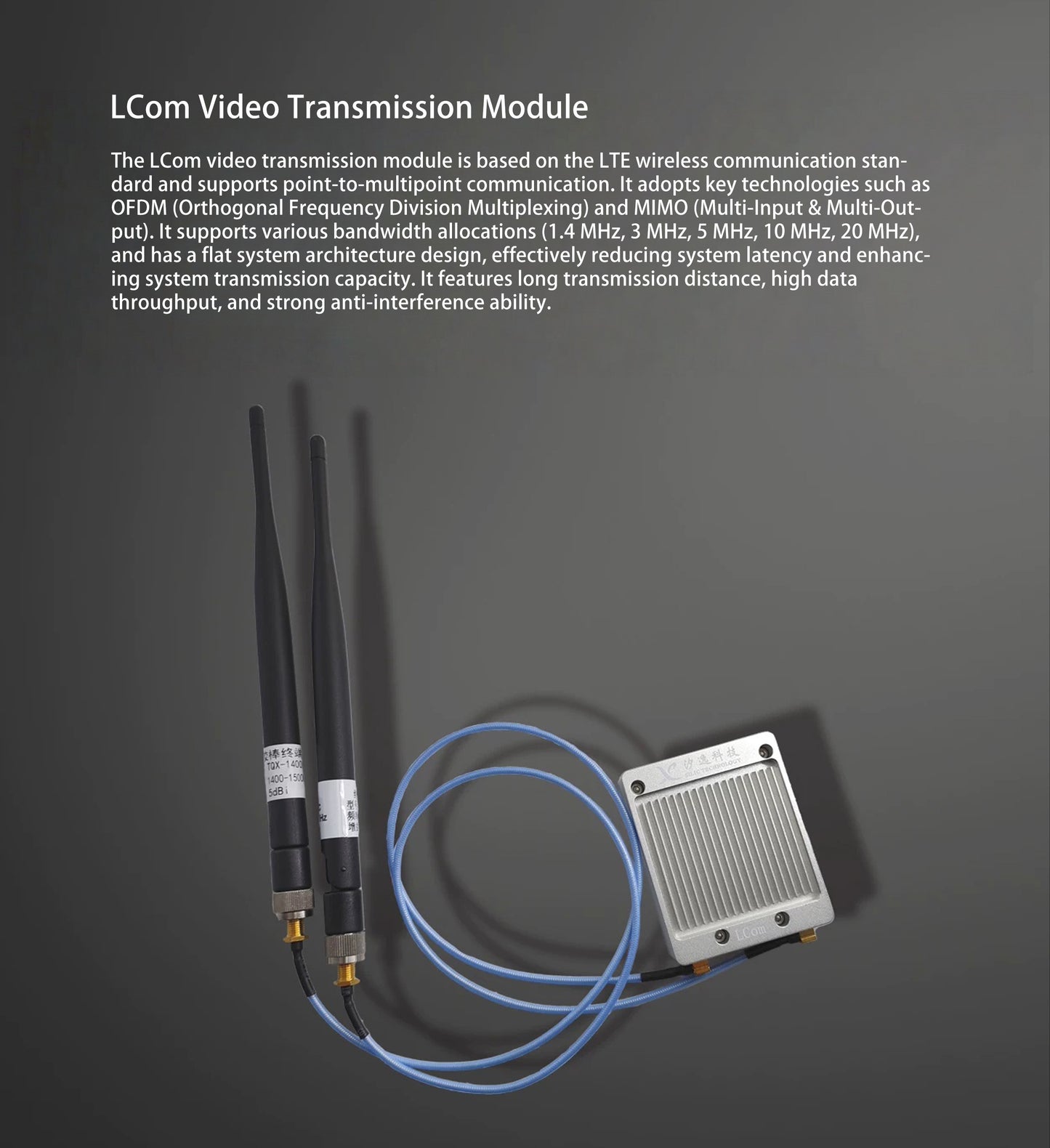

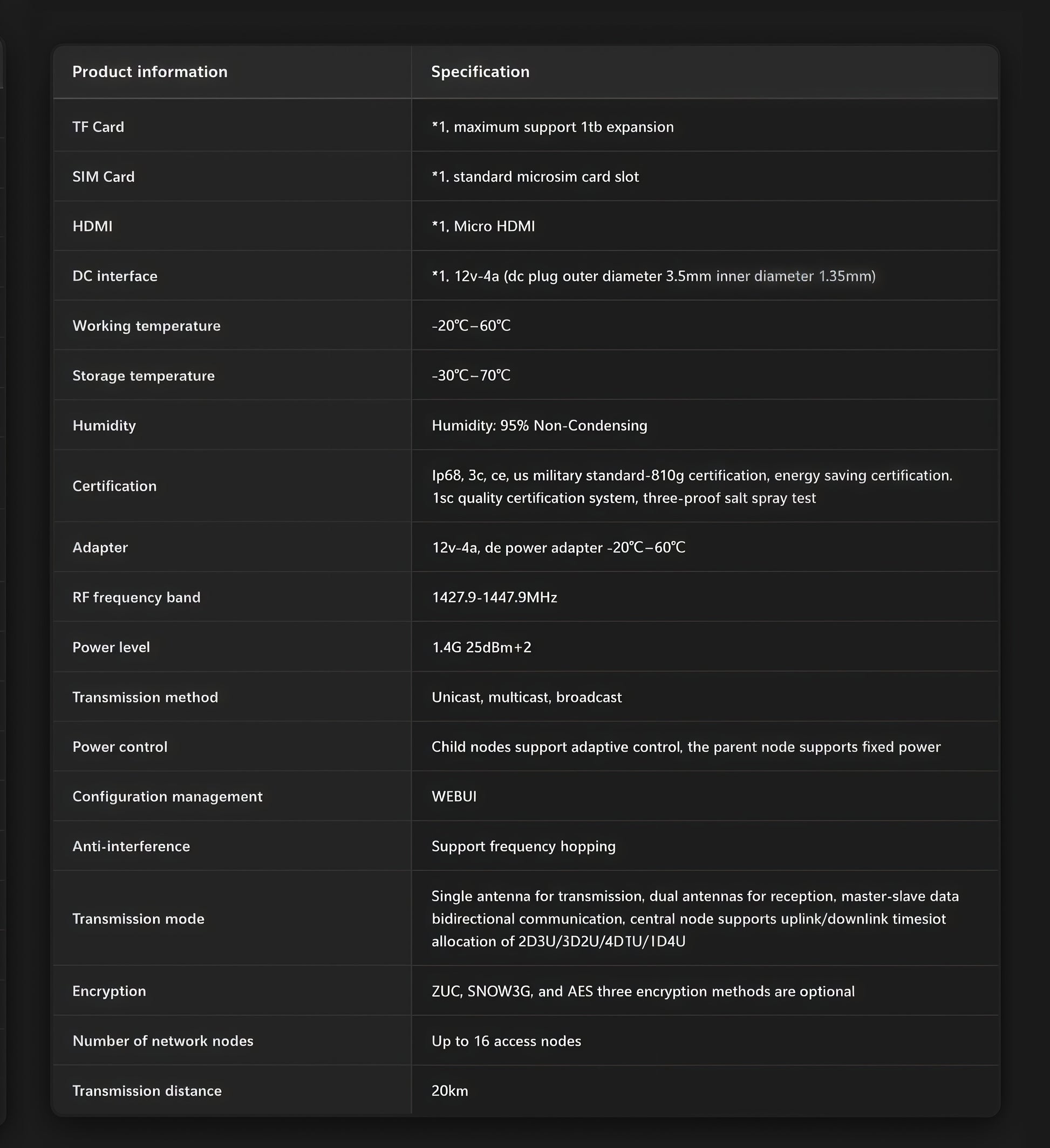

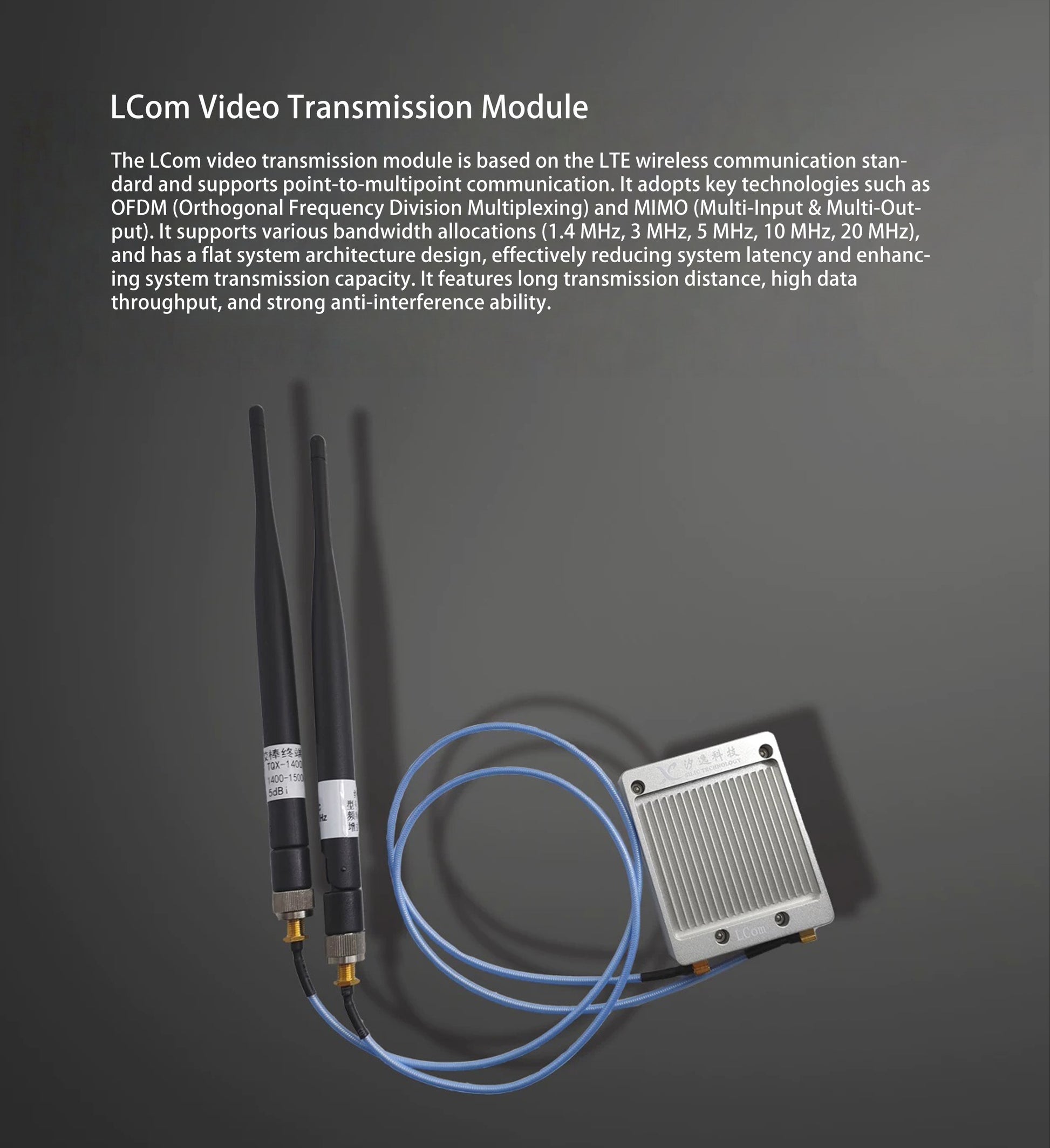

• Long‑Range Data Link – Operates on 1.4 GHz band with 25 dBm output power, transmission range up to 20 km; features FHSS anti‑jamming, selectable AES/SNOW3G/ZUC encryption, supports up to 16 subscriber nodes with flexible TDD timeslot allocation (2D3U/3D2U/4D1U/1D4U).

• Versatile I/O & Extended Battery Life – Equipped with USB‑C, USB 3.0, Micro HDMI, Gigabit Ethernet, TF slot (up to 1TB), and SIM slot; internal 7.6V 5550mAh high‑voltage battery delivers ≥7 hours runtime (1080p @ 50% brightness), plus DC 12V external power input.
