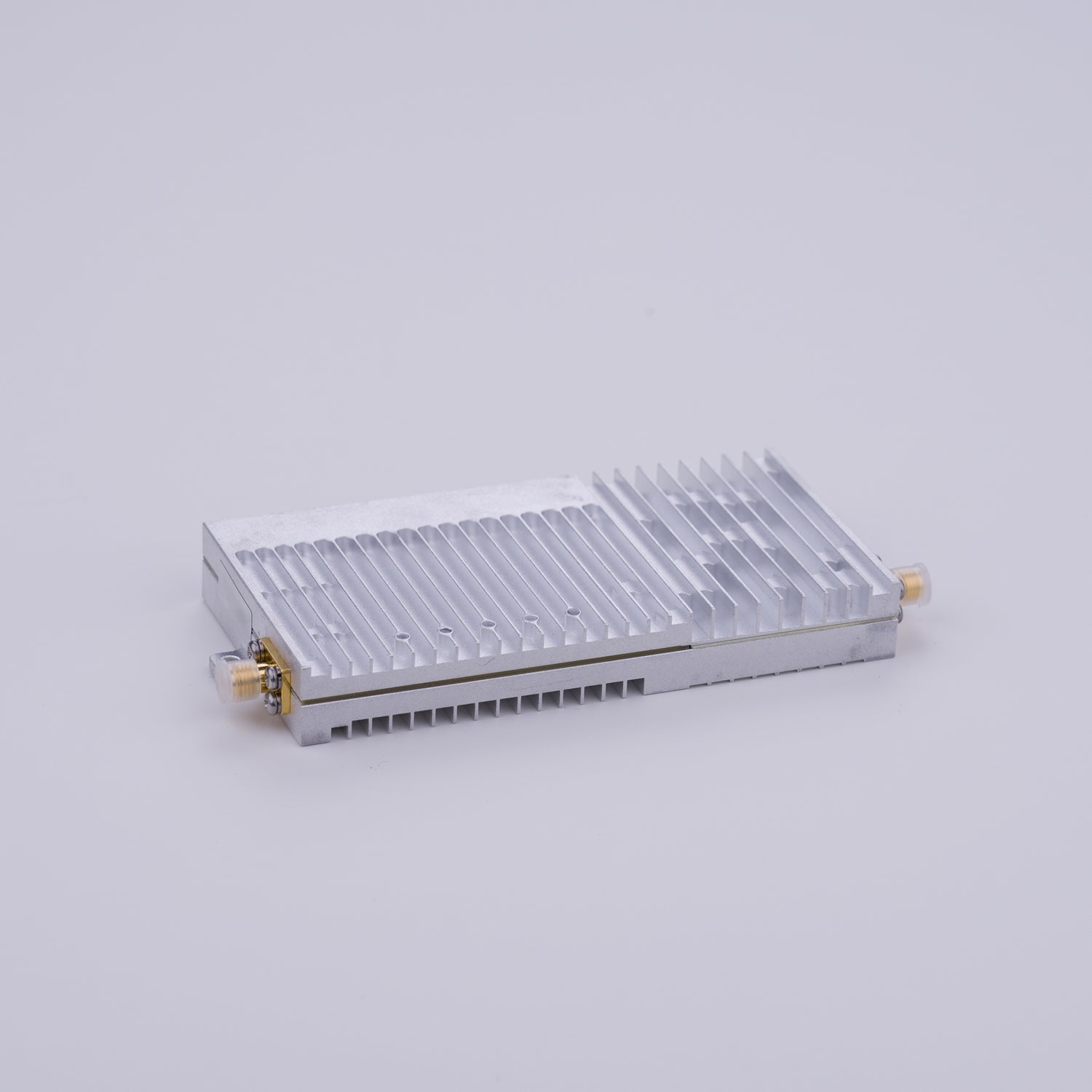

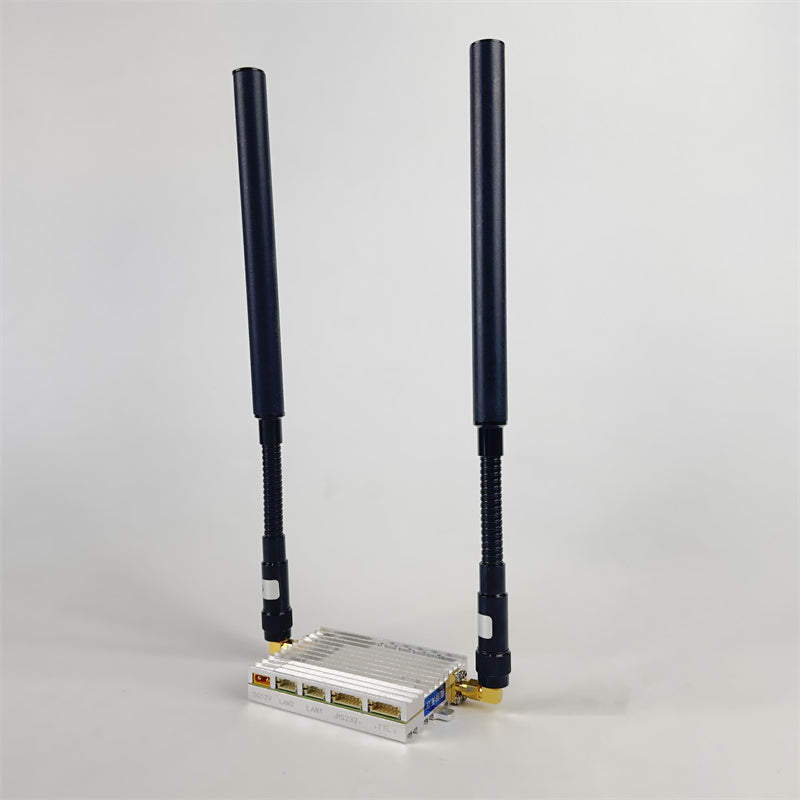

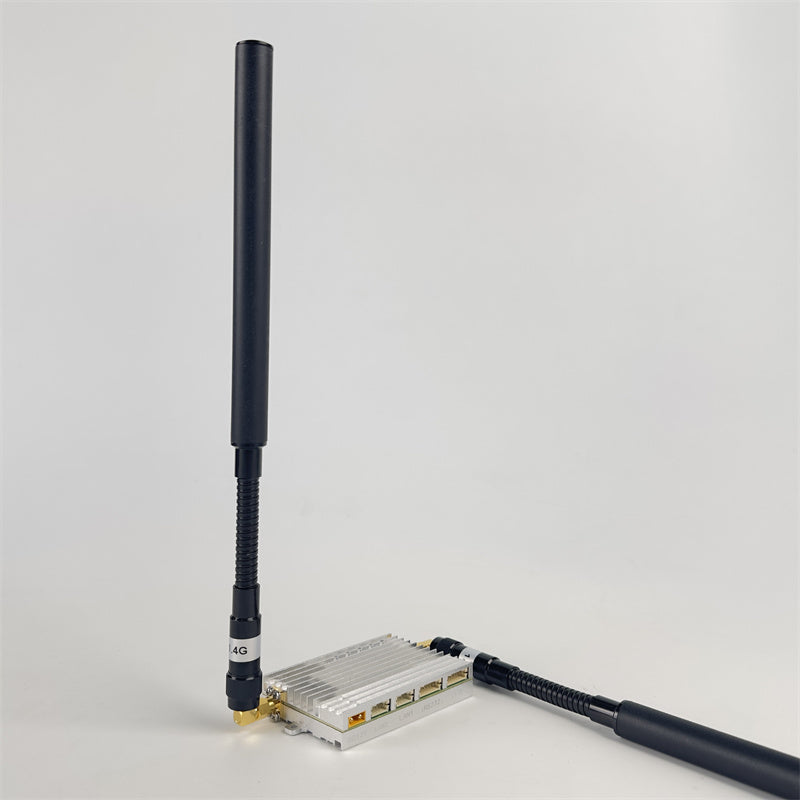

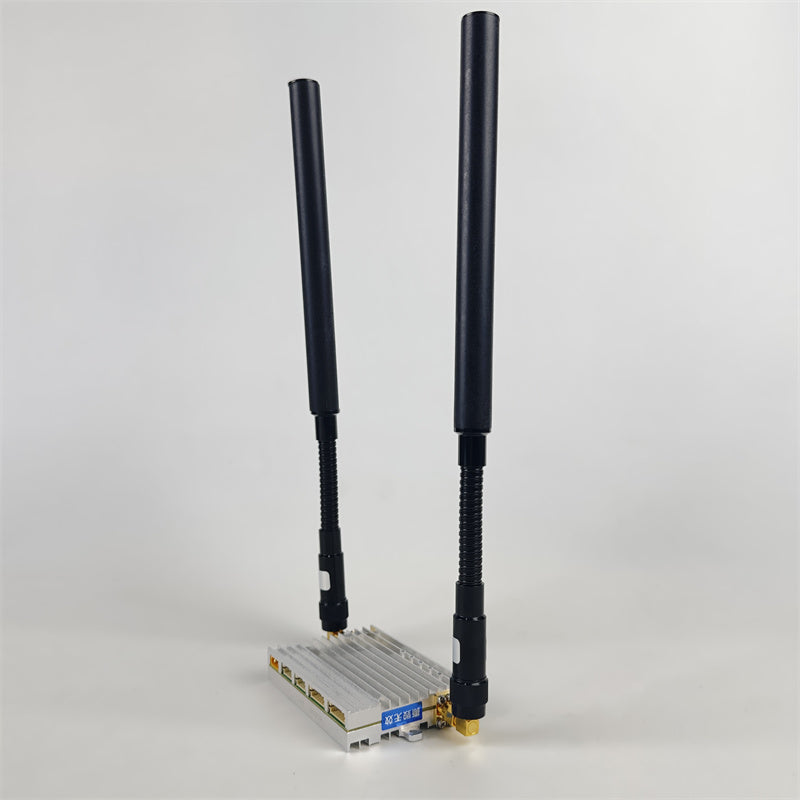

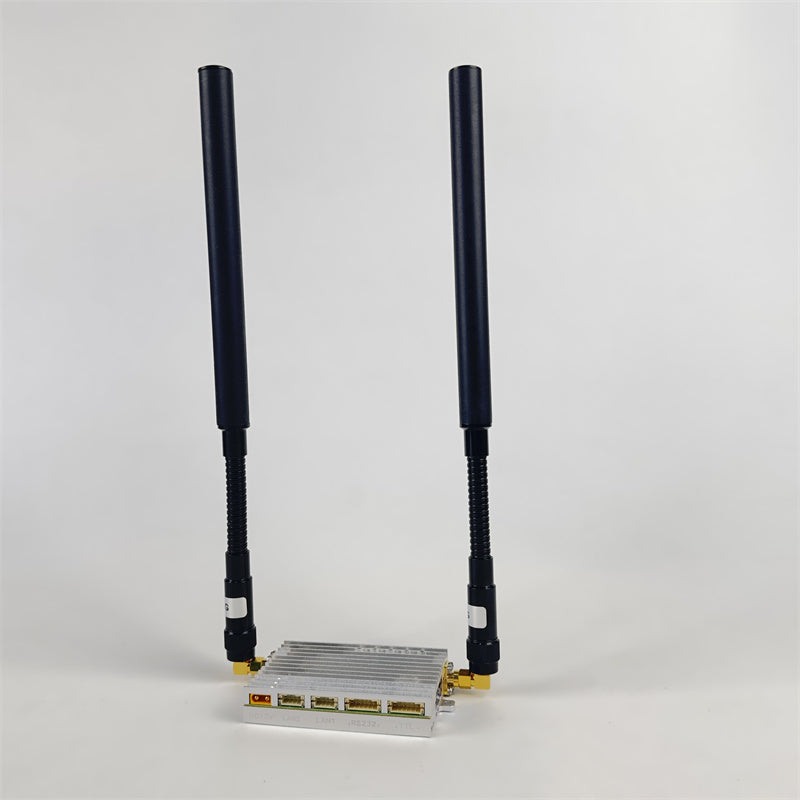

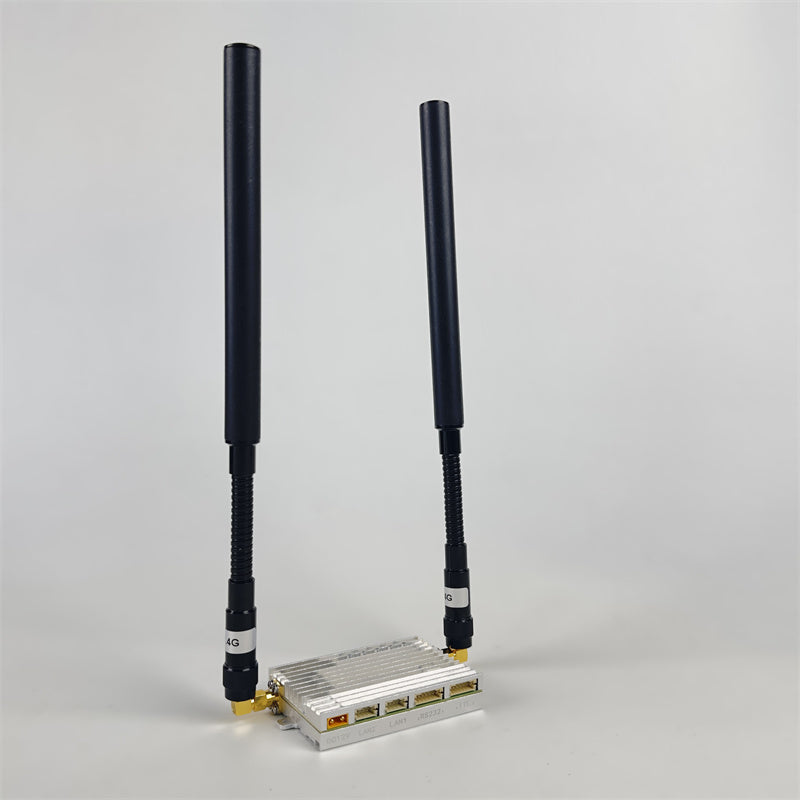

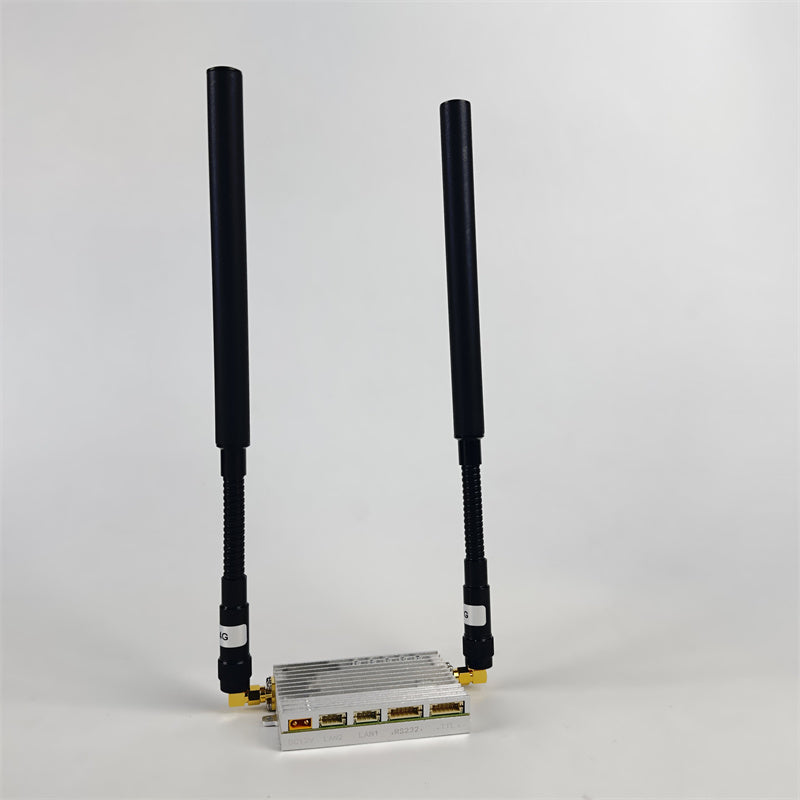

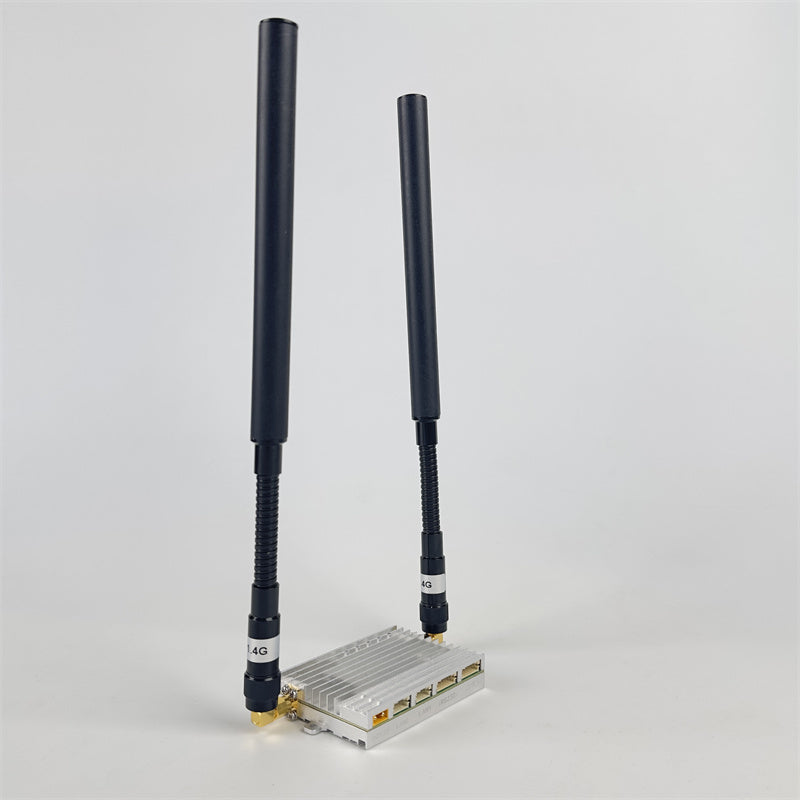

C21D-100 100km Wireless Network Video Data Links Transmission System Transmitter Receiver

Description

C21D-100 is a broadband access and data transmission product that supports star or MESH networks. It supports multiple bandwidth allocations and adopts a flat system architecture design, effectively reducing system latency and improving transmission capabilities. It features long transmission distances, large data throughput, and strong anti-interference capabilities.

Supports 600M and 1.4G frequency bands, automatic power control, and a maximum transmit power of up to 46dBm.

Key Features

• Supports point-to-point, point-to-multipoint star network and Mesh network
• 33dBm maximum output power
• Flexible bandwidth: 1.4MHz/3MHz/5MHz/10MHz/20MHz/40MHz
• Multi-frequency support: 600M/1.4G (customizable)
• Up to 100km transmission range(Star network)
• Up to 50km transmission range(MESH network)

• Automatic power control & frequency control
• Provides 1 Ethernet port
• Provides 2 serial ports (default RS232)
• Provides 1 USB 2.0 port

*Devices with 600M, 1.4G, and other frequency bands can be customized according to customer requirements and on-site environment.
*Customization is based on customer requirements only; users cannot make changes themselves.

Applications

Technical Specifications

Important Notes

* Custom frequency configurations require manufacturer customization

* Antenna connection is MANDATORY for transmitter end

* Maintain >0.2m between antennas of same module

* Input signal strength must not exceed 10dBm at receiving ports

* Proper heat dissipation required for continuous operation
