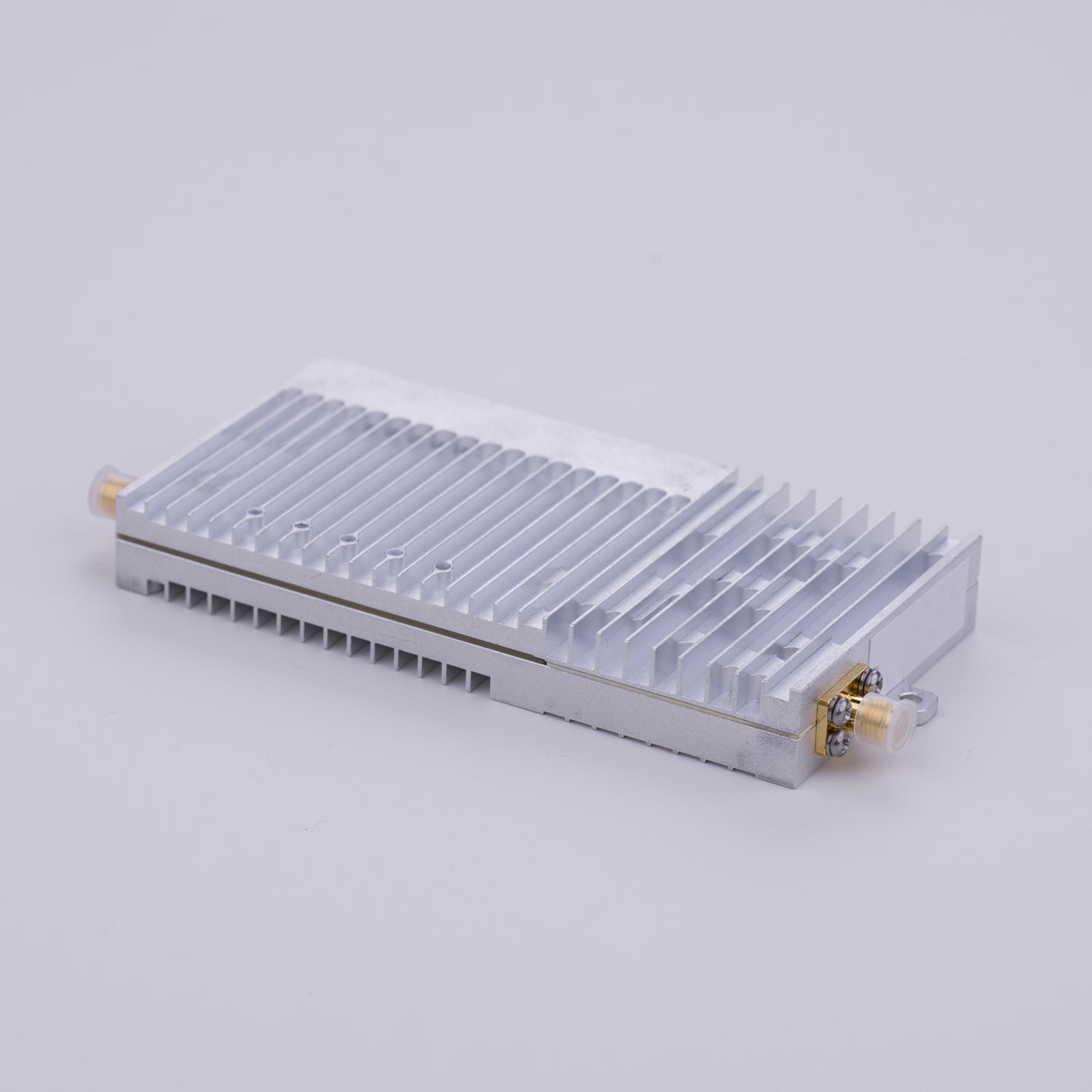

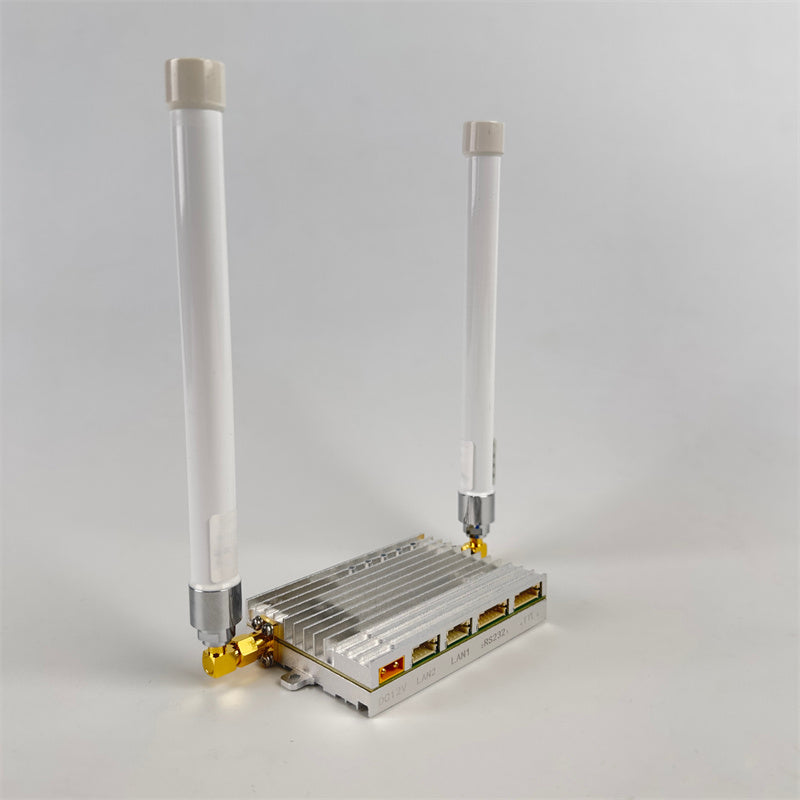

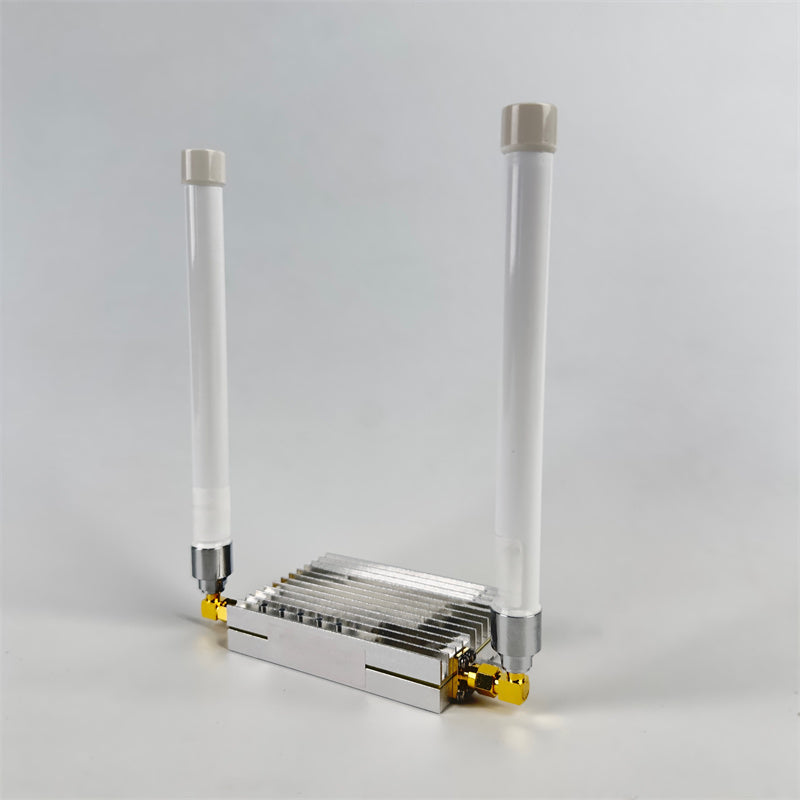

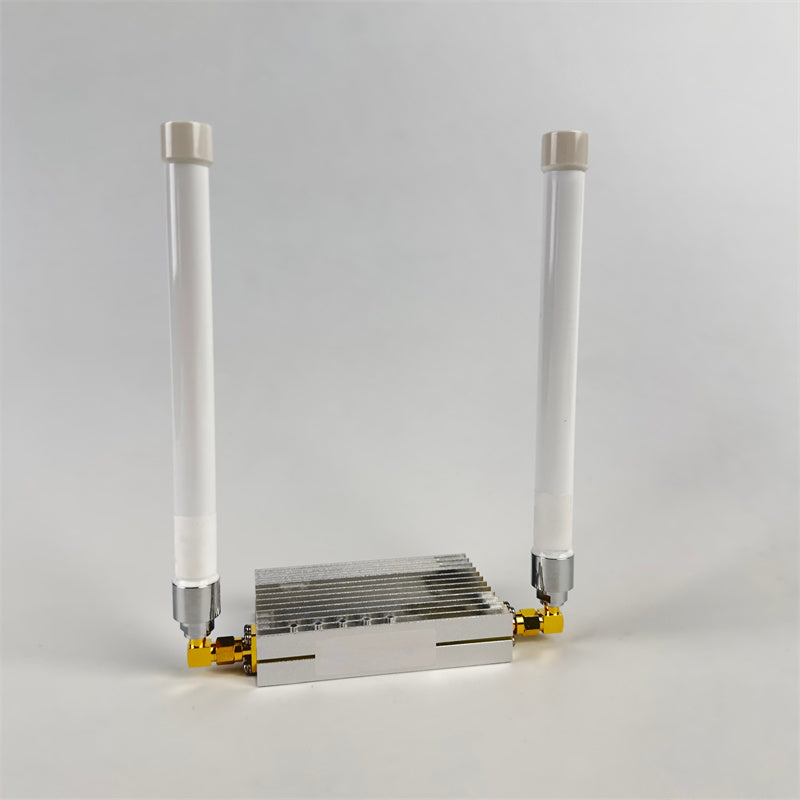

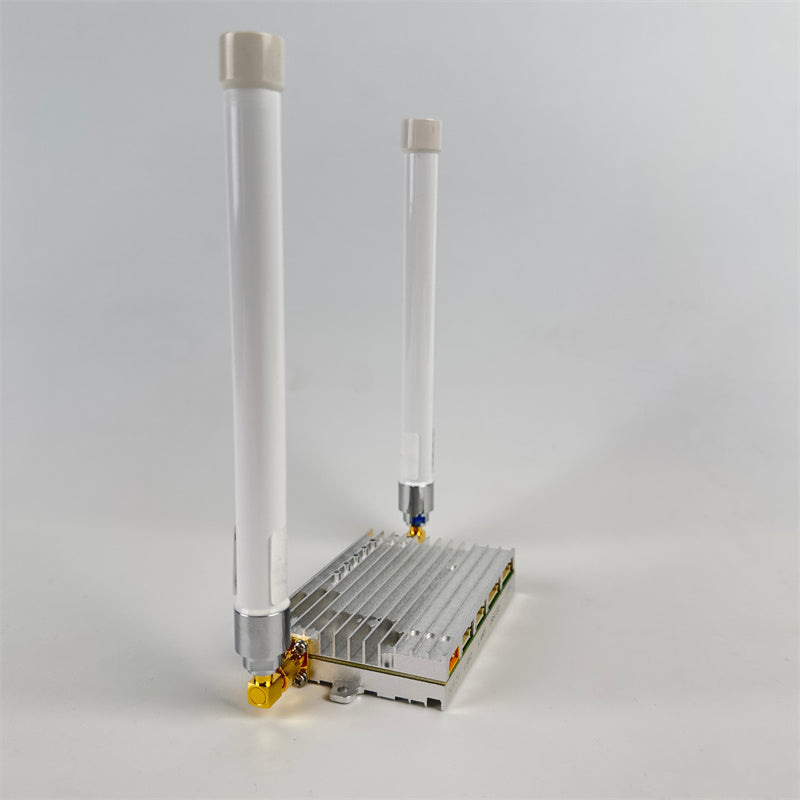

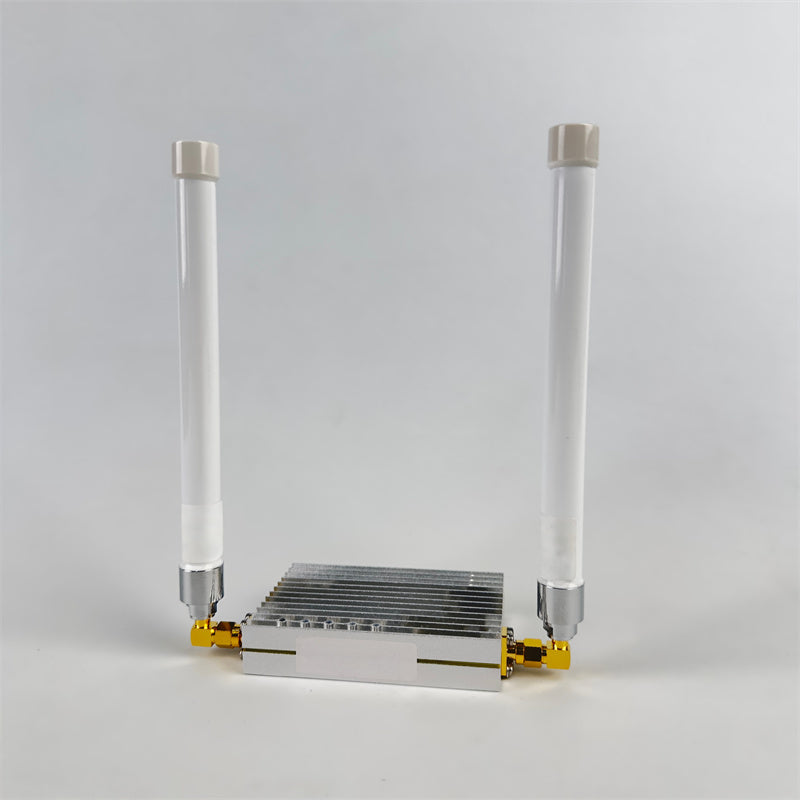

C21D-150 150km Wireless Network Video Data Links Transmission System Transmitter Receiver

Description

The C21D-150 is a broadband access and data transmission product that supports star or MESH networks. It supports multiple bandwidth allocations and adopts a flat system architecture design, effectively reducing system latency and improving transmission capabilities. It features long transmission distances, high data throughput, and strong anti-interference capabilities.

It supports two frequency bands: 600M and 1.4G, supports automatic power control, and can achieve a maximum transmission power of 46dBm.

Key Features

• Supports point-to-point, point-to-multipoint star network and Mesh network
• 40dBm maximum output power
• Flexible bandwidth: 1.4MHz/3MHz/5MHz/10MHz/20MHz/40MHz
• Multi-frequency support: 600M/1.4G (customizable)
• Star network can support transmission distances of up to 150km, and MESH network can support up to 100km
• Automatic power control & frequency control

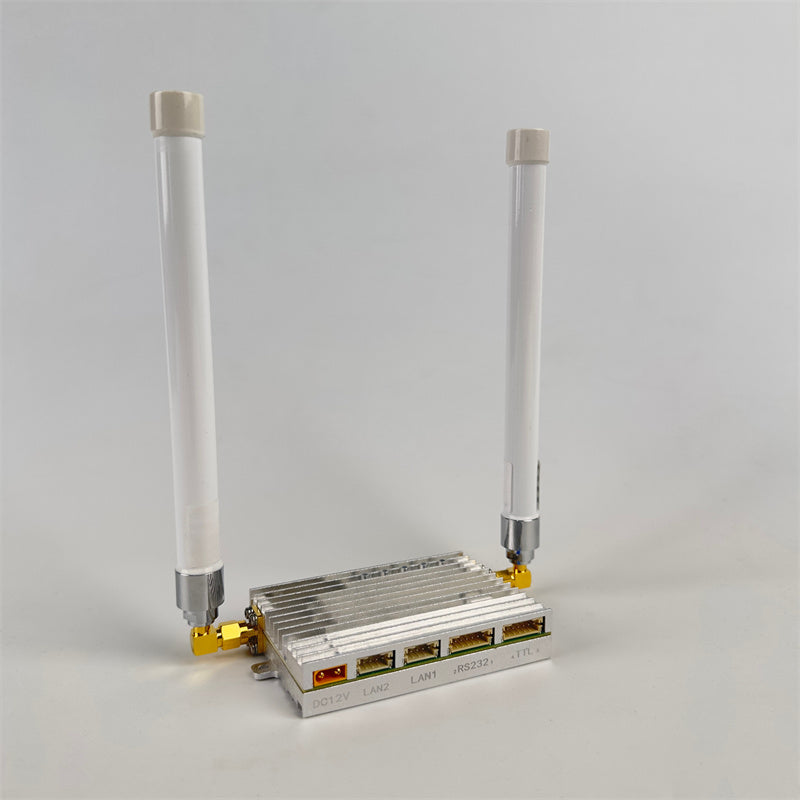

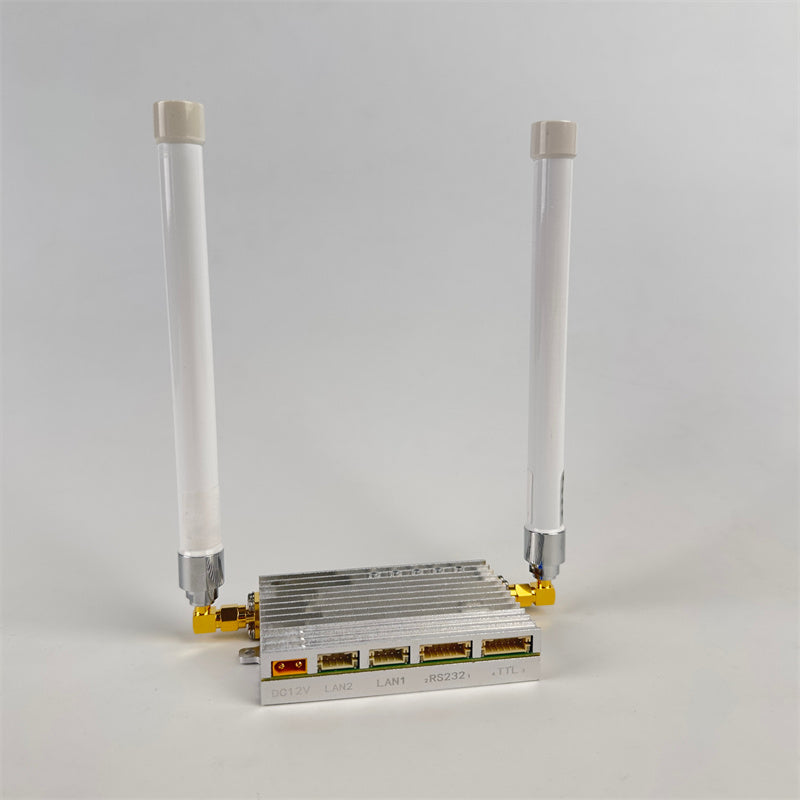

• Provides 1 Ethernet port
• Provides 2 serial ports (default RS232)
• Provides 1 USB 2.0 port

*Devices with 600M, 1.4G, and other frequency bands can be customized according to customer requirements and on-site environment.
*Customization is only available based on customer requirements; users cannot make changes themselves.

Applications

Technical Specifications

Important Notes

* Typical application scenarios Point to point communication, dual antenna working mode, 1437MHz working band, 20M bandwidth, maximum transmit power, working temperature 25℃, humidity 50%, rated voltage power supply.

* Antenna connection MANDATORY to prevent device damage

* Improperly connected antennas can cause damage to the device or cause serious performance differences.

* Proper heat dissipation required for continuous operation

* Signal strength limit: Receiving port <10dBm

* Antenna spacing requirements: between the same module：> 0.2m; Between modules：>1m (Applicable to powered on and powered off modules)
