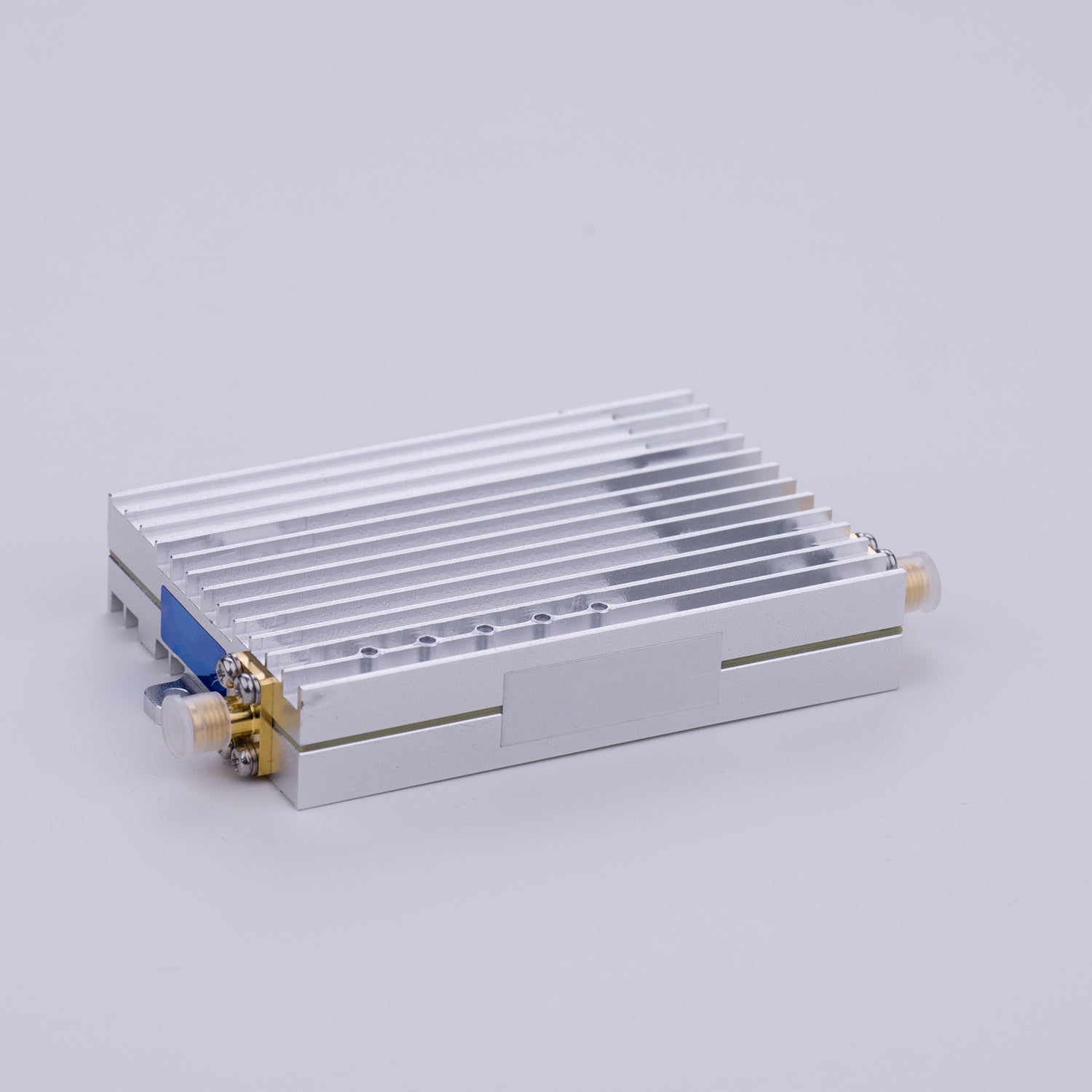

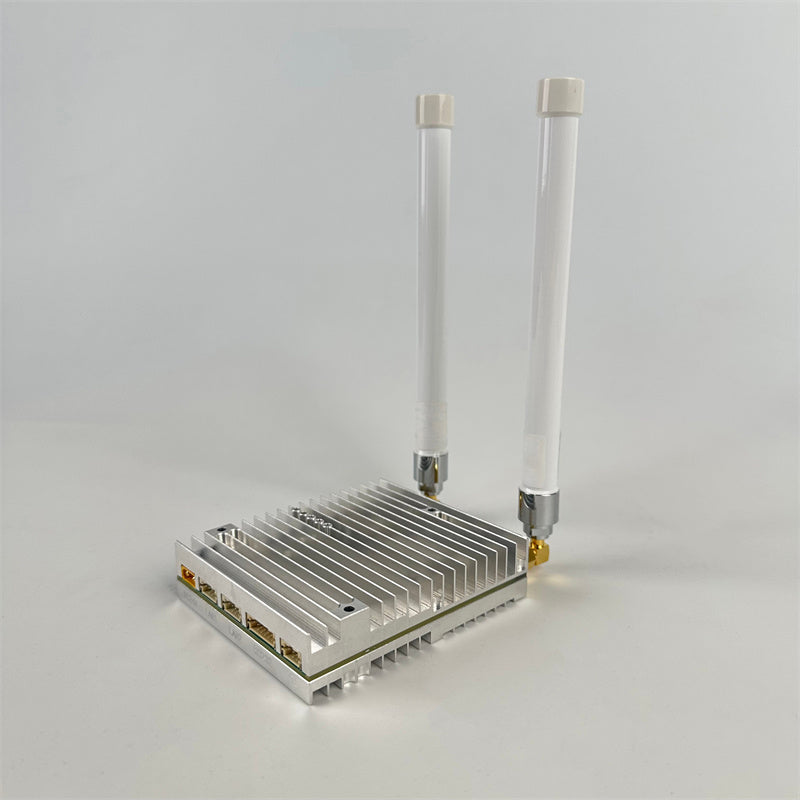

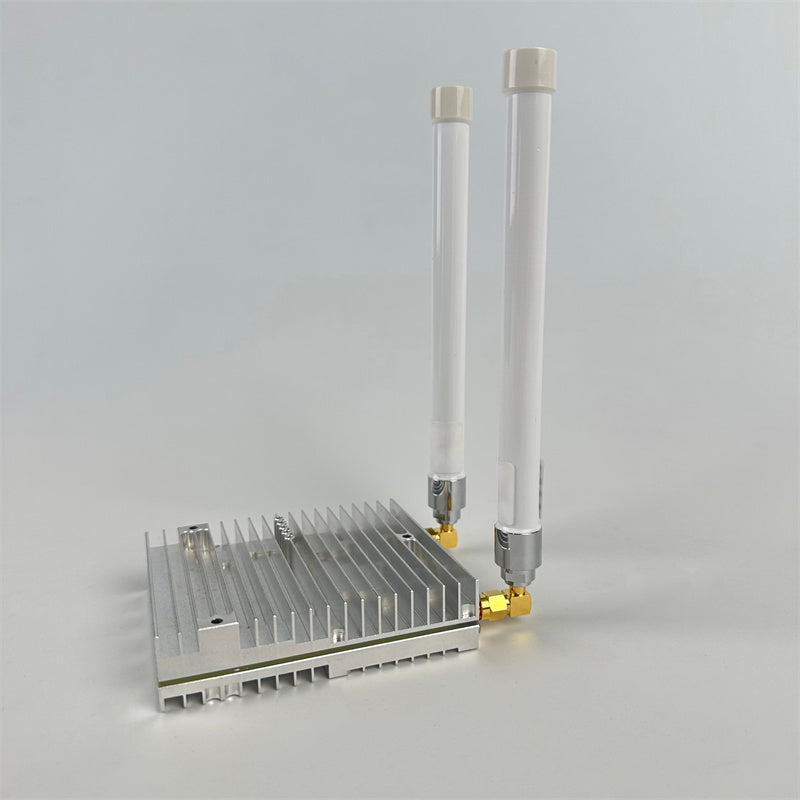

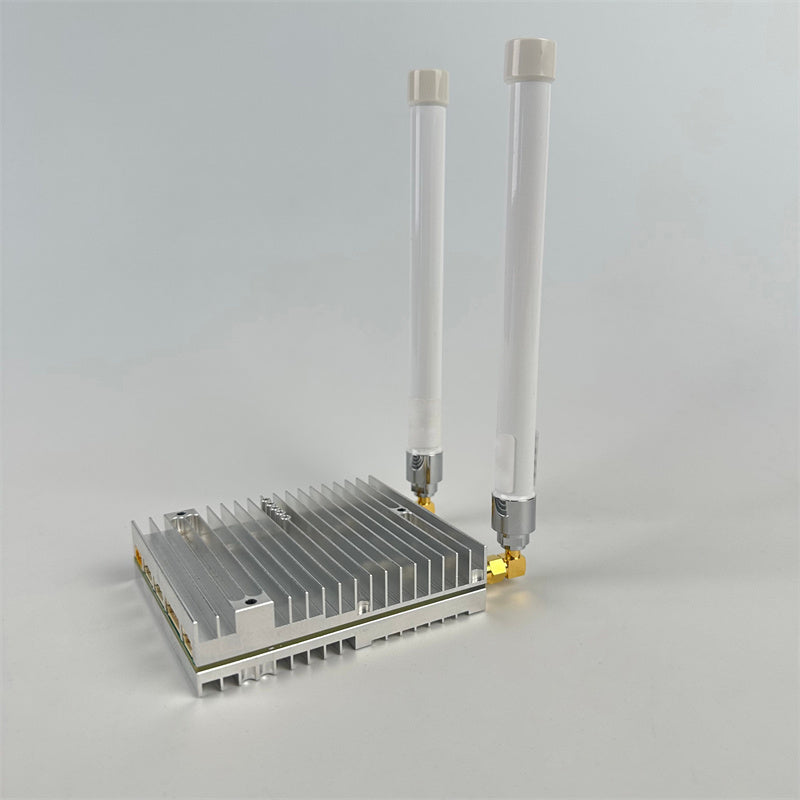

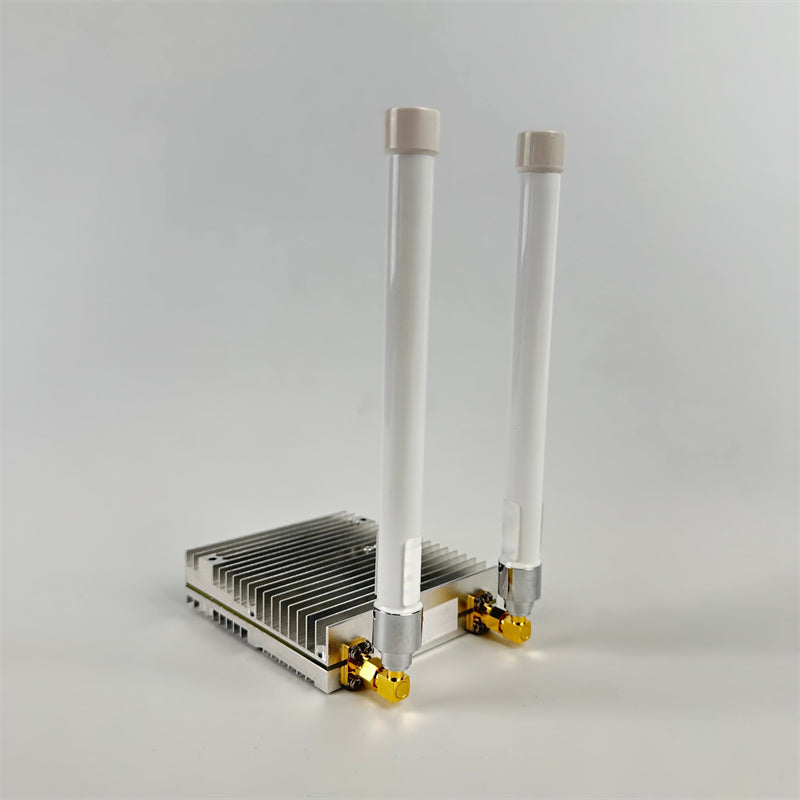

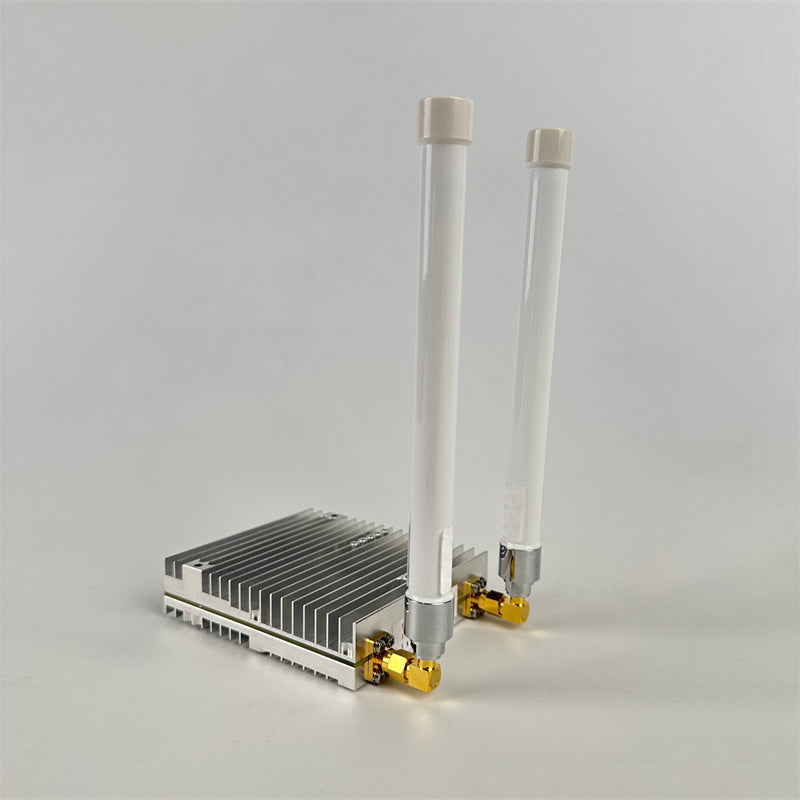

C21D-20 20km Wireless Network Video Data Links Transmission System Transmitter Receiver

Description

C21D-20 is a broadband access and data transmission product that supports star or MESH networks. It supports multiple bandwidth allocations and adopts a flat system architecture design, effectively reducing system latency and improving system transmission capabilities. It features long transmission distance, large data throughput, and strong anti-interference capabilities.

Supports 800M, 1.4G, 1.5G, and 2.4G frequency bands, automatic power control, and a maximum transmission power of 30dBm. The device provides PH2.0 user interfaces.

Key Features

• Supports point-to-point, point-to-multipoint star network and Mesh network
• 30dBm maximum output power
• Flexible bandwidth: 1.4MHz/3MHz/5MHz/10MHz/20MHz
• Multi-frequency support: 800M/1.4G/1.5G/2.4G (customizable)
• Star network can support transmission distances of up to 20km, MESH network can support up to 10km
• Automatic power control & frequency control

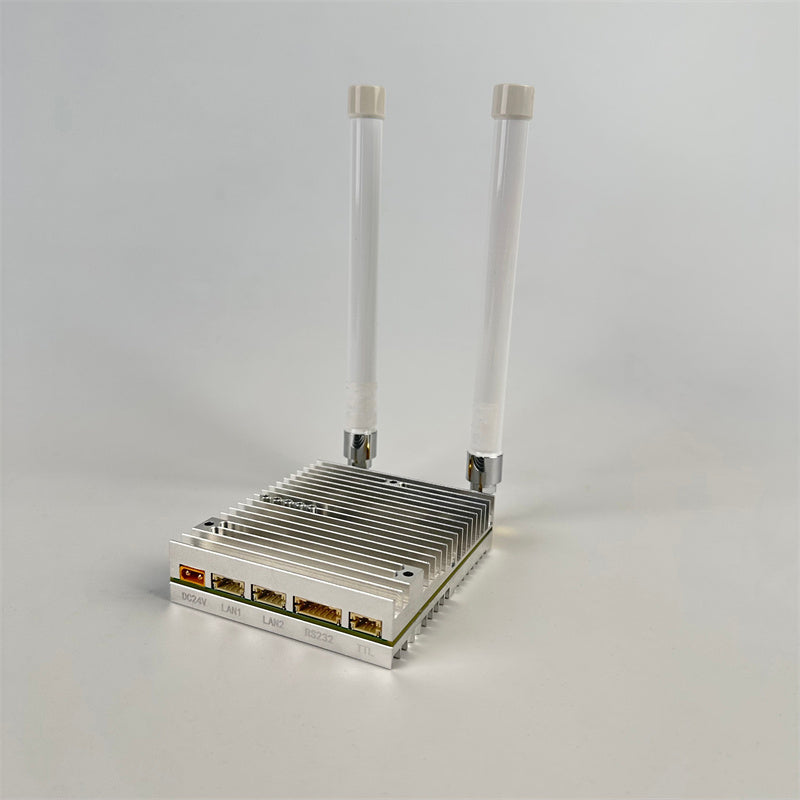

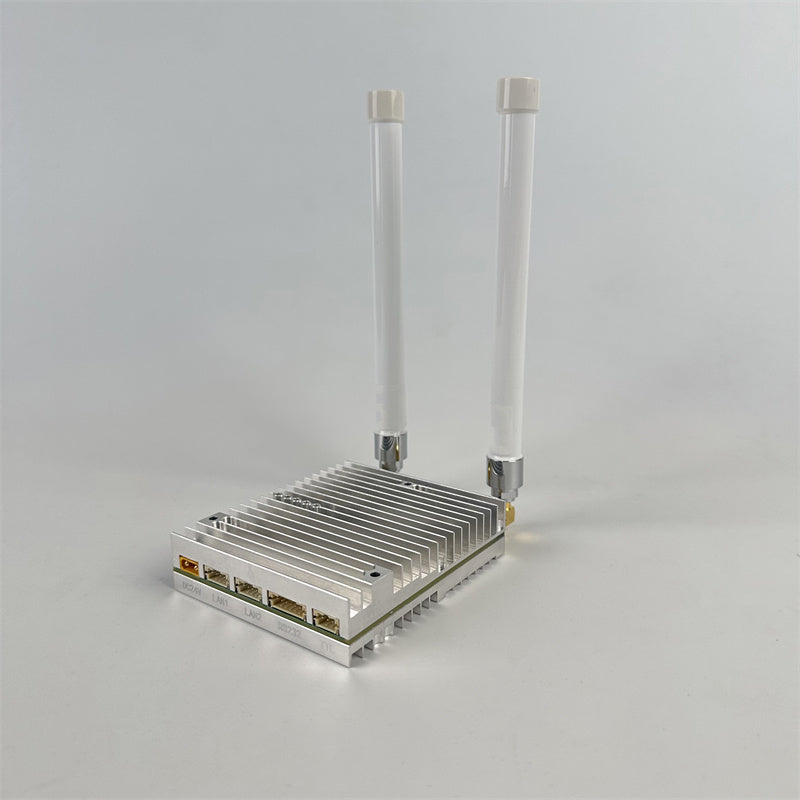

• Provides 2 Ethernet ports with PH2.0 interface
• Provides 2 RS232 serial ports with PH2.0 interface
• Provides 2 3.3V TTL serial ports with PH2.0 interface

*Customizable devices for 800M, 1.4G, 1.5G, and 2.4G frequency bands based on customer requirements and field environment.

*Customization is based on customer requirements only; users cannot modify it themselves.

Applications

Technical Specifications

Important Notes

* Typical application scenarios Point to point communication, dual antenna working mode, 1437MHz working band, 20M bandwidth, maximum transmit power, working temperature 25℃, humidity 50%, rated voltage power supply.

* Antenna connection MANDATORY to prevent device damage

* Improperly connected antennas can cause damage to the device or cause serious performance differences.

* Proper heat dissipation required for continuous operation

* Signal strength limit: Receiving port <10dBm

* Antenna spacing requirements: between the same module：> 0.1m; Between modules：>1m (Applicable to powered on and powered off modules)
