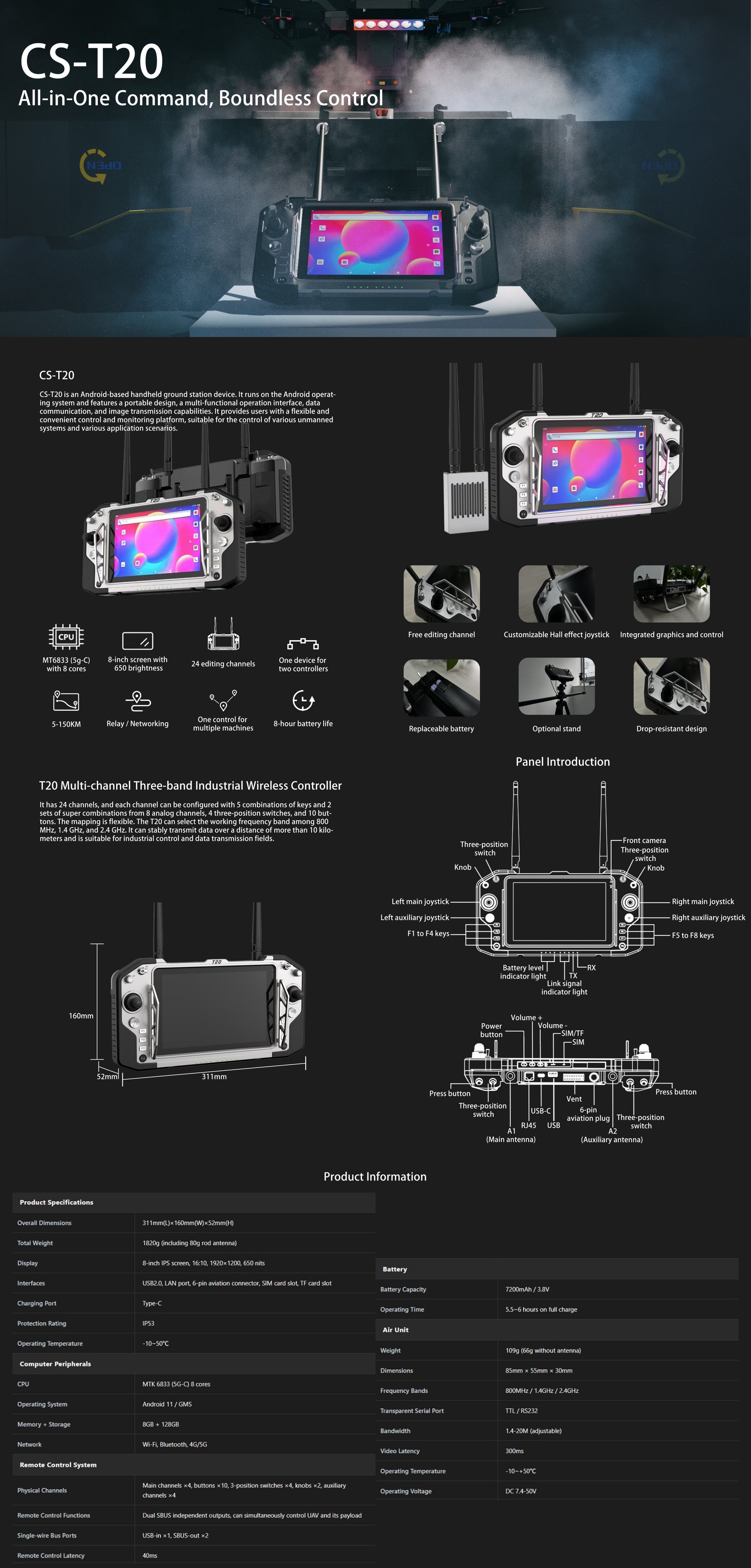

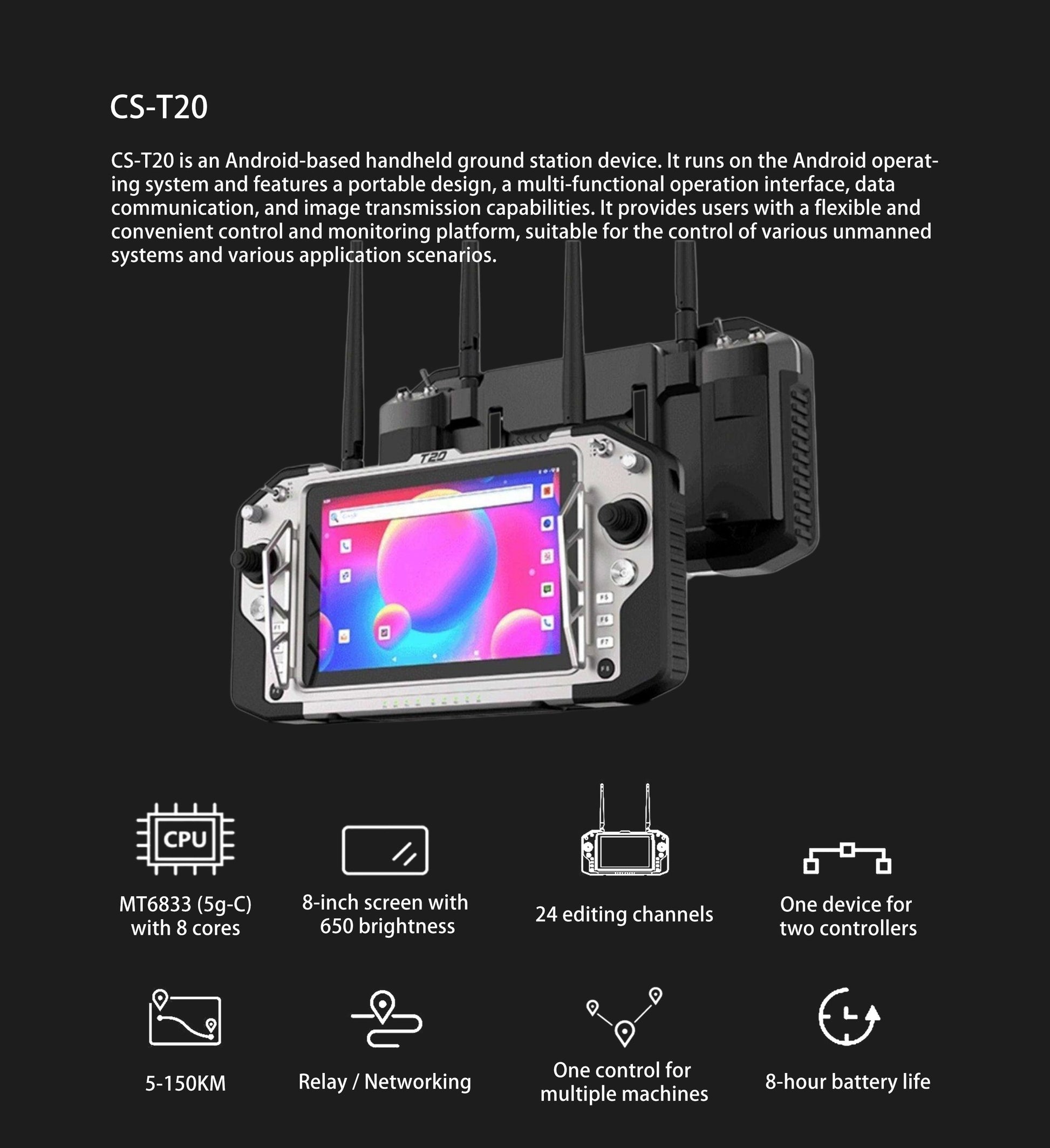

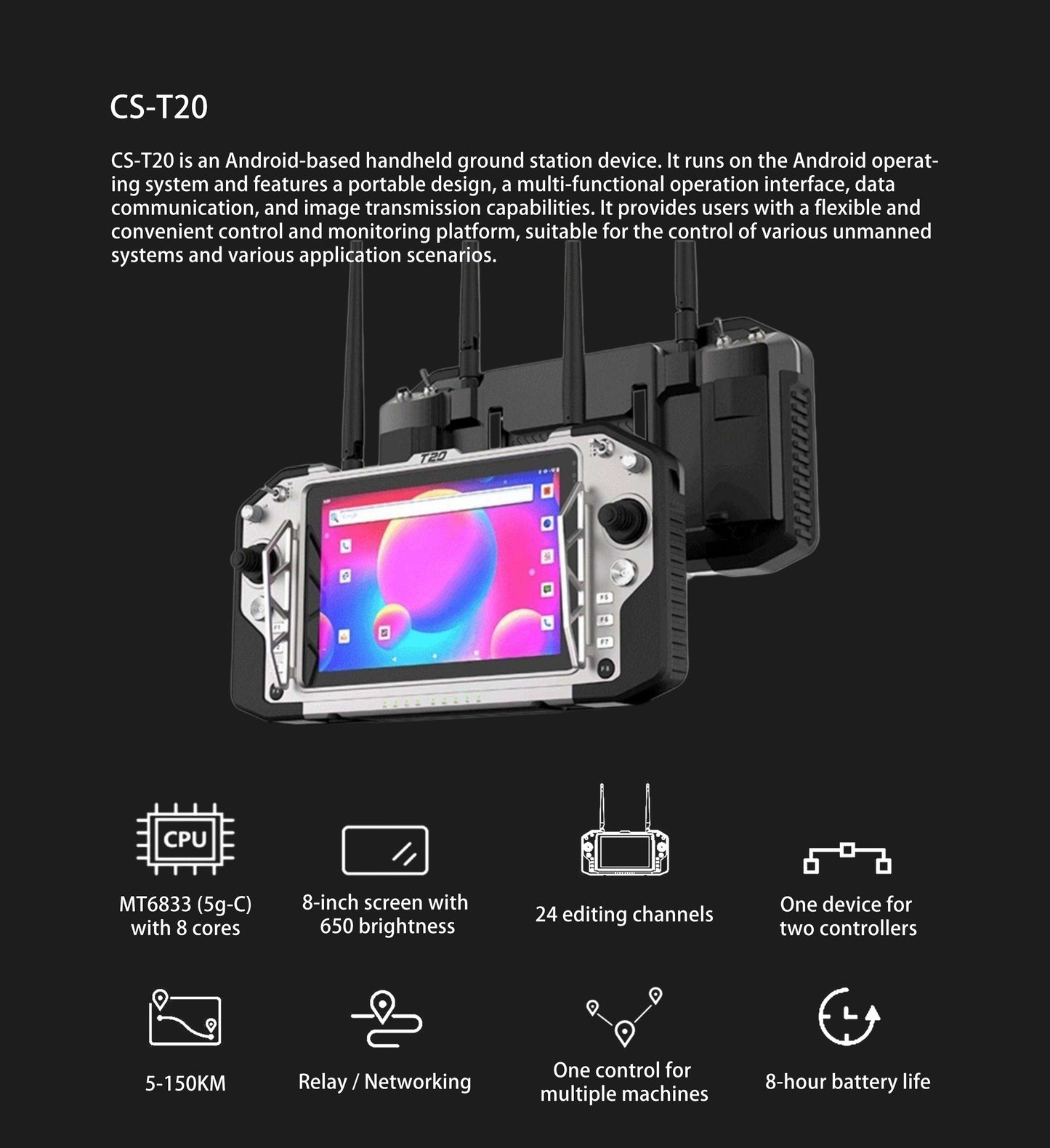

Croskylink CS-T20 Industrial Handheld Controller Aluminum 1200g 8-Inch IPS Display Ground Control Station Gcs Remote System

CS-T20  Handheld Ground Station – Key Features

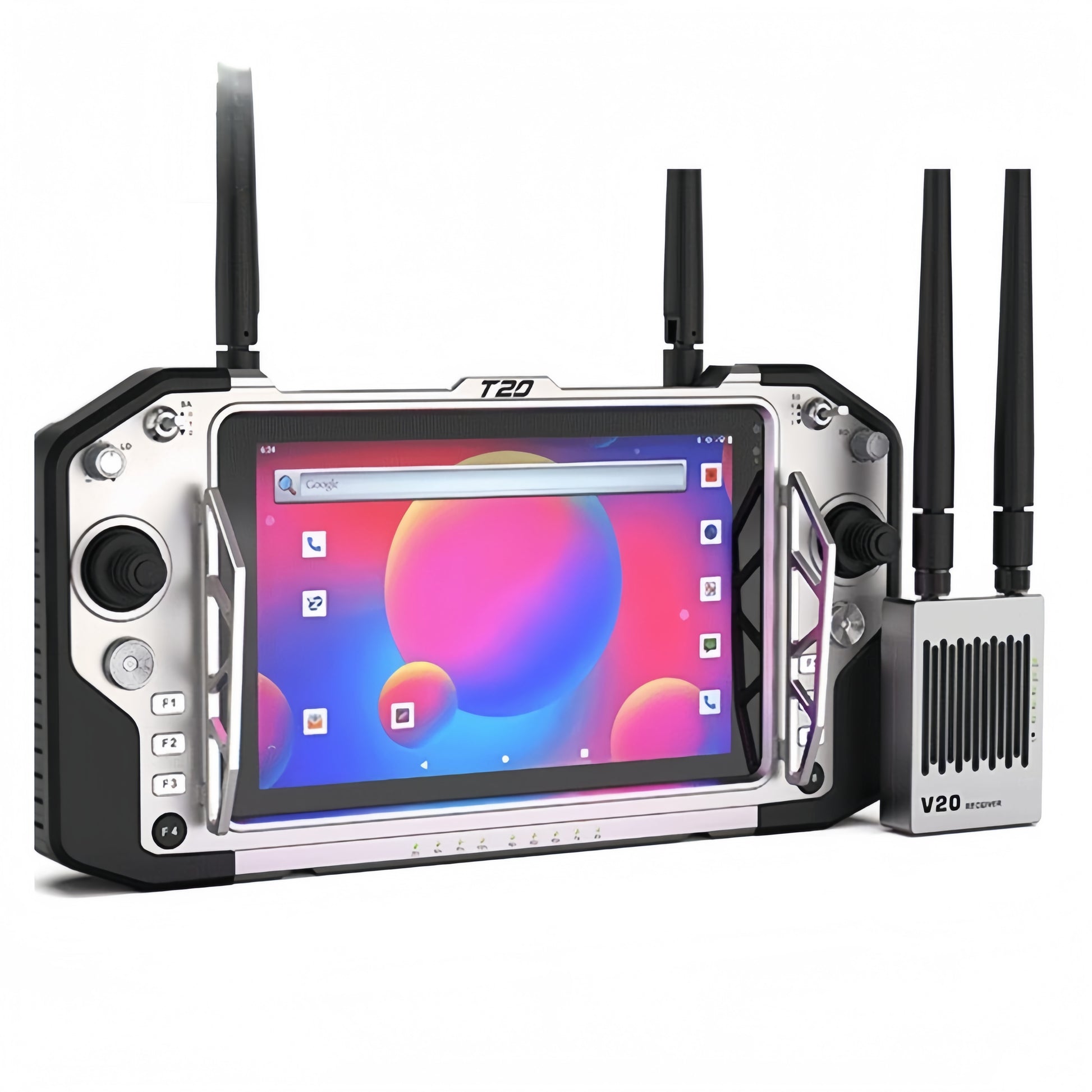

• Integrated All‑in‑One Design – Combines remote control, telemetry, and video link into one unit. Selectable RF bands (800MHz / 1.4GHz / 2.4GHz) with transmission range >10 km; flexible configuration for various mission profiles and compatibility with mainstream third‑party data links.

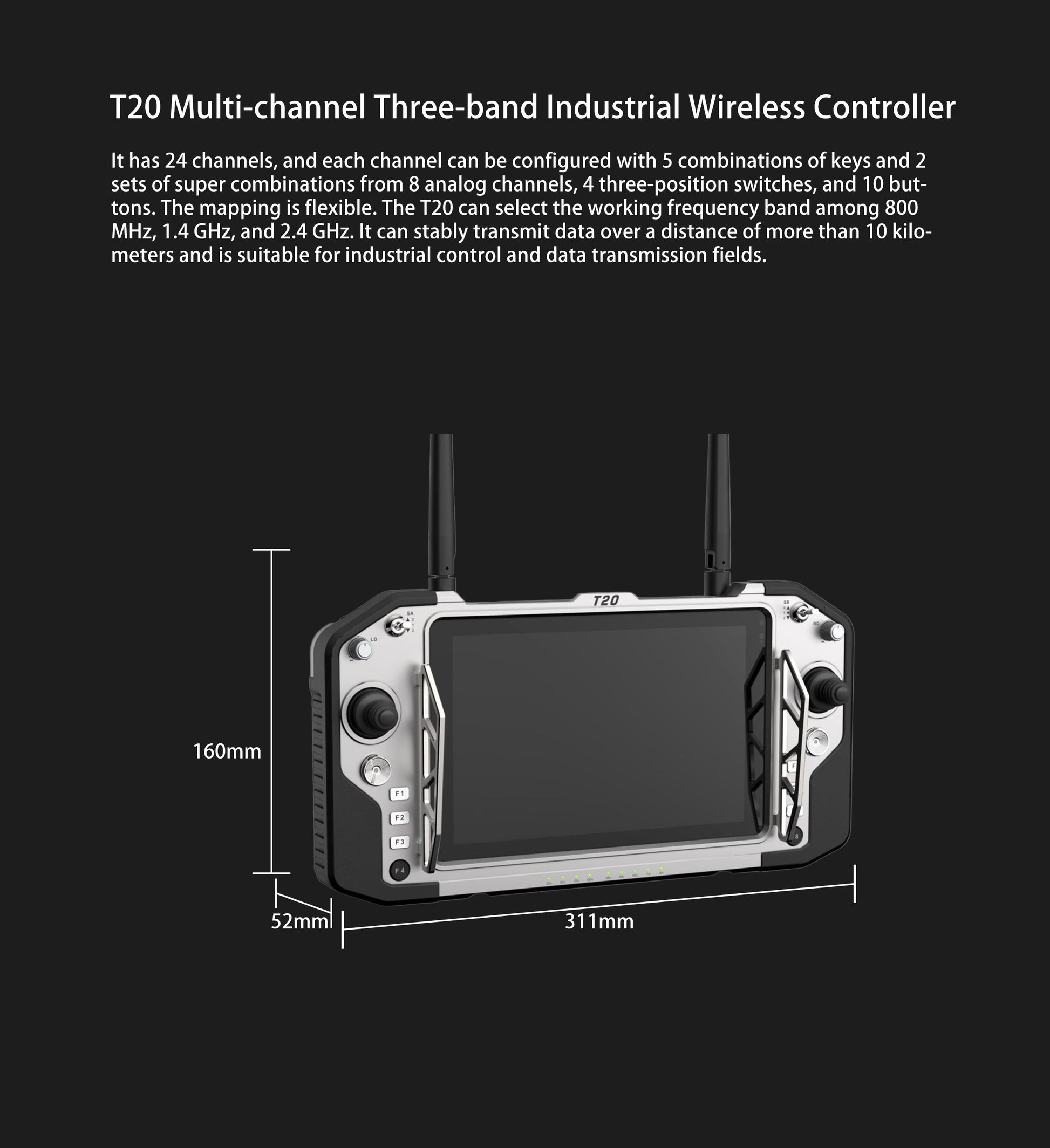

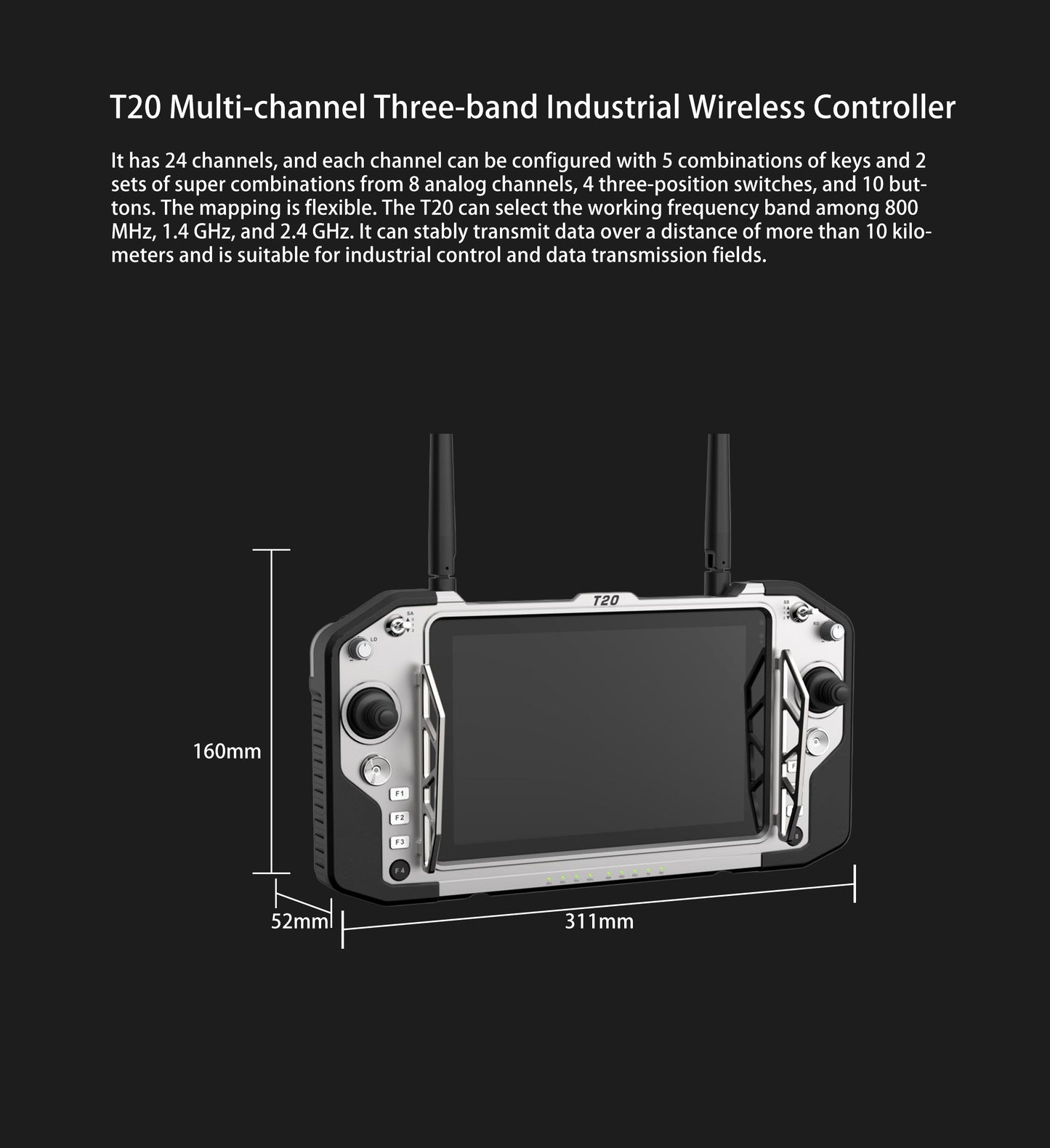

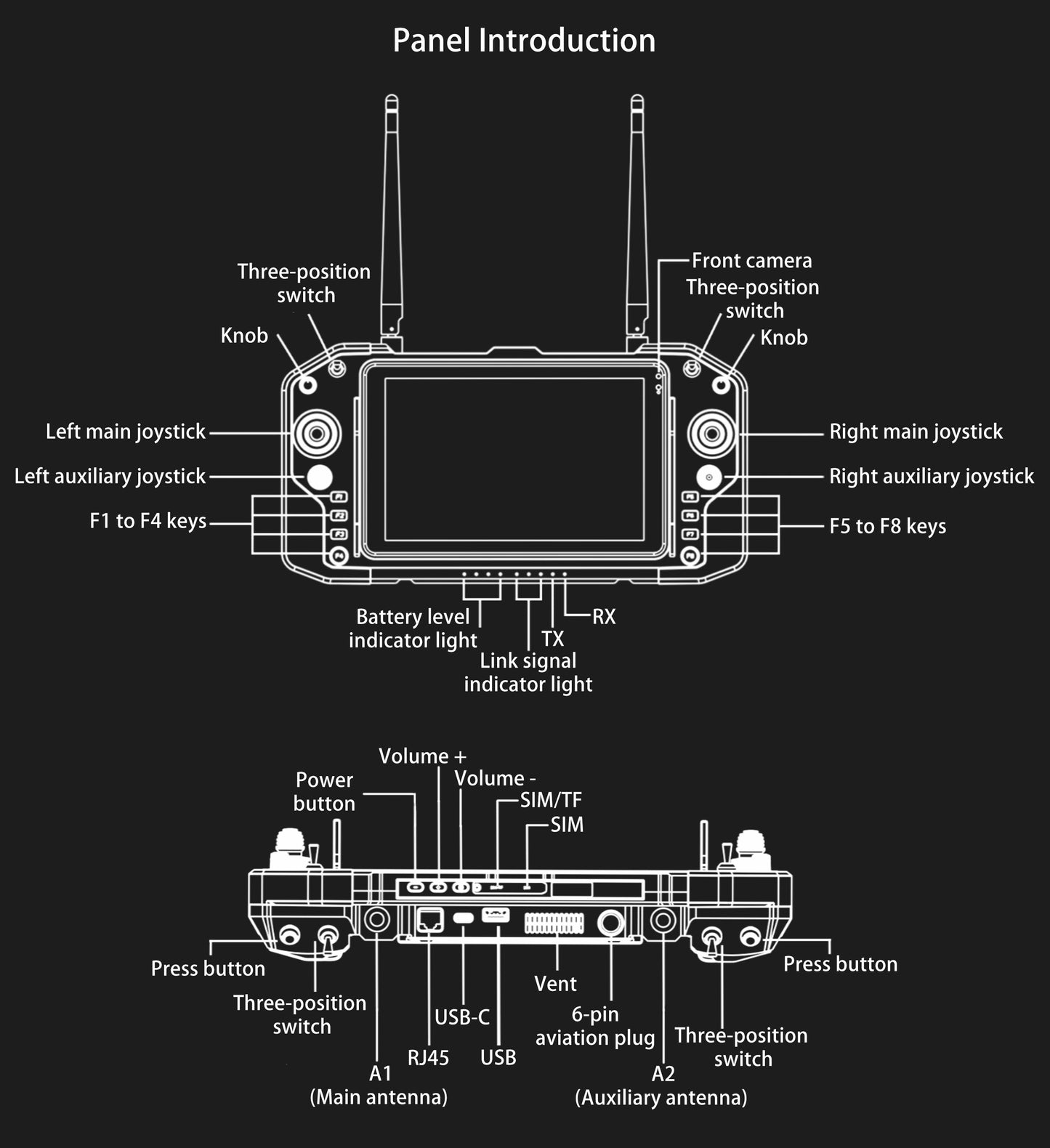

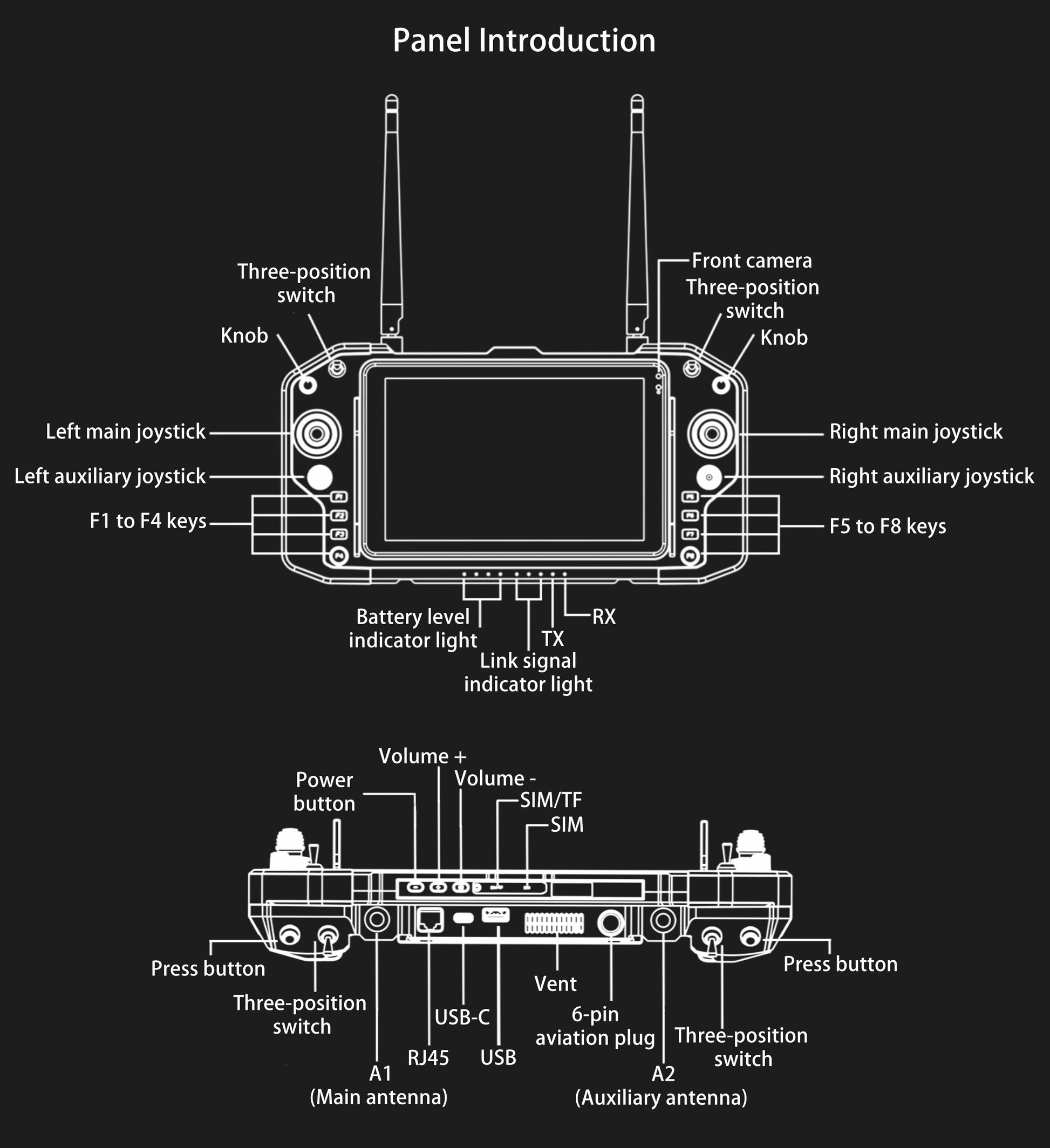

• Programmable Dual SBUS Outputs – Independent dual SBUS channels allow simultaneous control of both the UAV and its payload (e.g., gimbal). 24 physical input channels (joysticks, dials, switches, knobs) deliver versatile and precise manipulation.

• Android Smart Platform & 5G Connectivity – Powered by octa‑core 5G chipset (MT6833), running Android 11 / GMS, compatible with most ground‑control apps. Integrated GPS+Galileo+Glonass+BeiDou multi‑constellation positioning, plus 3G/4G/5G support for real‑time data transmission.

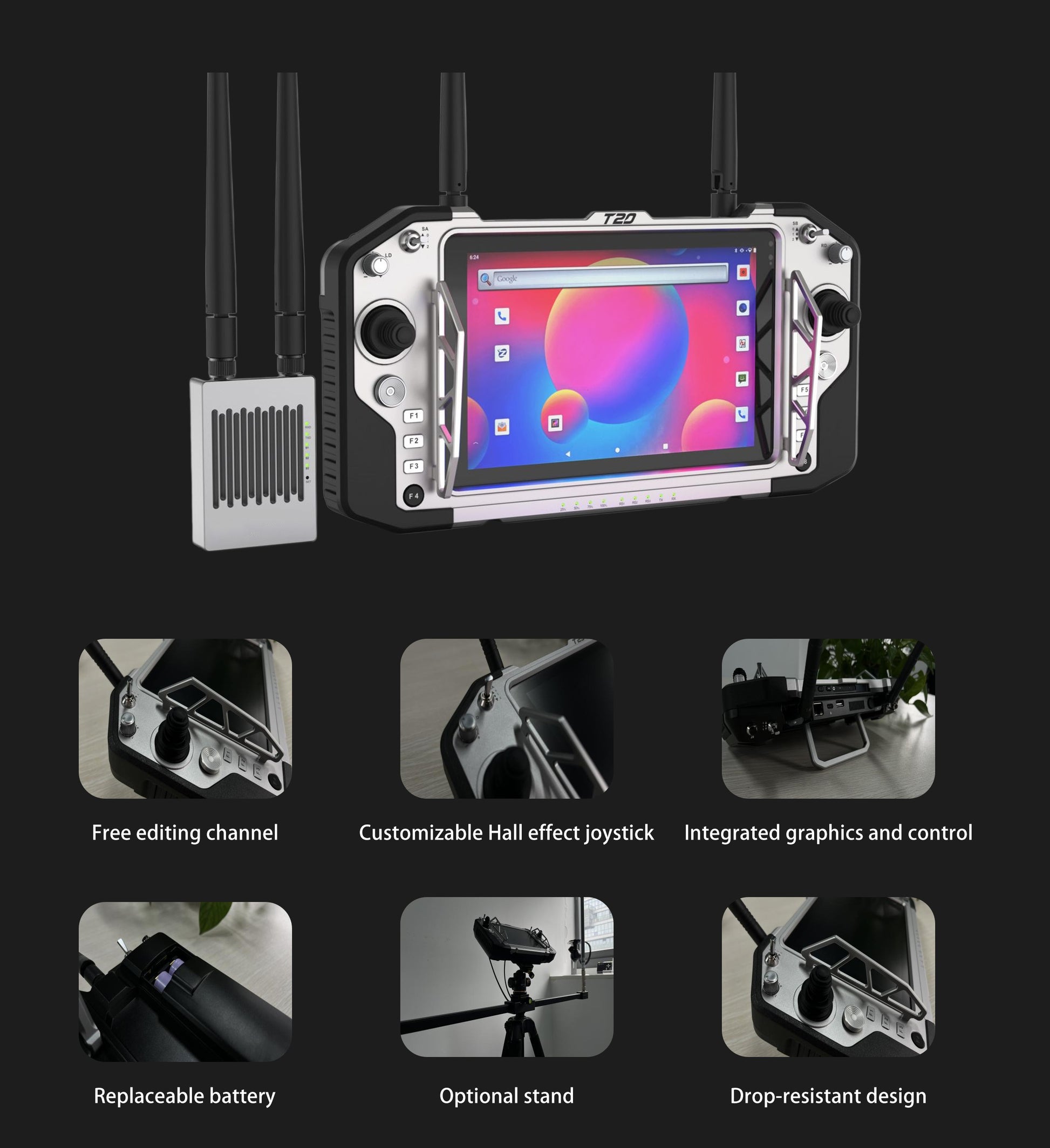

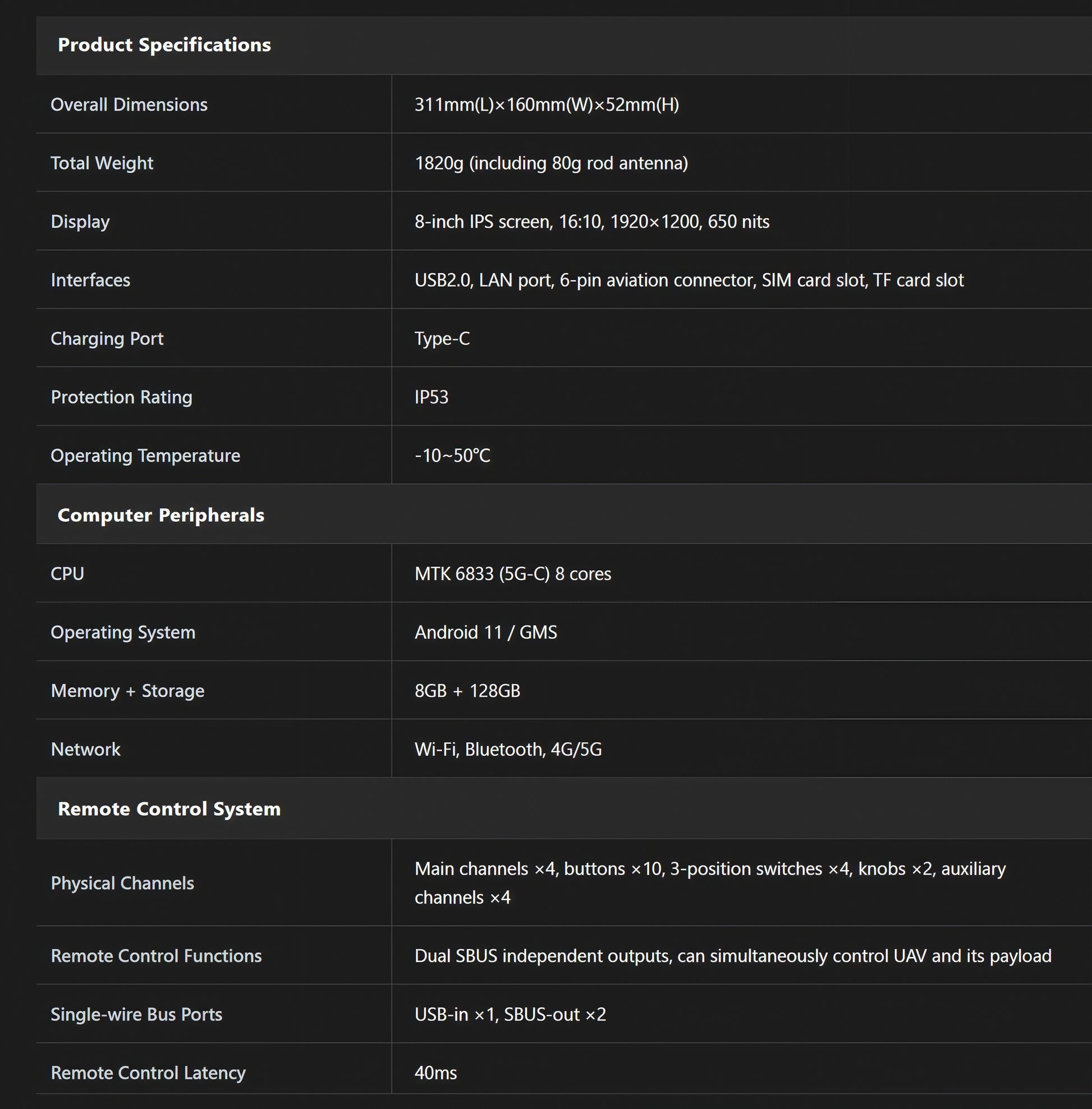

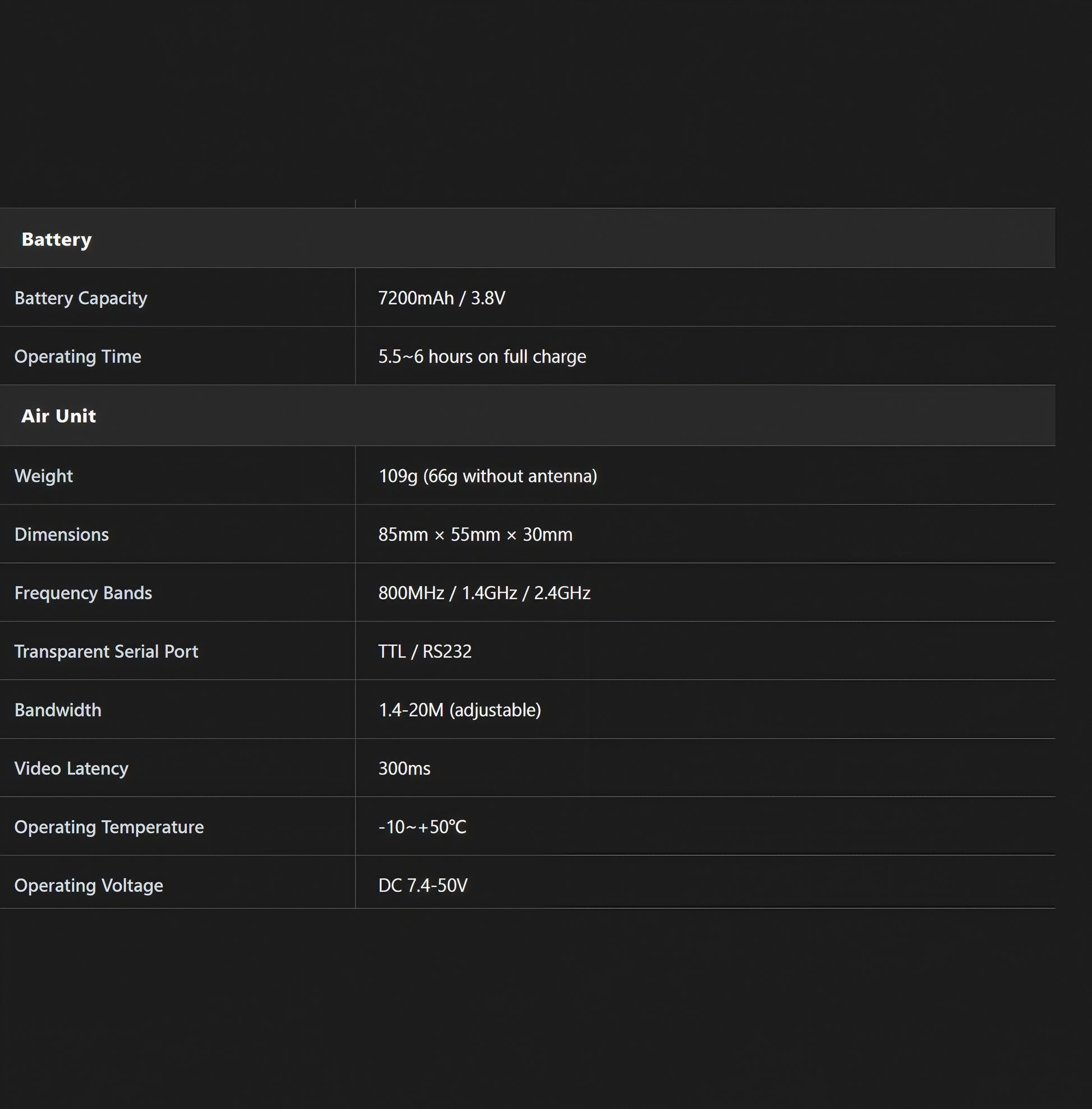

• Lightweight, Rugged & Long‑Run – Aviation‑grade aluminum housing, only 1.8 kg total weight. Removable dual batteries (7200+6700 mAh) provide up to 7 hours of operation. 8‑inch IPS display (1920×1200, 650 nits) with 10‑point touch ensures clear outdoor visibility.
