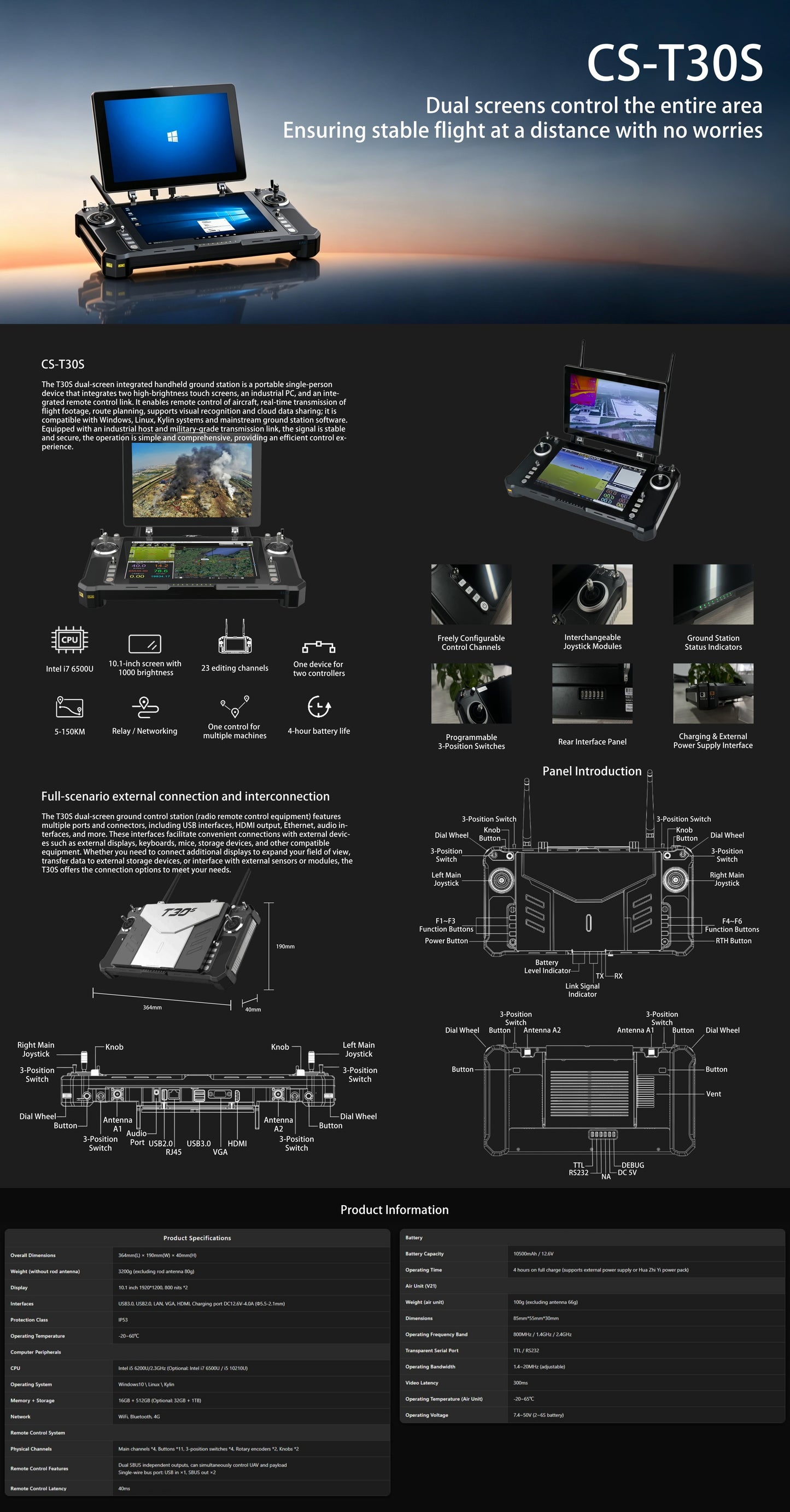

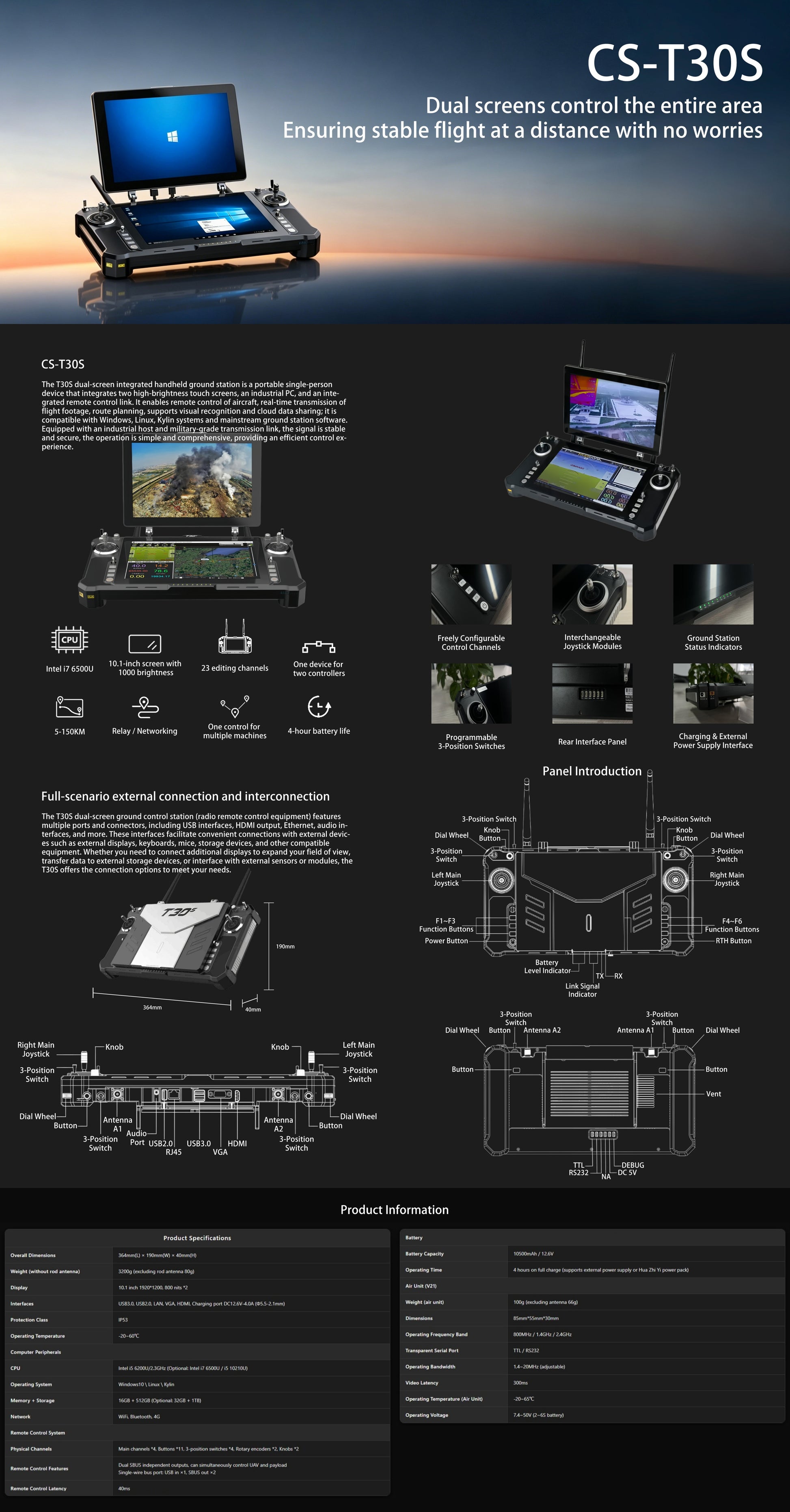

Croskylink CS-T30s Dual Display Portable Controller Integrated Gcs Ground Station Equipment

CS-T30s Handheld Ground Station – Key Features

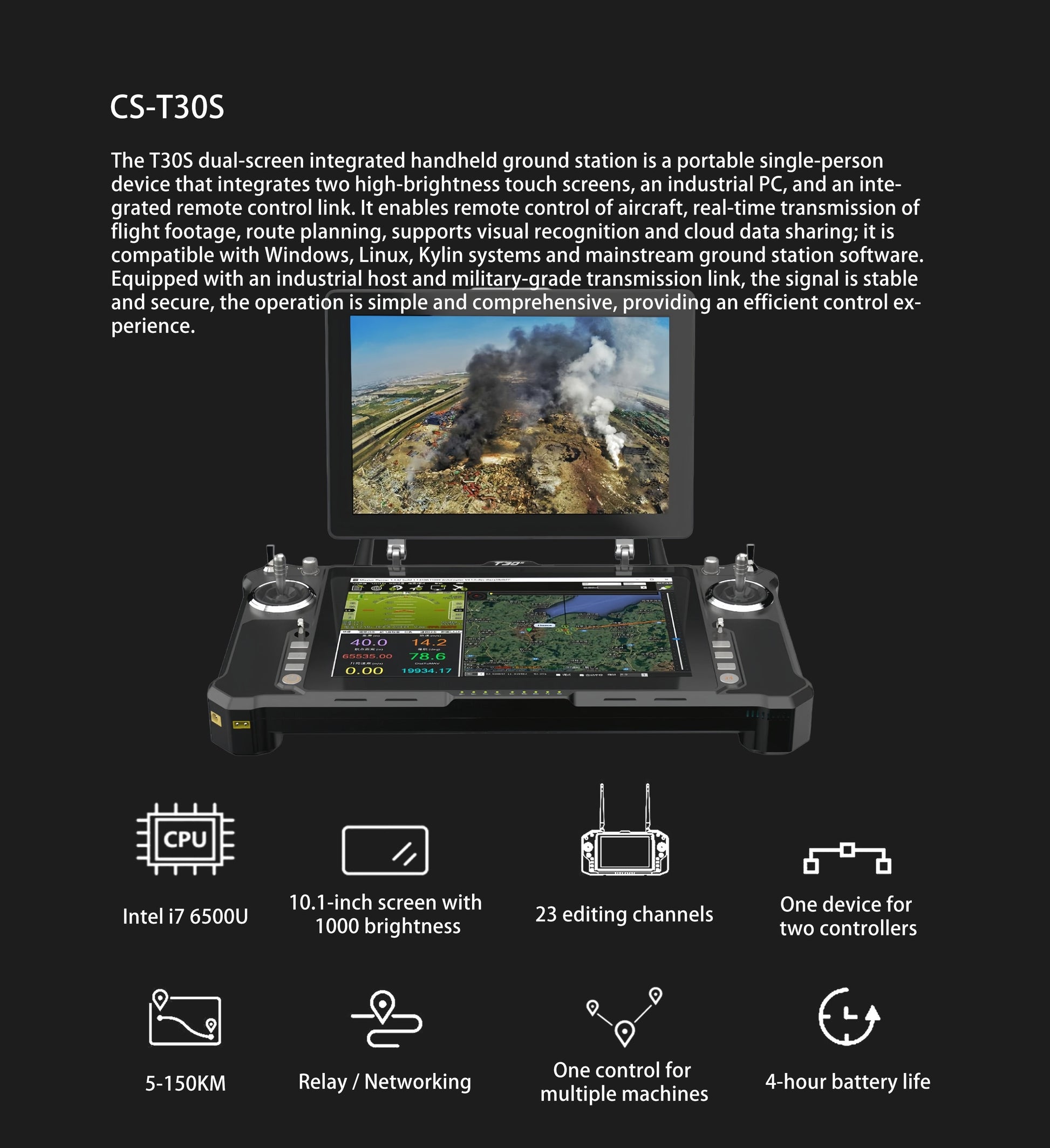

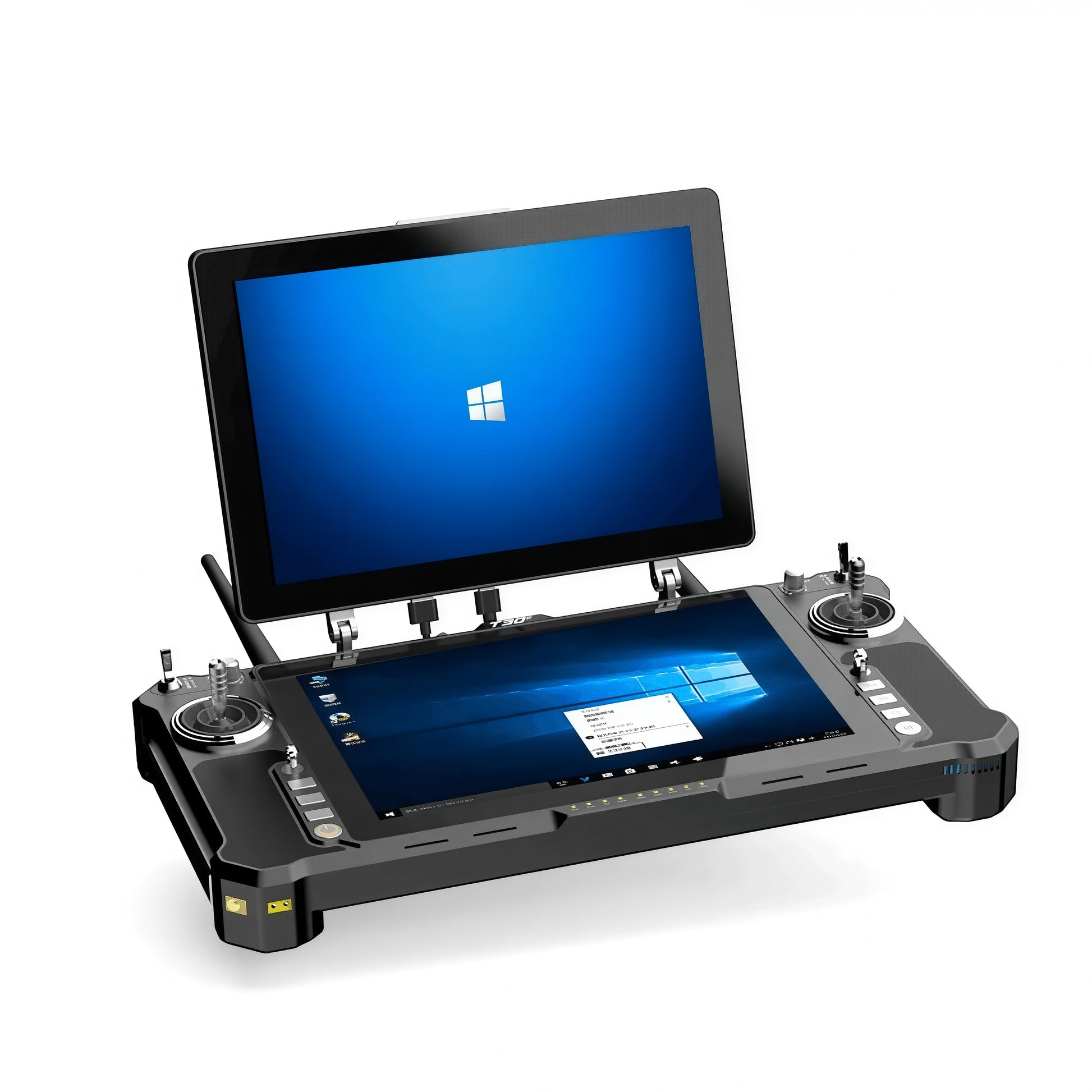

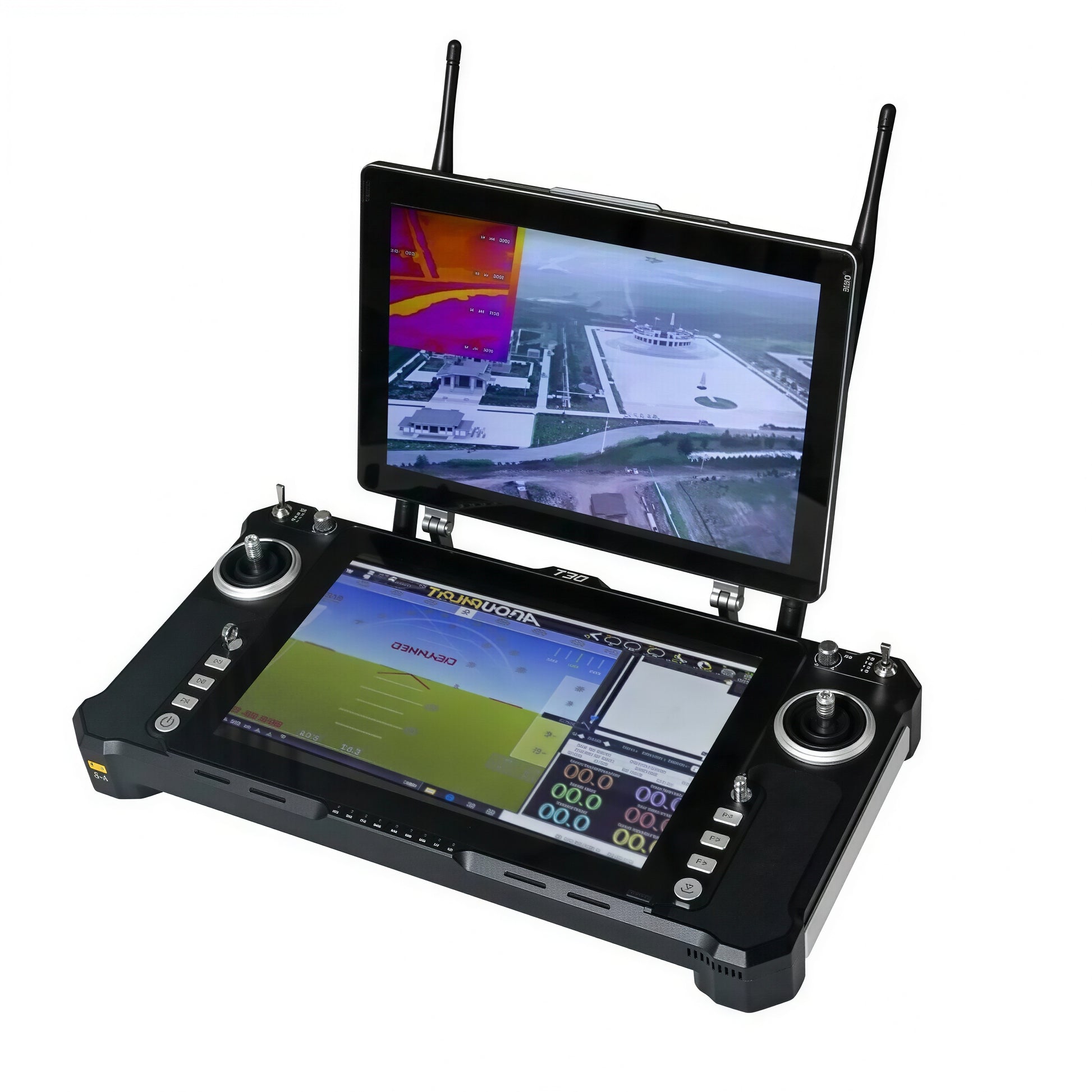

• Professional Dual‑Screen Workstation – Equipped with dual 10.1‑inch high‑brightness touchscreens (1280×800, 800 nits), supporting split‑screen (upper/lower) and primary/secondary configurations. The upper screen accepts external HDMI video input as an extended display for multi‑task monitoring.

• Tri‑Band All‑in‑One Data Link – Integrates 800MHz / 1.4GHz / 2.4GHz bands with software‑selectable frequency, providing communication range of 10–30 km. Combines video, telemetry, and remote control in a single unit, greatly simplifying single‑operator field missions.

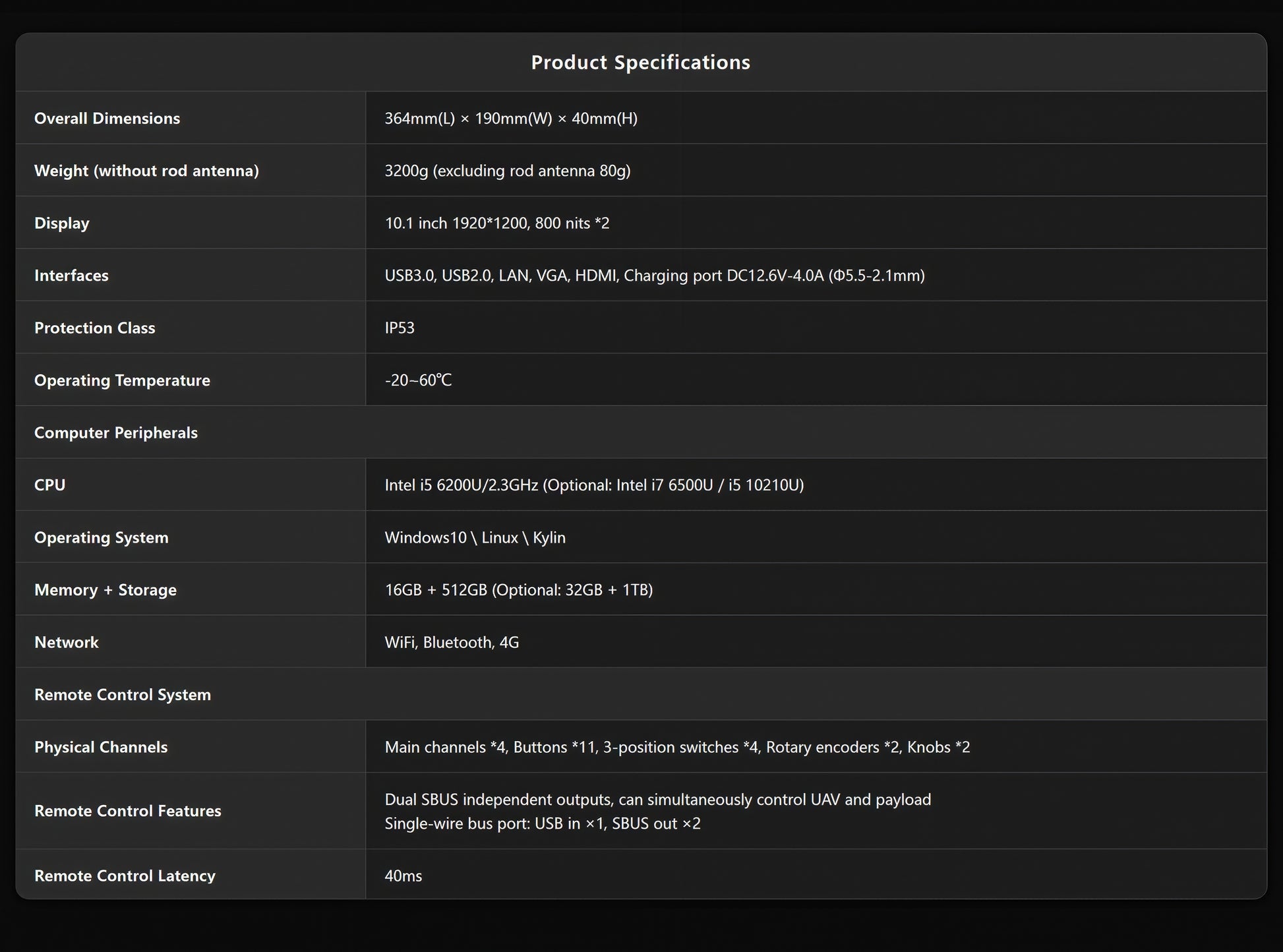

• Industrial‑Grade Computing & Dual SBUS – Powered by Intel i7‑6500U, 16GB RAM, 512GB storage, and Windows 10 – ensures compatibility with mainstream flight controllers and ground control software. Dual independent SBUS outputs enable simultaneous control of UAV and payload (e.g., gimbal) for versatile operations.

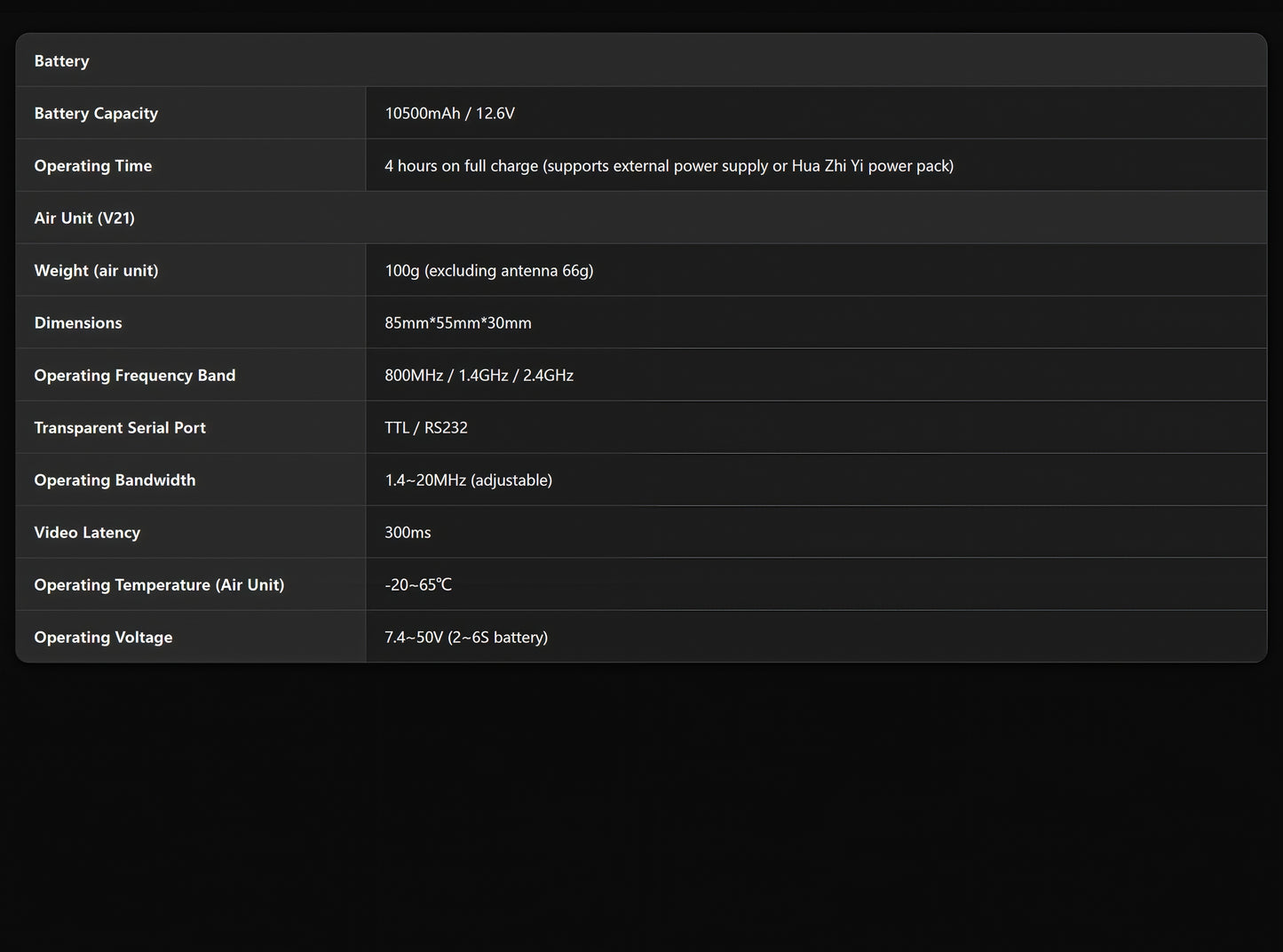

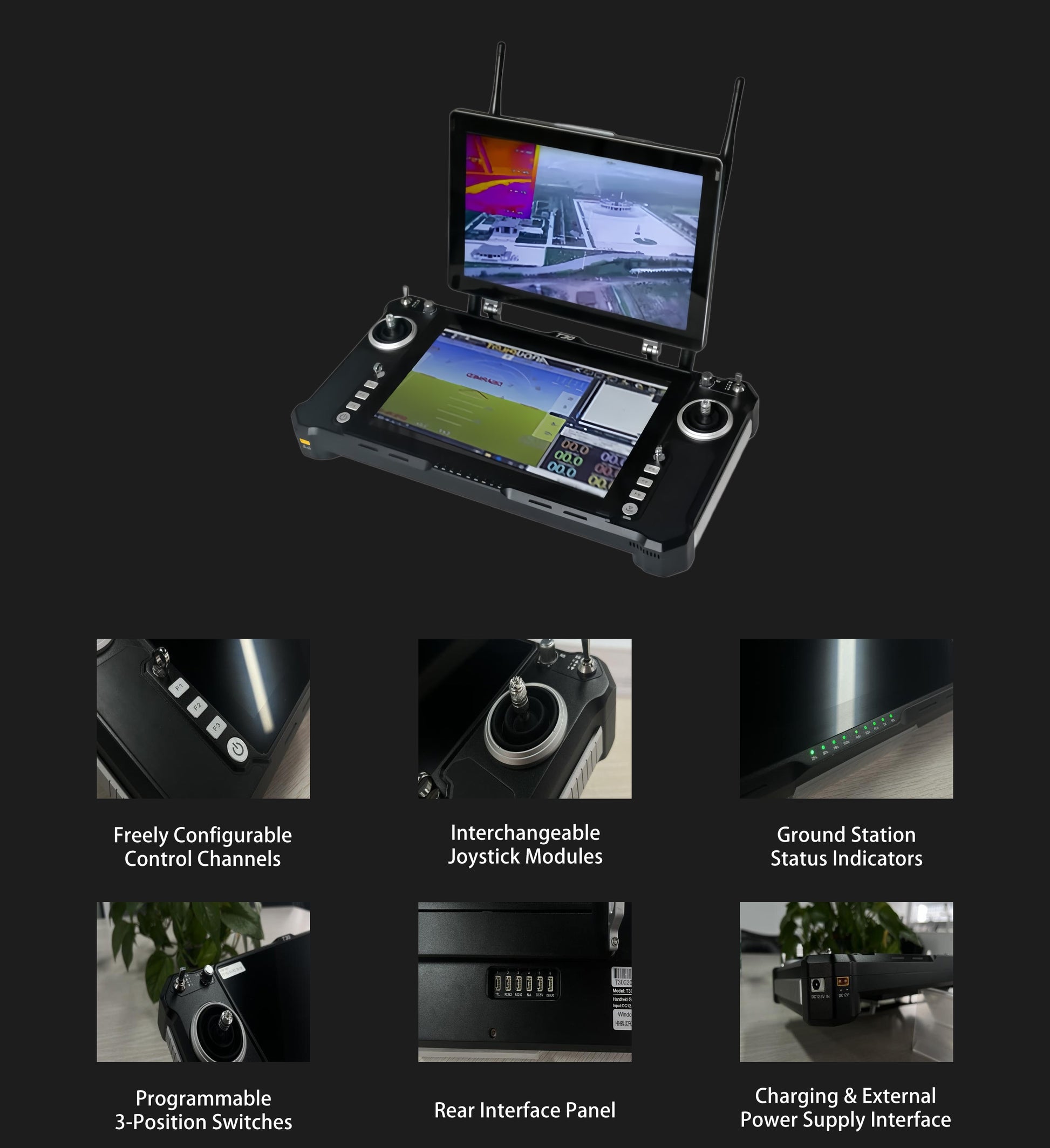

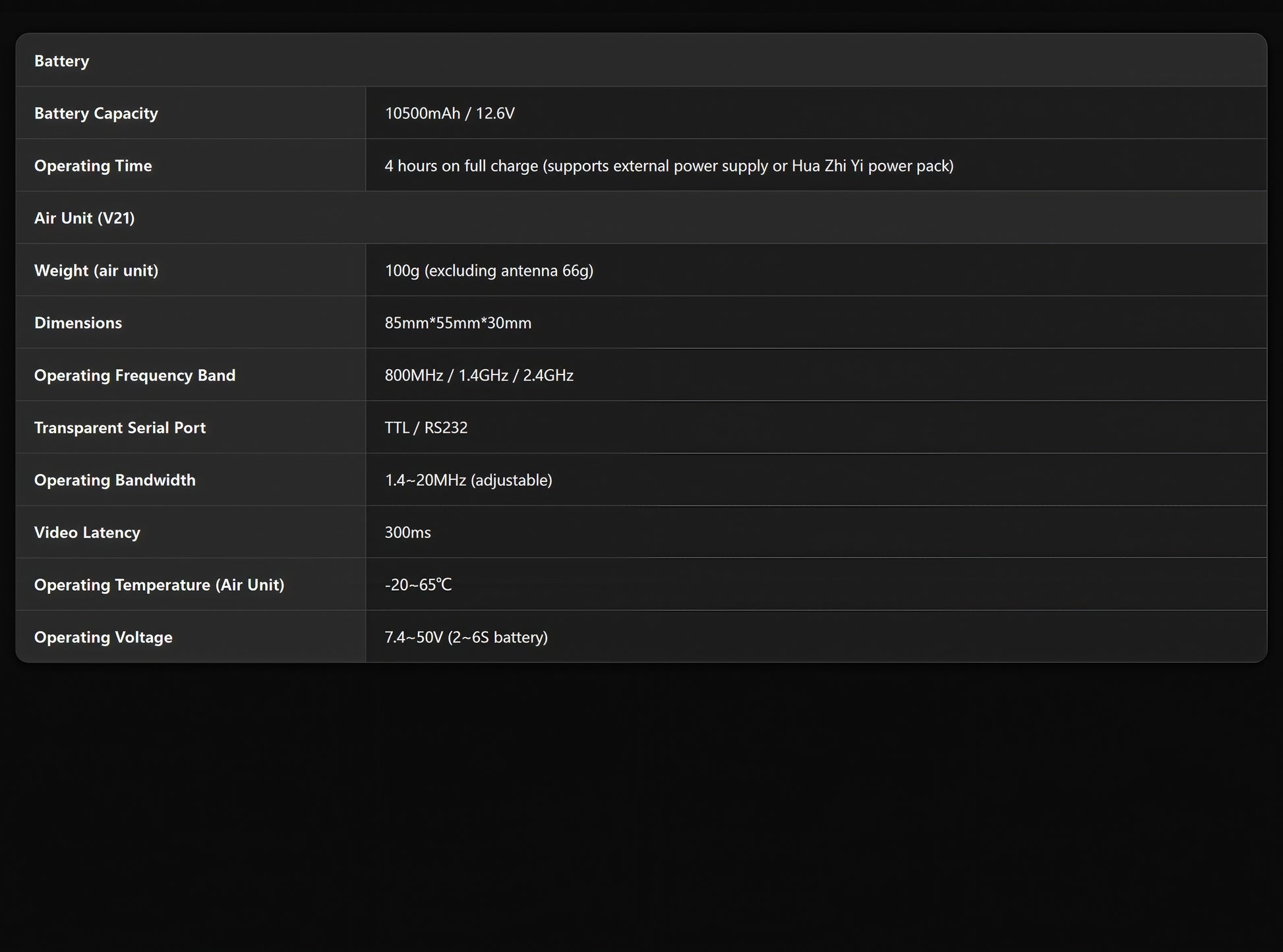

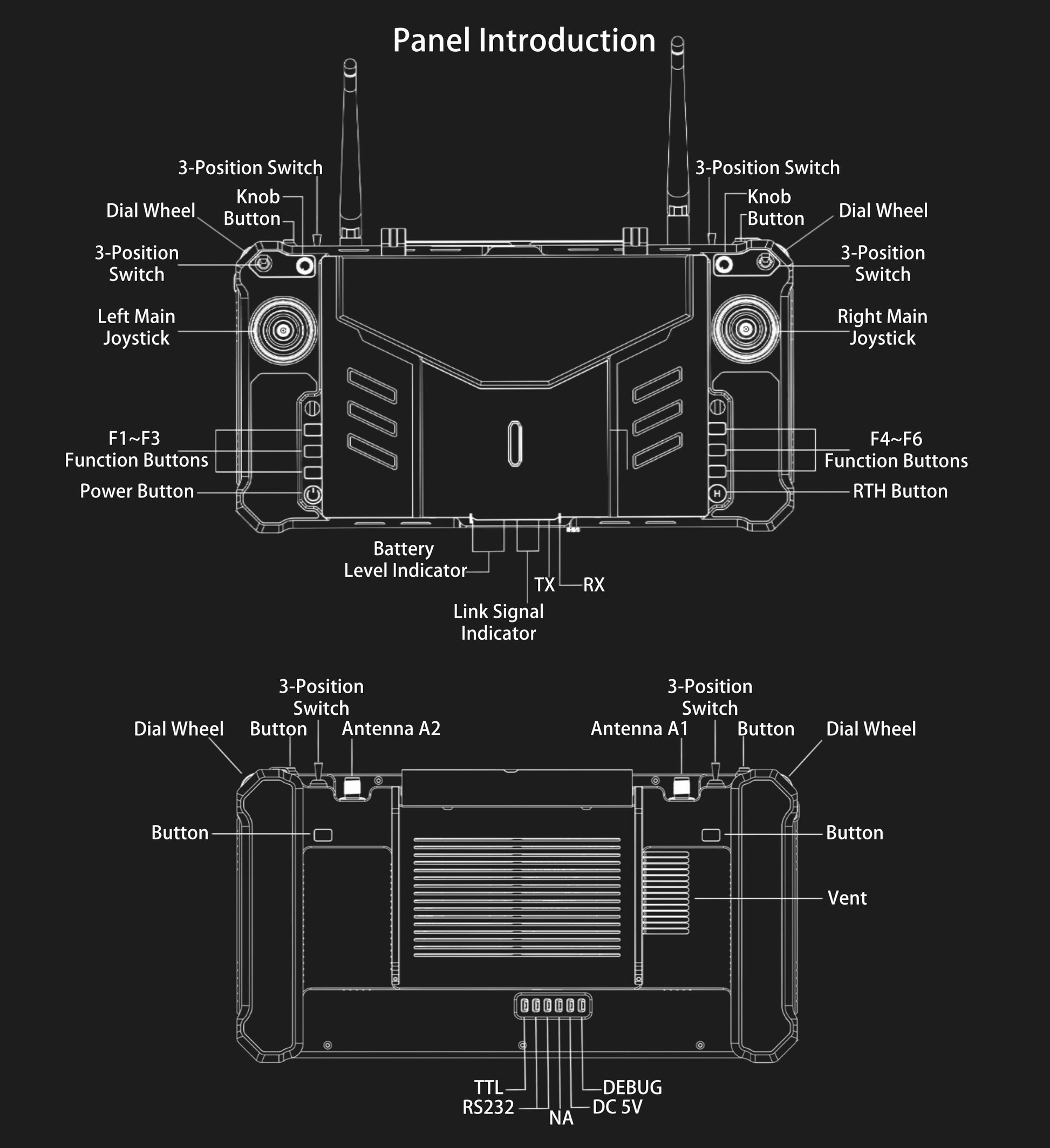

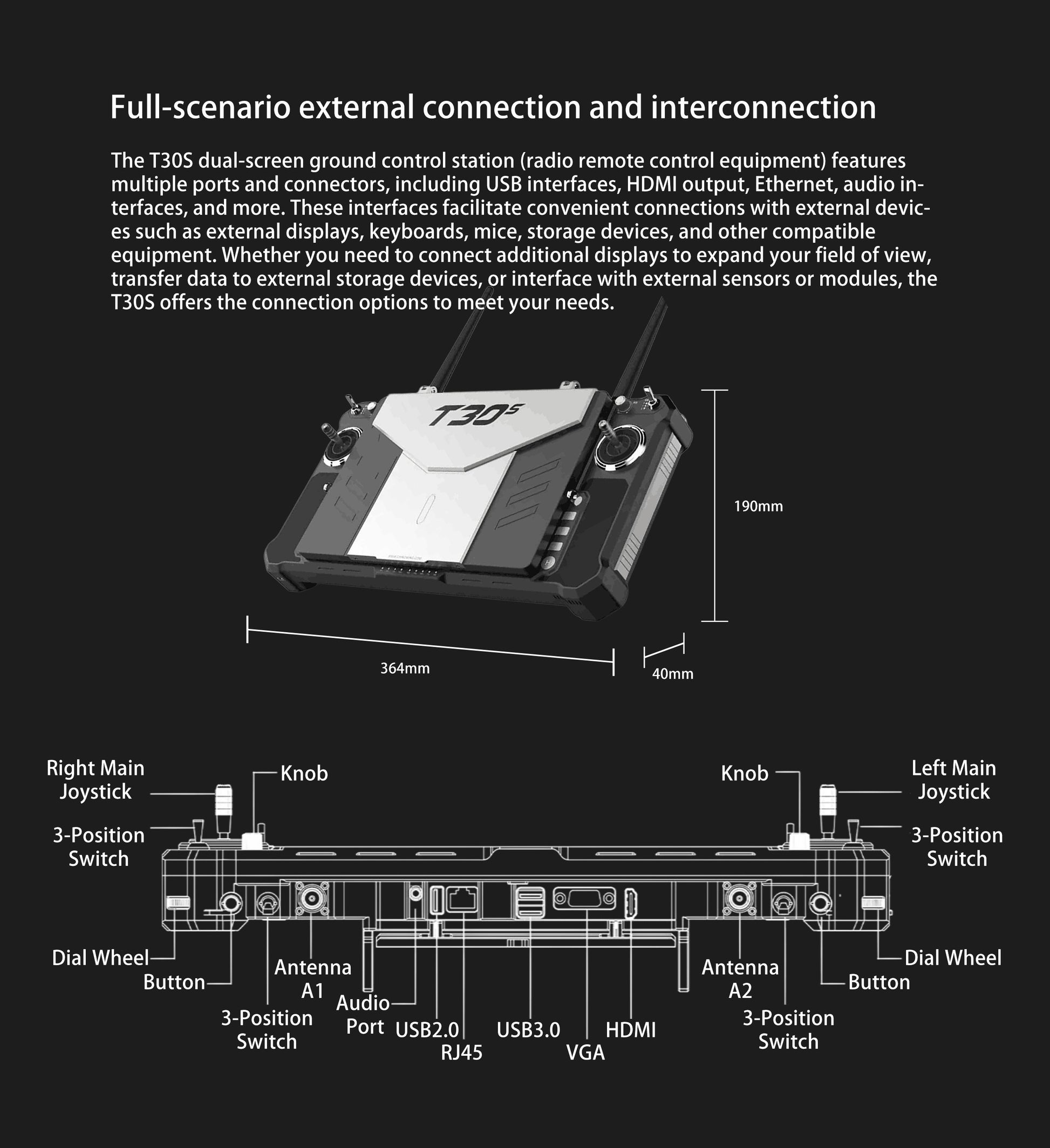

• Lightweight Aluminum Chassis & Full I/O – Aviation‑grade aluminum with narrow‑bezel design, weighing only 3.2 kg (about 1/10 of traditional ground stations). Rich interfaces include USB 2.0/3.0, Gigabit Ethernet, VGA, HDMI, TTL/RS232 serial ports, and headphone jack. Built‑in 10050mAh battery provides 3 hours of continuous operation for extended field use.
