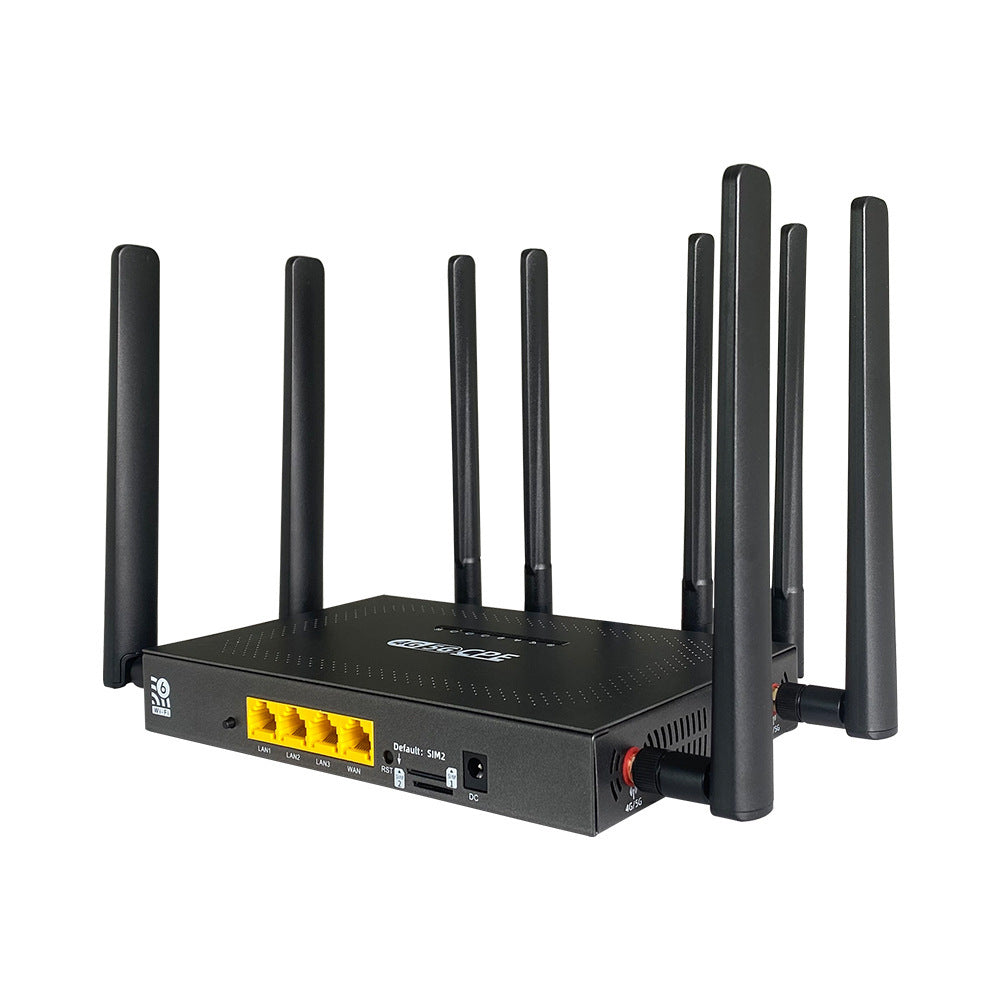

Croskylink CS-Z8105AX-M2-T Industrial 5g Plug-in Router Dual-Core Ax3000 Smart Mt7981b Solution Gigabit Wireless WiFi6 Router

Croskylink CS-Z8105AX-M2-T Industrial 5g Plug-in Router Dual-Core Ax3000 Smart Mt7981b Solution Gigabit Wireless WiFi6 Router

$88.00 USD
$440.00 USD $88.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model

Main features of the product:

  • Adopting the MT7981B solution, it features an ARM Cortex-A53 dual-core CPU with a clock speed of up to 1.3GHZ

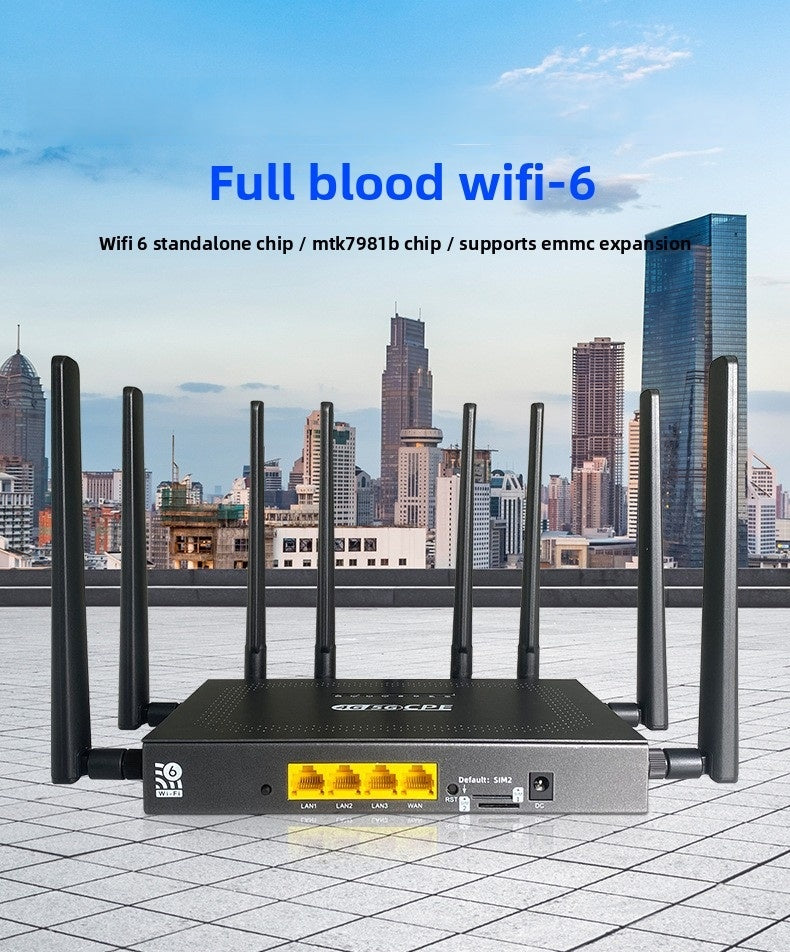

  • Equipped with an independent WIFI6 chip, MT7976CN, it boasts a speed of up to 3000Mbps
  • Equipped with high-speed 256M DDR3 and paired with 128MB SPI NAND Flash
  • 1WAN+3LAN, all supporting 10/100/1000M auto-sensing and auto-flipping (Auto MDI/MDIX)
  • Support "one-click flashing mode", where long pressing the reset button enters rescue flashing mode
  • It is equipped with one M.2 standard interface, which can be used to connect a 5G mobile communication module.
  • It features one external standard SIM card (large card) interface and one internal eSIM (QFN-8 6mmx5mm) card interface,
  • Support SIM/USIM cards
  • Equipped with a high-gain WIFI antenna and a 5G mobile communication antenna, it ensures wireless signals are available in all directions without any dead zones
  • The 5G module connects to the PHY network interface chip externally and communicates with the routing SOC, ensuring faster and more stable 5G speeds
  • l The 5G module connects to the PHY network interface chip externally and communicates with the routing SOC, ensuring faster and more stable 5G speeds

1.  Overview

CS-Z8105AX-M2-T is a 5G+WIFI6 home CPE router that accesses the Internet through 5G mobile communication dial-up or a 1000Mbps WAN port, and then shares the Internet network through wireless WiFi 6 and a 1000Mbps wired LAN. In addition, this product uses a PHY network port chip to directly communicate with the 5G module, enhancing the communication rate between the 5G module and the router SOC, providing end users with a faster and more stable 5G network.

2. Standard

Relevant standards and specifications:

  • USB3.0/USB2.0 bus standard
  • SIM/USIM interface standard
  • IEEE802.11n/g/b/a/ac/ax
  • IEEE802.3/802.3u/802.ab
  • PCI Express M.2 Specification Rev1.1

  • The 5G mobile communication standard

3.  Hardware

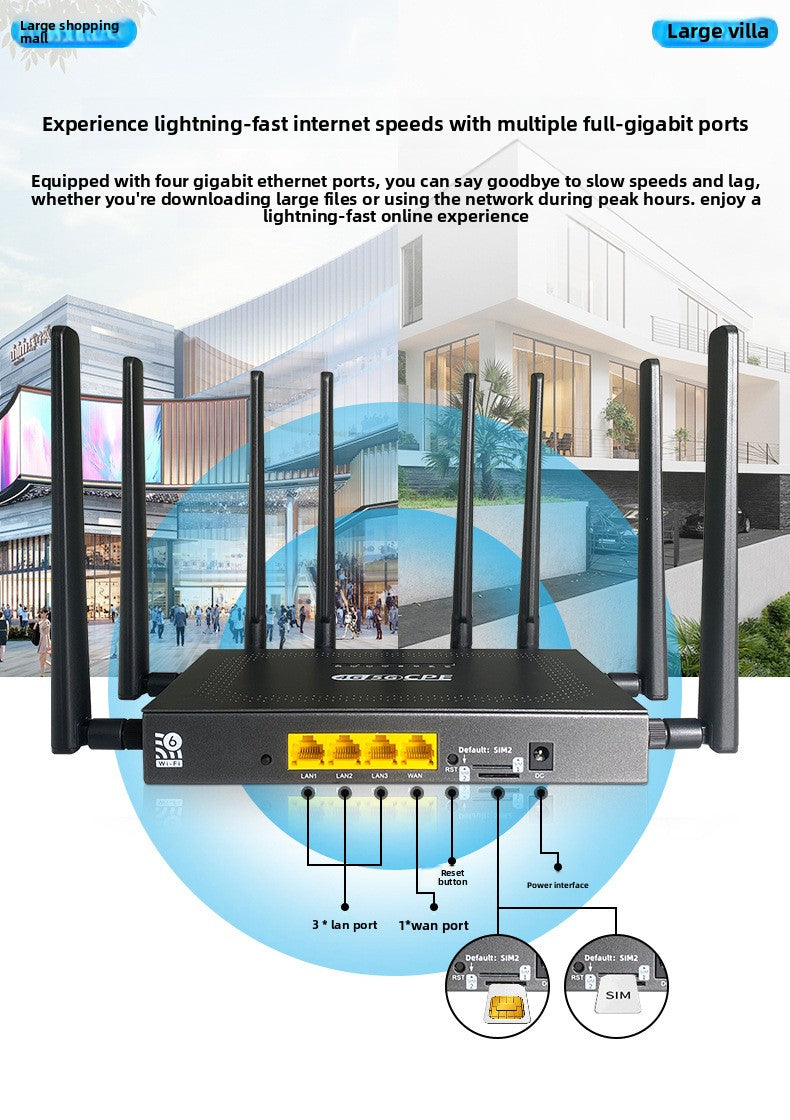

3.1 Introduction to hardware interfaces

Item

Specification

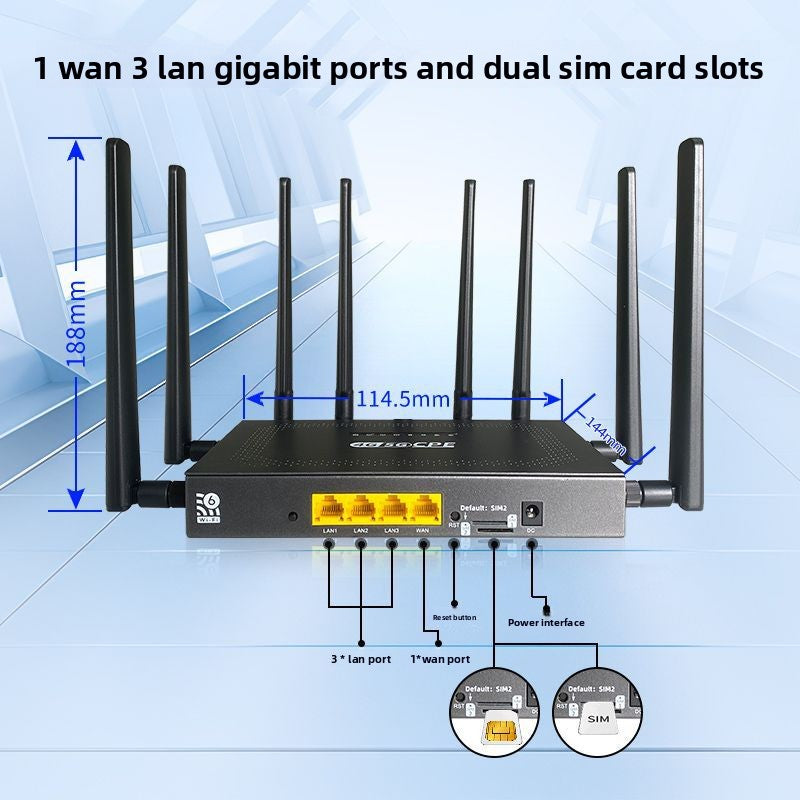

Ethernet Ports

1×1000Mbps WAN port with Auto MDI/MDIX, compliant with IEEE 802.3/802.3u/802.3ab

3×1000Mbps LAN ports with Auto MDI/MDIX, compliant with IEEE 802.3/802.3u/802.3ab

SIM Interface

2 spring-loaded SIM card slots, supports SIM/USIM

Power Interface

DC 5.5*2.1mm jack

Buttons

1 Reset button

Antennas

2×Omnidirectional 5dBi 2.4G antennas

3×Omnidirectional 5dBi 5.8G antennas

4×Omnidirectional 5dBi 5G cellular antennas

3.2 Introduction to indicator light

Indicator

Description

POWR LED

Power indicator, steady on under normal power supply, off when power abnormal

NET LED

1. Red light on during boot process; red light off and green light on after boot completion2. Cyan light on when Internet connection succeeds

5G LED

Steady on when 5G module is detected, blinks during data transmission

WAN LED

Steady on when cable connected, blinks during data communication

LAN1 LED

Steady on when cable connected, blinks during data communication

LAN2 LED

Steady on when cable connected, blinks during data communication

LAN3 LED

Steady on when cable connected, blinks during data communication

SYS LED

System status indicator, steady on when system runs normally, off under abnormal state

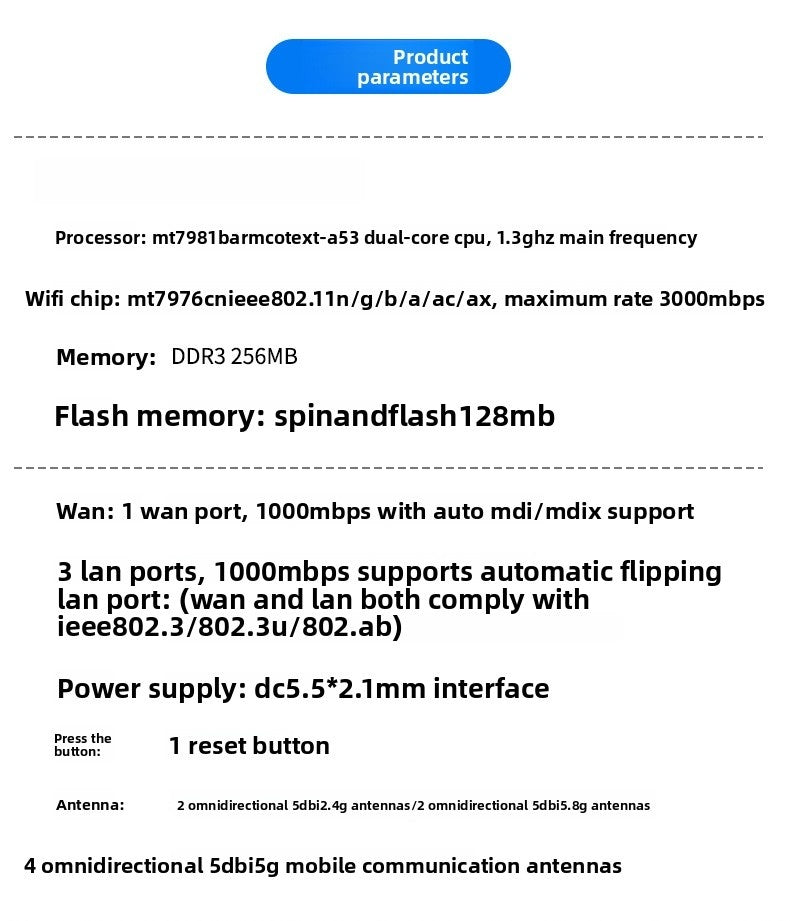

3.3 Introduction to hardware platform

Item

Parameter

Processor

MT7981B ARM Cortex-A53 Dual-core CPU, 1.3GHz clock frequency

WIFI Chip

MT7976CN, IEEE 802.11n/g/b/a/ac/ax, maximum speed 3000Mbps

Memory

256MB DDR3

Flash Storage

128MB SPI NAND Flash

4. Working Environment

Item

Specification

Normal Operating Temperature

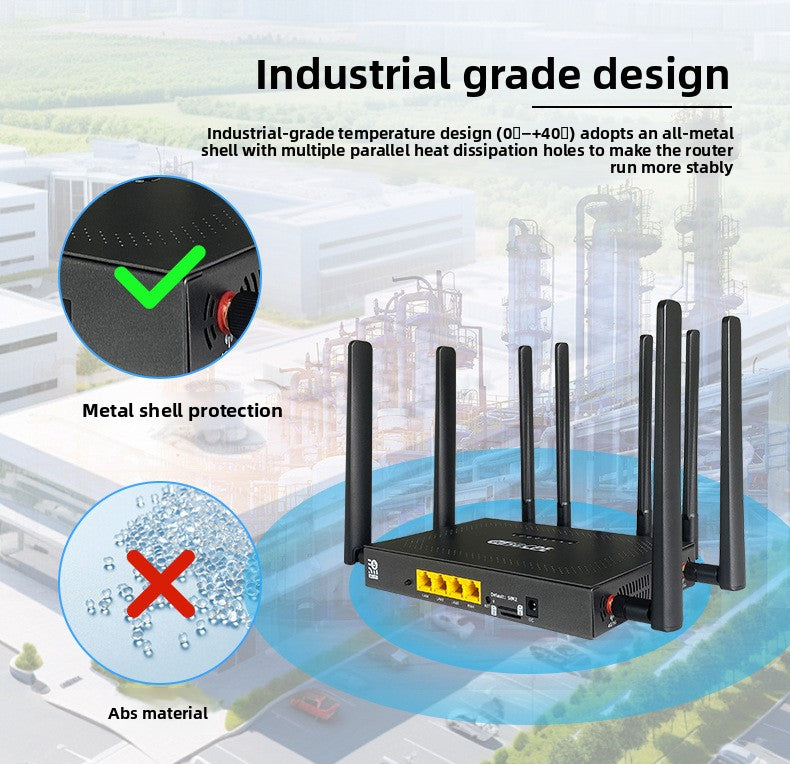

0°C ~ 40°C

Storage Temperature

-45°C ~ 75°C

Operating Humidity

10% ~ 90% RH, non-condensing

Storage Humidity

5% ~ 90% RH, non-condensing
