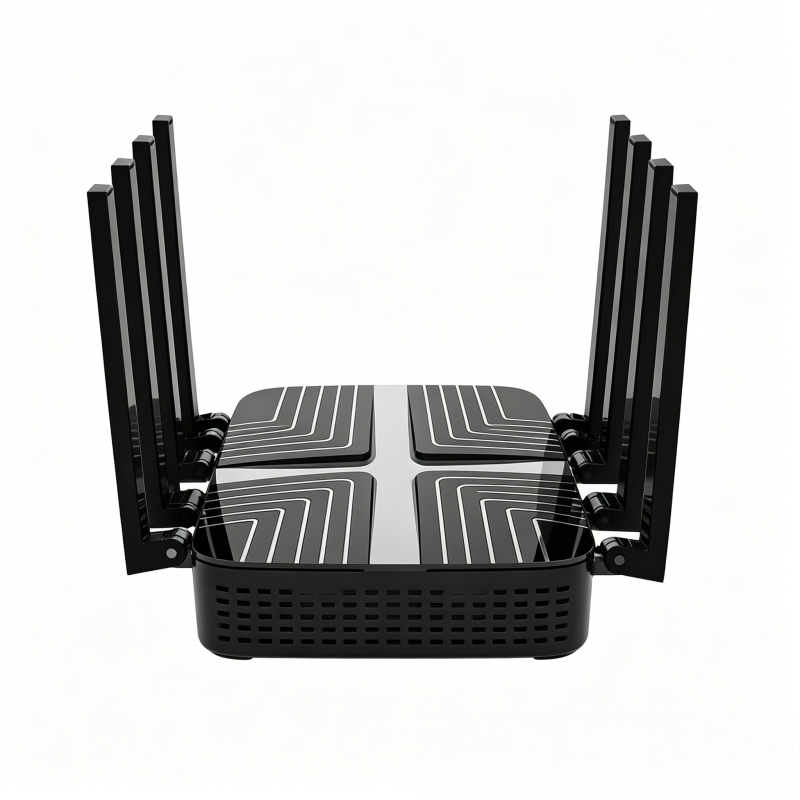

Croskylink CS-Z8803BE-T Industrial WIFI 7 Router Dual 5G Tri-band One-click Mesh Wall-penetrating Customized Wi-Fi Router

Name: Croskylink CS-Z8803BE-T Industrial WIFI 7 Router Dual 5G Tri-band One-click Mesh Wall-penetrating Customized Wi-Fi Router
Brand: CroSkylink
Price: 256.3 USD
Availability: InStock

$256.30 USD

~~$700.00 USD~~ $256.30 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

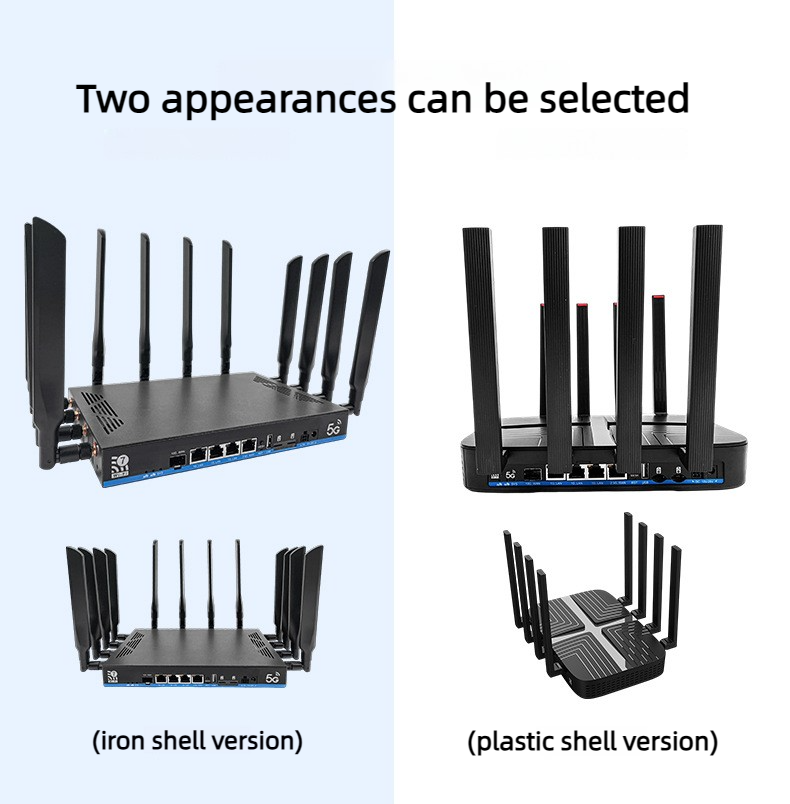

Model Without module (iron shell) European dual 5G version (iron shell) Global dual 5G version (iron shell) Without module (plastic shell) European dual 5G version (plastic shell) Global dual 5G version (plastic shell)

Product variants

Quantity

Main features of the product:

Equipped with the MT7988AV main chip and an ARM Cortex-A73 quad-core CPU, boasting a clock speed of up to 1.8GHZ

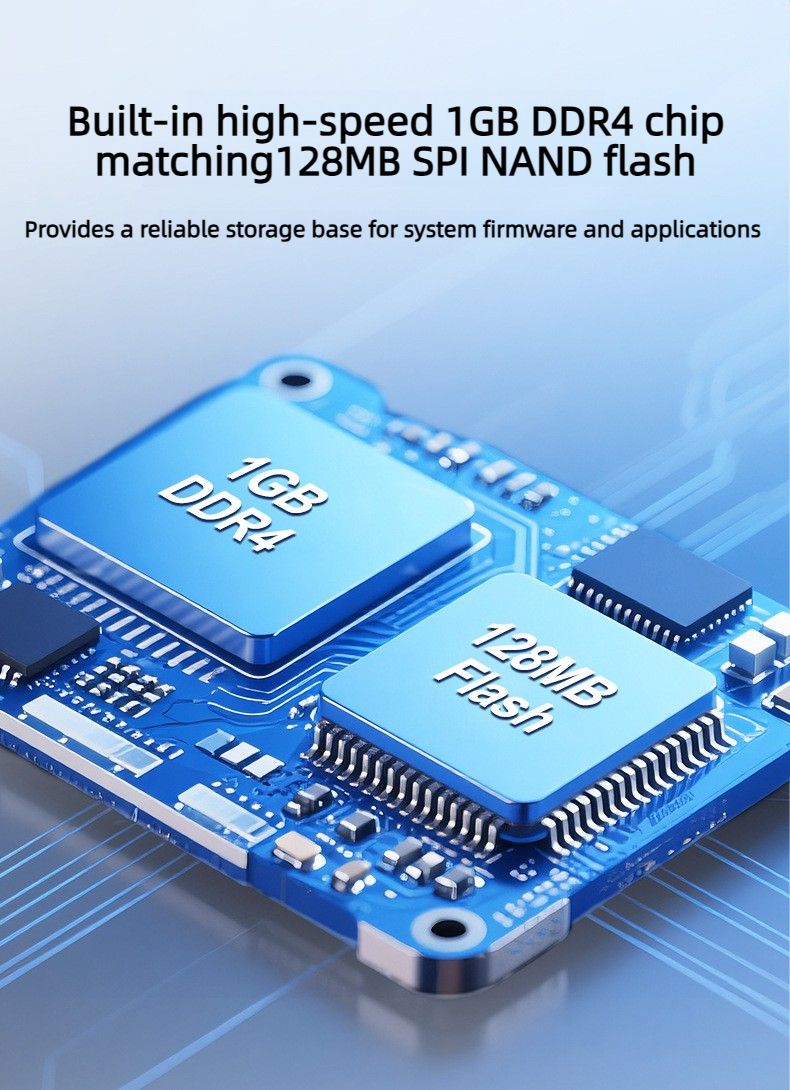

Equipped with a high-speed 1GB DDR4 chip, paired with 128MB SPI NAND Flash
Equipped with the AP routing network NIC chip MT7996AV, it boasts a maximum wireless speed of up to 19000Mbps
2.4G, 5.8G, and 6G WIFI all come with four high-power FEM to enhance WIFI coverage
One 2.5Gbps WAN port, supporting automatic rollover (Auto MDI/MDIX)
3x1Gbps LAN ports, supporting automatic MDI/MDIX

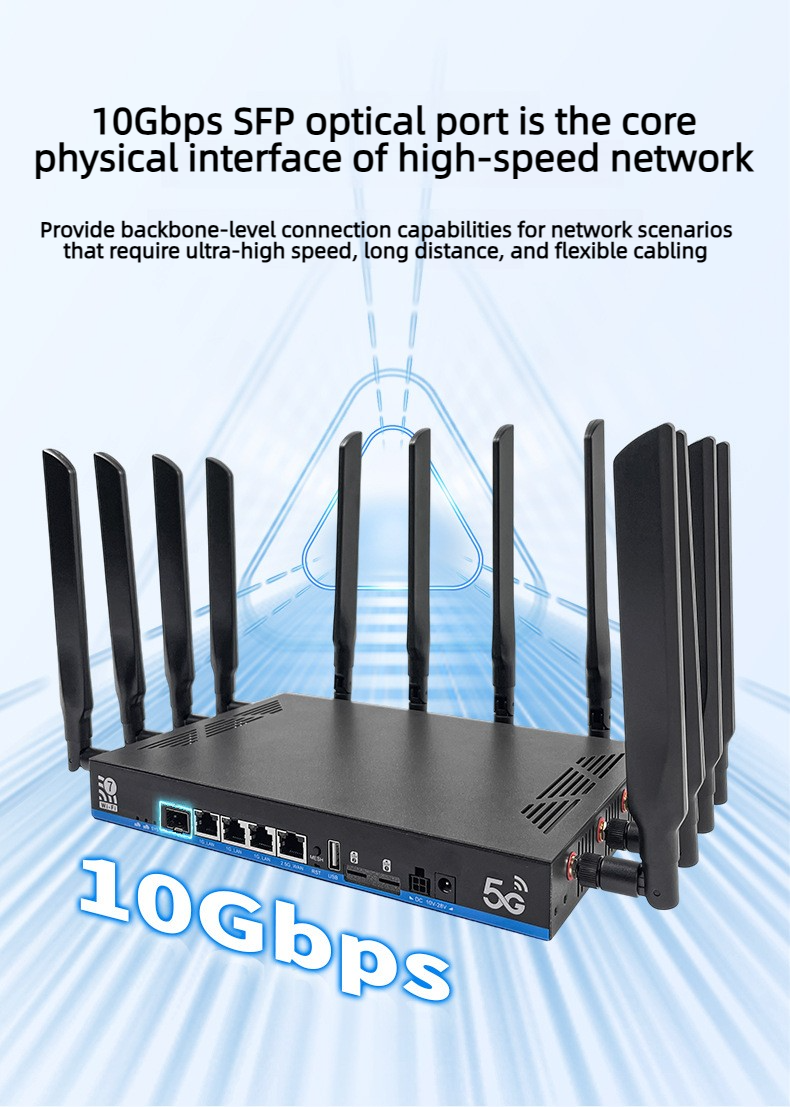

One high-speed SFP optical port with 10Gbps, which can be used to connect to high-speed optical port switches and other devices

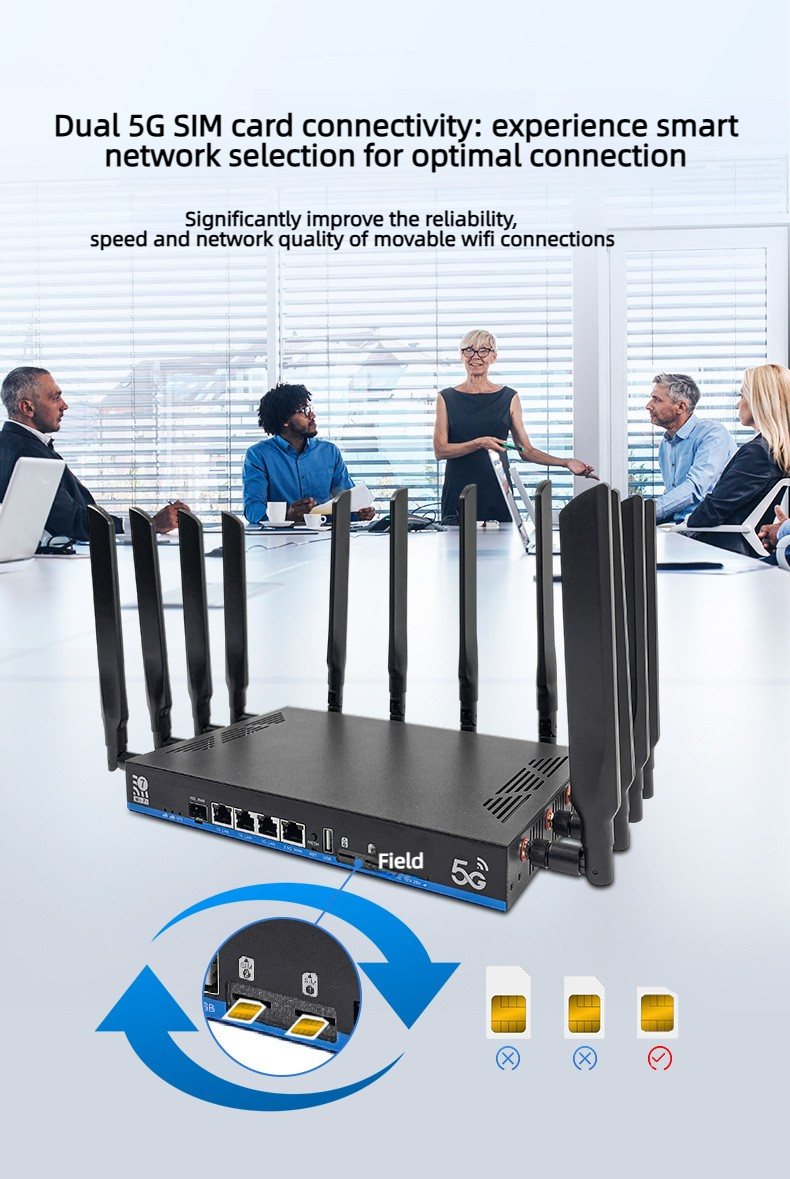

Supports dual-mode and dual-SIM 5G mobile communication capabilities, and supports both SA and NSA networks
Support "one-click flashing mode", where long pressing the reset button enters rescue flashing mode
Support "one-click" MESH networking

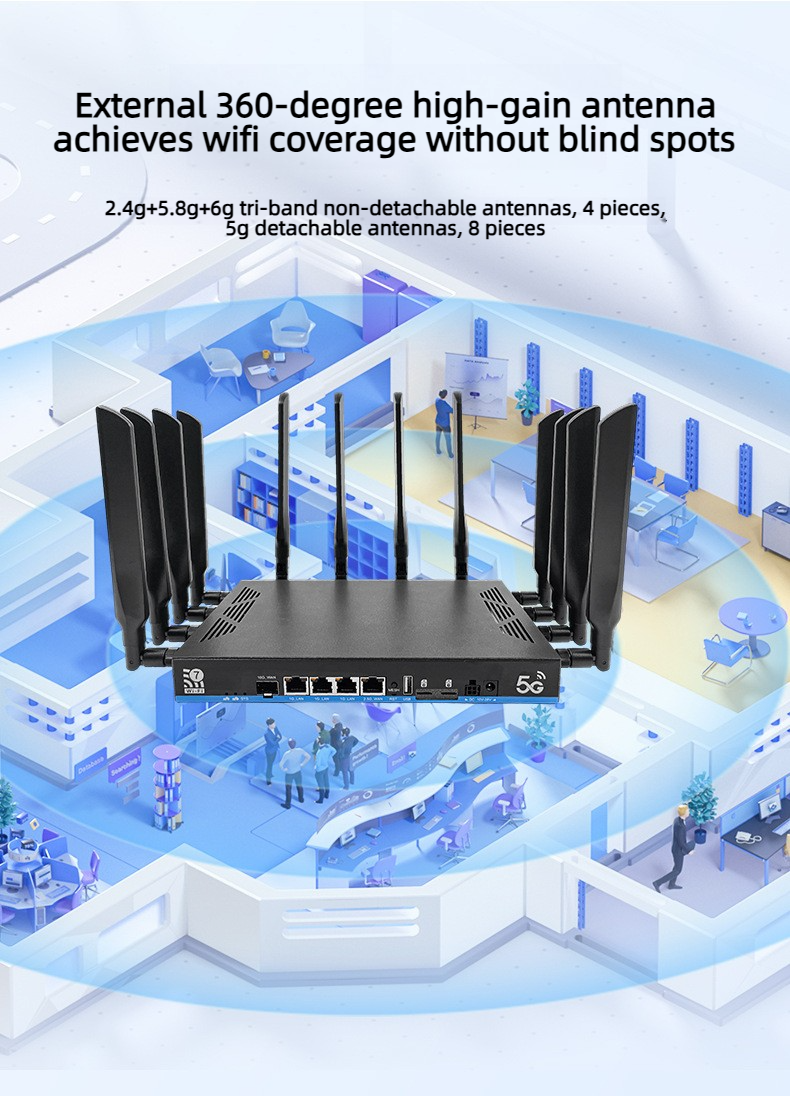

External high-gain WIFI antenna, providing wireless signal coverage in 360 degrees without dead zones

1. Overview

CS-Z8803BE-T is a WIFI7 router that can access the Internet through the WAN port or 5G mobile communication dial-up, and then share the Internet network through wireless WiFi 7 and wired LAN port.

2. Standard

Relevant standards and specifications:

IEEE802.11n/g/b/a/ac/ax/be
IEEE802.3/802.3u/802.ab/802.bz
USB3.0/USB2.0 bus standard
SIM/USIM interface standard
5G mobile communication standard

3. Hardware

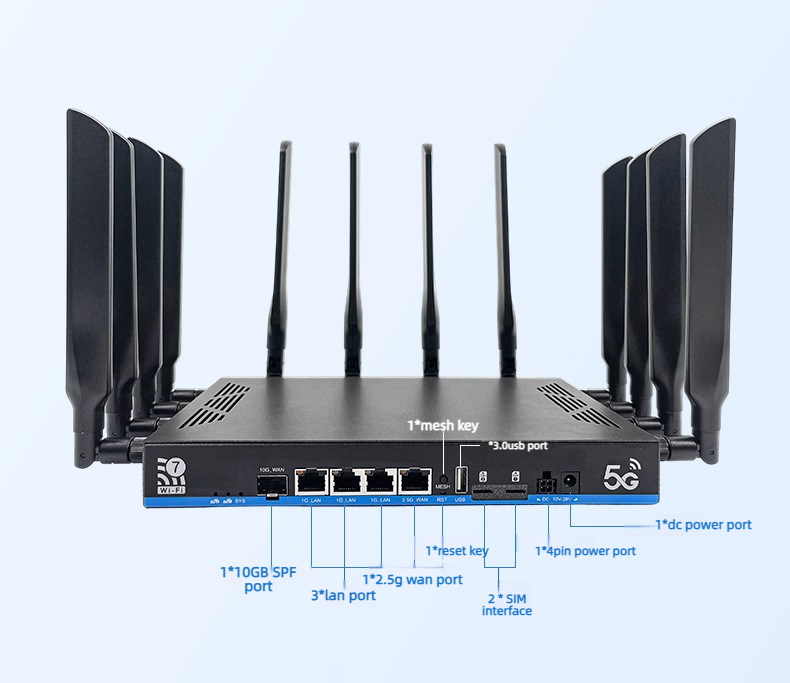

3.1 Introduction to hardware interfaces

Item	Description
Ethernet Ports	1×2.5Gbps WAN port with Auto MDI/MDIX, compliant with IEEE 802.3/802.3u/802.3ab/802.3bz 3×1Gbps LAN ports with Auto MDI/MDIX, compliant with IEEE 802.3/802.3u/802.3ab
SFP Optical Port	1×10Gb SFP optical port
Power Interface	*DC 5.52.1mm jack**
SIM Card Interface	2 Nano SIM card slots
USB Interface	1×USB 2.0 port
Buttons	1 Reset button, 1 MESH button
Antennas	4 antennas for 2.4G+5.8G dual-band Wi-Fi & 5G cellular4 antennas for 6G Wi-Fi & 5G cellular dual-band

3.2 Introduction to indicator light

Indicator	Function Description
NET LED	1. Red light on during power-on boot 2. Only green light on after boot if no external network access 3. Cyan light (green & blue lit simultaneously) when Internet connection established
5G Cellular 1 LED	Steady green when 5G module detected, blinks during data transmission
5G Cellular 2 LED	Steady green when 5G module detected, blinks during data transmission

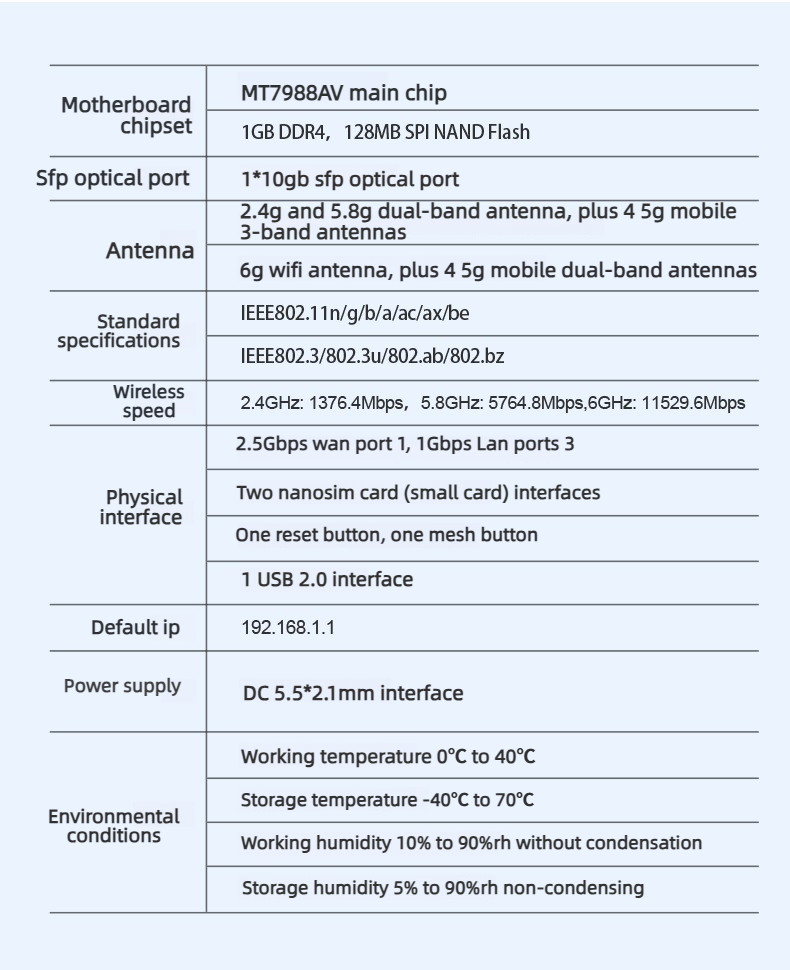

3.3 Introduction to hardware platform

Item	Parameter
Processor	MT7988AV ARM Cortex-A73 Quad-core CPU, up to 1.8GHz main frequency
NIC Chip	MT7996AV AP router network chip, handles data transmission between main chip and Wi-Fi baseband chip; supports IEEE 802.11n/g/b/a/ac/ax/be, max throughput 19000Mbps
2.4G Wi-Fi Baseband	MT7976CN, supports IEEE 802.11n/g/b/ax/be, 40MHz bandwidth
5.8G Wi-Fi Baseband	MT7977BN, supports IEEE 802.11a/ac/ax/be, 160MHz bandwidth
6G Wi-Fi Baseband	MT7977AN, supports IEEE 802.11a/ac/ax/be, 320MHz bandwidth
Memory	1GB DDR4
Flash Storage	Nor Flash 16MB (Optional) eMMC (Optional) SPI NAND Flash 128MB (Default)

4. Working Environment

Item	Specification
Normal Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% RH, non-condensing
Storage Humidity	5% ~ 90% RH, non-condensing
