Croskylink CS-Z8806BE-M2-T Customized WiFi 7 Router Industrial Dual 5g Tri-Band Mobile Communication 19gbps Wireless Wi-Fi Router

Name: Croskylink CS-Z8806BE-M2-T Customized WiFi 7 Router Industrial Dual 5g Tri-Band Mobile Communication 19gbps Wireless Wi-Fi Router
Brand: CroSkylink
Price: 256.3 USD
Availability: InStock

$256.30 USD

~~$1,080.00 USD~~ $256.30 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

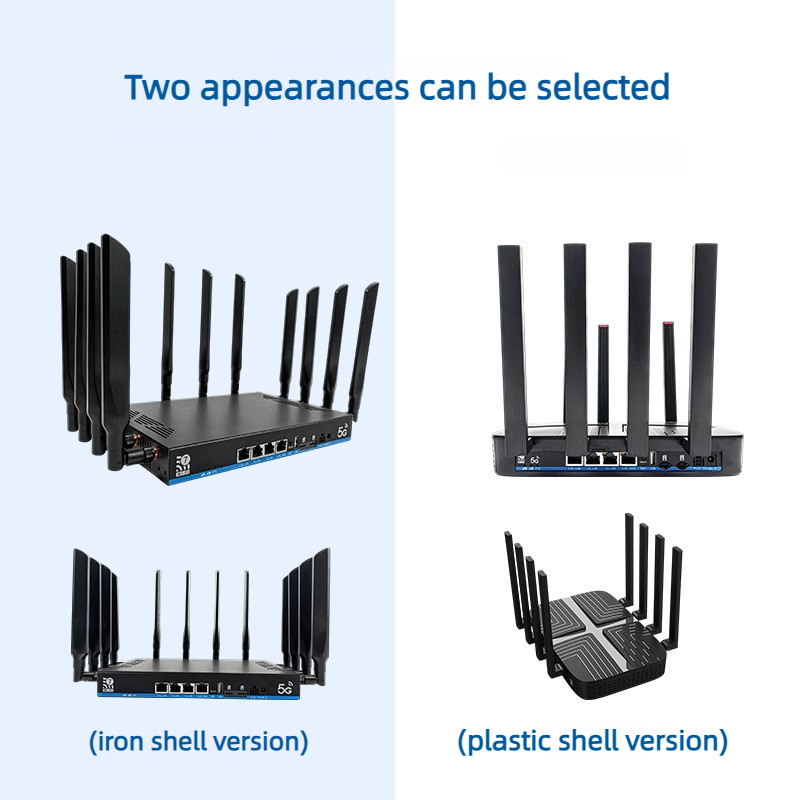

Model Without module (iron shell) European dual 5G version (iron shell) Global dual 5G version (iron shell) Without module (plastic shell) European dual 5G version (plastic shell) Global dual 5G version (plastic shell)

Product variants

Quantity

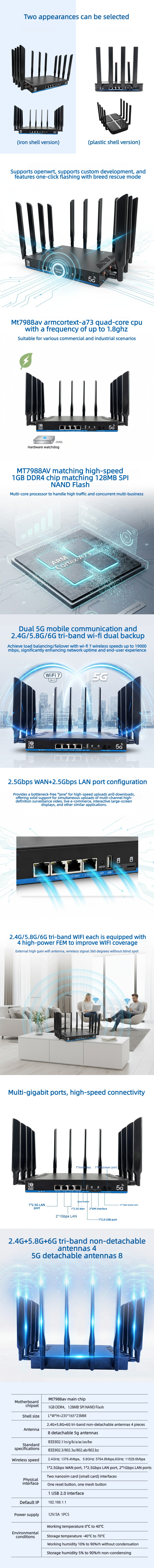

Main features of the product:

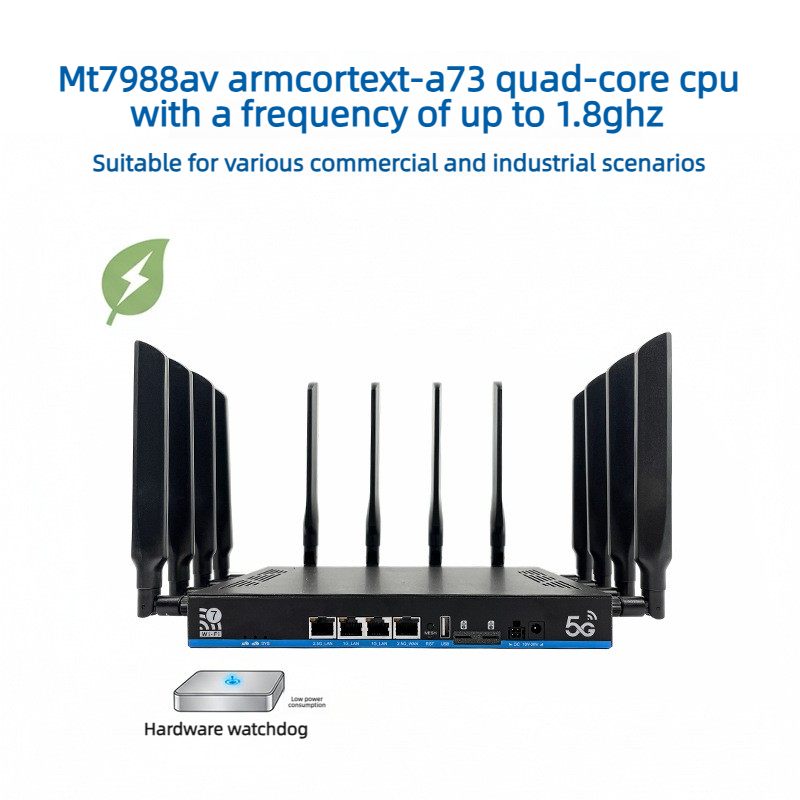

Equipped with MT7988AV main SoC: Quad-core ARM Cortex-A73 CPU, up to 1.8GHz frequency
Built-in 1GB high-speed DDR4 memory + 128MB SPI NAND Flash by default
Adopts MT7996AV AP router NIC chip, maximum total wireless rate up to 19000Mbps
2.4GHz, 5.8GHz and 6GHz Wi-Fi bands each equipped with 4 high-power FEMs to expand Wi-Fi coverage

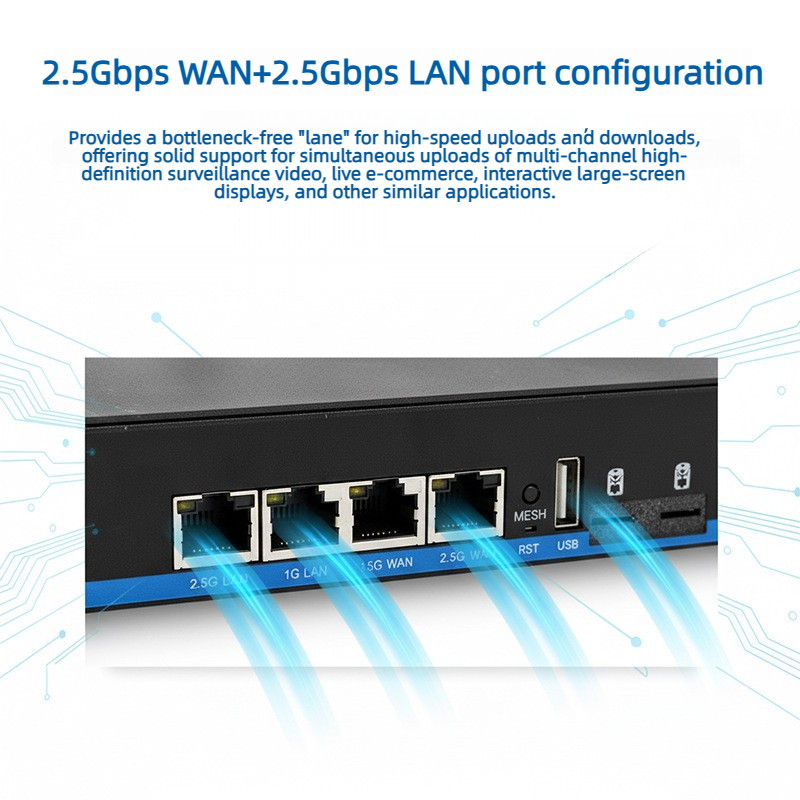

1×2.5Gbps WAN port with Auto MDI/MDIX crossover auto-detection
1×2.5Gbps LAN port + 2×1Gbps LAN ports, all support Auto MDI/MDIX

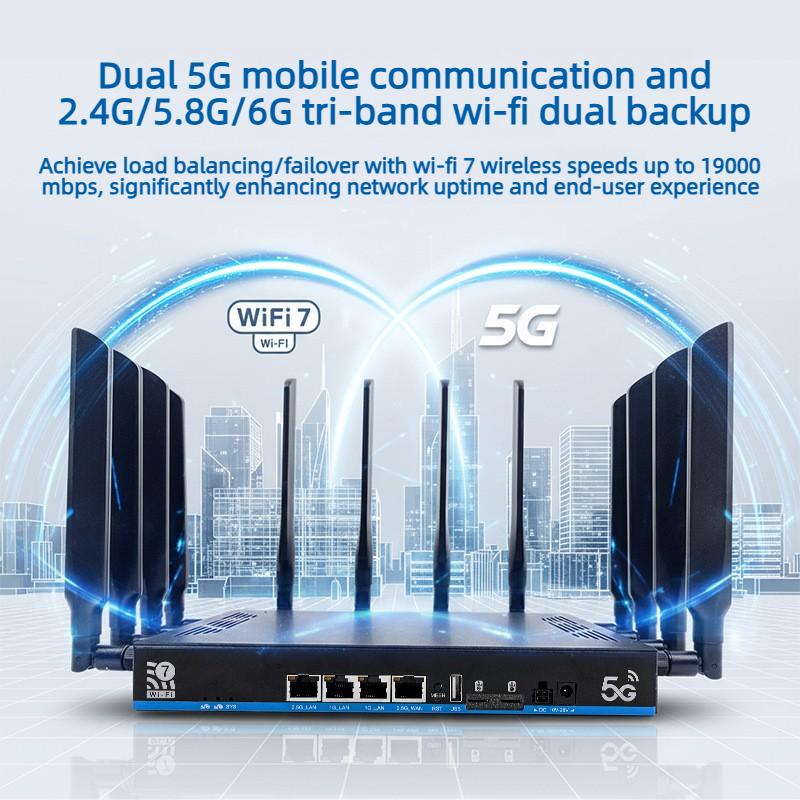

Supports dual-card single-mode 5G cellular communication, compatible with SA & NSA network architectures

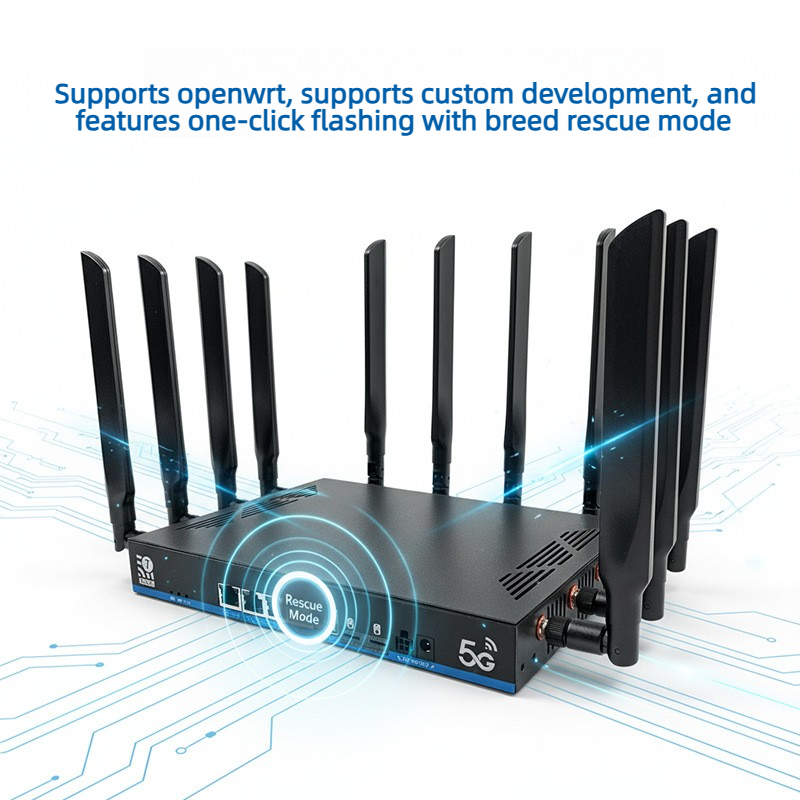

One-key rescue flashing mode: long press reset button to enter recovery flashing mode
One-key MESH networking function
External high-gain Wi-Fi antennas, 360° omnidirectional wireless signal coverage

1. Overview

CS-Z8806BE-M2-T is a Wi-Fi 7 router. It can access the Internet via WAN port or 5G mobile cellular dial-up, then share network access through wireless Wi-Fi 7 and wired LAN ports.

2. Standard

Relevant specifications and standards:

IEEE802.11n/g/b/a/ac/ax/be
IEEE802.3/802.3u/802.ab/802.bz
USB3.0 / USB2.0 Bus Standard
SIM/USIM Interface Standard
5G Mobile Communication Standard

3. Hardware

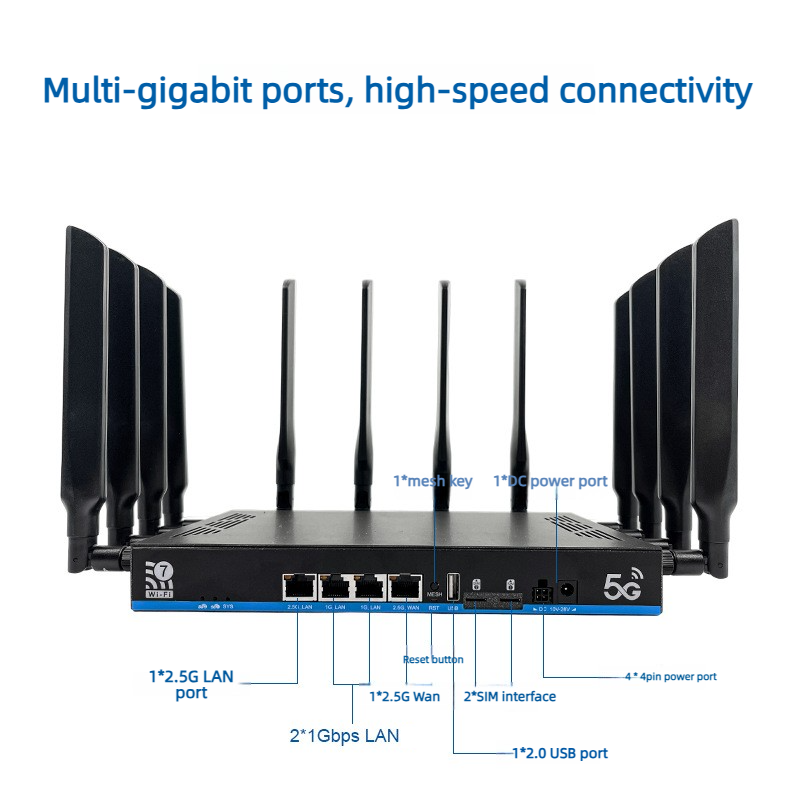

3.1 Introduction to hardware interfaces

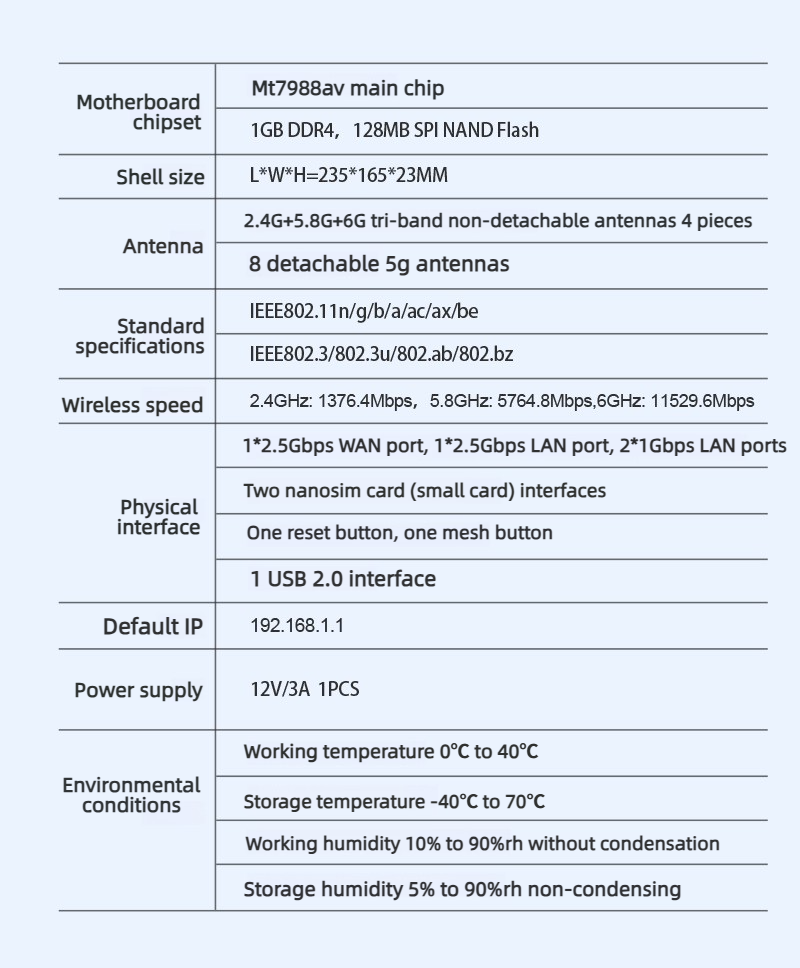

Interface Type	Specifications
Ethernet Ports	1×2.5Gbps WAN port, Auto MDI/MDIX, compliant with IEEE 802.3/802.3u/802.ab/802.bz 1×2.5Gbps LAN port + 2×1Gbps LAN ports, Auto MDI/MDIX, compliant with IEEE 802.3 series standards
Power Port	*DC 5.52.1mm barrel jack**
SIM Card Slot	2× Nano-SIM card slots
USB Port	1×USB 2.0 port
Buttons	1×Reset button, 1×MESH button

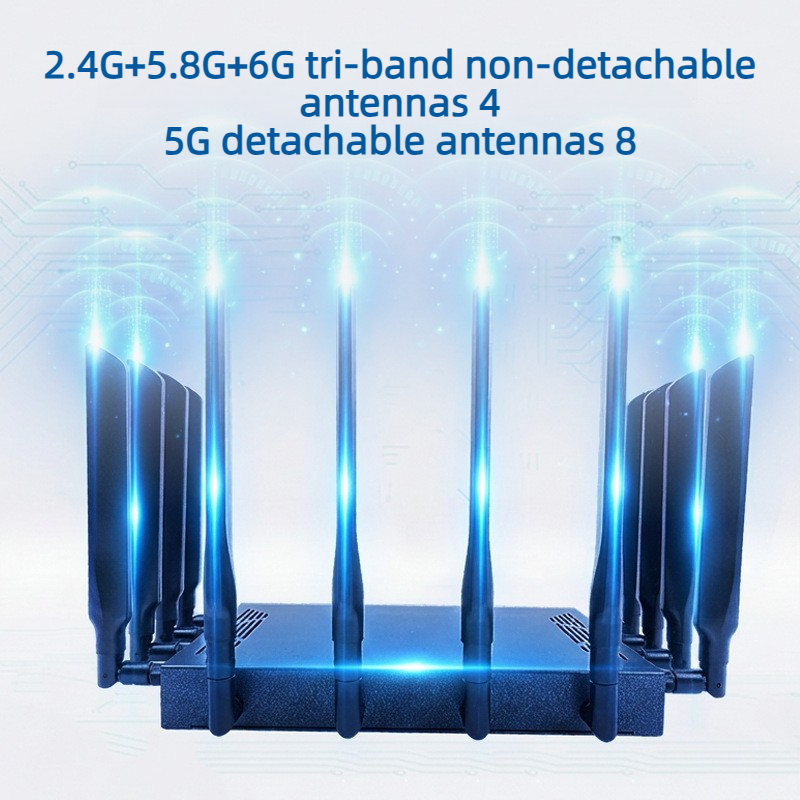

Antennas	4 antennas for 2.4G+5.8G dual-band Wi-Fi + 5G cellular tri-band4 antennas for 6G Wi-Fi + 5G cellular dual-band

3.2 Introduction to indicator light

LED Label

Status Definition

NET LED

Solid red during boot sequence

Solid green after boot without internet access

Cyan light (green + blue simultaneous) when internet connection established

5G Mobile LED

Solid green when 5G module detected, blinks during data transmission

4. Working Environment

Item	Specification
Normal Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% RH, non-condensing
Storage Humidity	5% ~ 90% RH, non-condensing
