CroSkylink

Croskylink CSCPE2001 5g CPE Router with Full Gigabit Wireless WiFi 6, High-Speed Phy Chip, Suitable for Mobile Live Streaming, Office and Home Use

Croskylink CSCPE2001 5g CPE Router with Full Gigabit Wireless WiFi 6, High-Speed Phy Chip, Suitable for Mobile Live Streaming, Office and Home Use

$138.50 USD
$175.00 USD $138.50 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model

Main features of the product:

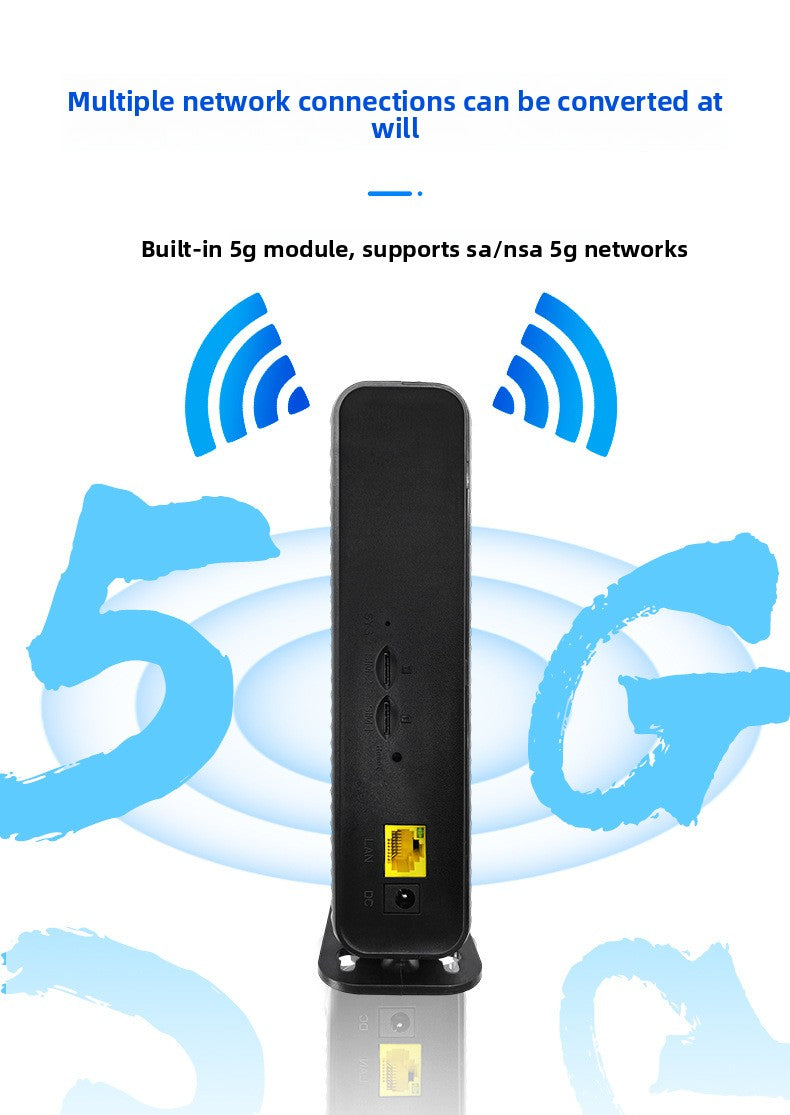

  • Built-in 5G module, supporting SA/NSA 5G networks
  • Supports 5.8G WIFI6 AP hotspot signal, with a maximum speed of 600Mbps
  • Equipped with a high-speed PHY network port chip, the network port achieves a maximum speed of 1Gbps
  • Equipped with an external high-gain omnidirectional antenna, ensuring stable and high-speed 5G network connectivity

1.  Overview

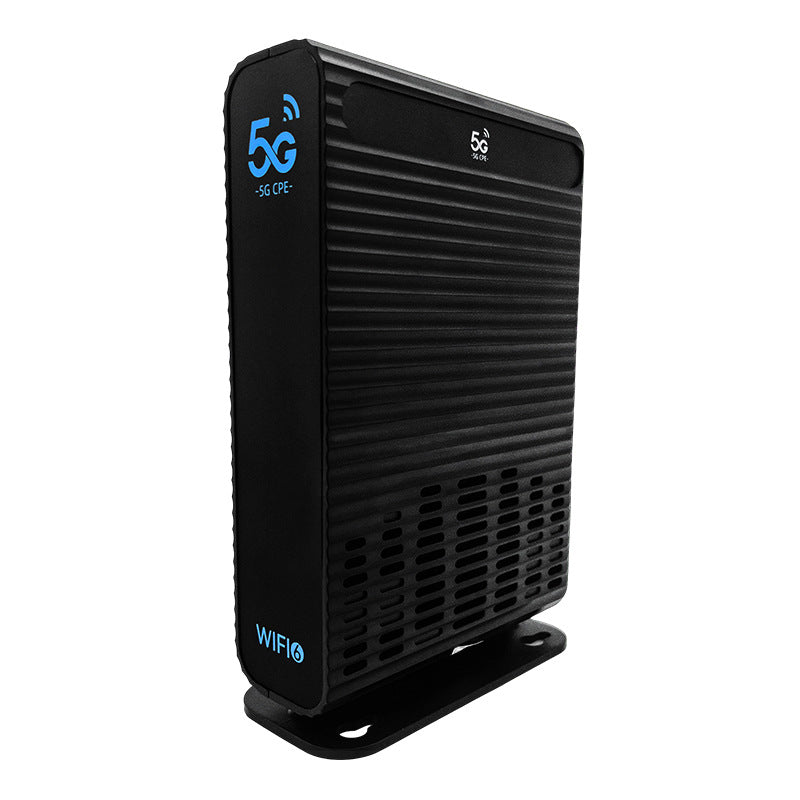

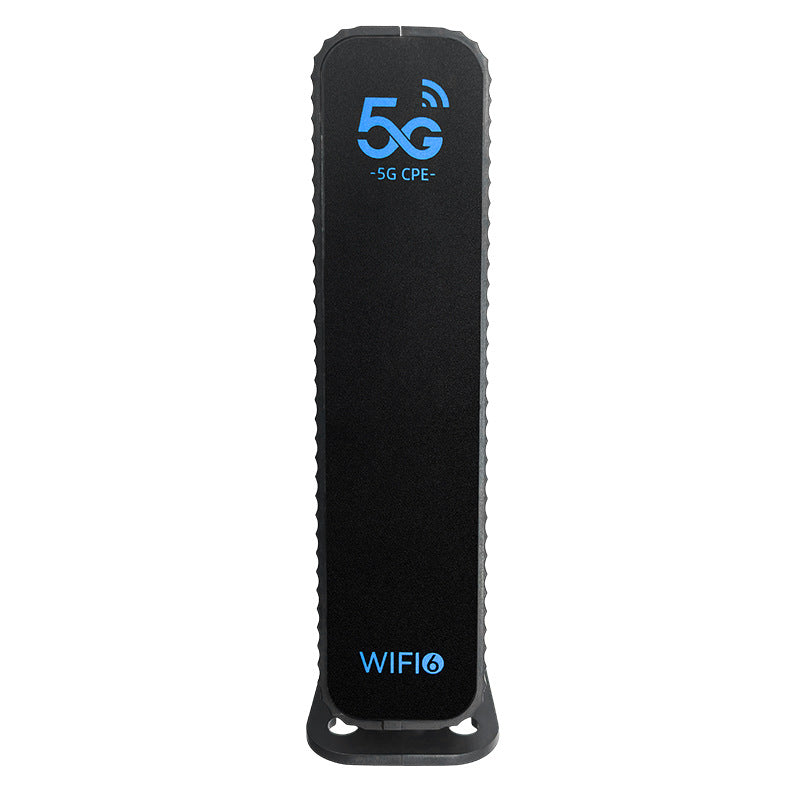

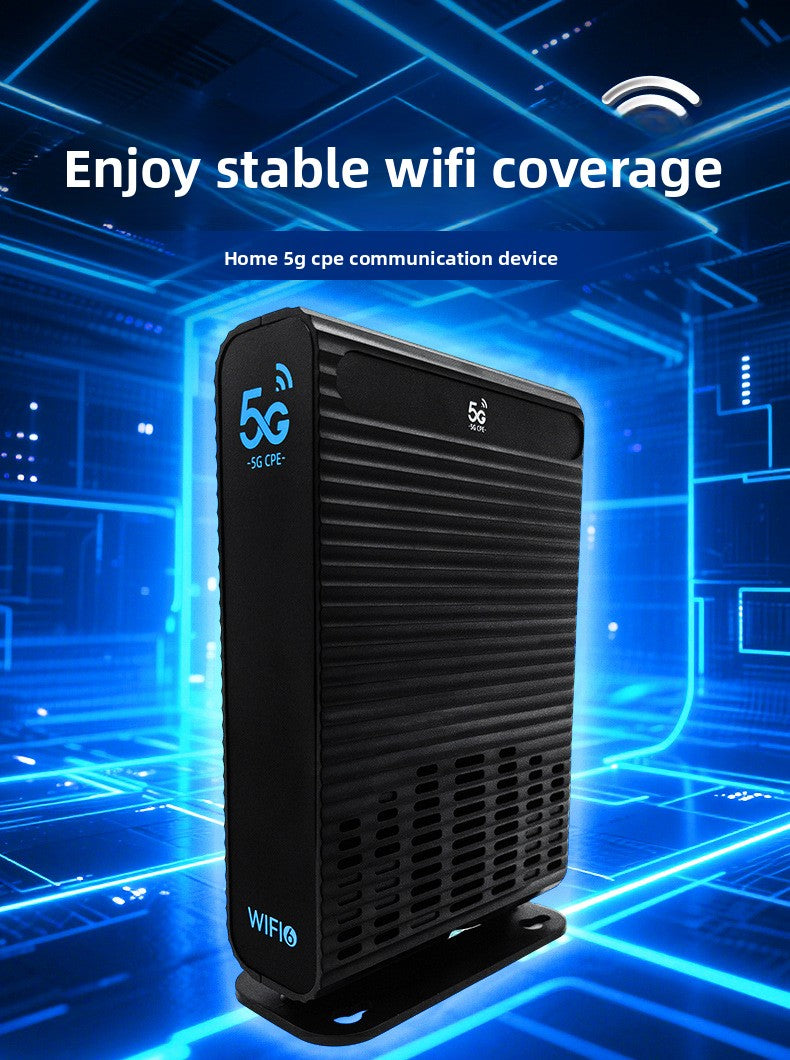

CSCPE2001 is a household 5G CPE communication device. Once the phone card is inserted and powered on, it can automatically dial up to the internet via 5G. Then, it can share the network with smart devices through wireless WIFI or wired network ports.

2. Standard

Relevant standards and specifications:

  • USB3.0/USB2.0 bus standard
  • SIM/USIM interface standard
  • IEEE802.3/802.3u/802.ab
  • IEEE802.11 a/ac/ax
  • 5G mobile communication standard

3.Hardware

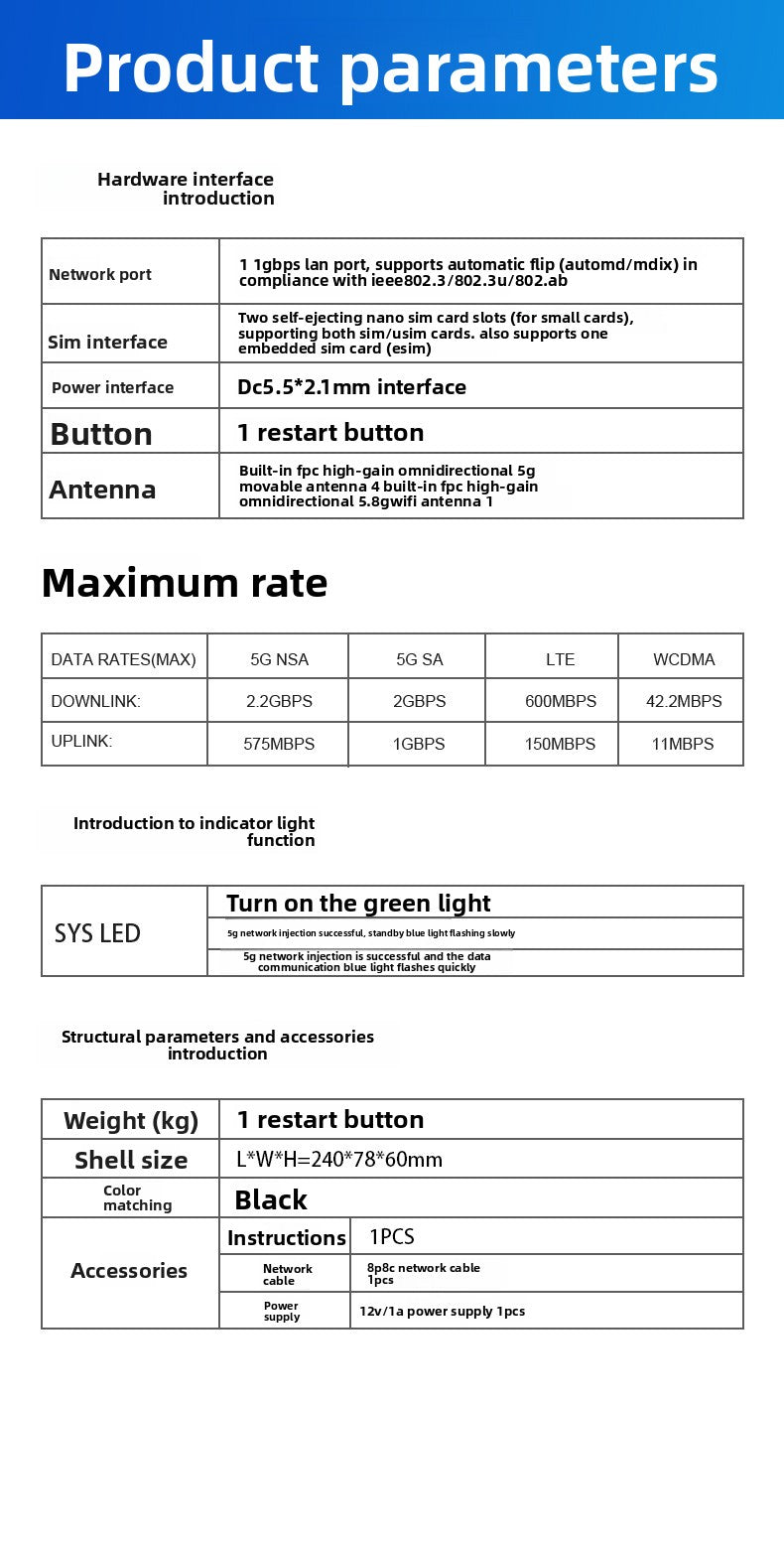

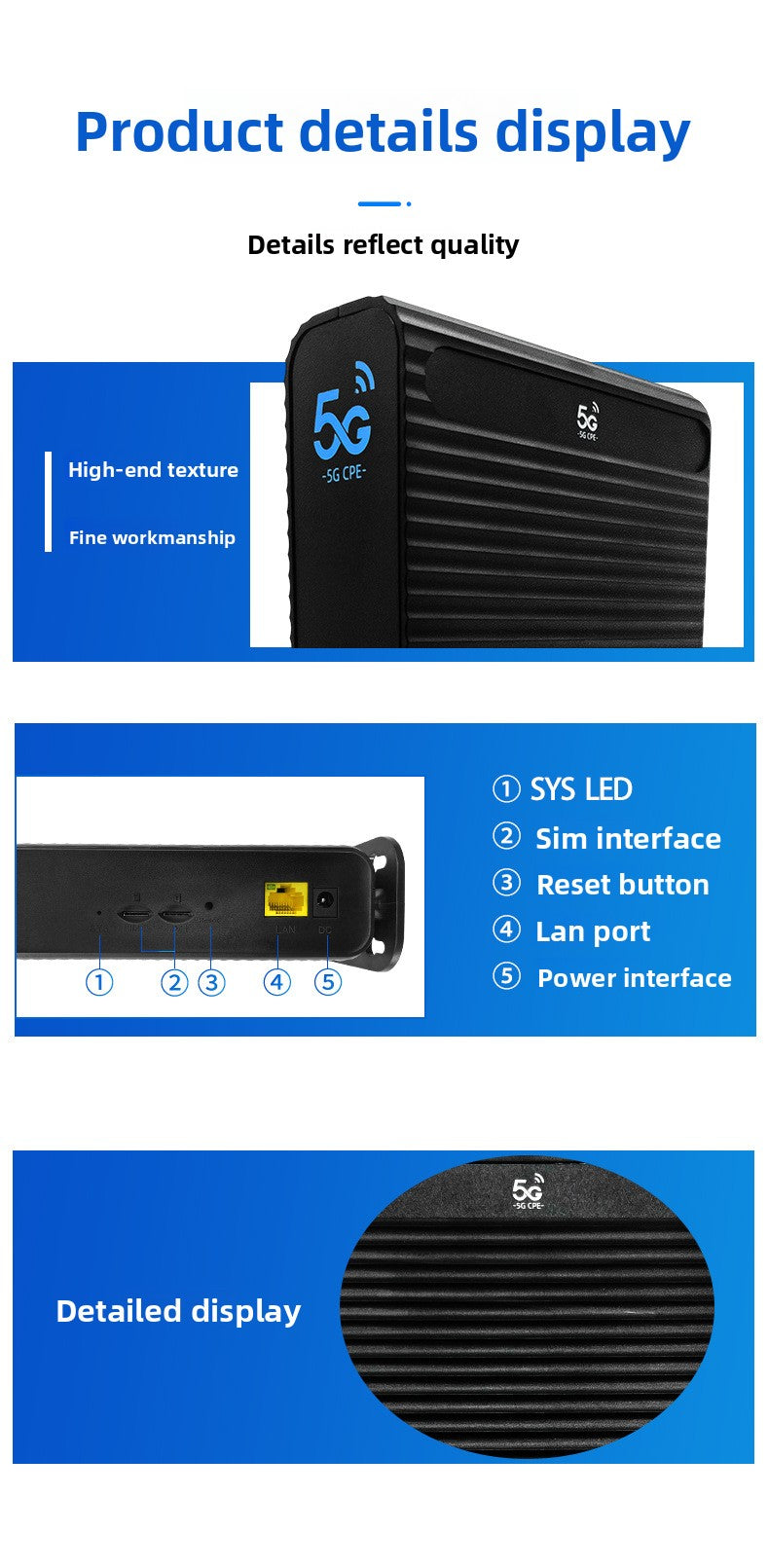

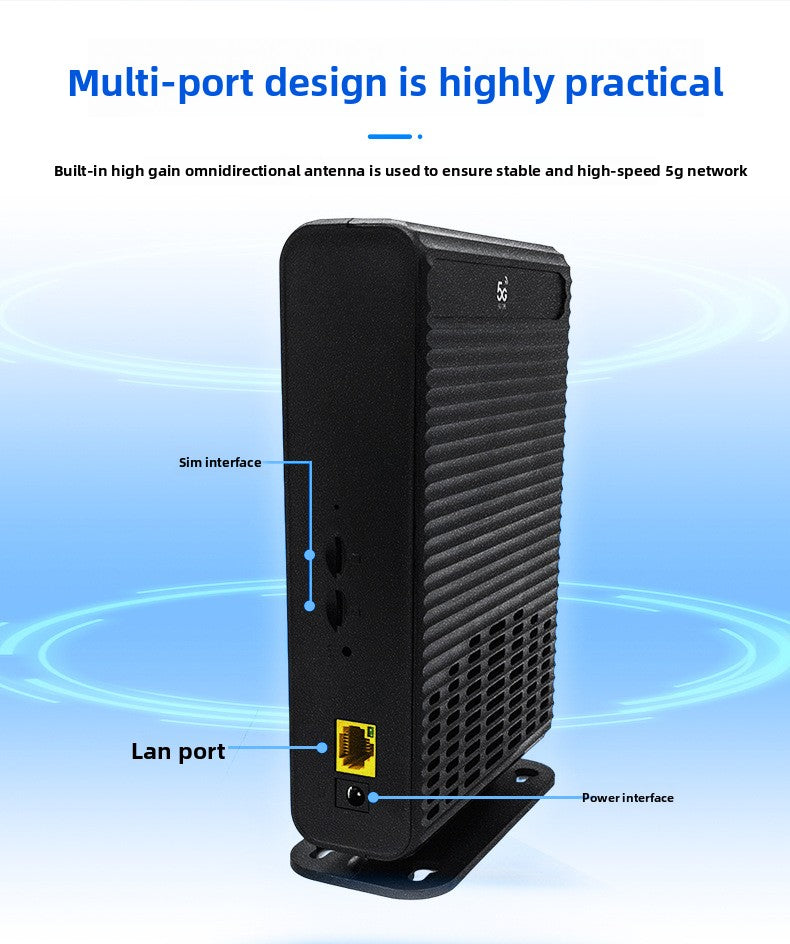

3.1 Introduction to hardware interfaces

Item

Specification

Chip Platform

Unisoc V510

Ethernet Port

1×1Gbps LAN port with Auto MDI/MDIX functionCompliant with IEEE 802.3/802.3u/802.3ab

SIM Interface

2 pop-up Nano SIM slots (micro SIM card), supports SIM/USIMCompatible with 1 built-in embedded SIM card simultaneously

Power Interface

DC 5.5*2.1mm jack

Button

1 Reset/Reboot button

Antenna

Built-in FPC Antennas:

4×High-gain omnidirectional 5G cellular antennas

1×High-gain omnidirectional 5.8G Wi-Fi antenna

3.2 Introduction to indicator light

  1. The green light is on when the device is turned on.
  2. 5G network registration successful, standby with blue light flashing slowly.
  3. 5G network registration is successful, indicated by the quick flashing of the data communication blue light.

4.  5G Mobile Communication Function

This product integrates 5G mobile communication functionality. The 5G communication system communicates with the PHY network interface chip, and through this chip, it converts the 5G network into an RJ45 interface communication network. The 5G communication system also communicates with the 5.8G WIFI6 baseband module, which can convert the 5G mobile network into a 5.8G wireless WIFI network, providing internet communication for smart terminals. End users can experience a faster and more stable 5G network, supporting both NSA/SA 5G communication networks.

4.1 5G Frequency BandMaximum 5G speed

5G NR

n1/n3/n5/n8/n28/n41/n77/n78

LTE FDD

B1/B3/B5/B8

LTE TDD

B34/B38/B39/B40/B41

WCDMA

B1/B5/B8

4.2 Maximum 5G speed

Data Rates (Max)

5G NSA

5G SA

LTE

WCDMA

Downlink

2.6Gbps

2Gbps

600Mbps

42.2Mbps

Uplink

650Mbps

1Gbps

150Mbps

11Mbps

5.  Power Supply and Power Consumption

Parameter

Test Condition

Min.

Nominal

Max.

Unit

Operating Voltage

TA = 25°C

9

12

14

V

Absolute Operating Voltage

TA = 25°C

8

—

16

V

Operating Current

VIN=12V, TA = 25°C

0.3

0.6

1

A

Please strictly adhere to the above power supply specifications when supplying power to this product, otherwise it may be damaged. If using batteries or car power supplies, please ensure to take anti-static and anti-surge measures.

6.  Working Environment

Item

Specification

Normal Operating Temperature

0°C ~ 40°C

Storage Temperature

-45°C ~ 75°C

Operating Humidity

10% ~ 90% RH, non-condensing

Storage Humidity

5% ~ 90% RH, non-condensing
