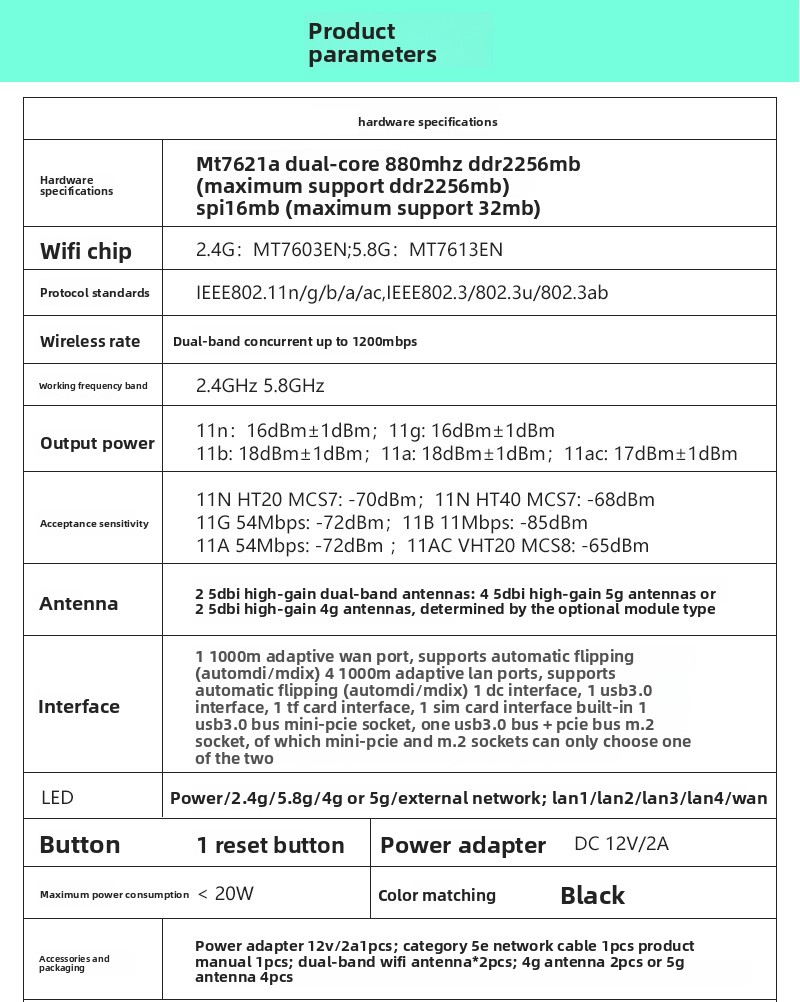

Hardware Specifications

Main Hardware Platform

MT7621A dual-core 880MHz, DDR2 256MB (max support DDR2 256MB), SPI 16MB (max support 32MB)

Wi-Fi Chip

2.4G: MT7603EN; 5.8G: MT7613EN

Protocol Standards

IEEE 802.11n/g/b/a/ac,

IEEE 802.3/802.3u/802.3ab

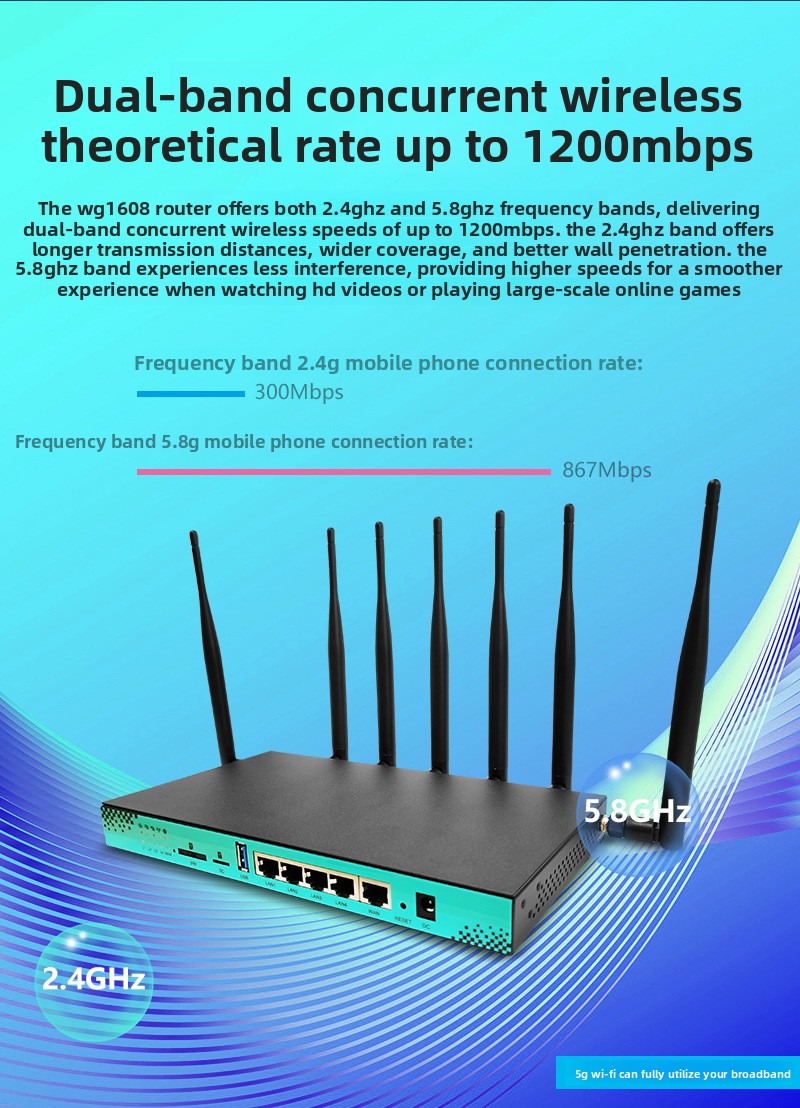

Wireless Rate

Dual-band concurrent speed up to 1200Mbps

Working Frequency Band

2.4GHz, 5.8GHz

Output Power

11n: 16dBm±1dBm

11g: 16dBm±1dBm

11b: 18dBm±1dBm

11a: 18dBm±1dBm

11ac: 17dBm±1dBm

Receiving Sensitivity

11N HT20 MCS7: -70dBm

11N HT40 MCS7: -68dBm

11G 54Mbps: -72dBm

11B 11Mbps: -85dBm

11A 54Mbps: -72dBm

11AC VHT20 MCS8: -65dBm

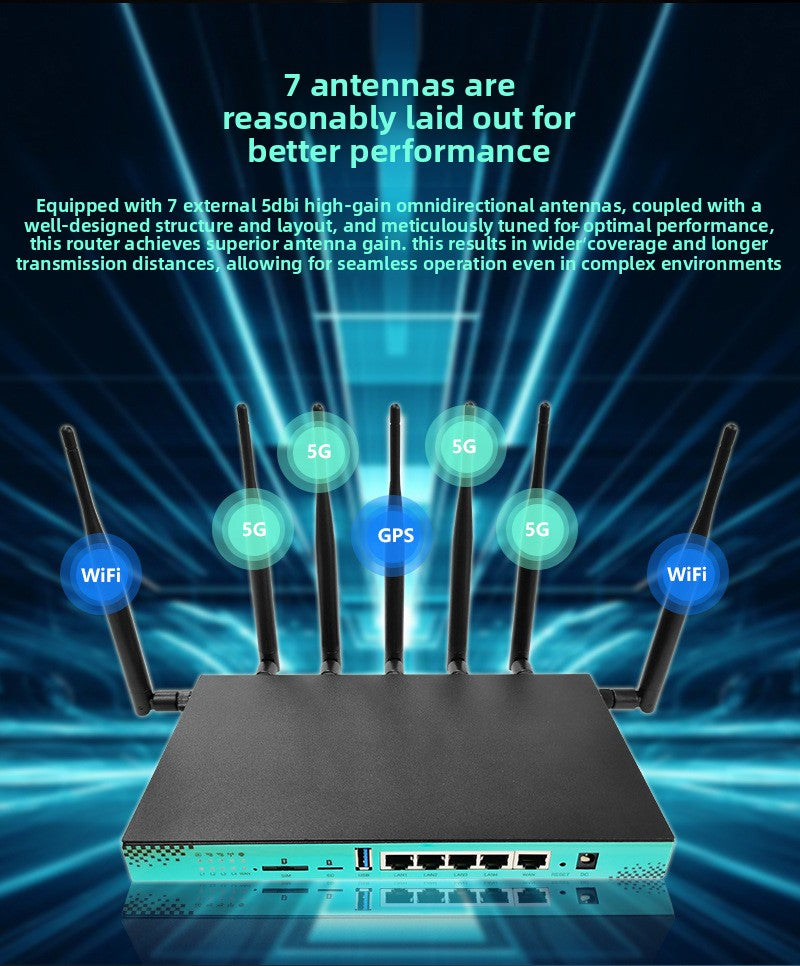

Antenna

2×5dBi high-gain dual-band Wi-Fi antennas;

4×5dBi high-gain 5G antennas or 2×5dBi high-gain 4G antennas, subject to optional module type

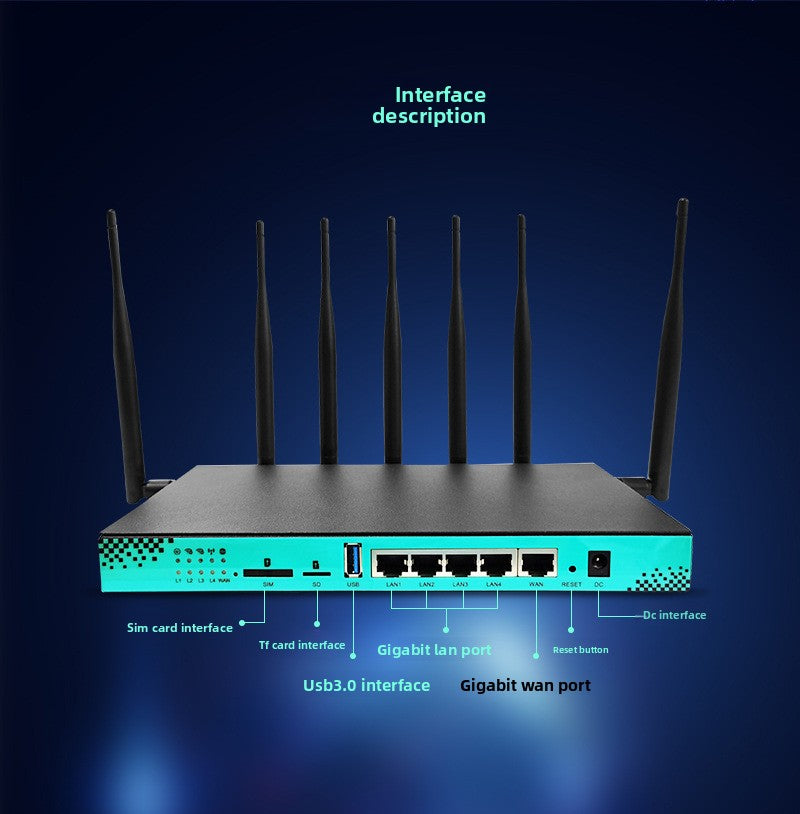

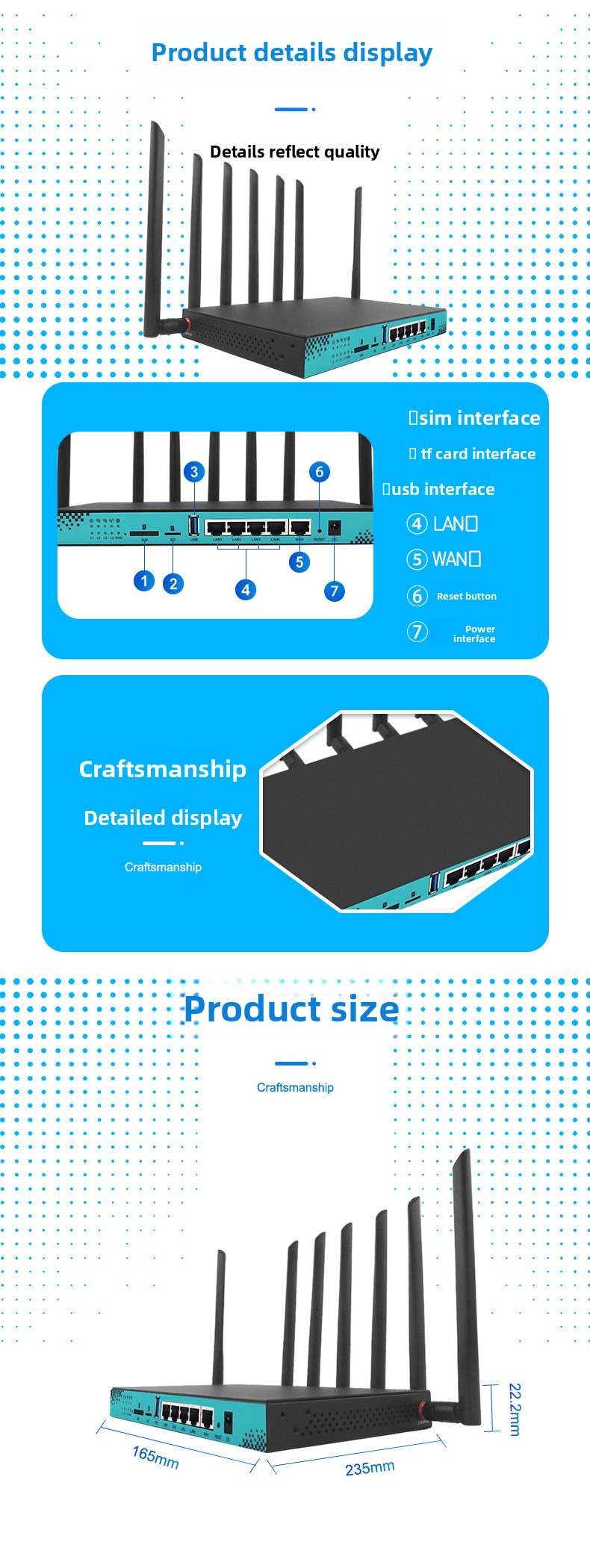

Interfaces

1×1000M adaptive WAN port with Auto MDI/MDIX4×1000M adaptive LAN ports with Auto MDI/MDIX1×DC power interface, 1×USB3.0 interface, 1×TF card slot, 1×SIM card slotBuilt-in 1 USB3.0 bus Mini-PCIe socket + 1 USB3.0 & PCIe bus M.2 socket (only one of Mini-PCIe / M.2 can be equipped)

LED Indicators

Power / 2.4G / 5.8G / 4G or 5G / External Network / LAN1/LAN2/LAN3/LAN4 / WAN

Button

1×Reset button

Power Adapter

DC 12V/2A

Max Power Consumption

< 20W

Color

Black

Accessories & Packaging

1×12V/2A power adapter, 1×Cat5e Ethernet cable, 1×product manual;2×dual-band Wi-Fi antennas, 2×4G antennas OR 4×5G antennas

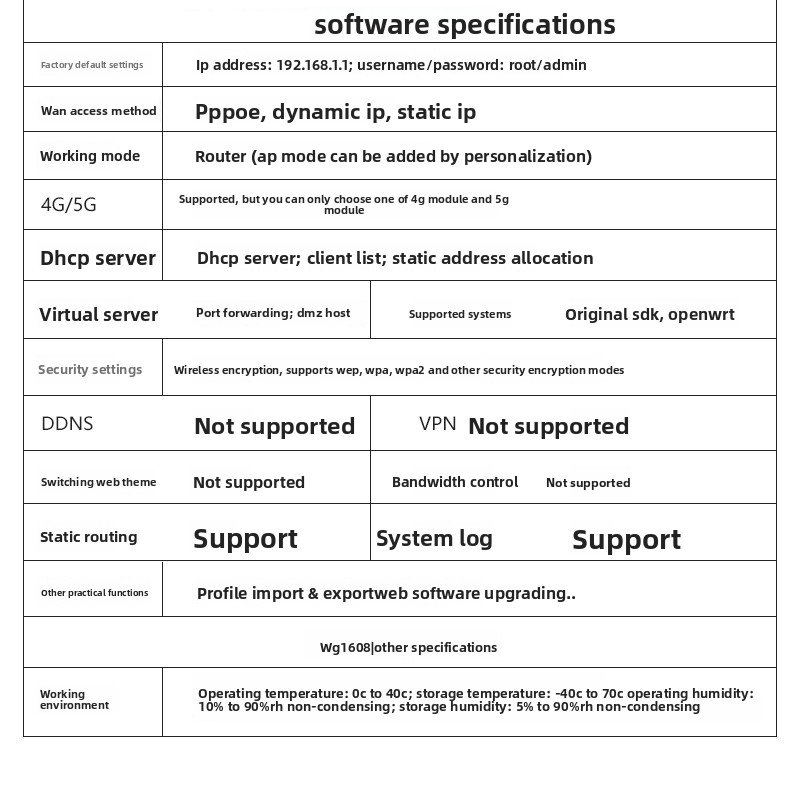

Software Specifications

Factory Default Settings

IP Address: 192.168.1.1; Username / Password: root / admin

WAN Access Method

PPPoE, Dynamic IP, Static IP

Working Mode

Router mode (AP mode can be customized and added)

4G/5G Module

Supported; only one of 4G module or 5G module can be used

DHCP Server

DHCP server, client list, static address assignment

Virtual Server

Port forwarding, DMZ host

Supported Systems

Original SDK, OpenWRT

Security Settings

Wireless encryption, supports WEP, WPA, WPA2 and other security encryption modes

DDNS

Not supported

VPN

Not supported

Web Theme Switching

Not supported

Bandwidth Control

Not supported

Static Routing

Supported

System Log

Supported

Other Practical Functions

Configuration profile import & export, Web-based firmware upgrade

Other Specifications

Working Environment

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -40°C ~ 70°C

Operating Humidity: 10% ~ 90% RH, non-condensing

Storage Humidity: 5% ~ 90% RH, non-condensing
