Main features of the product:

• Utilizing the IPQ8072A solution, it features a 4-core ARM Cortex A53s CPU with a clock speed of up to 2.2 GHz

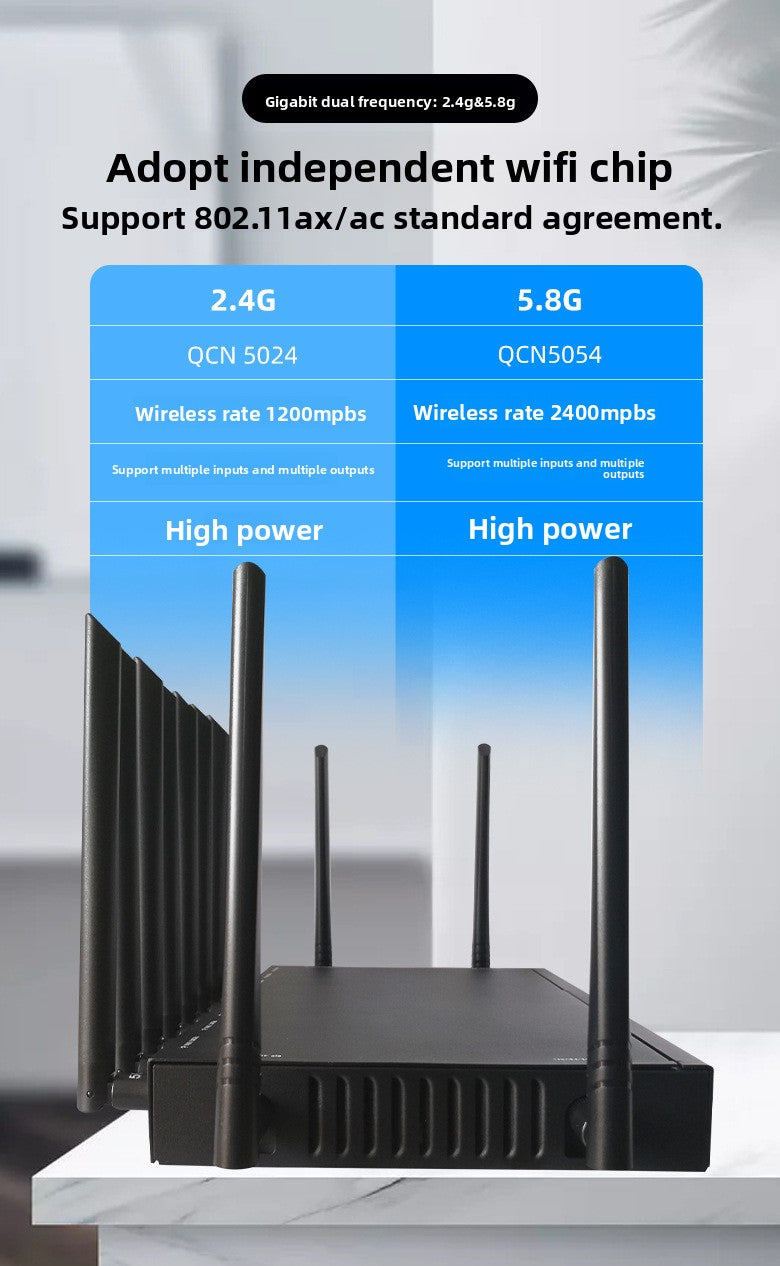

• The device utilizes an independent WIFI chip, with QCN5024 for 2.4G and QCN5054 for 5.8G
• The 2.4G rate is up to 1147Mbps, and the 5.8G rate is up to 2402Mbps, collectively known as 3600 Mbps
• Support MU-MIMO, and the WIFI modulation method supports 1024-QAM and OFDMA

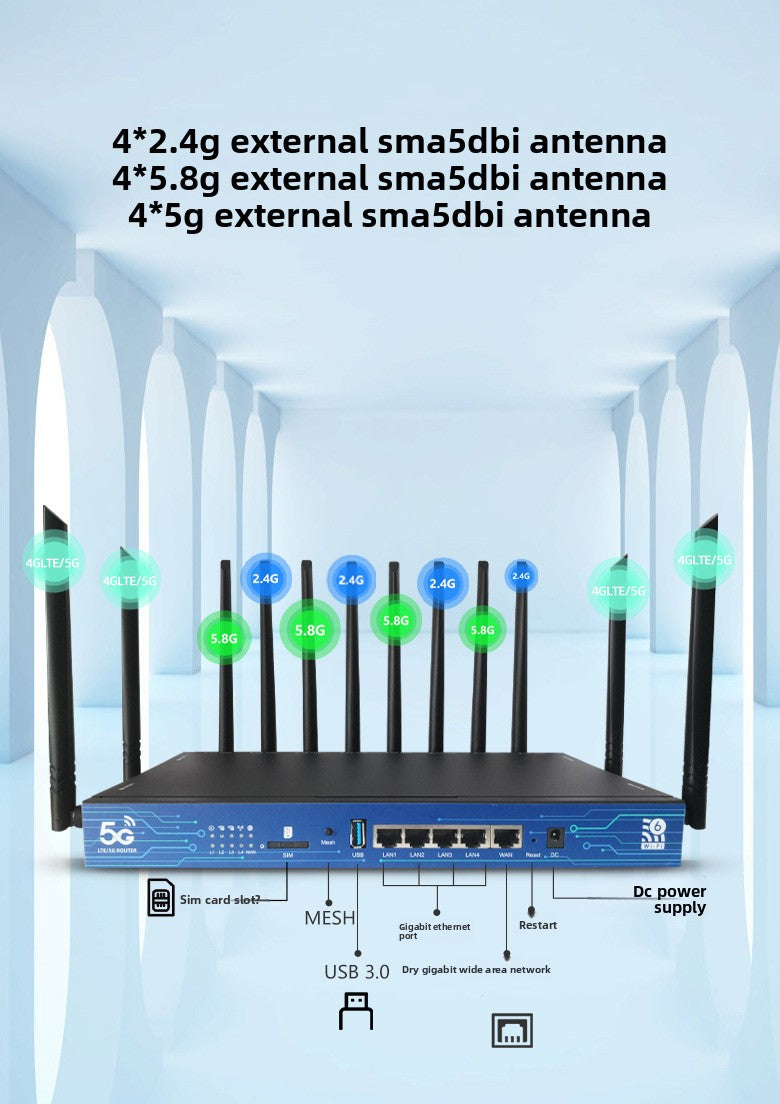

• Each WiFi channel is independently equipped with a high-power FEM, coupled with a high-gain antenna, to achieve superior WiFi coverage

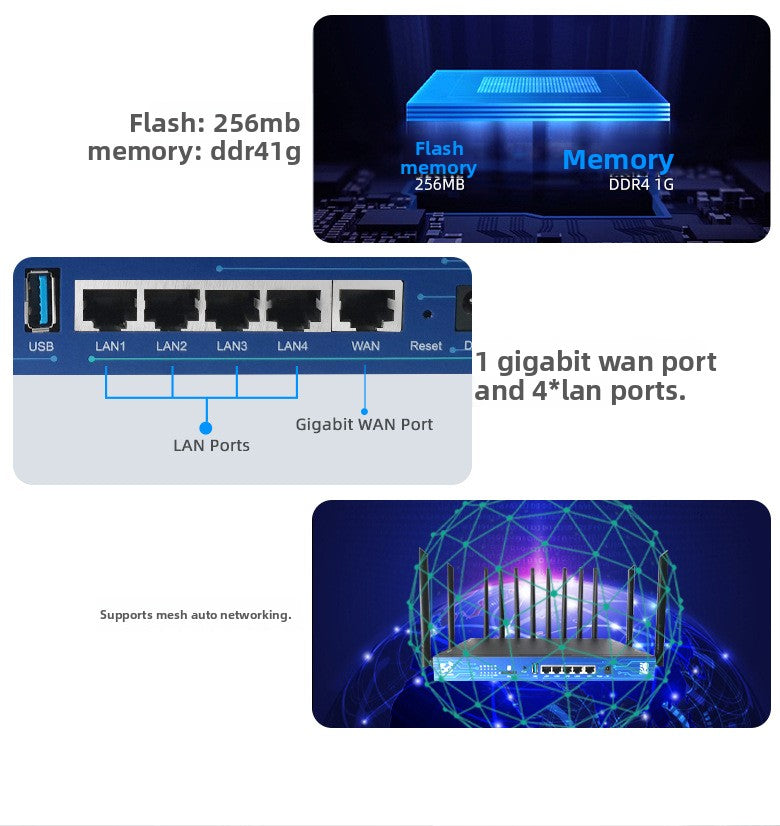

• Equipped with high-speed 1GB DDR4, paired with 8MB Nor Flash and 256MB NAND storage
• 1WAN and 4LAN are all 1000M adaptive network ports, supporting automatic flipping (Auto MDI/MDIX)

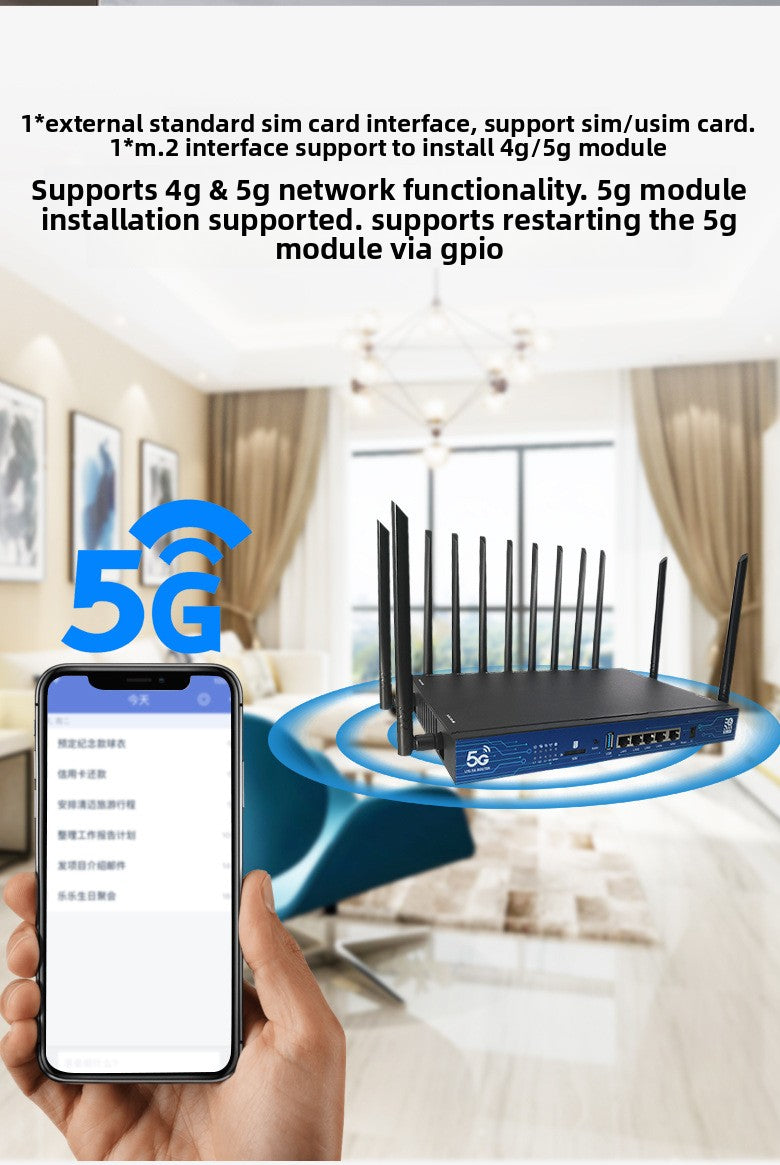

• It is equipped with one M.2 interface for connecting a 5G communication module, and the module power supply is independently controlled through GPIO
• External standard SIM card interface, supporting SIM/USIM cards
• IPQ8072 comes with a watchdog function, which automatically reboots in extreme cases of system crash
• When multiple products are used simultaneously, MESH automatic networking is supported

1.  Overview

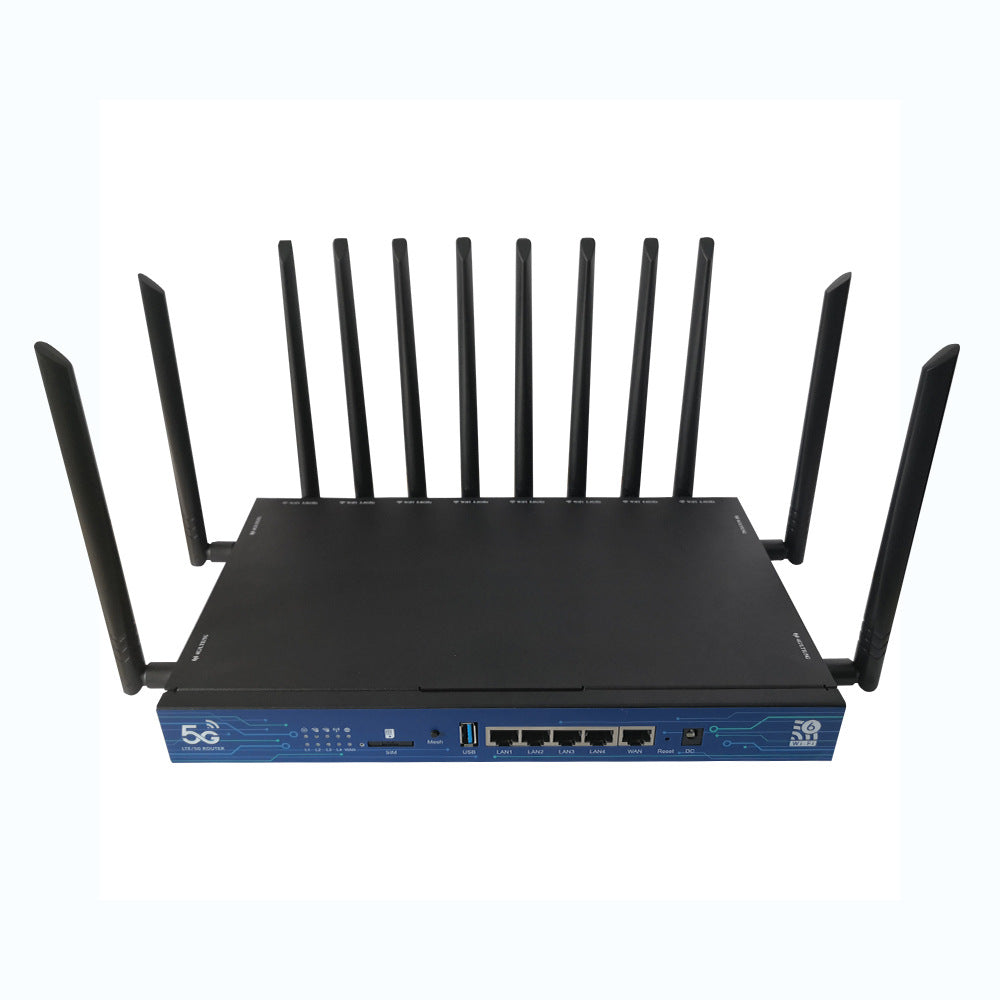

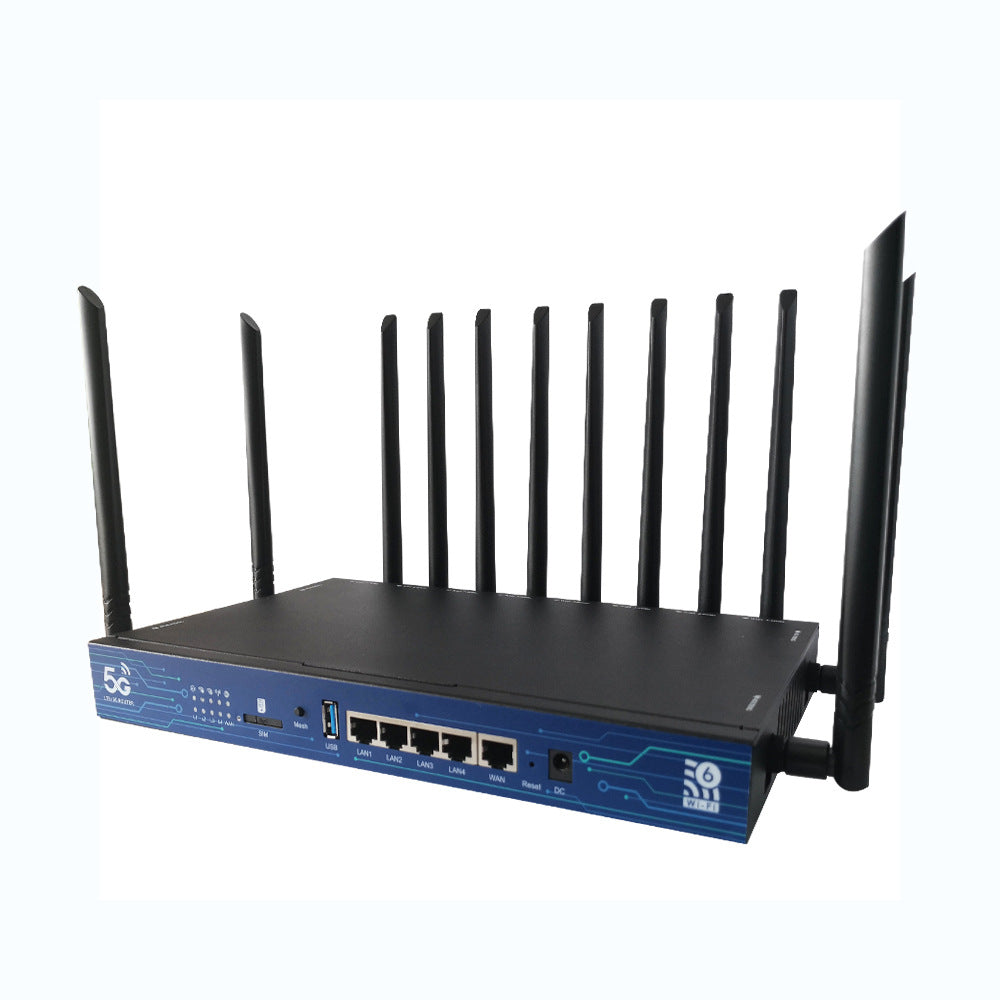

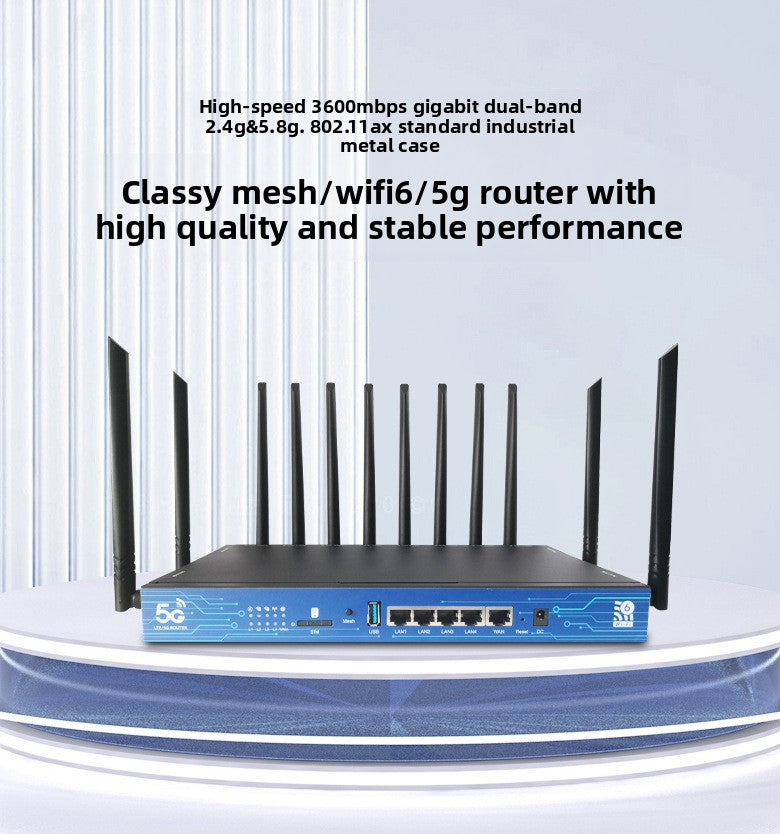

CSZ800-T is a wireless high-end router product featuring 5G+ WiFi6. It accesses the Internet through 5G mobile communication dial-up or 1000Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.

2. Standard

Relevant standards and specifications

• USB3.0/USB2.0 bus standard
• PCI-Express bus standard
• SIM/USIM interface standard
• IEEE802.11n/g/b/a/ac/ax
• IEEE802.3/802.3u/802.ab
• PCI Express M.2 Specification Rev1.1
• The 5G mobile communication standard is specifically determined by the selected 5G mobile communication module

3. Working Environment
