Main features of the product:

• Adopting the MT7981B solution, featuring an ARM Cortex-A53 dual-core CPU with a clock speed of up to 1.3GHZ
• Equipped with an independent WIFI6 chip, MT7976CN, achieving a speed of up to 3000Mbps
• Equipped with high-speed 256MB DDR3L, paired with 128MB SPI Nand Flash

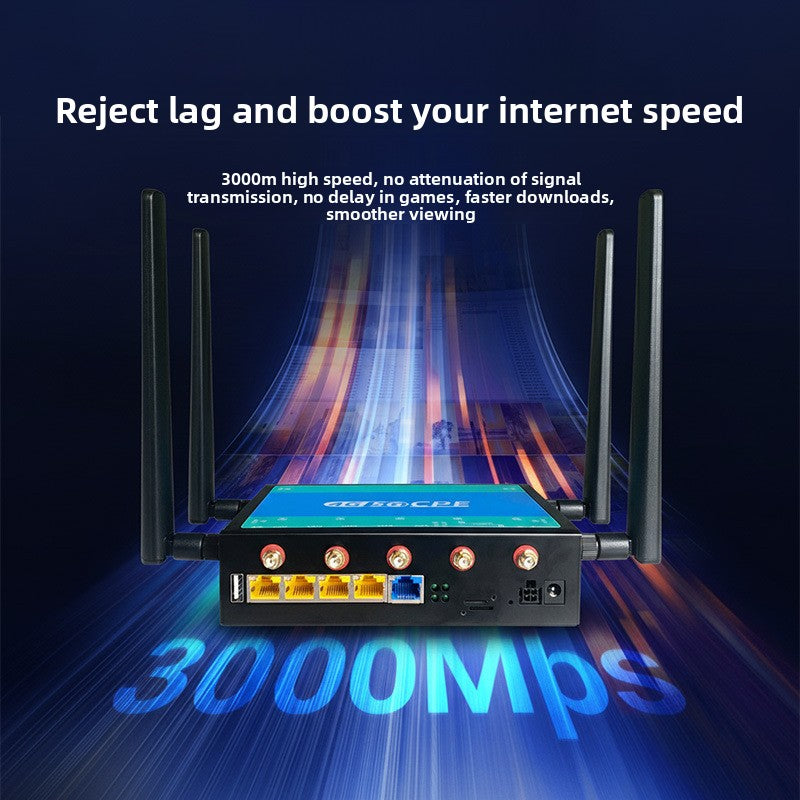

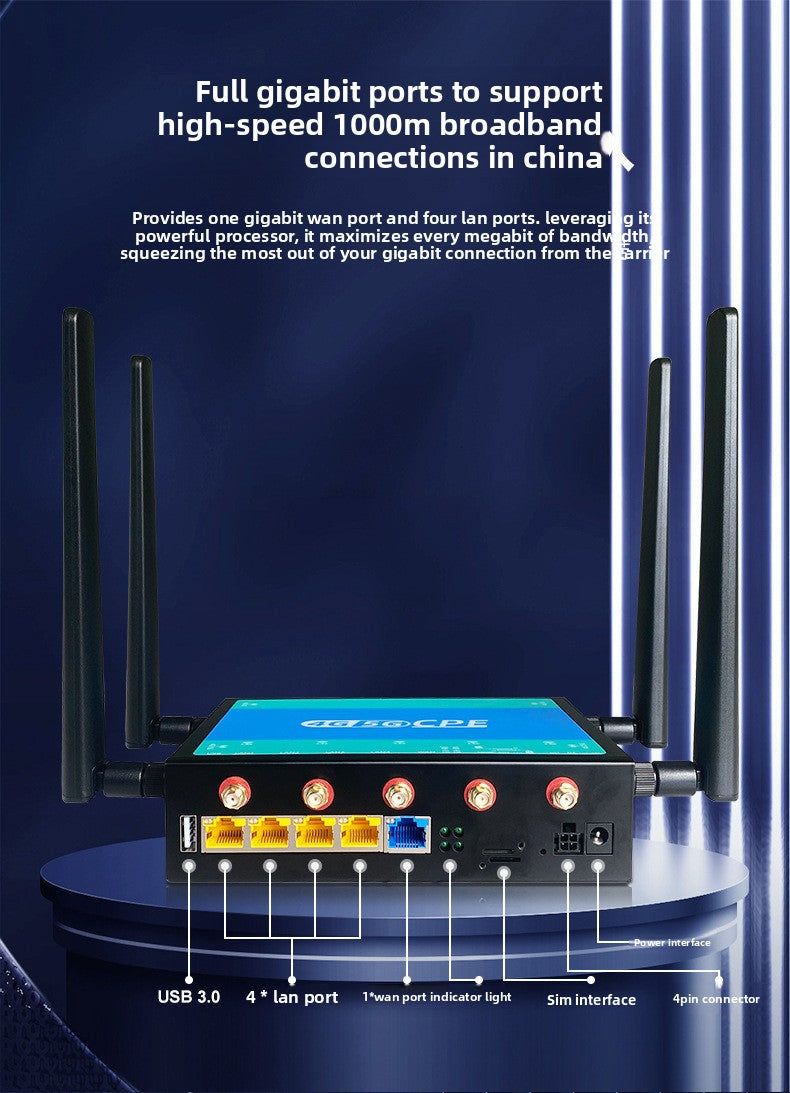

• 1WAN+4LAN 1000M adaptive network port, supporting automatic flipping (Auto MDI/MDIX)
• Support "one-click flashing mode", where long pressing the reset button enters rescue flashing mode
• Equipped with an M2 standard interface, it can be used to connect to a 5G mobile communication module
• 5G adopts the PCIE bus-to-network port (PHY chip) solution to enhance the speed
• Equipped with two standard Nano SIM card (small card) interfaces, supporting SIM/USIM cards

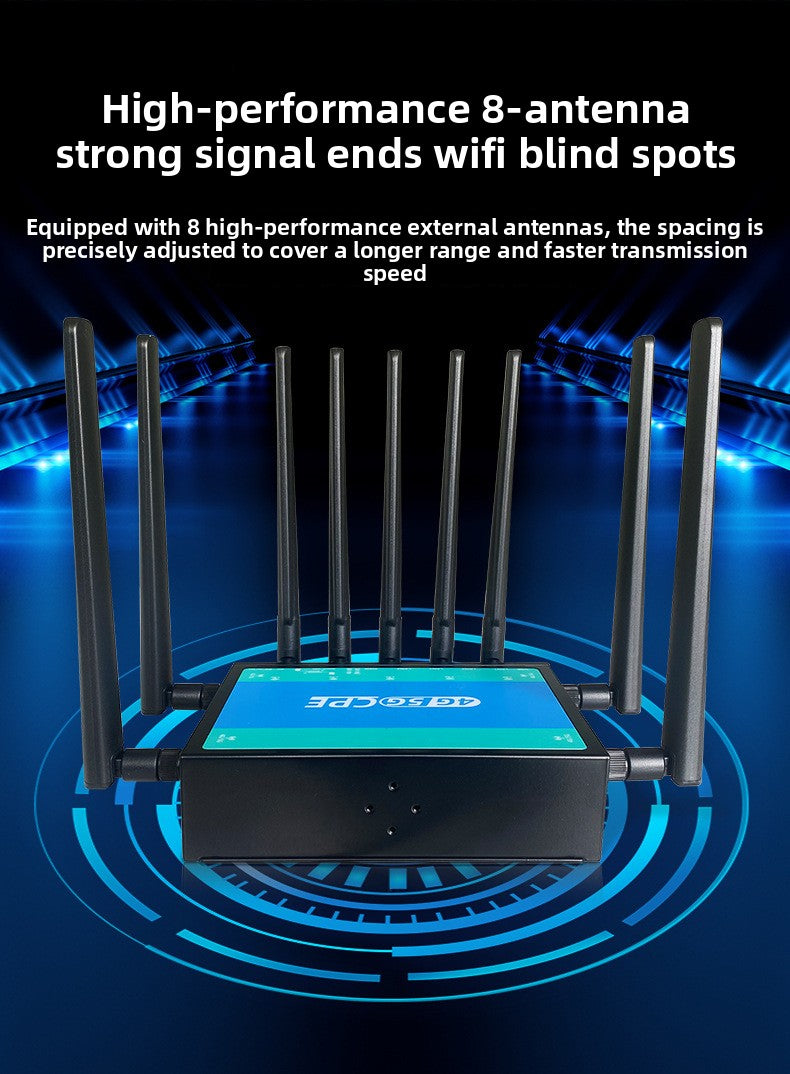

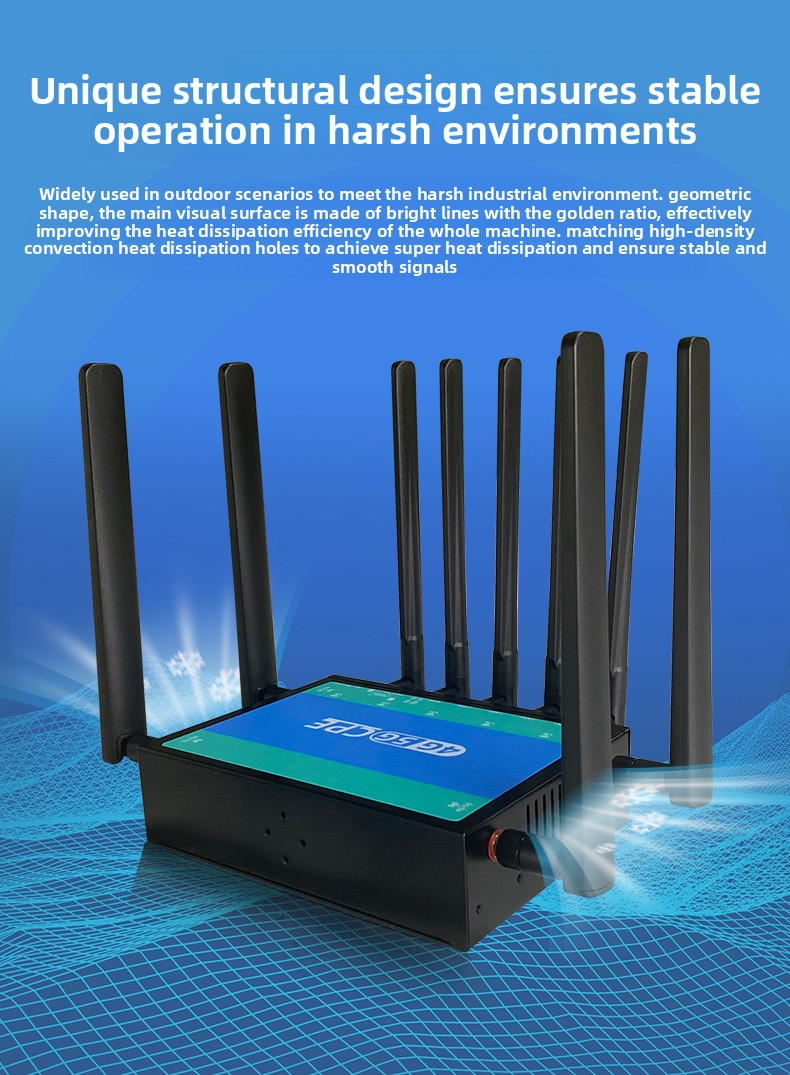

• External high-gain WIFI antenna, providing wireless signal coverage in 360 degrees without dead zones

1.  Overview

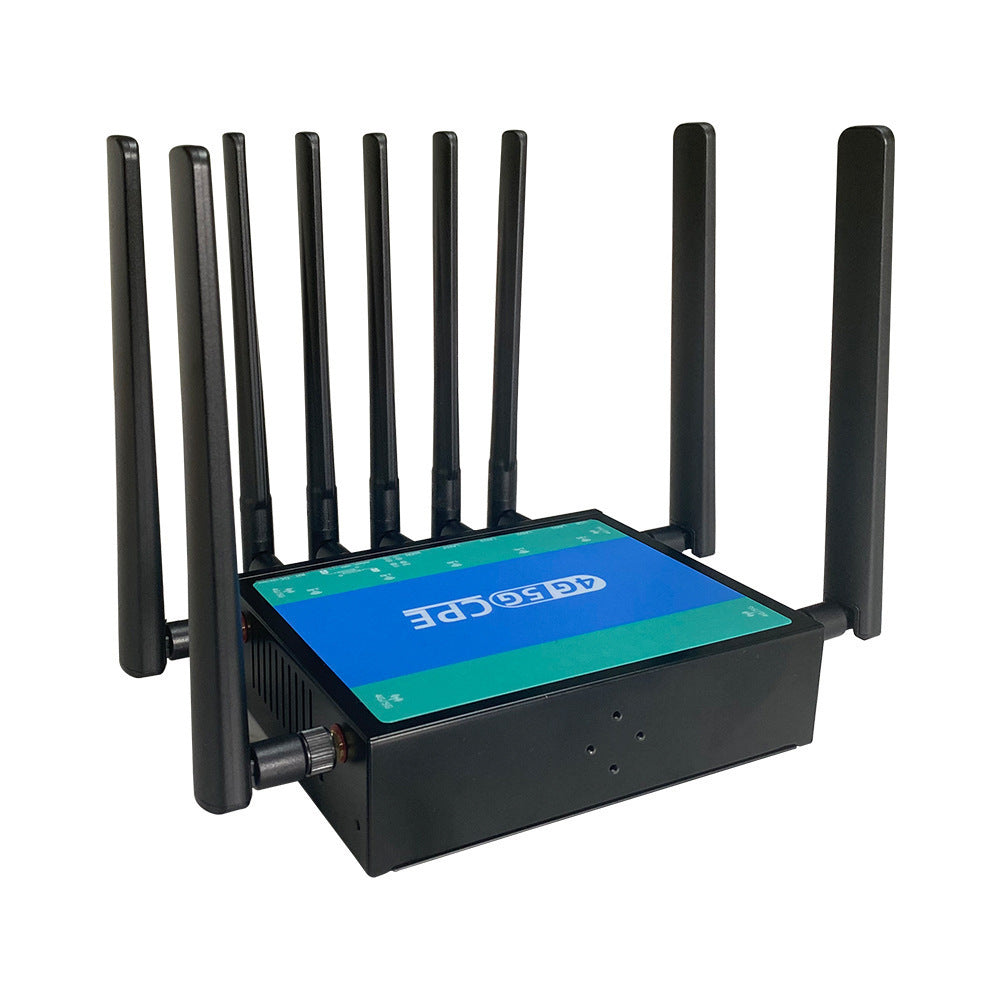

CS-Z8106-M2-T is a 5G+WIFI6 home CPE router that accesses the Internet through 5G mobile communication dial-up or a 1000Mbps WAN port, and then shares the Internet network through wireless WiFi 6 and a 1000Mbps wired LAN. In addition, this product can accommodate dual SIM cards and has added a PCIe to Ethernet converter chip, effectively enhancing the 5G speed.

2. Standard

Relevant standards and specifications:

• USB3.0/USB2.0 bus standard
• SIM/USIM interface standard
• IEEE802.11n/g/b/a/ac/ax
• IEEE802.3/802.3u/802.ab
• PCI Express M.2 Specification Rev1.1
• The 5G mobile communication standard

3. Working Environment
