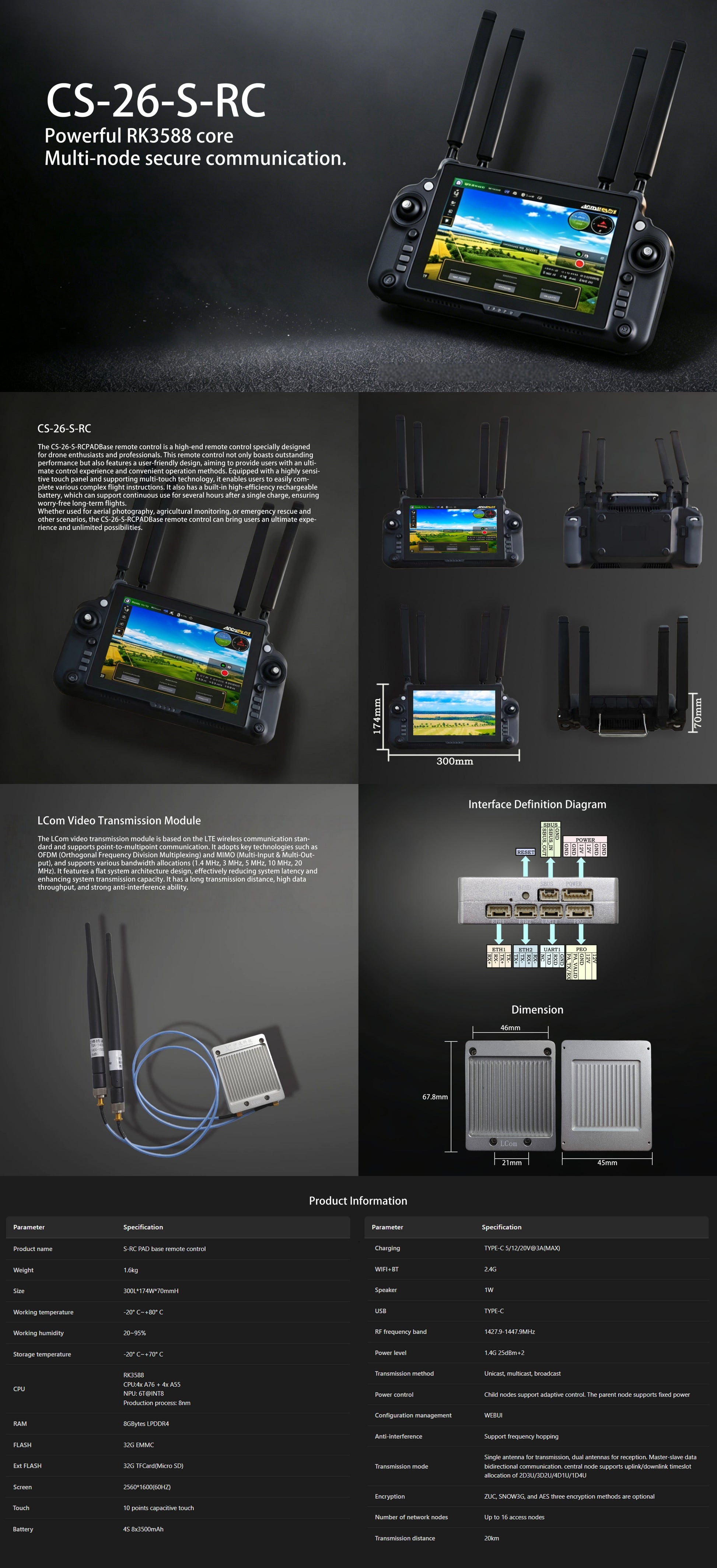

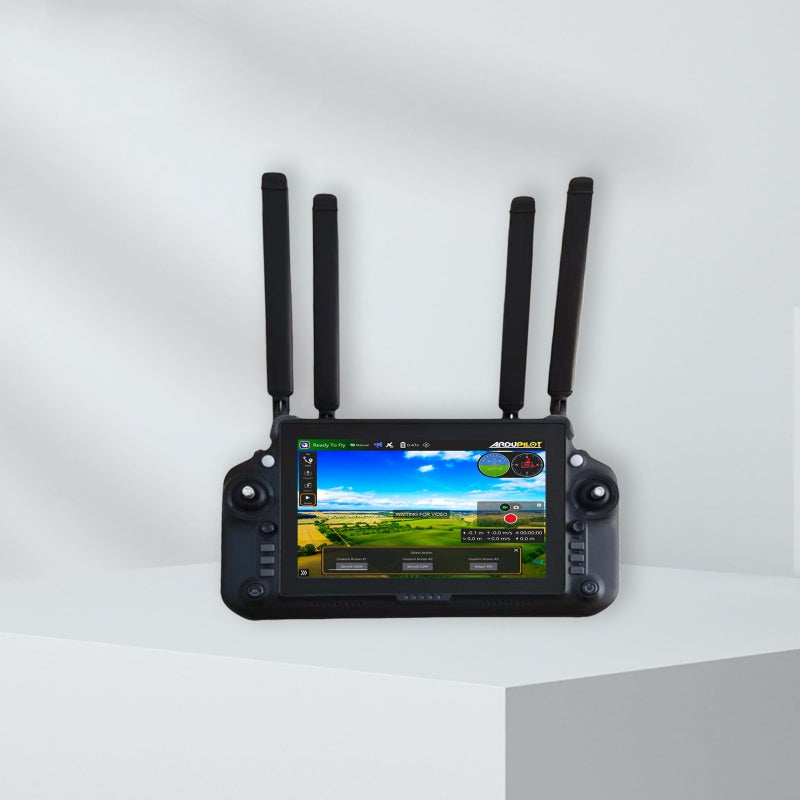

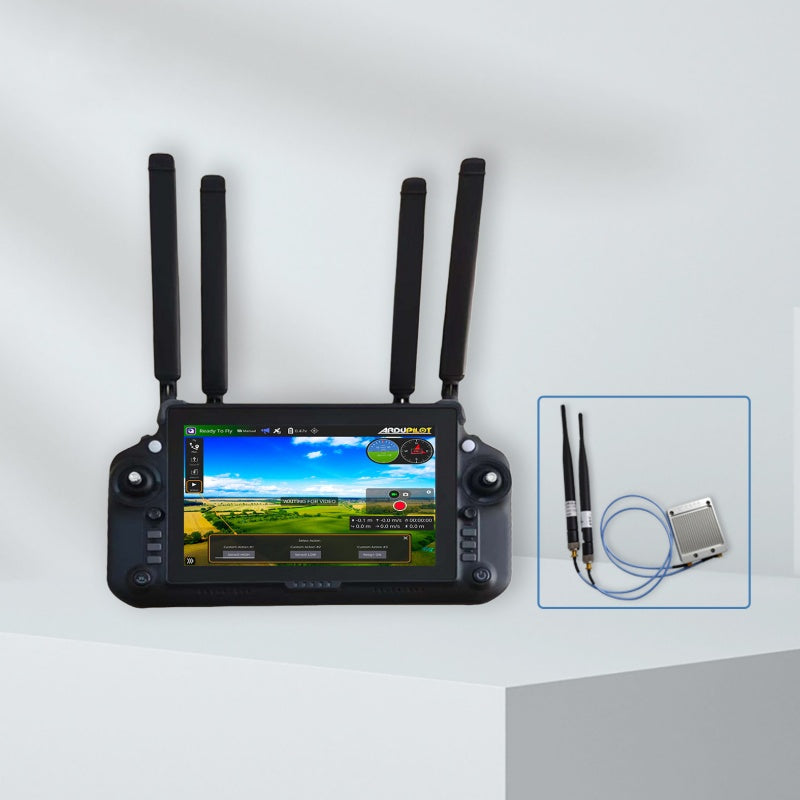

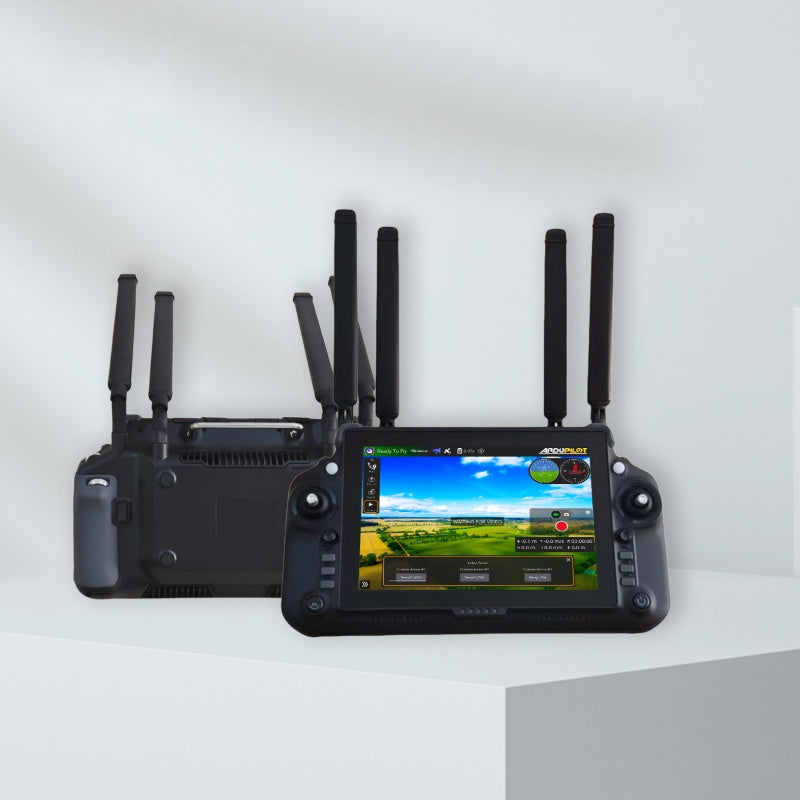

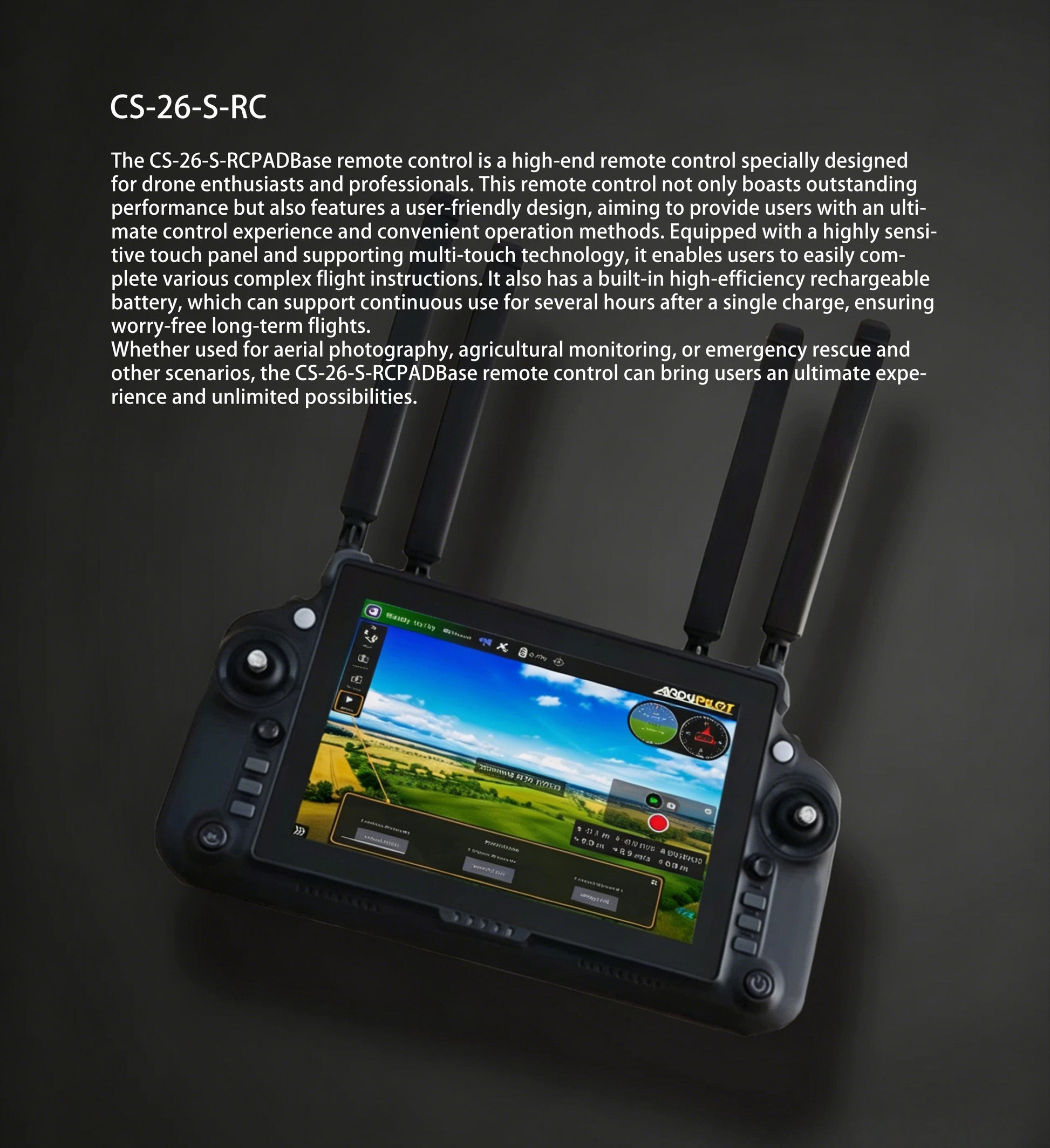

Croskylink CS-26-S-RC Handheld Ground Station 20km Wireless Long-Range Communication Remote Control

CS-26-S-RC Handheld Ground Station – Key Features

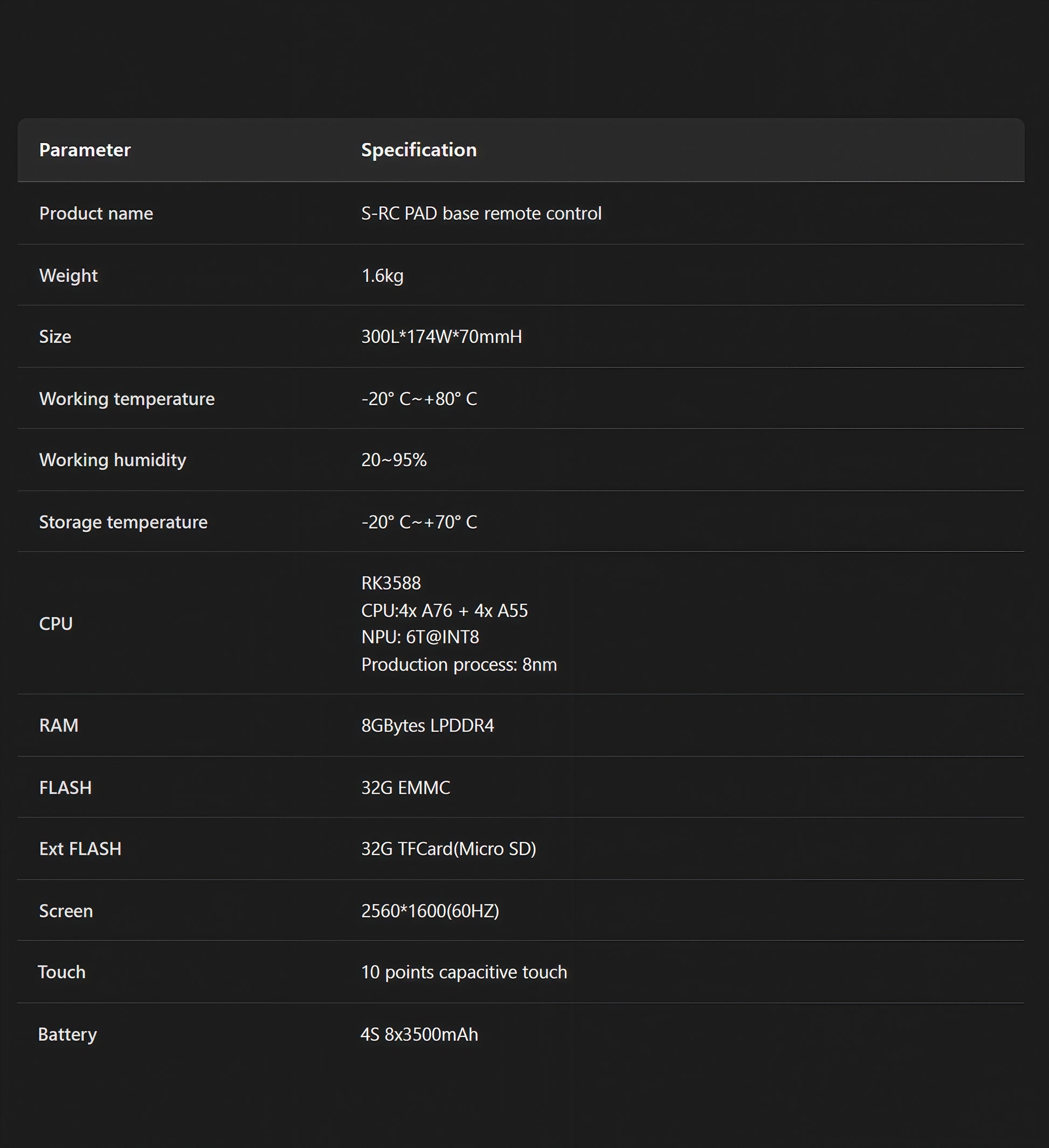

• High‑Performance Core – Powered by RK3588 (8nm, NPU 6 TOPS), 8GB LPDDR4 RAM, 32GB eMMC, plus Micro SD expansion – smooth operation for complex ground control software.

• HD Capacitive Touchscreen – 2.5K (2560×1600) @60Hz display with 10‑point multi‑touch, enabling intuitive gesture control and real‑time telemetry monitoring.

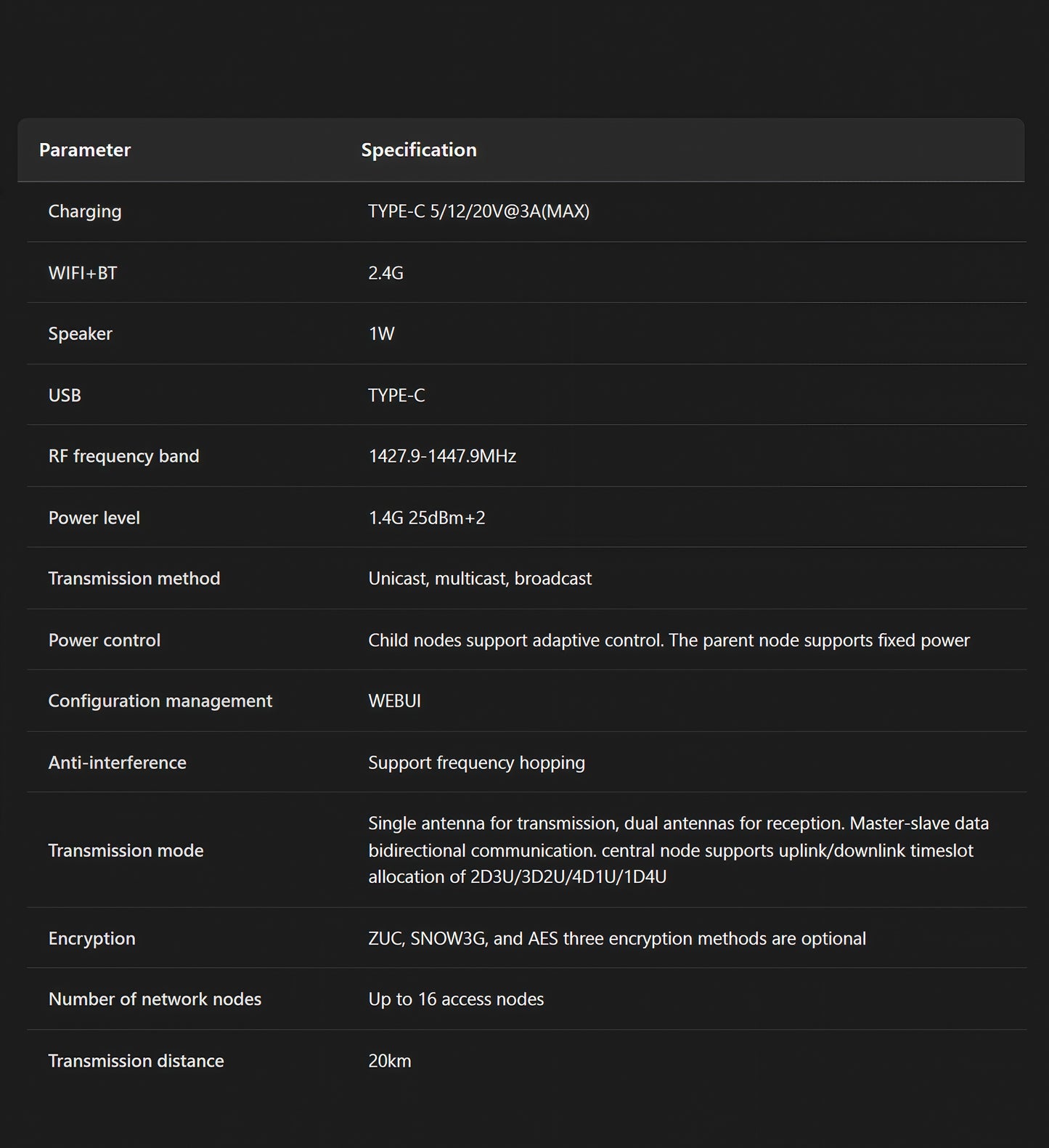

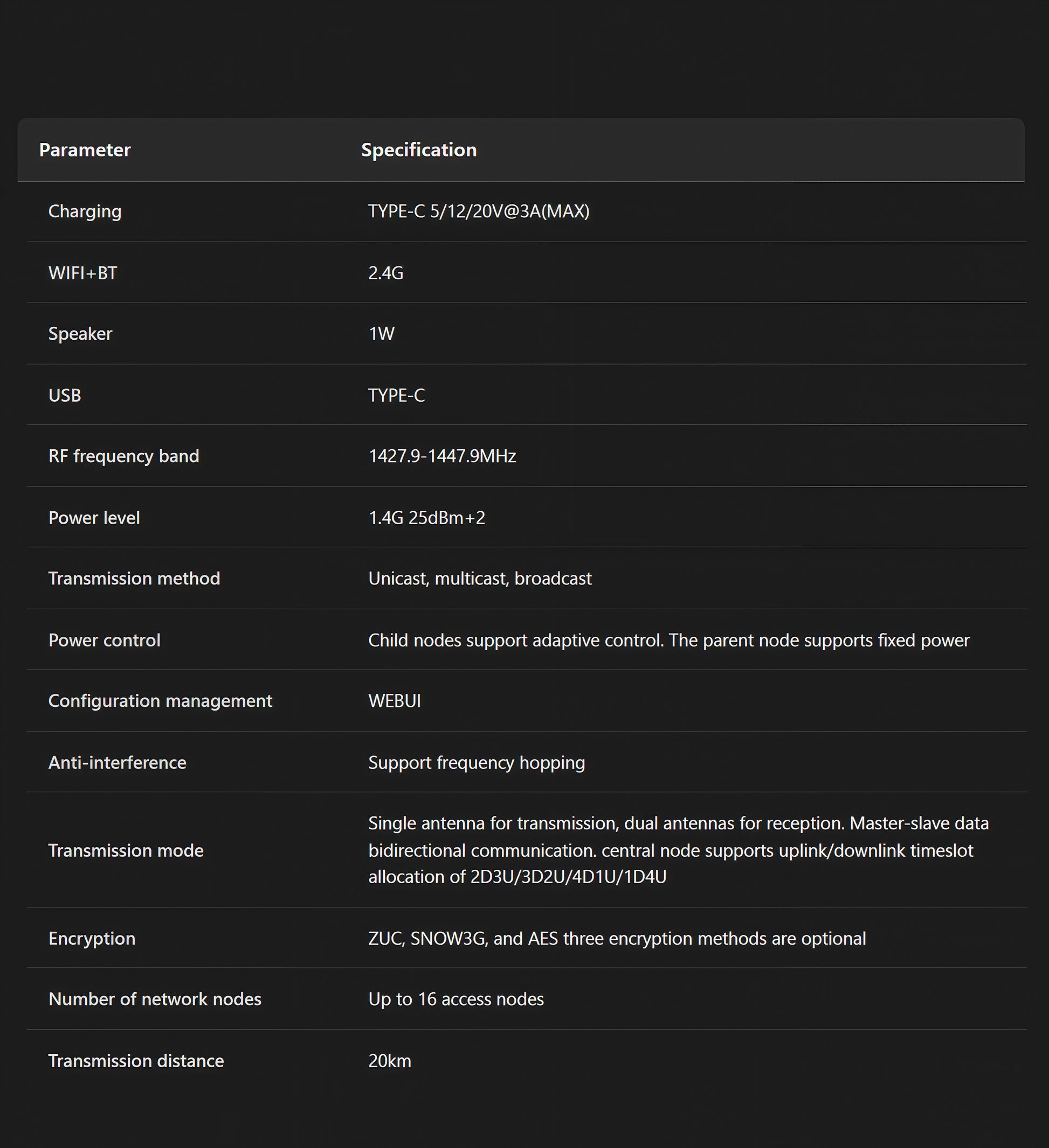

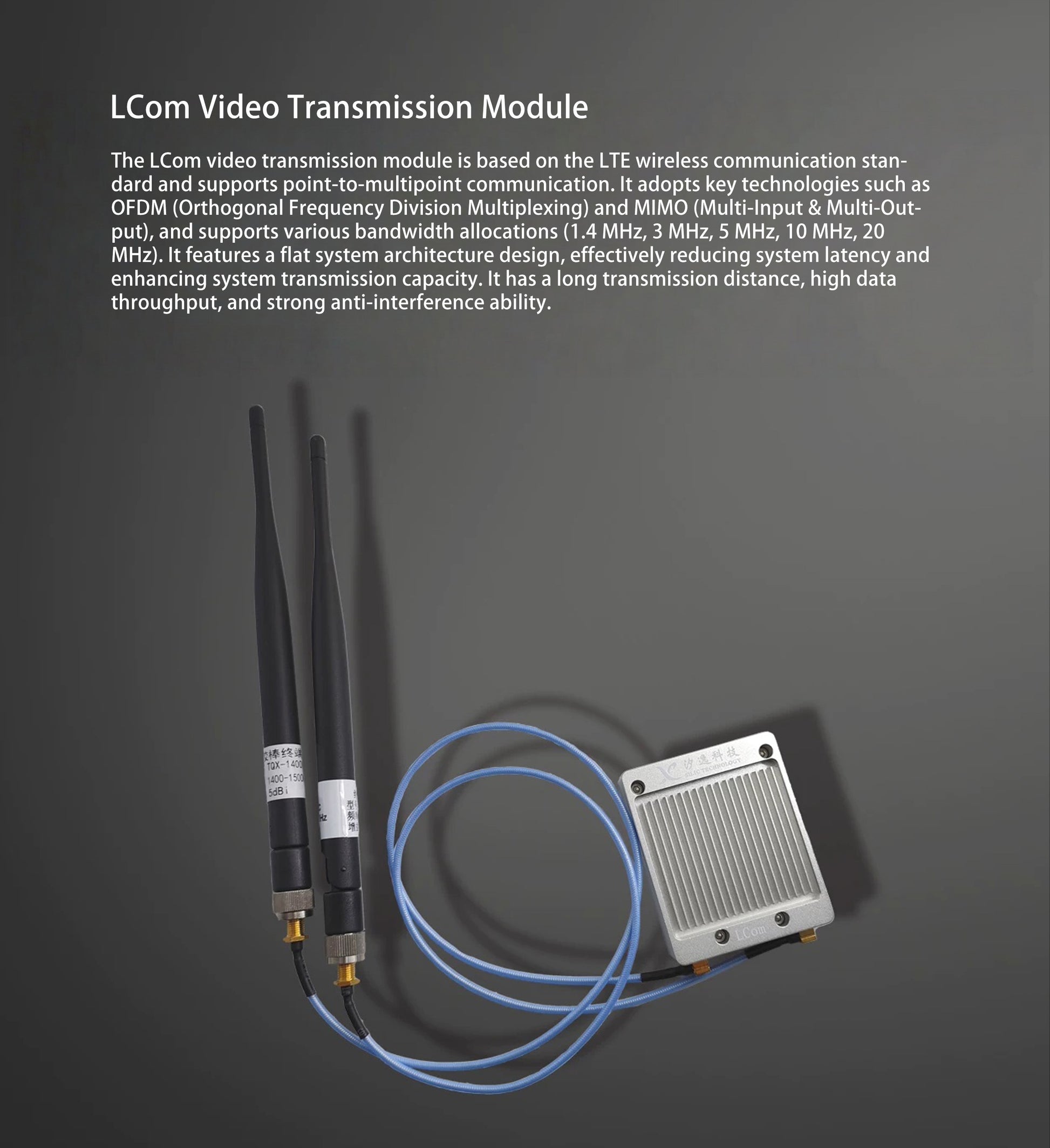

• Long‑Range Data Link – Operates on 1.4 GHz band with 25 dBm output power, supports point‑to‑multipoint (unicast/multicast/broadcast), up to 20 km range. Features FHSS anti‑jamming, selectable AES/SNOW3G/ZUC encryption, and manages up to 16 subscriber nodes with flexible TDD timeslot allocation (e.g., 2D3U/3D2U).

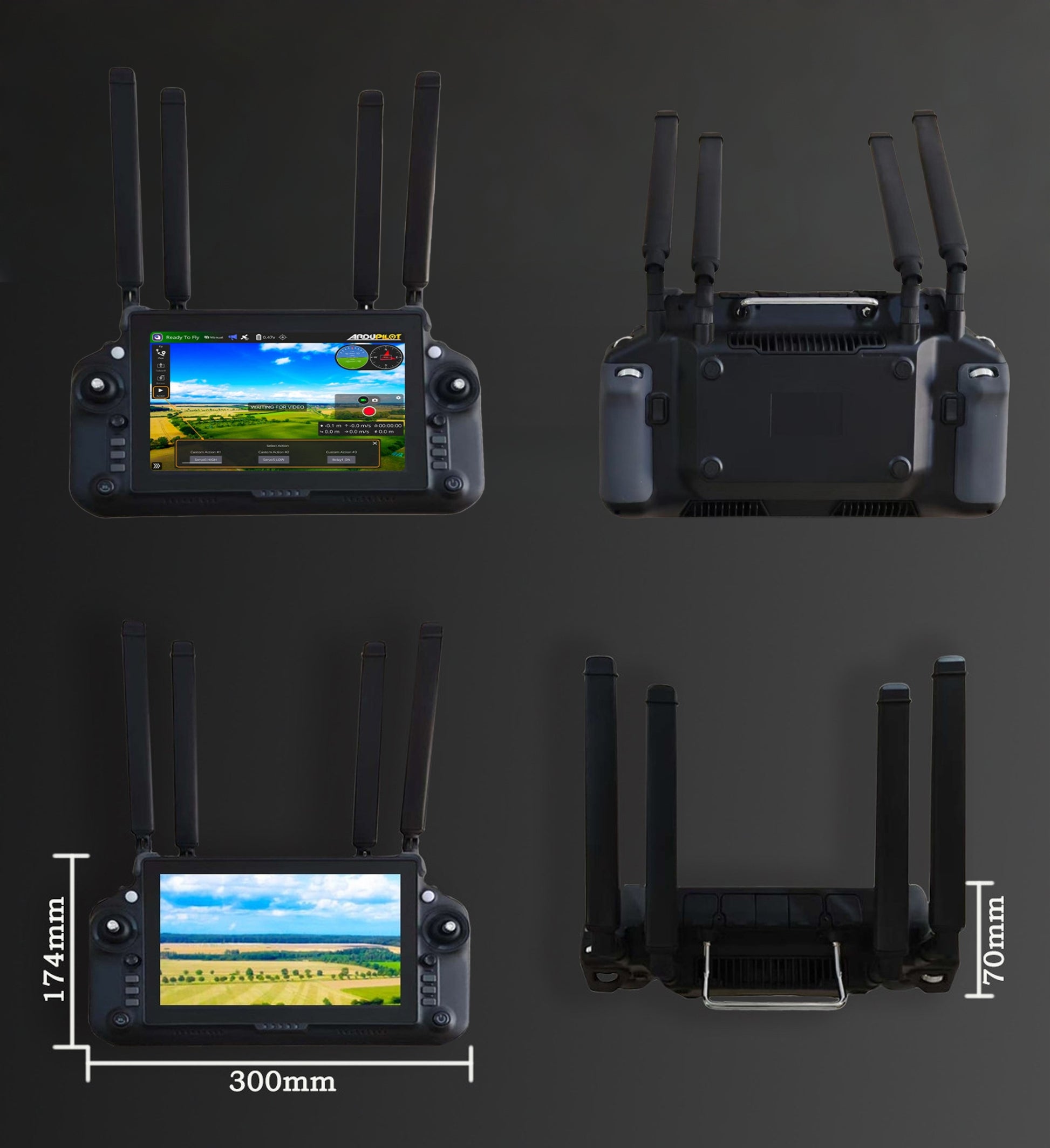

• Rugged & Portable – Built‑in high‑capacity battery with USB‑C fast charging (5/12/20V@3A), wide operating temperature from ‑20°C to +80°C. Weighs only 1.6 kg with ergonomic handheld design, ideal for field operations in agriculture, surveillance, and emergency response.
