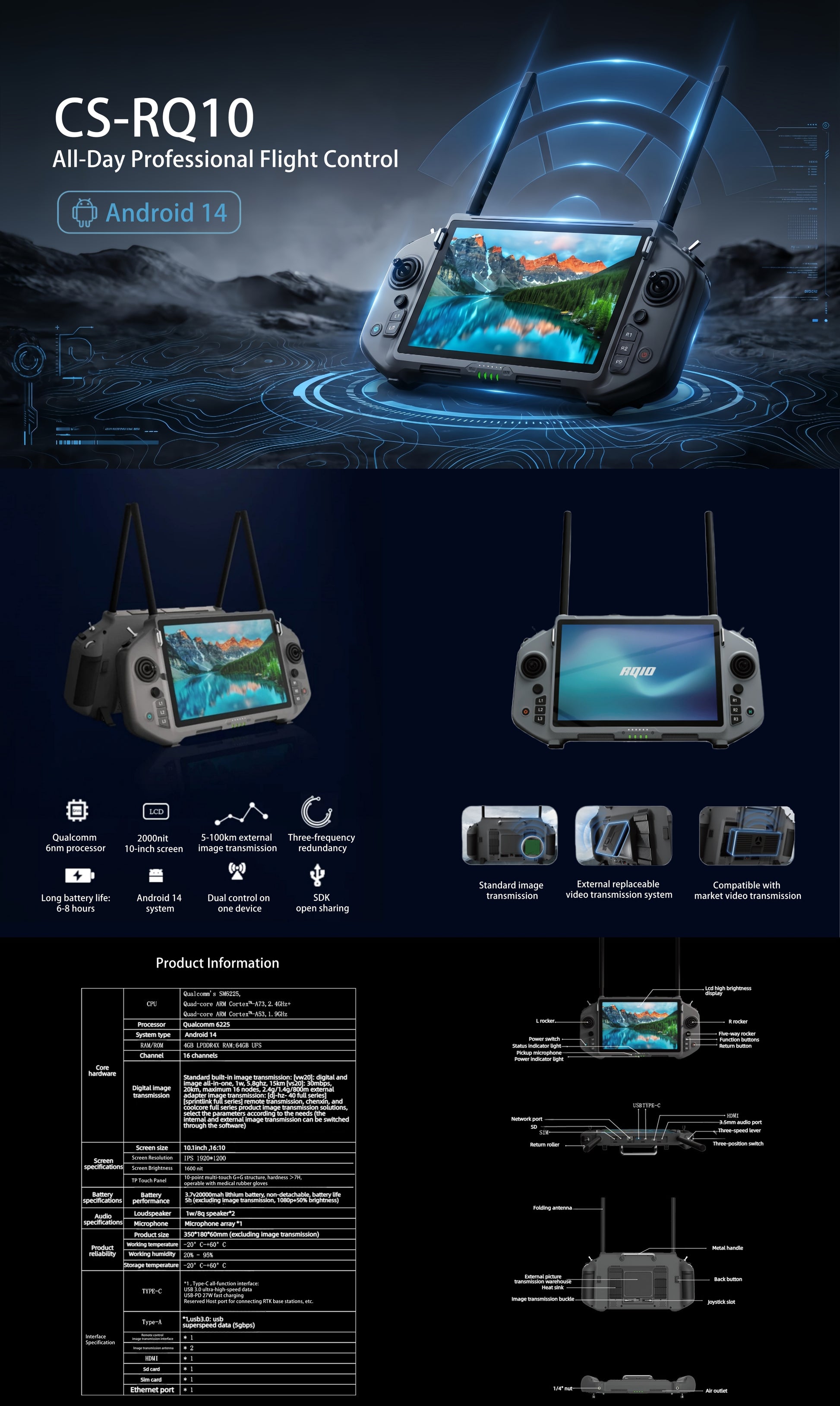

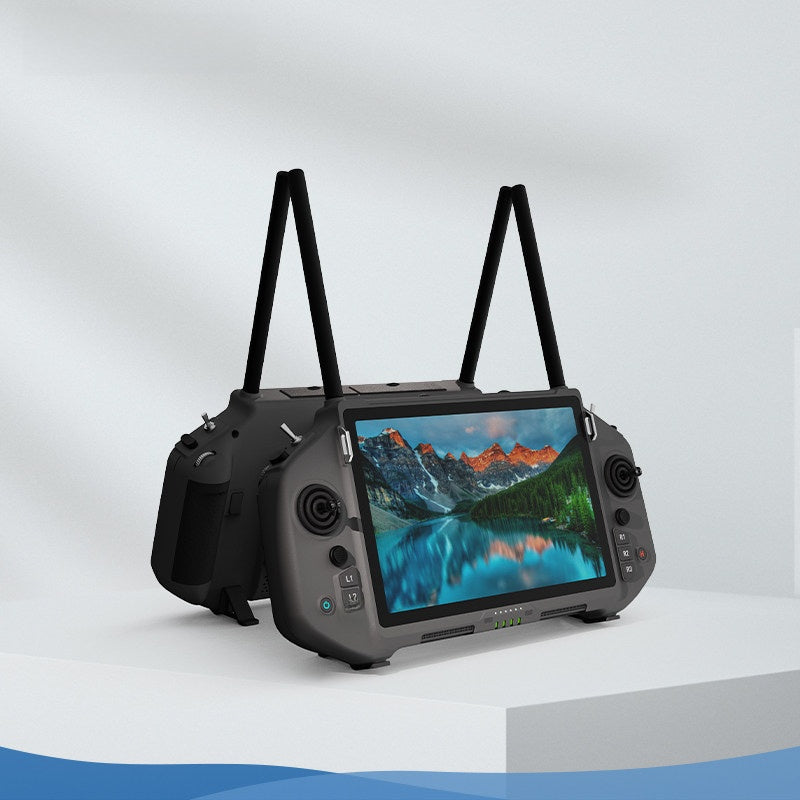

Croskylink CS-RQ10 Handheld Ground Station for Robotics High-Brightness Screen Digital Image Transmission Controller

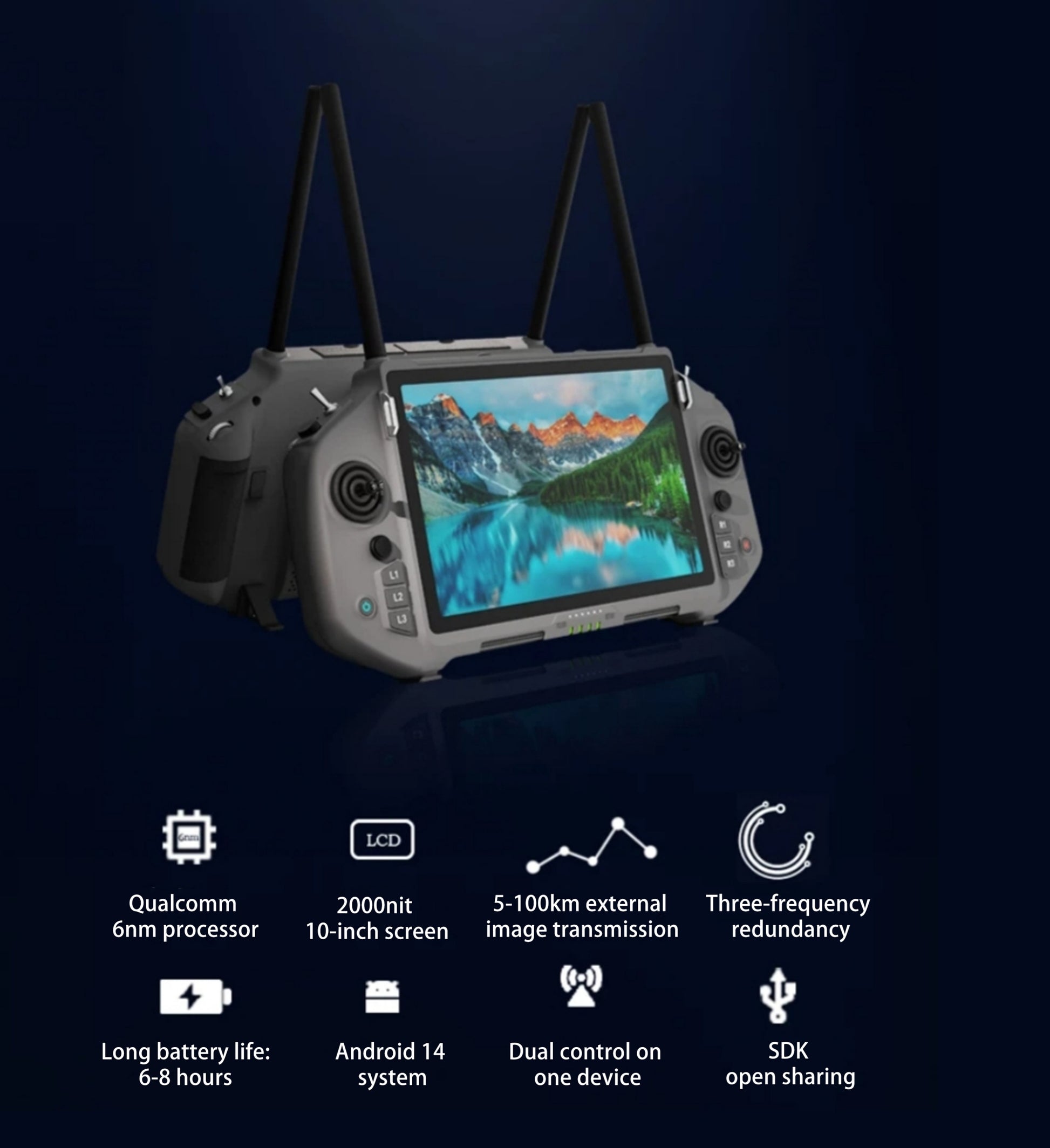

CS-RQ10  Handheld Ground Station – Key Features

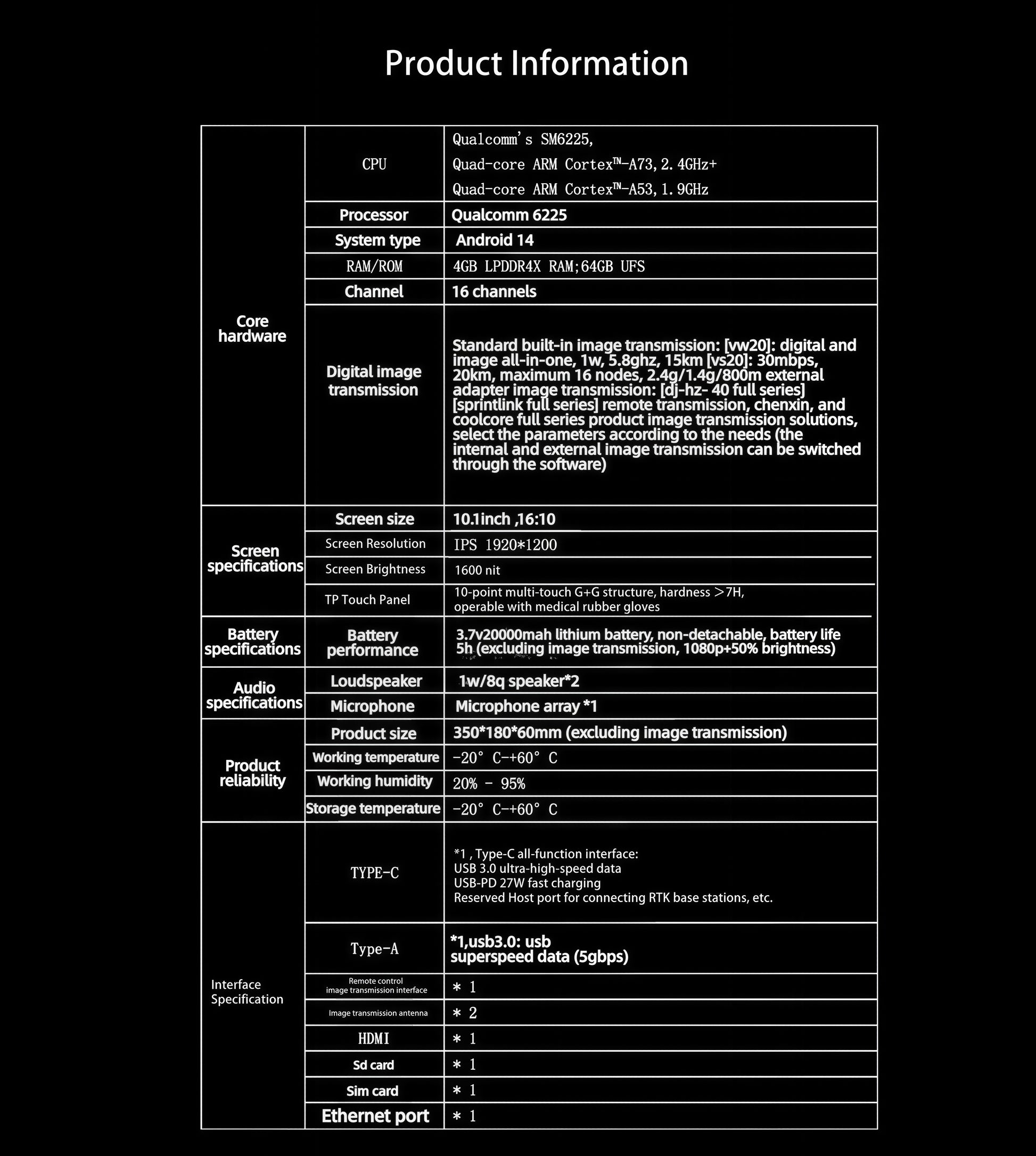

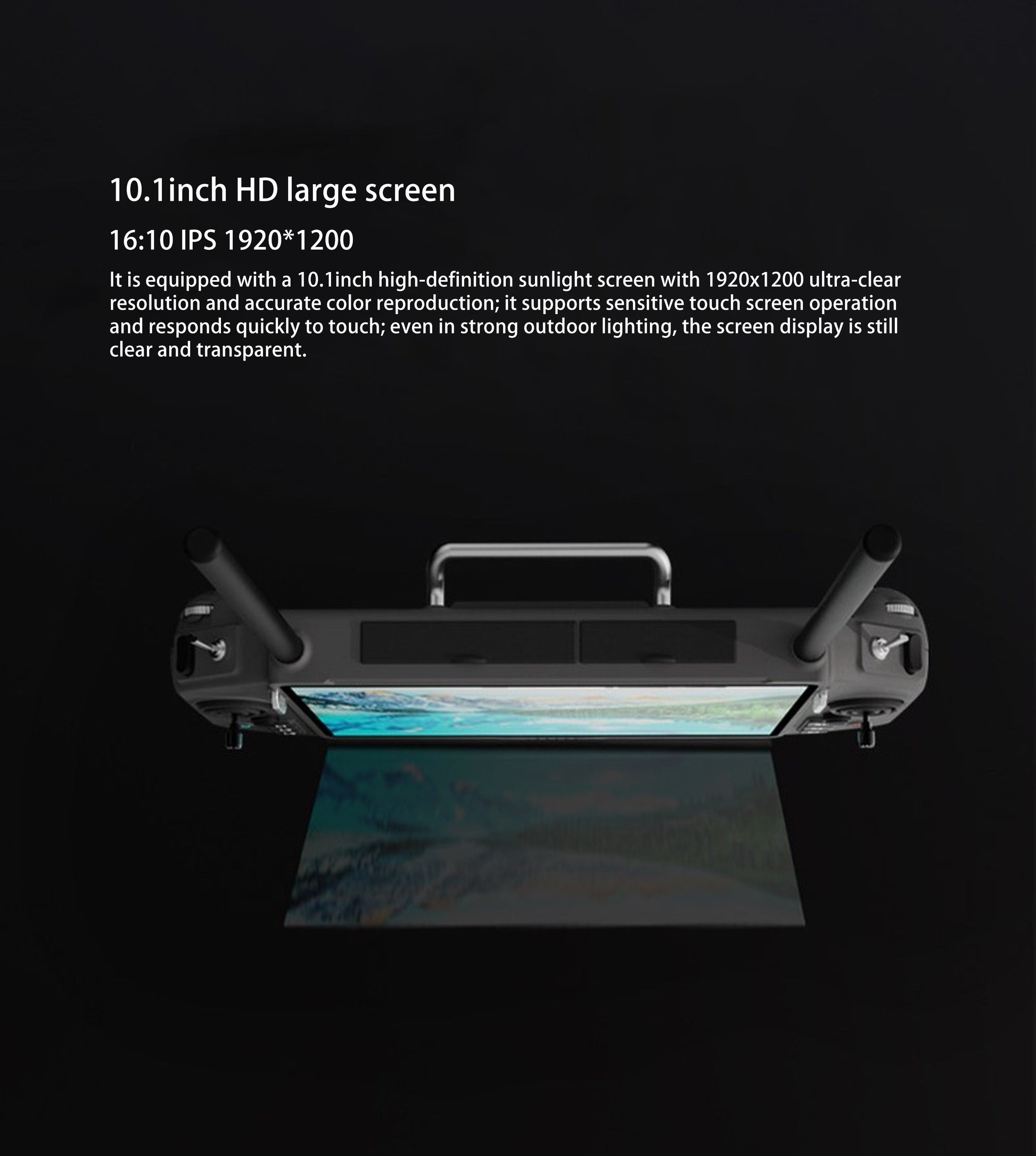

• High‑Brightness Touchscreen – 10.1‑inch IPS display, 1920×1200 resolution, 2000 nits luminance – sunlight‑readable; supports 10‑point capacitive touch and medical‑grade glove operation, ideal for harsh outdoor field use.

• Android Smart Platform – Powered by Qualcomm SM6225 octa‑core (2.4GHz A73 + 1.9GHz A53), native Android 14, 4GB LPDDR4X + 64GB UFS – smoothly runs all ground‑control apps; plug‑and‑play compatibility with mainstream flight controllers and gimbals, no extra configuration required.

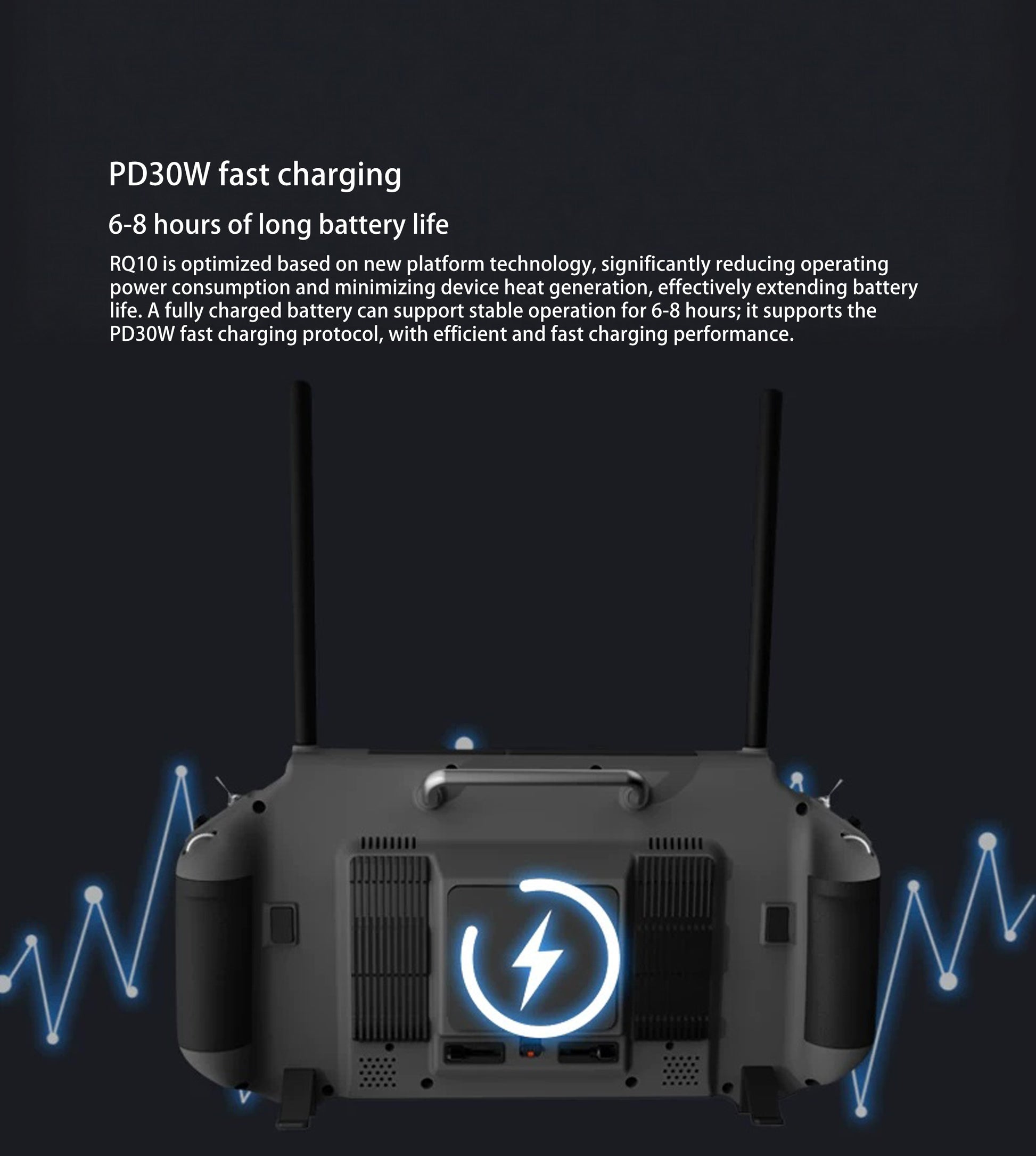

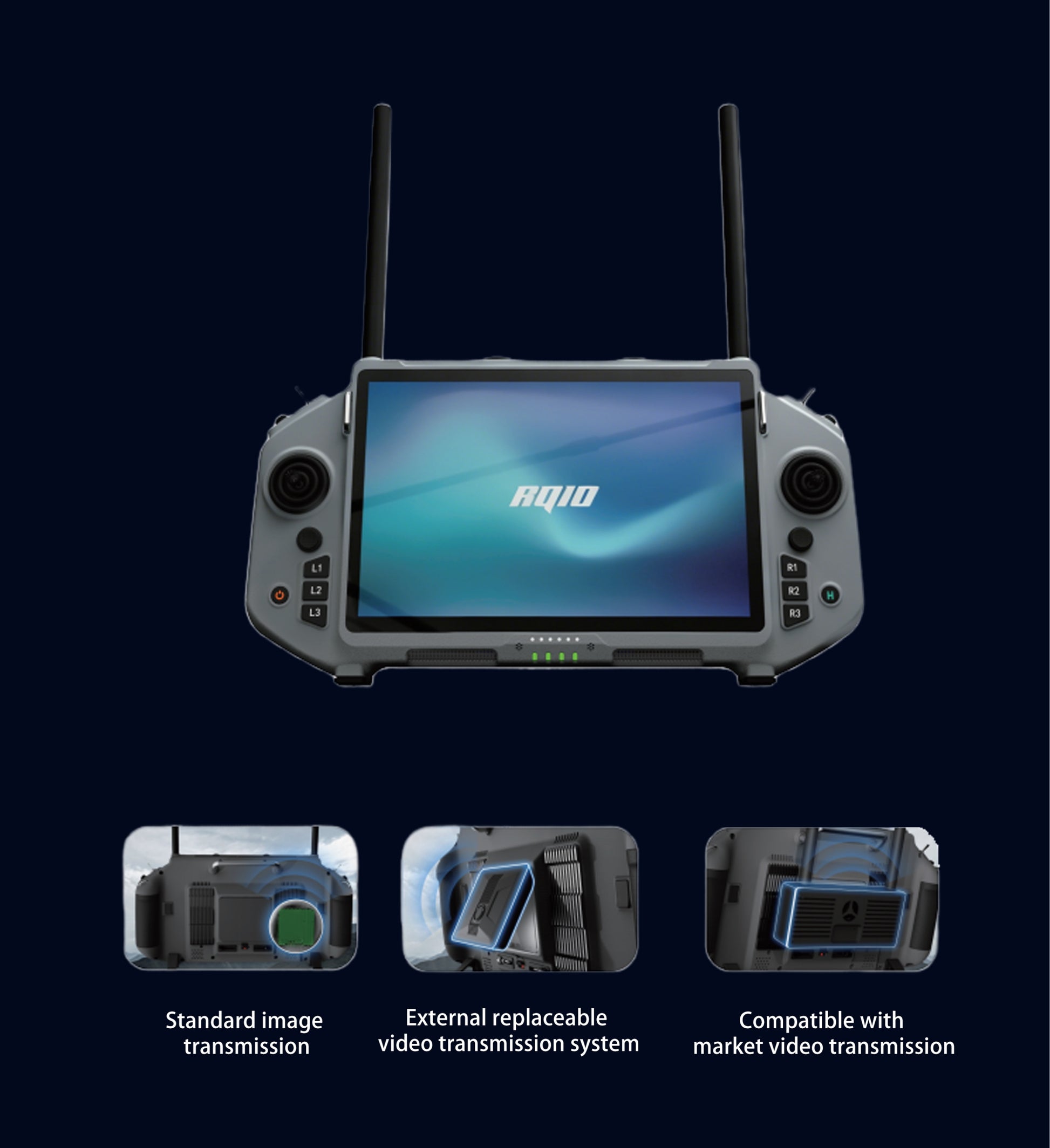

• Extended Battery Life & Long‑Range Data Link – Built‑in 20000mAh battery delivers 6–8 hours runtime (1080P @ 50% brightness); optional internal 5.8GHz data link (1W, 15km) or external compatible modules (up to 20km, supporting up to 16 nodes) for flexible mission deployment.

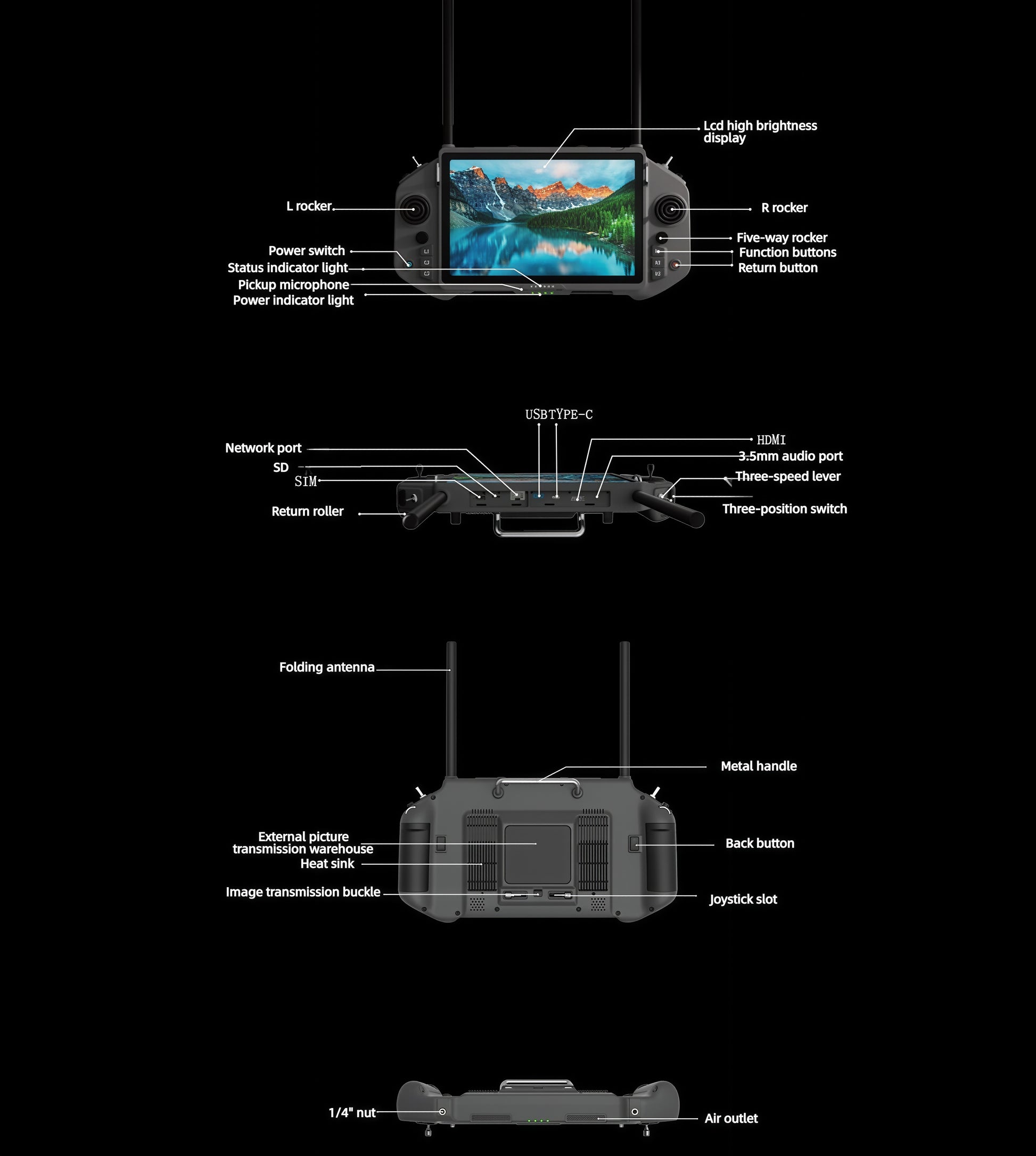

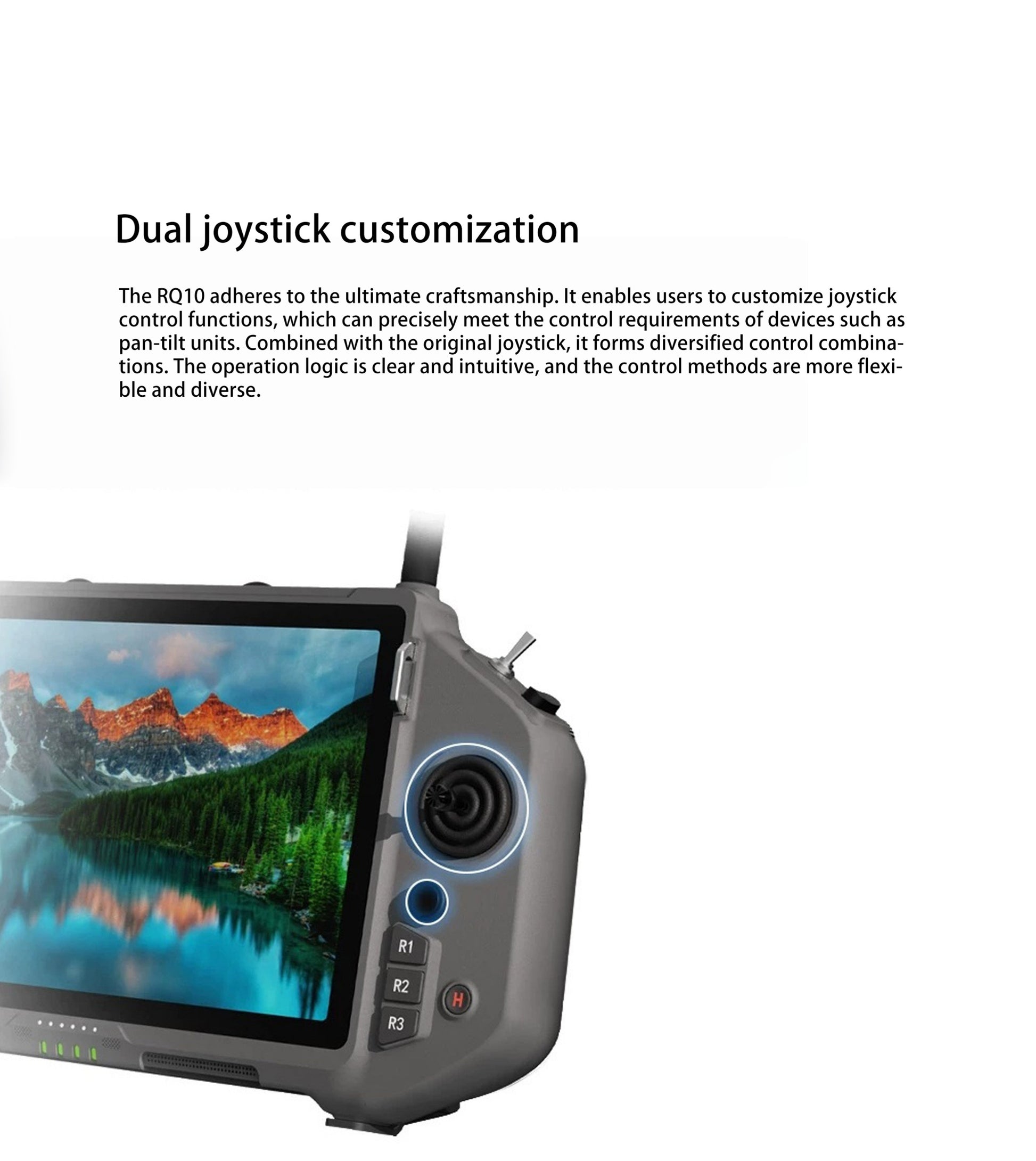

• Full I/O & Ergonomic Controls – Equipped with USB‑C (USB 3.0 + PD 27W fast charging), USB‑A 3.0, HDMI, Gigabit Ethernet, TF/SIM slots, and external FPV video input; features gimbal reset dial wheel and zoom keys, plus ergonomic grip for comfortable long‑duration flight operations.
