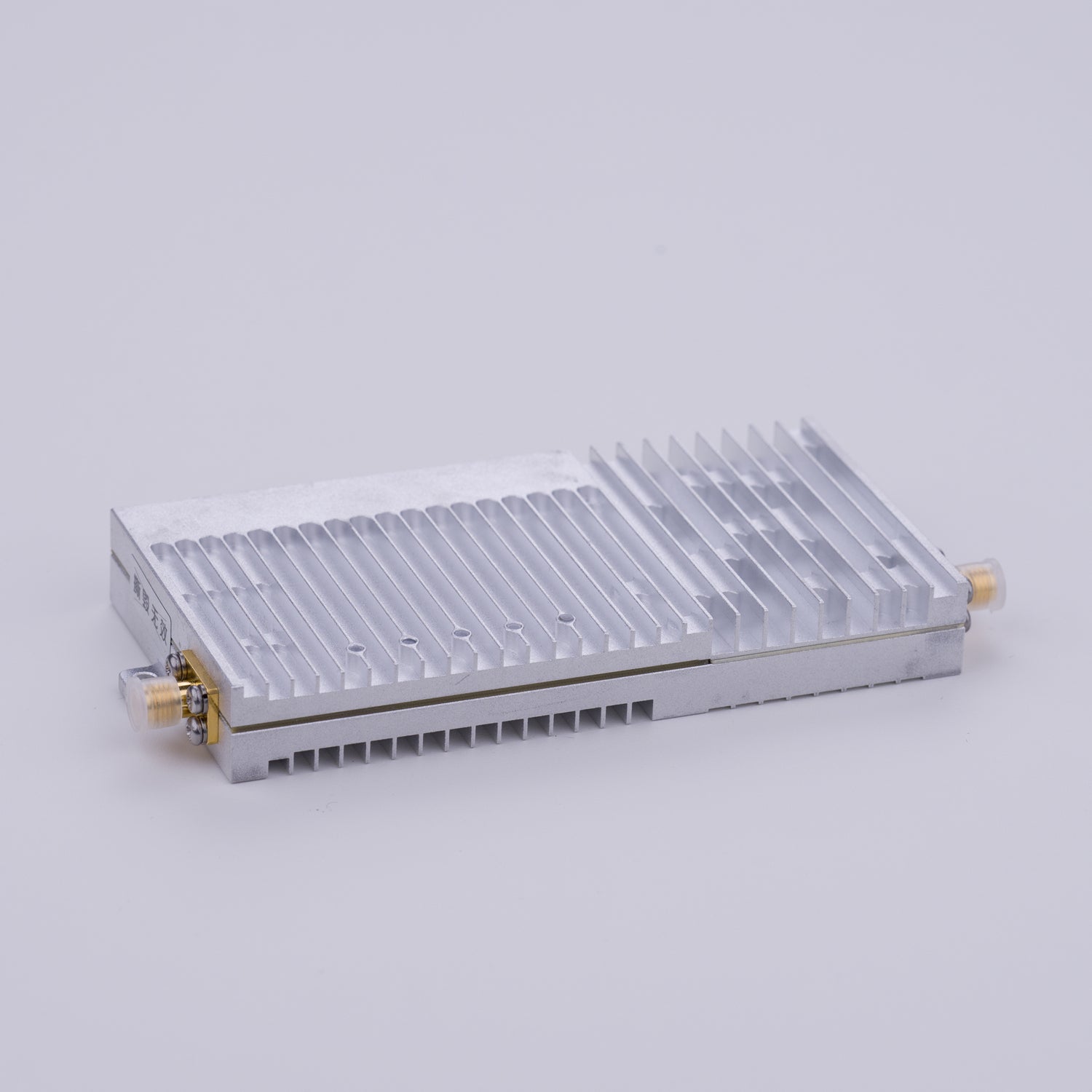

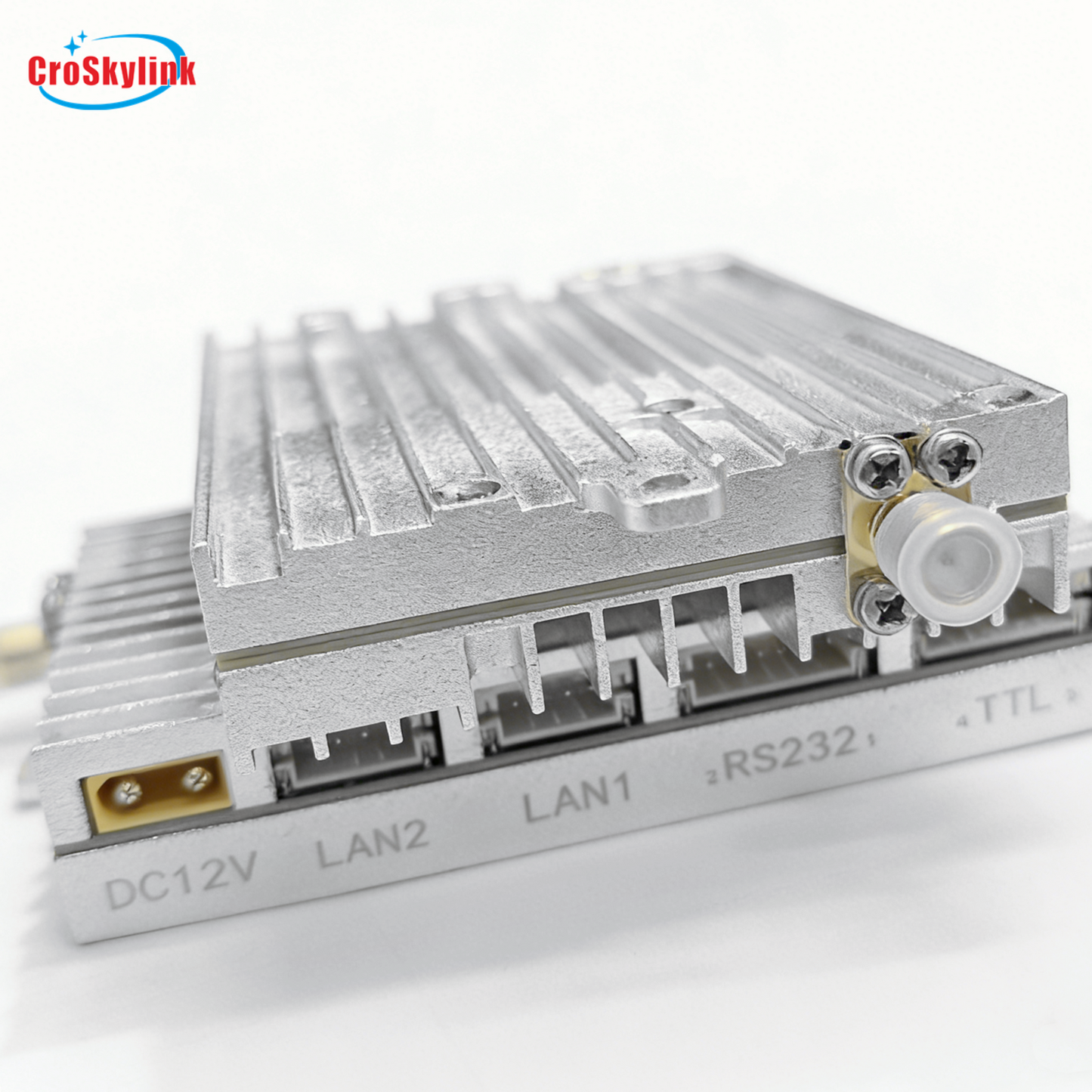

C21D-300 300km Wireless Network Video Data Links Transmission System Transmitter Receiver

Key Features

Operation Mode: Dual-transmit dual-receive bidirectional video transmission, with a maximum one-way data rate of 47Mbps.

Power Consumption Parameters: Maximum power consumption ≤180W @24V power supply.

Frequency Band: 1350-1450MHz.

Power Level: Maximum transmit power of 46dBm.

Sensitivity: -96dBm @5Mbps (20MHz).

Networking Mode: Supports 2-hop 4-node Mesh self-organizing network.

Recommended Range: 200-300KM @ line-of-sight.

Channel Encryption: Supports AES256.

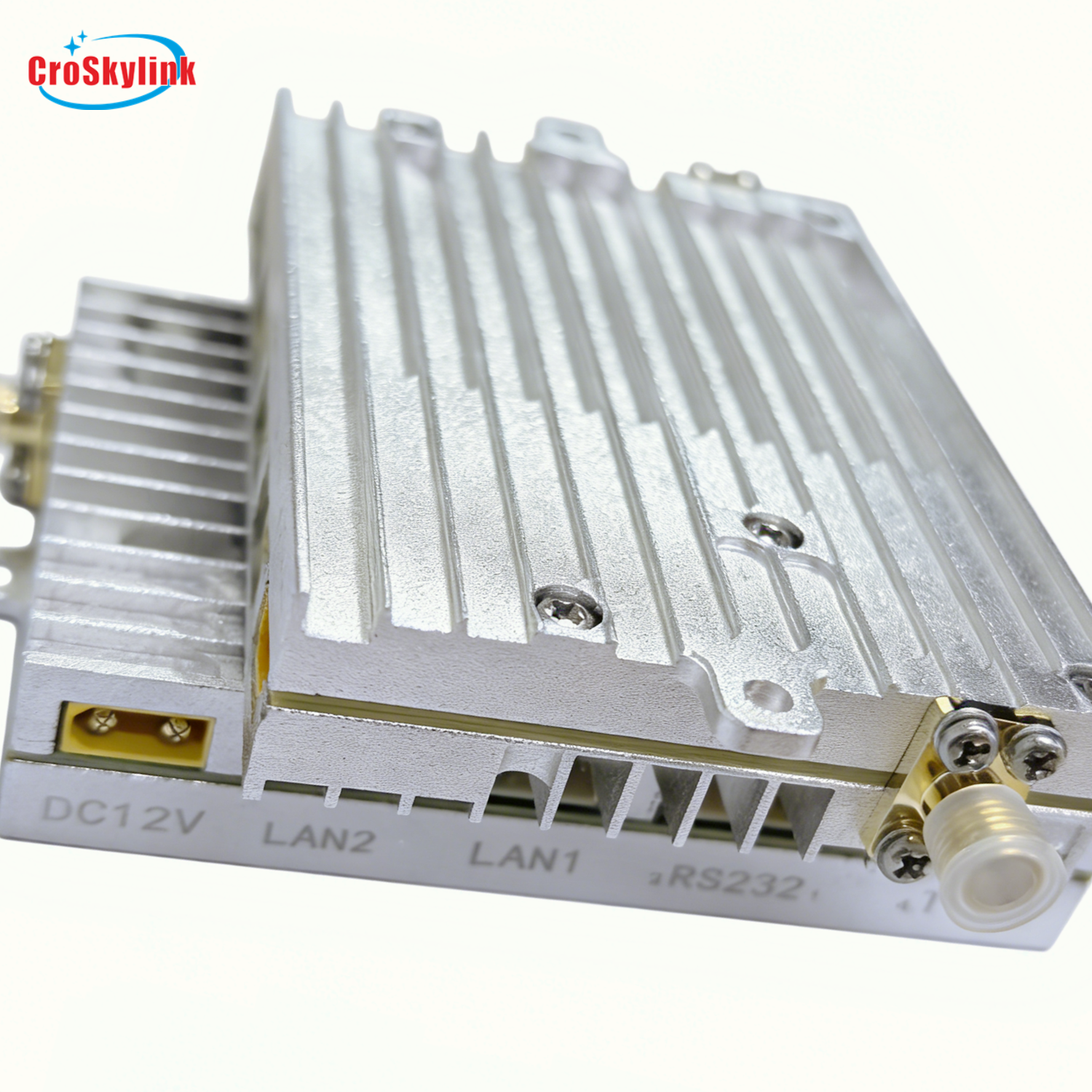

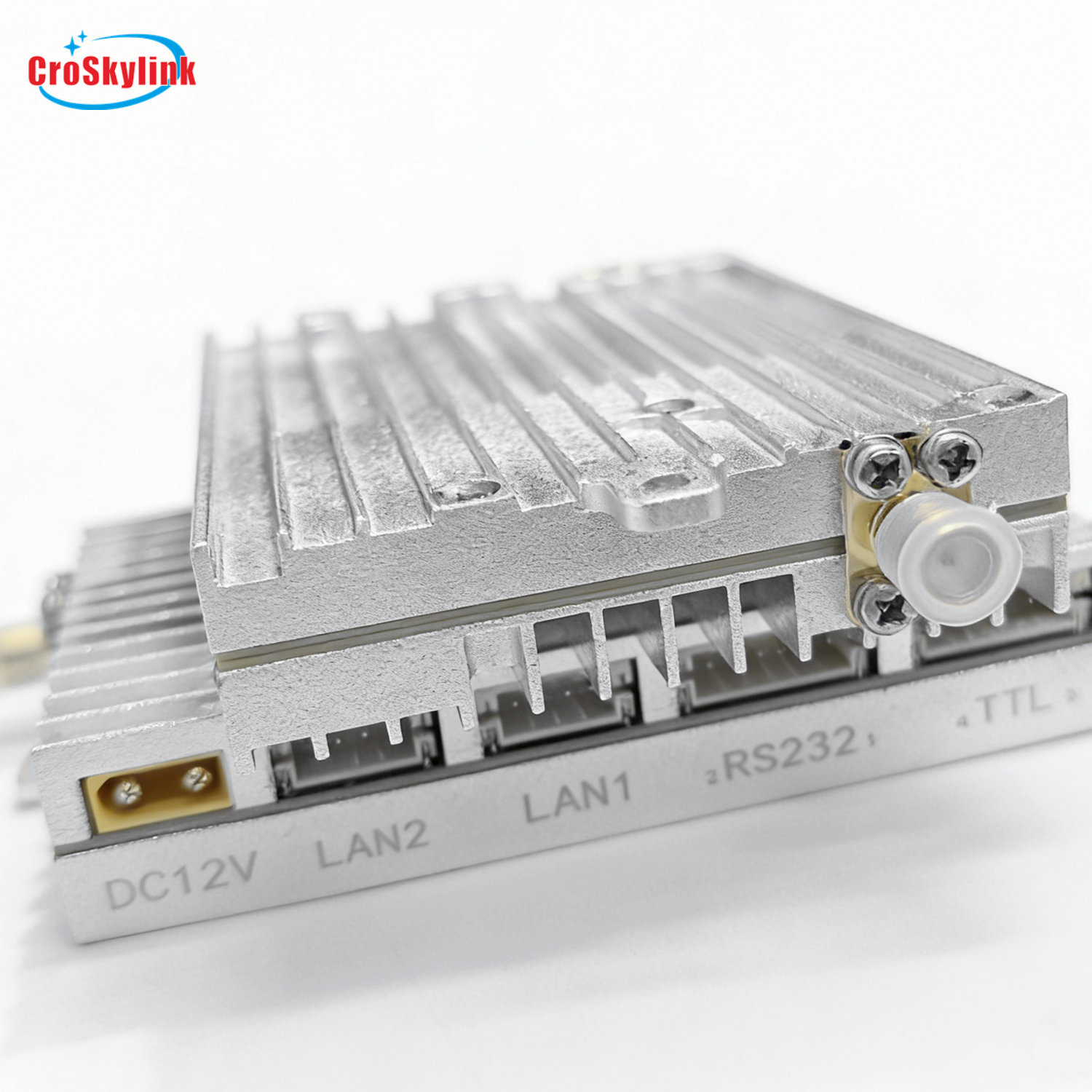

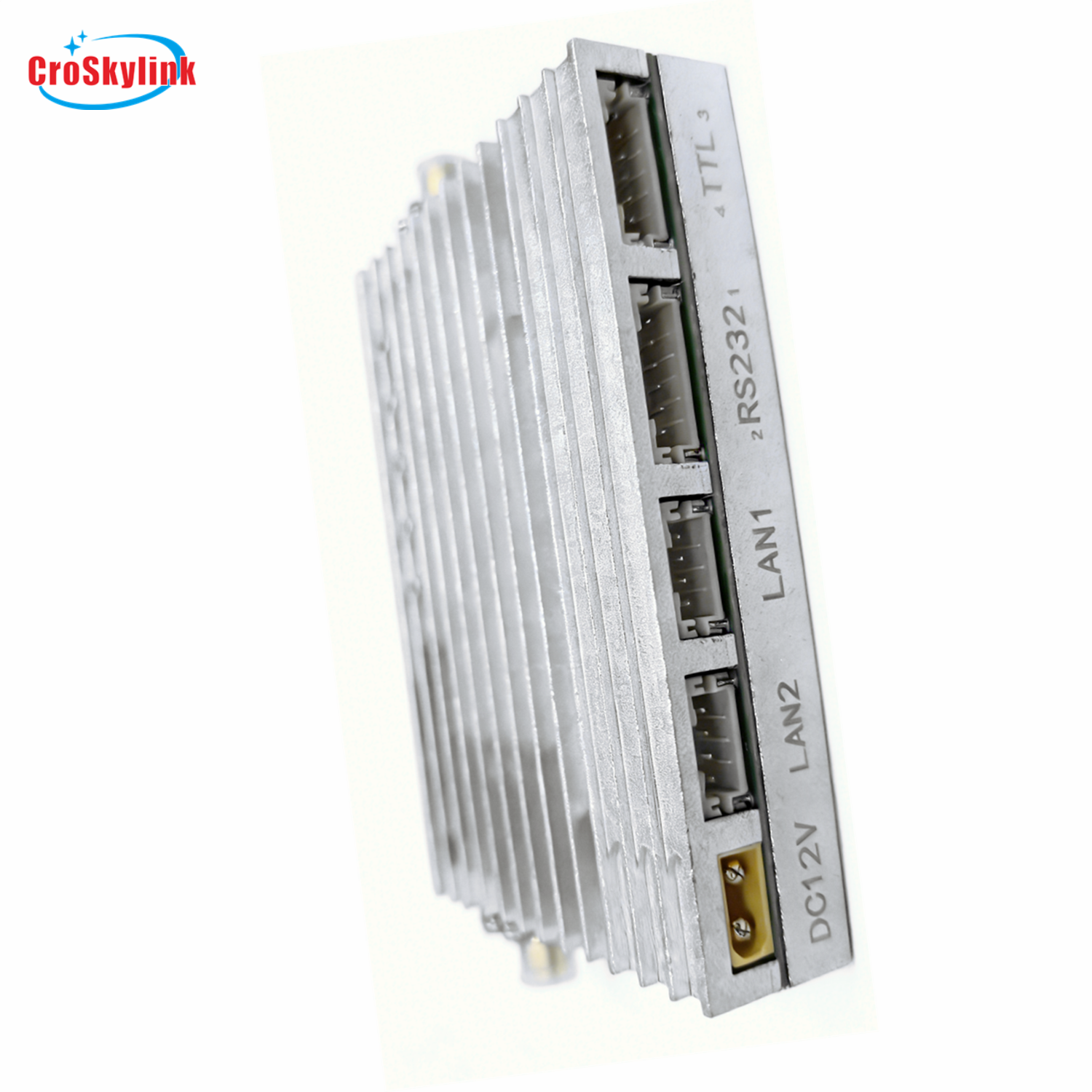

Interface Parameters: 2 Ethernet ports, 2 RS232 ports, 1 TTL serial port.

Mechanical Parameters: Dimensions of 175*106*28mm.
