CroSkylink

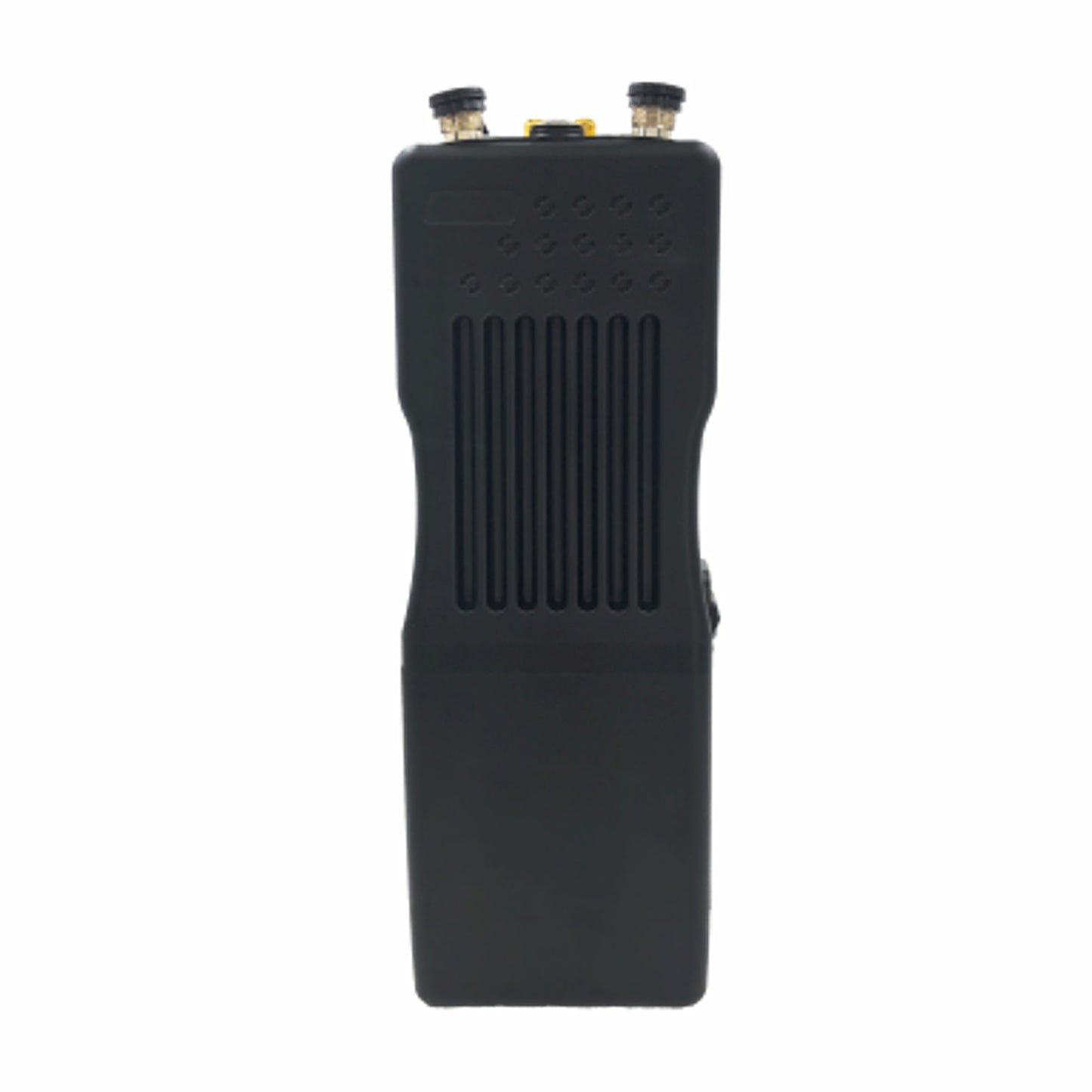

C31S-100 Outdoor 100km Mesh Ad Hoc Network Portable Radio Station Model

C31S-100 Outdoor 100km Mesh Ad Hoc Network Portable Radio Station Model

$14,300.00 USD
$16,950.00 USD $14,300.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Network Scale
  • 64/128*/256* nodes
*Optional configuration
Frequency Range
  • 500~680MHz / 1200~1500MHz
    1MHz adjustable step
  • (Custom 70~6000MHz available)
Anti-Interference
  • Adaptive frequency selection*
  • Wideband frequency hopping*
*Optional feature
Transmit Power
  • 36dBm (4W: 2x2W)
  • 1dBm step adjustable
Bandwidth Modes
  • 1.25 / 2.5 / 5 / 10 / 20 / 30 / 40 MHz
*Optional configuration
Receiver Sensitivity
  • -103dBm@5MHz
Peak Data Rate
  • 220+ Mbps
  • @40MHz bandwidth
Communication Range
  • 100+ km
  • (Line of Sight)
Data Interfaces
  • 1x Ethernet
  • 1x RS232
Voice Communication
  • IP conference system
  • PTT intercom
  • (PTT handset included)
Security Encryption
DES
AES128
AES256
Power Consumption
  • 6~20W
Transmission Latency
  • ≈7ms
Operating Temperature
  • Standard: -20~+65℃
  • Custom: -40~+65℃
Dimensions
  • Short version: 198×74×38mm
  • Long version: 222×74×38mm
Weight
  • Short version: ≈850g
  • Long version: ≈930g
* Denotes optional features/configurations
