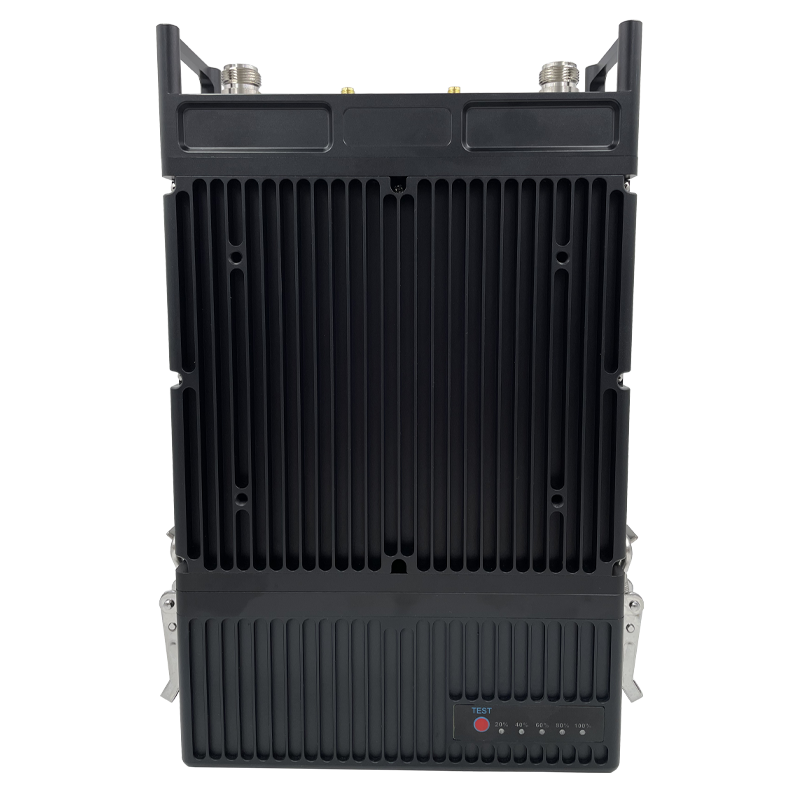

C32S-300 300km Anti-Jamming Car Vehicle Based Radio Mesh Ad Hoc Network Station Model

C32S-300 300km Anti-Jamming Car Vehicle Based Radio Mesh Ad Hoc Network Station Model

$26,000.00 USD
$31,000.00 USD $26,000.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Network Scale
  • 64/128*/256* nodes
*Optional
Frequency Range
  • 500~680MHz / 1300~1500MHz, adjustable in 1MHz steps
  • (70~6000MHz customizable)
Anti-Interference
  • Adaptive frequency selection*
  • Wideband frequency hopping*
*Optional
Transmit Power
  • 43dBm (20W: 2x10W)
  • 1dBm step adjustable
Bandwidth Modes
  • 1.25 / 2.5 / 5 / 10 / 20 / 30 / 40 MHz
*Optional configuration
Receiver Sensitivity
  • -103dBm@5MHz
Peak Data Rate
  • 220+ Mbps
  • @40MHz bandwidth
Communication Range
  • 300+ km
  • (Line of Sight)
Data Interfaces
  • 2x Ethernet
  • 3x  serial  (TTL, RS232, RS422, RS485 customizable)
Voice Communication
  • IP voice conferencing
  • PTT intercom (PTT handset included)
Security Encryption
DES
AES128
AES256
Power Consumption
  • 20~100W
Transmission Latency
  • ≈7ms
Operating Temperature
  • -20~+65℃ (standard)
  • -40~+65℃ (customizable)
Dimensions
  • 269x180x64mm
Weight
  • ≈3.30kg
* Denotes optional features/configurations
