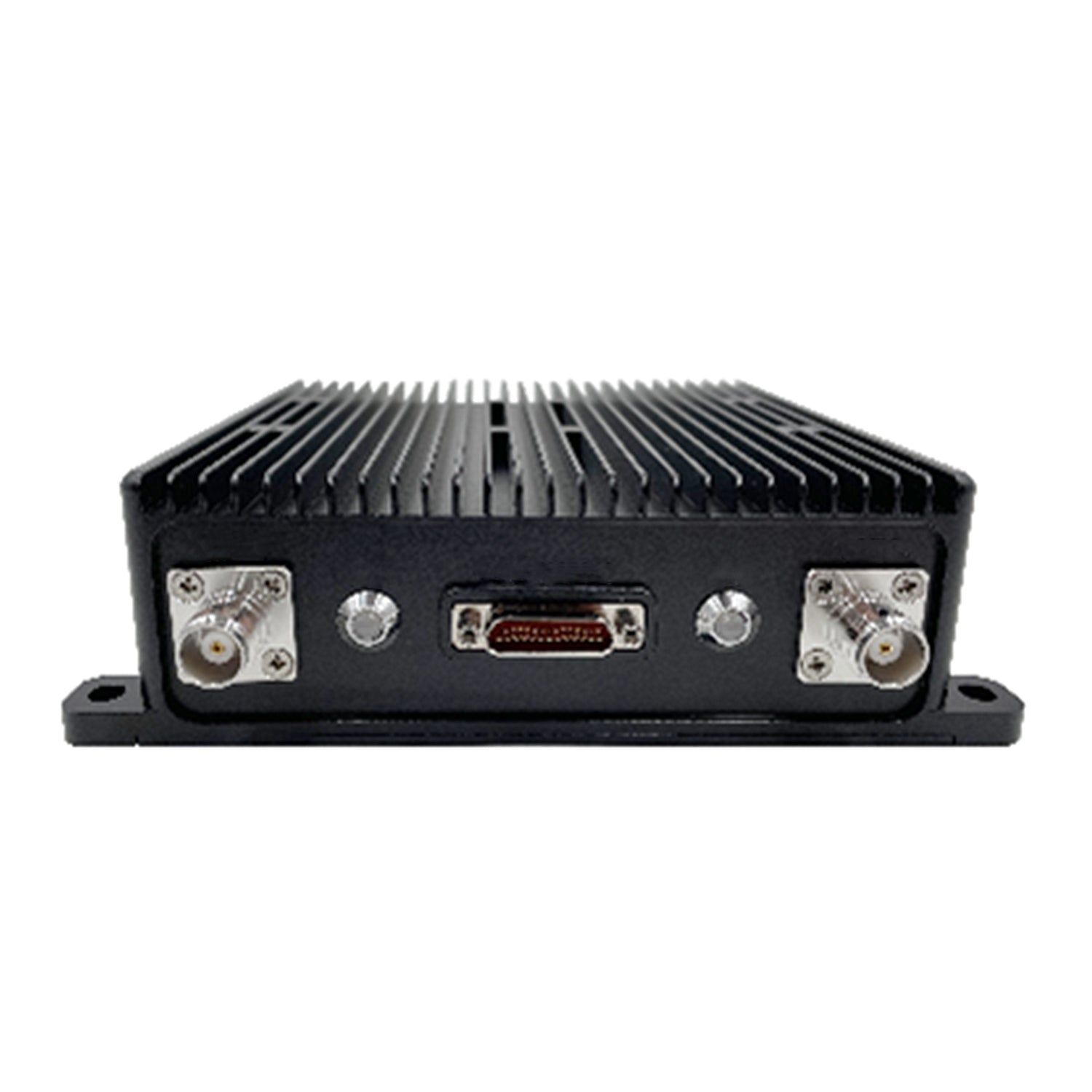

C33S-200 Wireless Anti-Jamming 200km Airborne Drone UAV Radio Video Data Link Transmission

C33S-200 Wireless Anti-Jamming 200km Airborne Drone UAV Radio Video Data Link Transmission

$17,000.00 USD
$19,000.00 USD $17,000.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Network Scale
  • 64/128*/256* nodes
*Optional
Frequency Range
  • 500~680MHz / 1300~1500MHz, adjustable in 1MHz steps
  • (70~6000MHz customizable)
Anti-Interference
  • Adaptive frequency selection*
  • Wideband frequency hopping*
*Optional
Transmit Power
  • 46dBm (40W: 2x20W)
  • 1dBm step adjustable
Bandwidth Modes
  • 1.25 / 2.5 / 5 / 10 / 20* / 30* / 40* MHz
*Optional configuration
Receiver Sensitivity
  • -103dBm@5MHz
Peak Data Rate
  • 220+ Mbps
  • @40MHz bandwidth
Communication Range
  • 200+ km
  • (Line of Sight)
Data Interfaces
  • 2x Ethernet
  • 3x  serial  (TTL, RS232, RS422, RS485 customizable)
Security Encryption
DES
AES128
AES256
Power Consumption
  • 20~100W
Transmission Latency
  • ≈7ms
Operating Temperature
  • -40~+65℃
Dimensions
  • 166x135x51mm (L-band)
  • 176x163x60mm (U-band)
Weight
  • ≈1.10kg (L-band)

  • ≈2.00kg (U-band)

* Denotes optional features/configurations
