Main features of the product:

• Adopting MT7628NN scheme, MIPS24KEc architecture CPU, with a clock speed of up to 580MHz

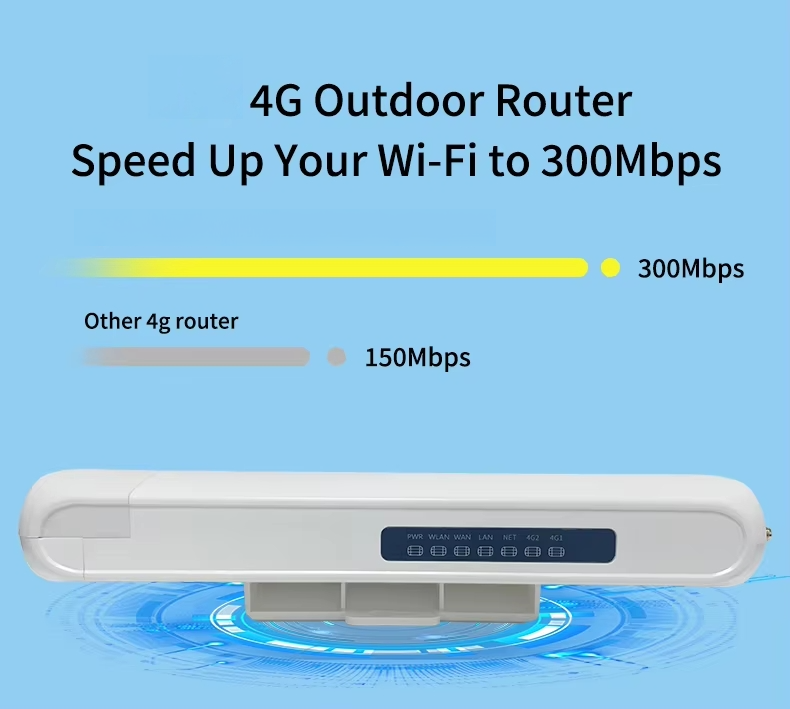

• The MT7628NN chip integrates 2.4G WIFI function with a speed of up to 300Mbps
• Paired with high-speed 128MB DDR2 and 16MB Nor Flash

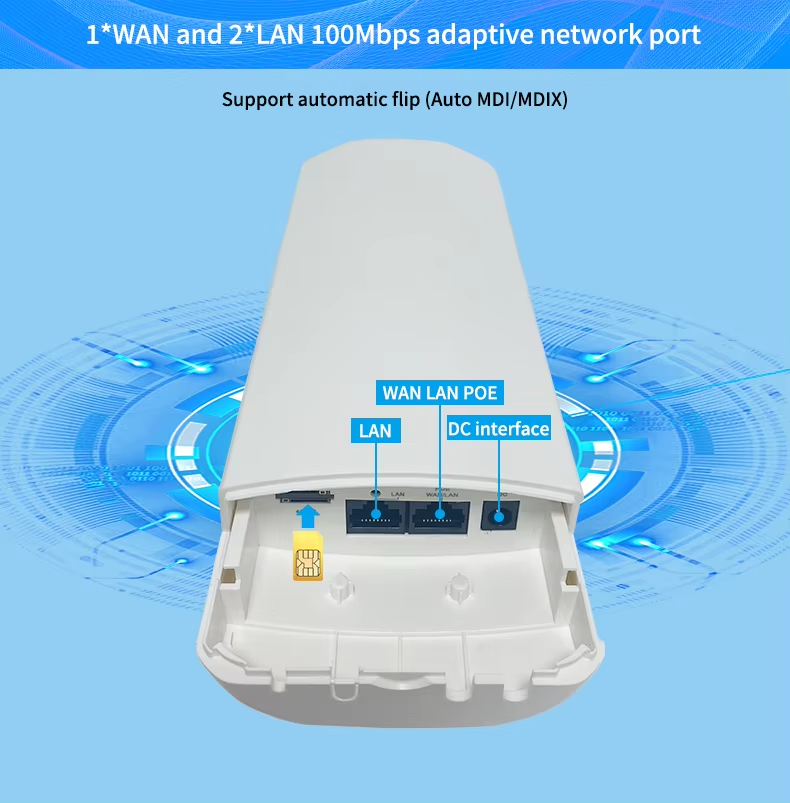

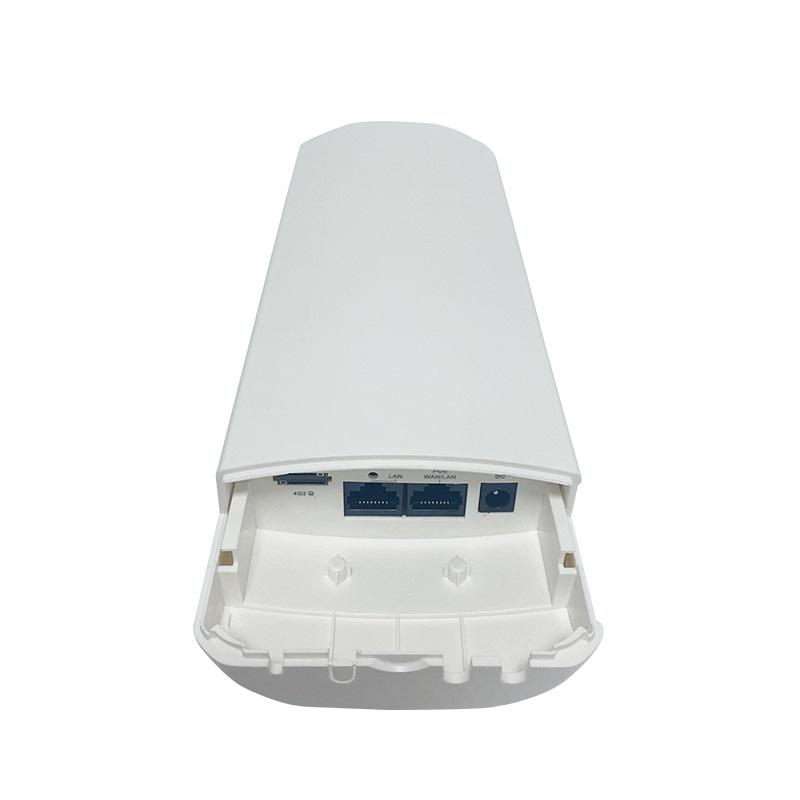

• 1WAN (supporting IEEE802.3af, IEEE802.3at standard POE), 1LAN with 100M adaptive network port, supporting automatic flipping (Auto MDI/MDIX)
• Support "one click flashing mode", that is, long press the reset button to turn on the device and enter the rescue flashing mode
• Built in 2 mini PCIE and 2 LCC patch module (choose one) interfaces, enabling 4G dial-up internet access via USB 2.0 bus
• Built in 2 mini PCIE and LCC interfaces, whose power can be controlled through independent GPIO

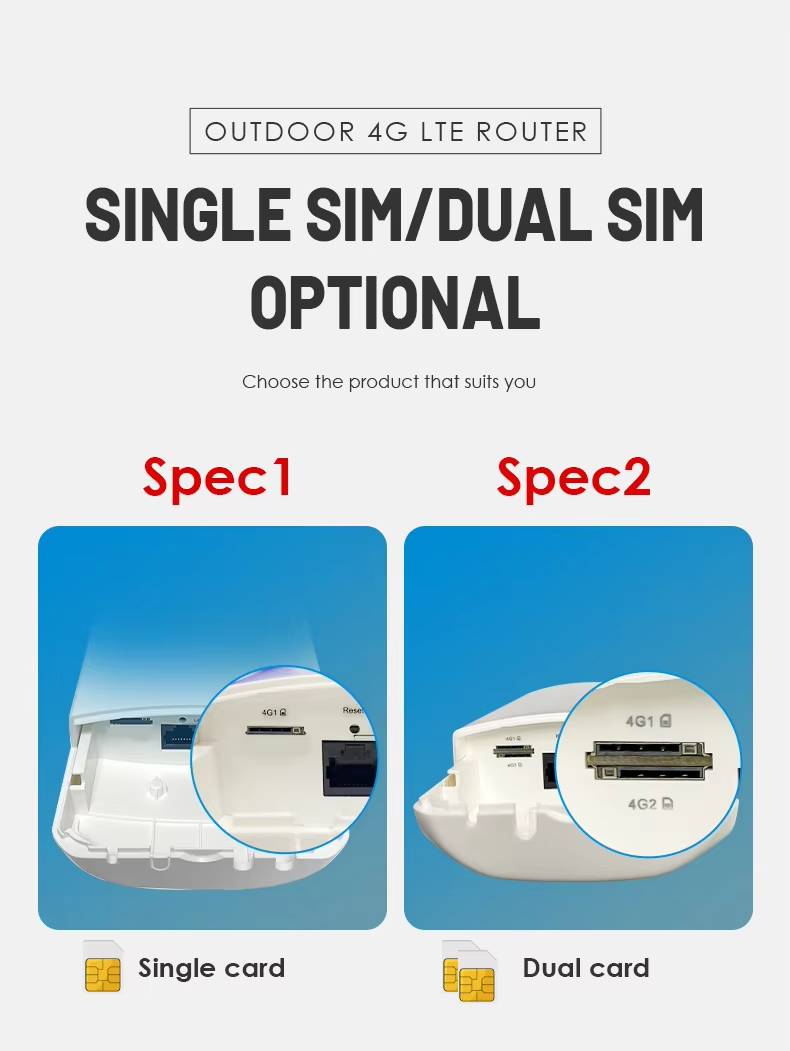

• Two external NANO SIM card (small card) and two built-in eSIM (QFN-8 6mmx5mm) card interfaces, supporting SIM/USIM cards

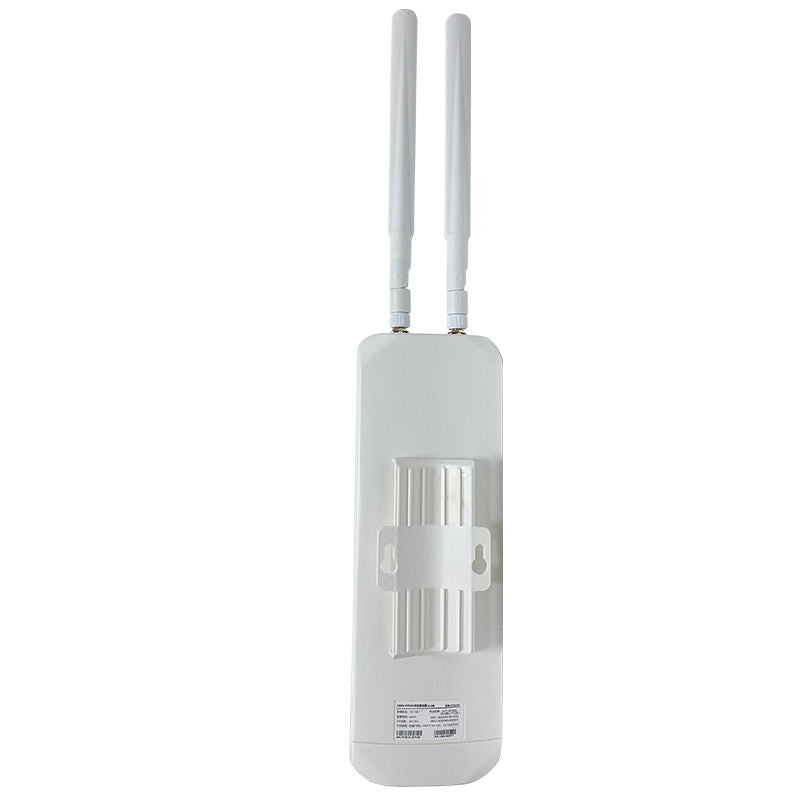

• Built in WiFi and external 4G high gain omnidirectional antenna, wireless signal 360 degree without dead corners
• This product supports hardware watchdog function, which will automatically restart the device when the routing system fails

1. Overview

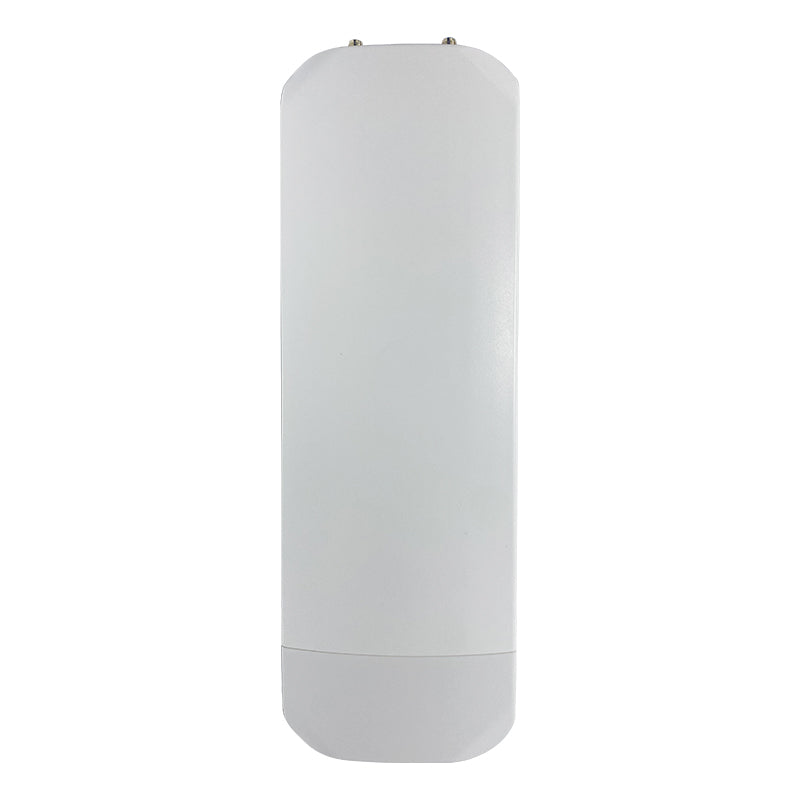

CS-CPE2801 is an outdoor oriented 4G CPE routing product. It accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi 4 and 100Mbps wired LAN.

2. Standard

Relevant specifications and standards:

• USB 2.0 bus standard
• SIM/USIM interface standard
• IEEE802.11n/g/b
• IEEE802.3/802.3u
• The 4G mobile communication standard is determined by the selected 4G mobile communication module
