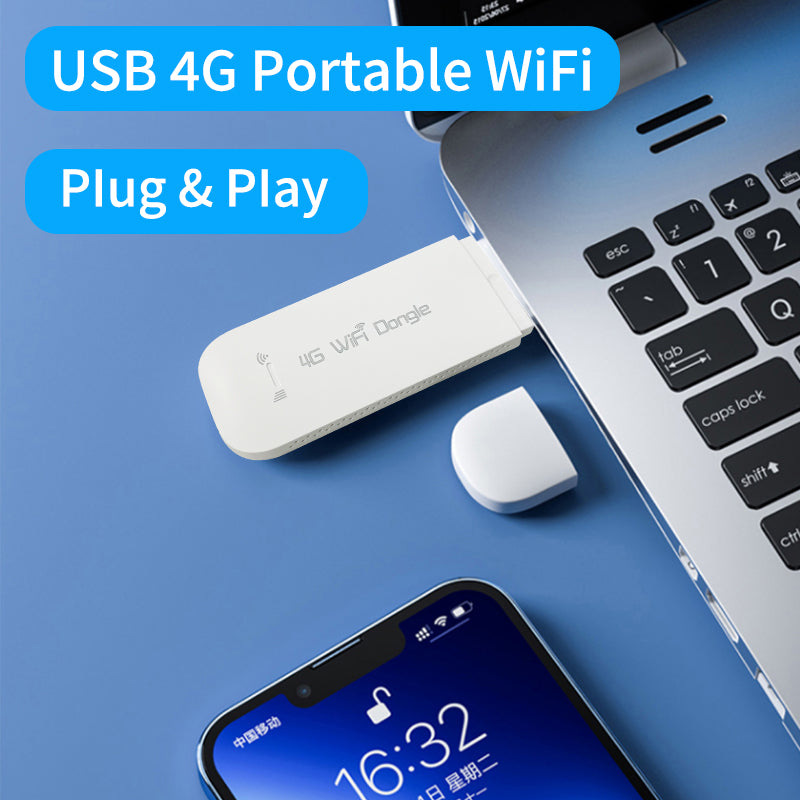

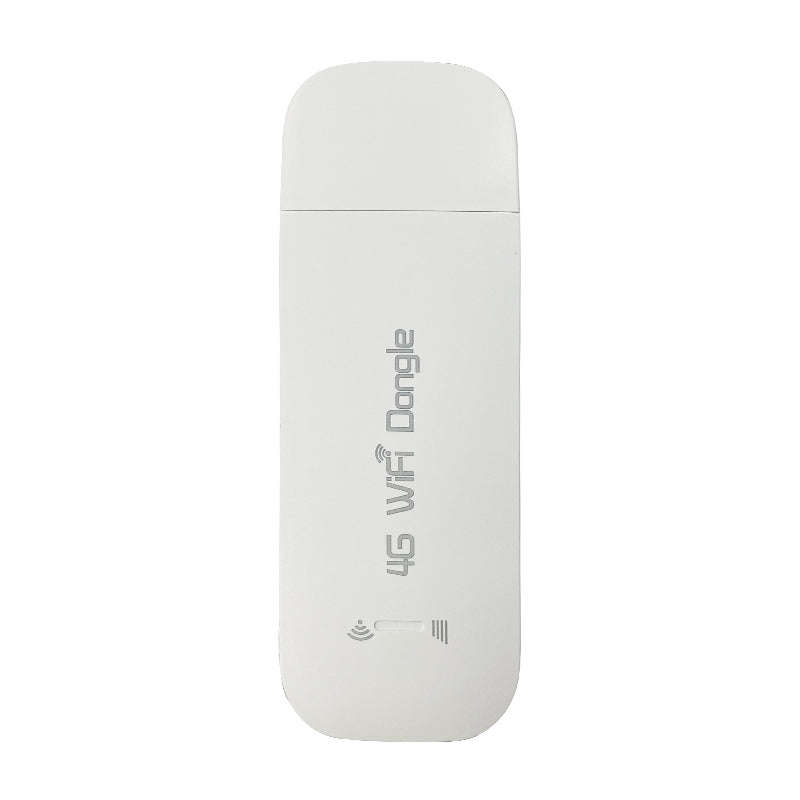

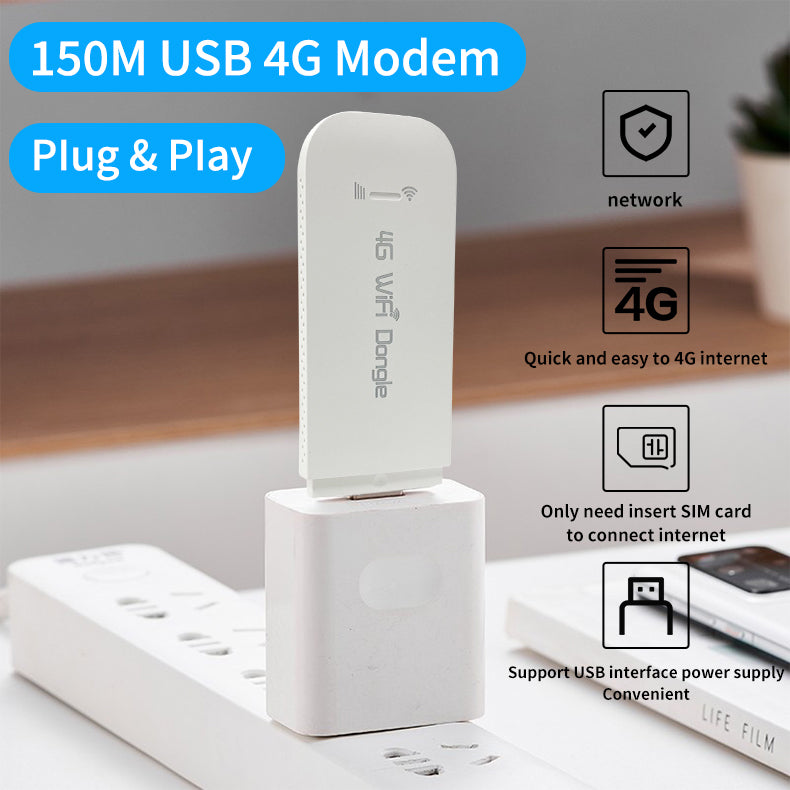

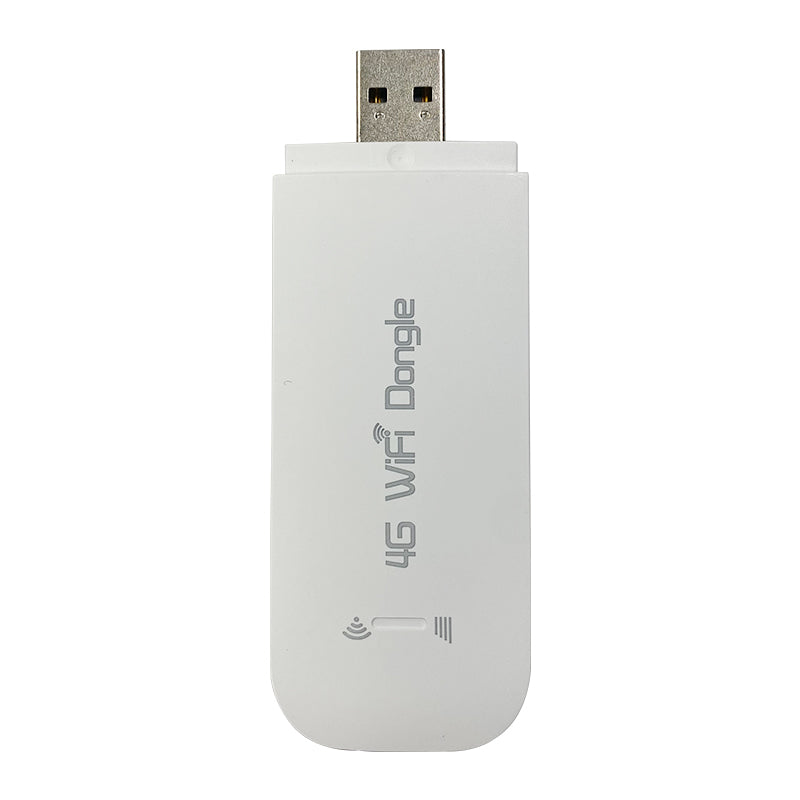

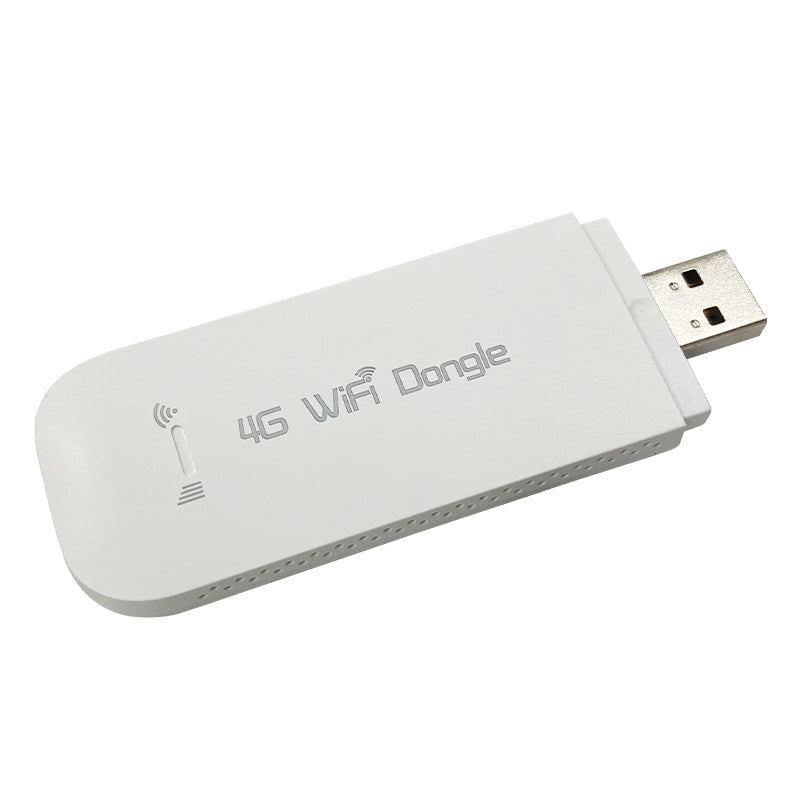

Croskylink CS-UFI1601 Mobile Portable Wireless WiFi 150Mbps Hotspot 4G Router USB Dongle 4G LTE WiFi USB Dongle

Item

Specification

Product application scenarios

Household, Personal Portable Outdoor and Outdoor Internet of Things

Weight

30g (including batteries)

CPU

ASR1802

Main frequency

550MHz

Memory

RAM: 256Mb, ROM: 128Mb

WIFI Connection

Supports Up to 10 Users Access

LED Indicator

WiFi instructions

The 4 g network instruction

SIM Card

Micro sim Card

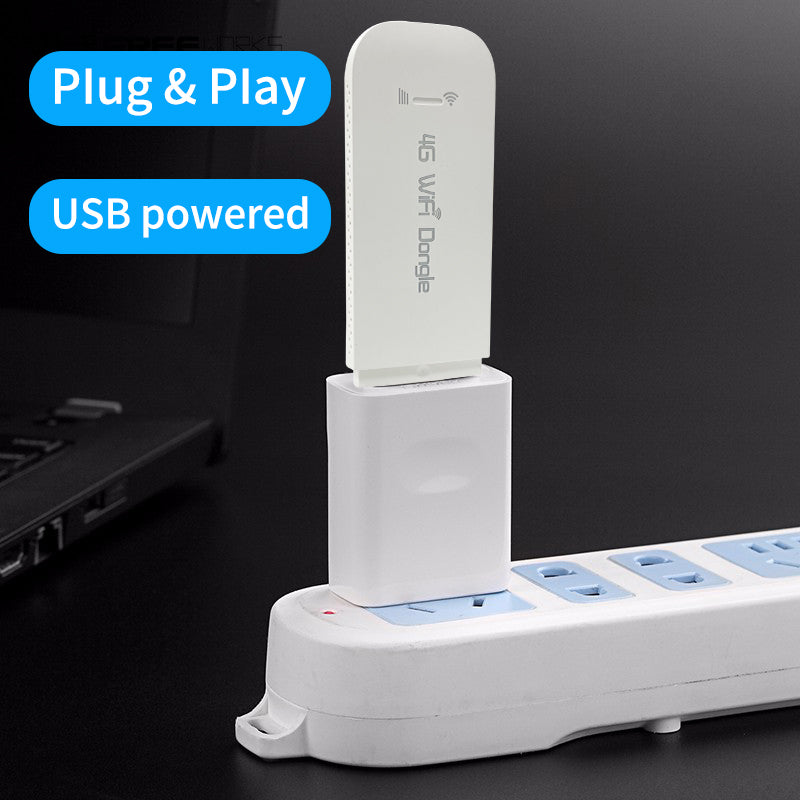

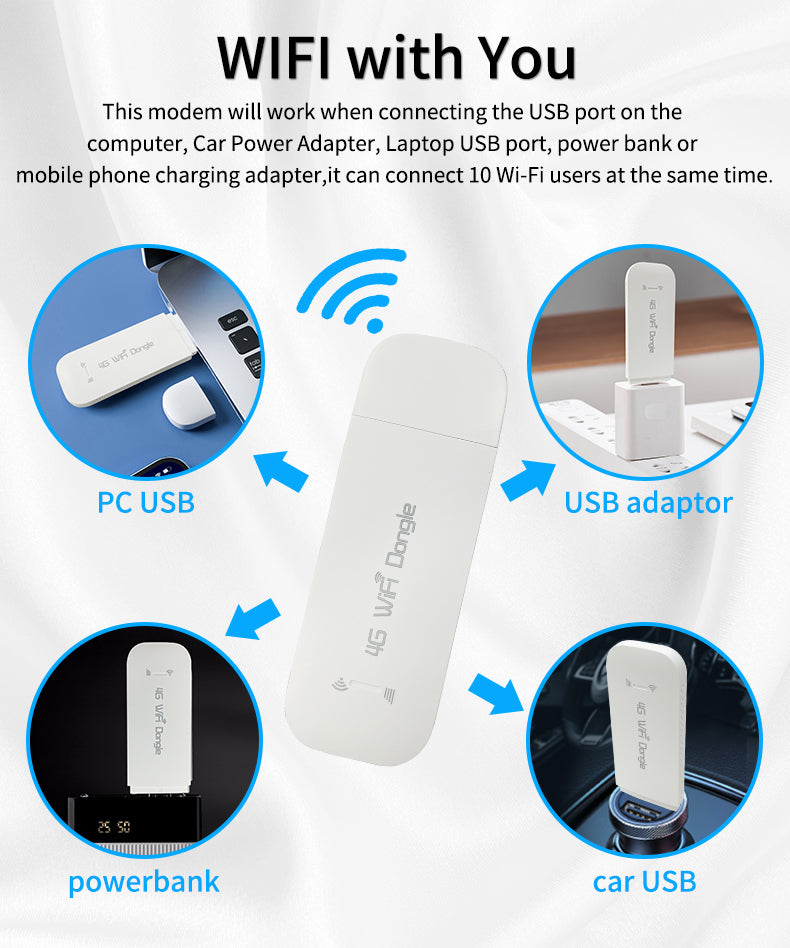

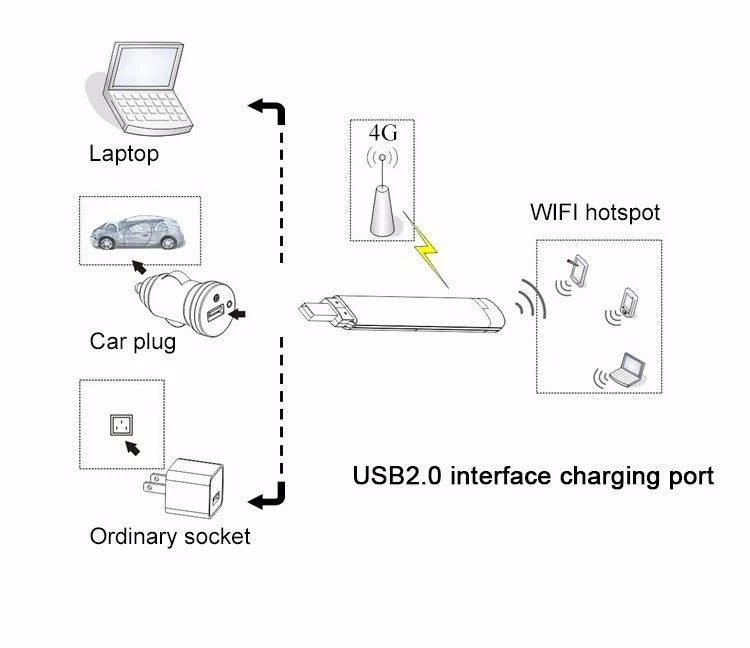

Power input

USB 5V/1A

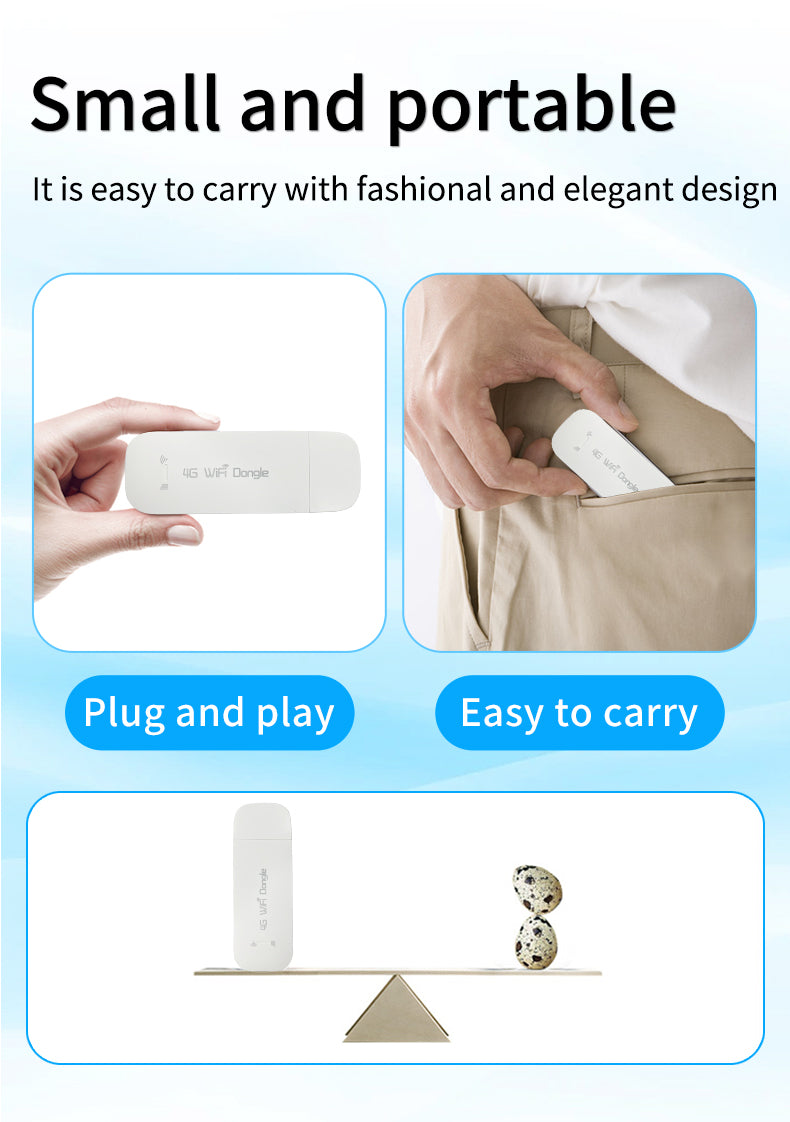

Product size

97mm*10mm*33mm

Antenna

Built-in 2.4G(802.11n)*1 4G:2T2R

frequency range

2.4~2.4835GHz (802.11 b/g/n)

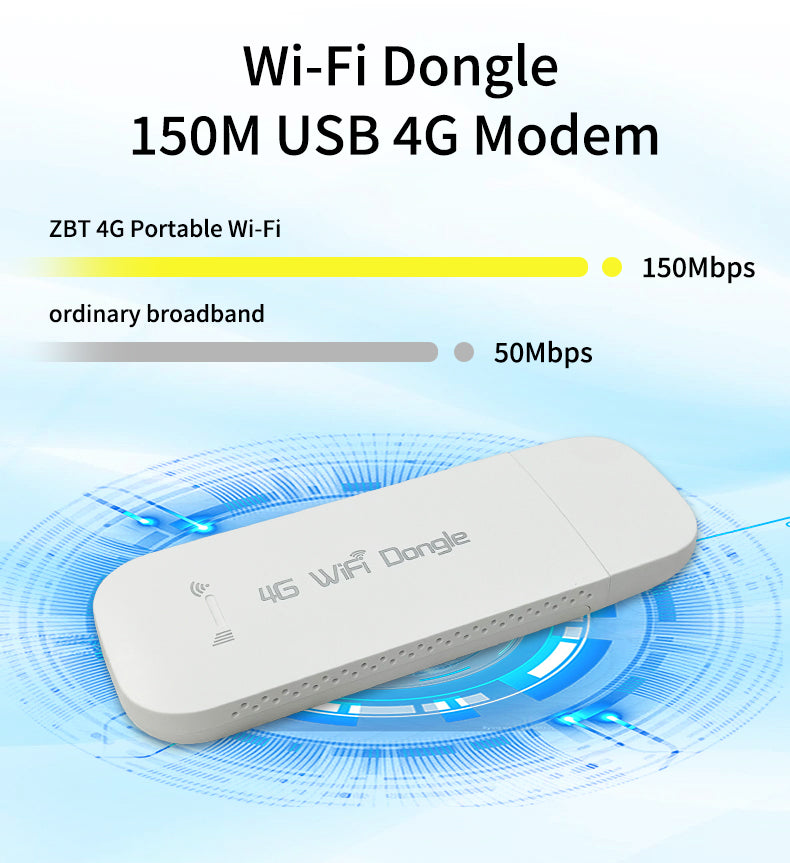

WIFI rate

11b: 1/2/5.5/11Mbps11g: 6/9/12/18/24/36/48/54Mbps11n: Maximum reachable 150Mbps

Transmitting power

Class 3 (24dBm+1/-3dB) for WCDMA bands

Class 3 (23dBm±2dB) for LTE-FDD bands

Class 3 (23dBm±2dB) for LTE-TDD band

Class 4 (33dBm±2dB) for GSM900

Class 1 (30dBm±2dB) for DCS1800

Class E2 (26dBm±3dB) for DCS1800 8-PSK

Class E2 (27dBm±3dB) for GSM900 8-PSK

LTE

support 3GPP R8 CAT4 FDD

Downlink support MIMO

LTE FDD:Downlink rate 150Mbps,Upload rate 50Mbps.

LTE TDD: Downlink rate 100Mbps, Upload rate 50Mbps

WIFI encryption

WIFI encryption

4G Network mode

CAT4

Software Specification

system

UCOS system

Working mode

WIFI mode and network card mode

WiFi Settings

WIFI Name: 4G UFI-XXXX

Password: 1234567890

Device status

On-line status of equipment, SSID, signal strength, number of connections and other information display

Support system

PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8

MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later

Android Users: An mobile Phone or Tablet PC with Android 2.3 or later

Support Browser

Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0

Gateway

192.168.0.1

WEB login

Default user and password: admin; language selection (Chinese and English)

internet

Apn configuration: international roaming switch, apn, username, password, authorization type modification; add new apn, restore

default apn parameter; PIN code & PUK code input; VPN dialing settings; Flow rate limit: After the accumulated flow reaches the set value, the speed limit is set according to the set rate.

WIFI

WLAN configuration: modify ssid, encryption mode, and encrypt password. Set the maximum number of connections, support PBC-WPS;

WIFI connection list: view the list of terminals connected to the device, view mac address, ip address, host name; you can choose to ban Internet access and restore Internet access

SMS management

SMS read, delete, send

Micro SD

WEB sharing, support for file download

SIM Card lock card

SIM Lock card and unlock

Mobile APP development interface

Mobile APP Development Interface Support (WEB Call)
