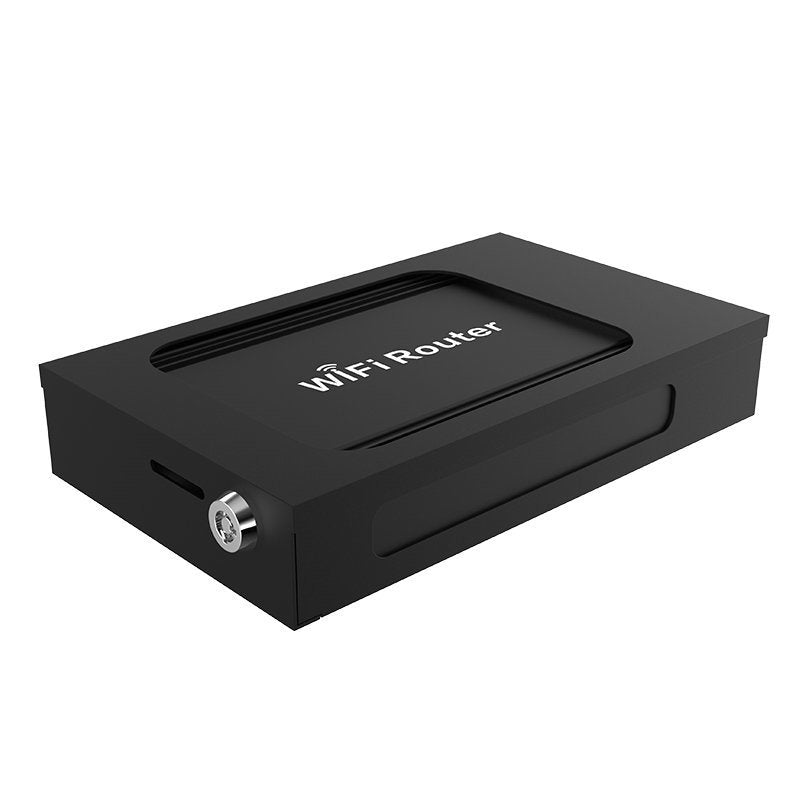

Croskylink CS-WE1026-5G-WD 4G Dual-Band Card Plug-in Router Smart Watchdog Bus Car Wireless WiFi Routers

Name: Croskylink CS-WE1026-5G-WD 4G Dual-Band Card Plug-in Router Smart Watchdog Bus Car Wireless WiFi Routers
Brand: CroSkylink
Price: 51.9 USD
Availability: InStock

$51.90 USD

~~$130.00 USD~~ $51.90 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

CS-WE1026-5G-WD Does not include modules North American 4G version European 4G version Australian 4G version

Product variants

Quantity

Main features of the product:

Adopting MT7620A solution, MIPS24KEc architecture CPU, with a clock speed of up to 580MHz
The main chip integrates a 2.4G baseband WIFI with a speed of up to 300Mbps, while the 5.8G chip uses an independent WIFI chip MT7612E with a speed of up to 867Mbps
Paired with 128MB DDR2 and 16MB Nor Flash
1LAN full 100M adaptive network port, supporting automatic flipping (Auto MDI/MDIX)
Support "one click flashing mode", that is, long press the reset button to turn on the device and enter the rescue flashing mode
Built in Mini PCIe standard interface, can be used to connect 4G mobile communication modules
External standard drawer style SIM card (large card) interface, supporting SIM/USIM cards
External SMB interface antenna, wireless signal 360 degree no dead angle
External TYPE A USB2.0 interface, supports storage interface, can be used to expand SMABA or FTP network storage function
This product supports hardware watchdog function, which will automatically restart the device when the routing system fails

1. Hadware

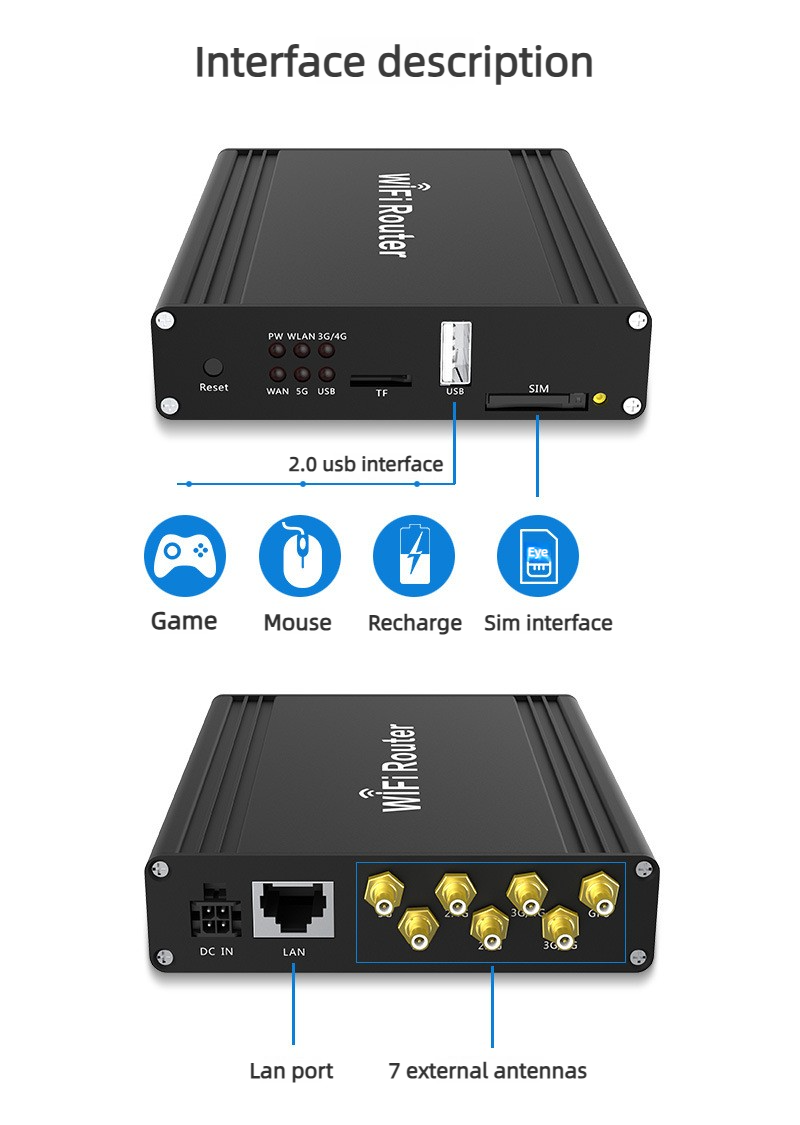

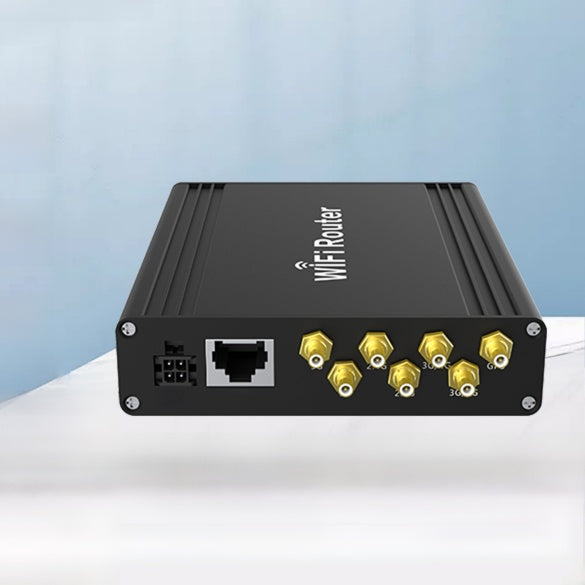

1.1 Introduction to hardware interfaces

Item	Description
Ethernet Port	1×100Mbps LAN port with Auto MDI/MDIX, compliant with IEEE 802.3/802.3u
SIM Card Interface	1 drawer-type SIM card slot, supports SIM/USIM
USB Interface	1 Type A USB 2.0 port
TF Card Interface	1 standard TF card slot
Power Interface	1 4PIN power connector
Button	1 Reset button

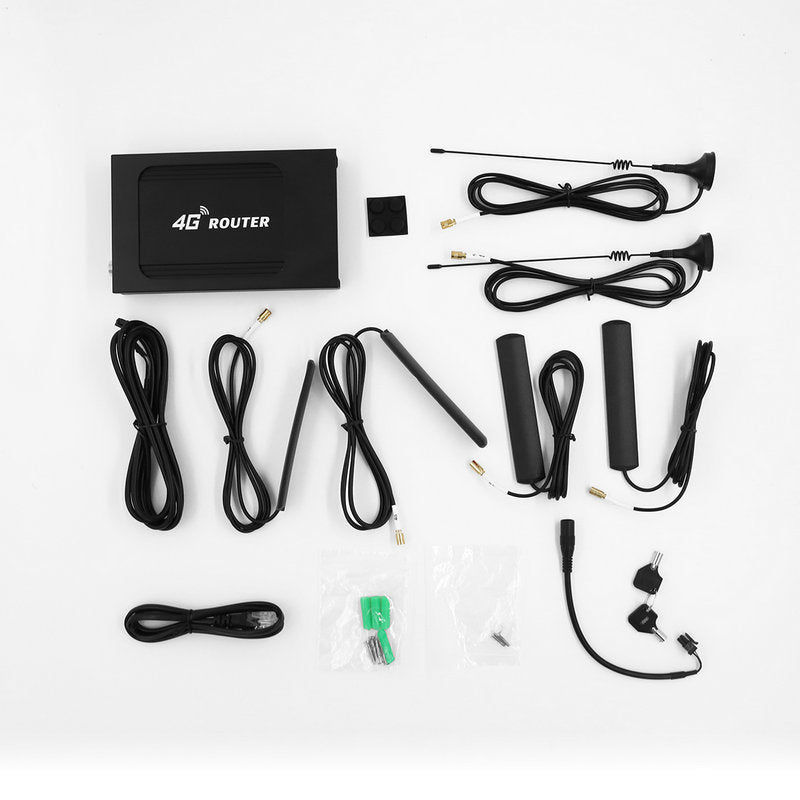

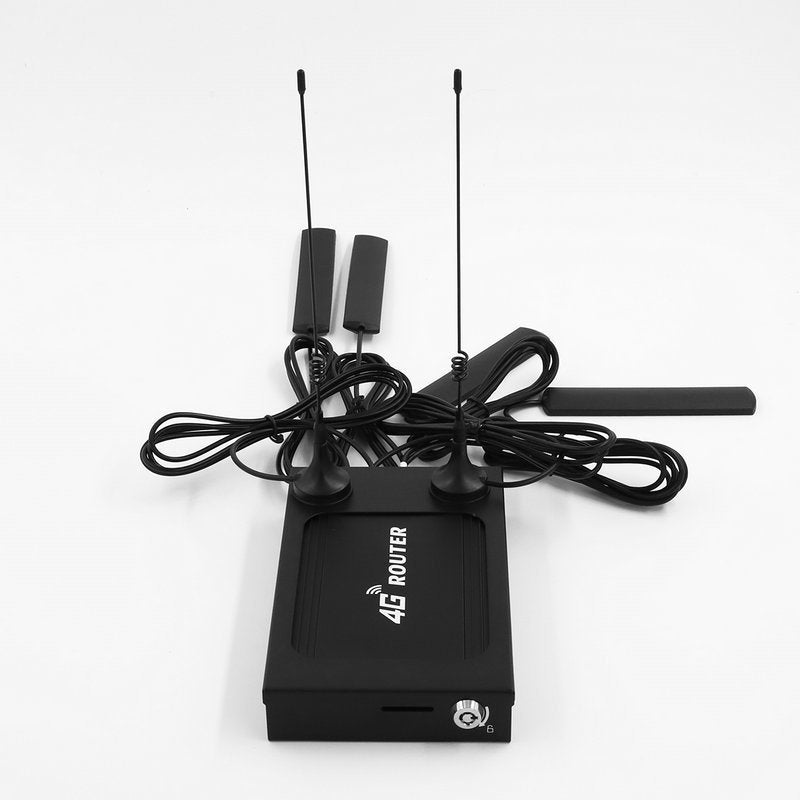

Antennas	1 external GPS antenna with SMB connector 2 omnidirectional 2.4G external antennas with SMB connector 2 omnidirectional 5.8G external antennas with SMB connector 2 omnidirectional 4G suction cup antennas with SMB connector
4G Module Interface	Built-in Mini PCIE module slot, supports USB2.0 bus

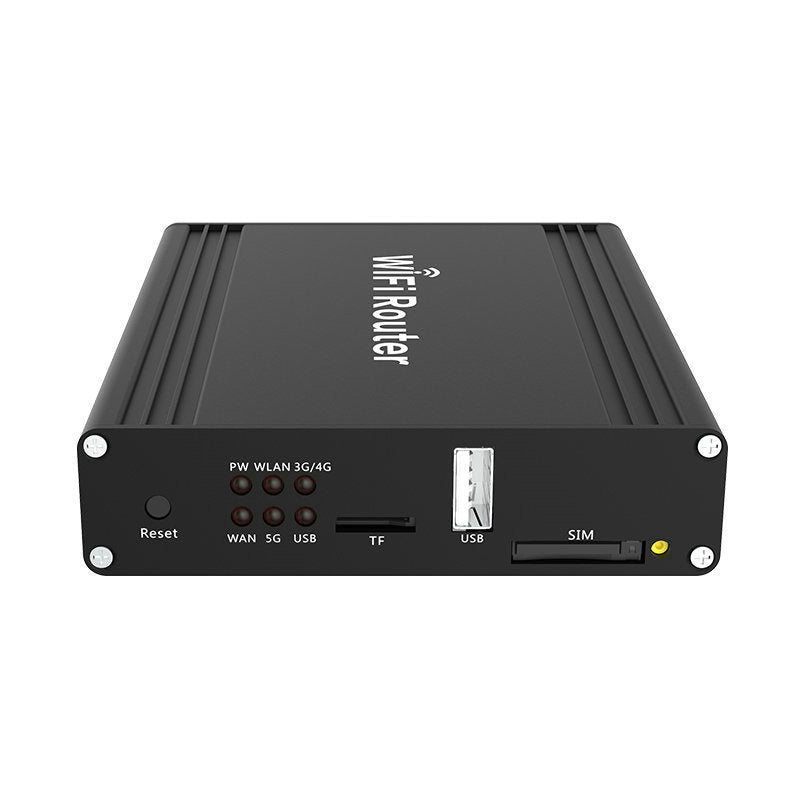

1.2 Introduction to indicator light

Indicator	Function Description
LAN LED	Steady on after network cable connection, flashes during data transmission
4G LED	Lights up steadily when 4G module is detected and works normally; stays off if 4G module malfunctions
5.8G WIFI LED	Steady on when 5.8G Wi-Fi is enabled, flashes during data transmission; stays off when 5.8G Wi-Fi is disabled or faulty
2.4G WIFI LED	Steady on when 2.4G Wi-Fi is enabled, flashes during data transmission; stays off when 2.4G Wi-Fi is disabled or faulty
Power LED	Steady on after power supply is connected; stays off under power failure or no power input
USB LED	Lights up when USB device is inserted, flashes during data transmission (reserved design)

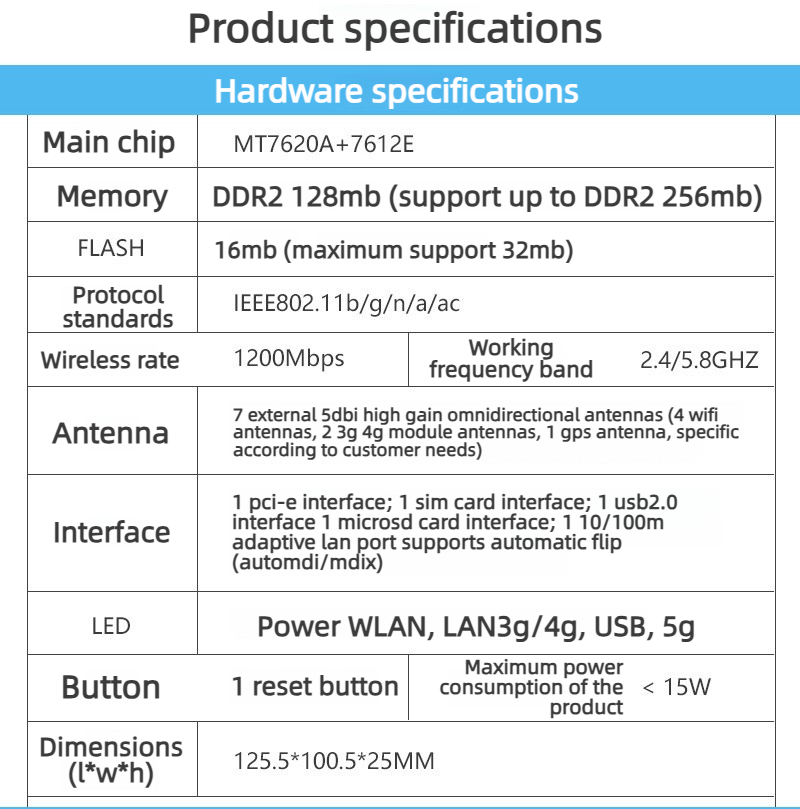

1.3 Introduction to hardware platform

Item	Parameter
Processor	MT7620A MIPS24KEc architecture CPU, max main frequency 580MHz
2.4G Wi-Fi Chip	MT7620A integrated 2.4G Wi-Fi function Compliant with IEEE 802.11n/g/b, maximum rate 300Mbps
5.8G Wi-Fi Chip	Independent Wi-Fi chip MT7612ENCompliant with IEEE 802.11a/ac, maximum rate 867Mbps
RAM	DDR2 128MB
Flash Storage	Nor Flash 16MBNAND Flash is not supported
