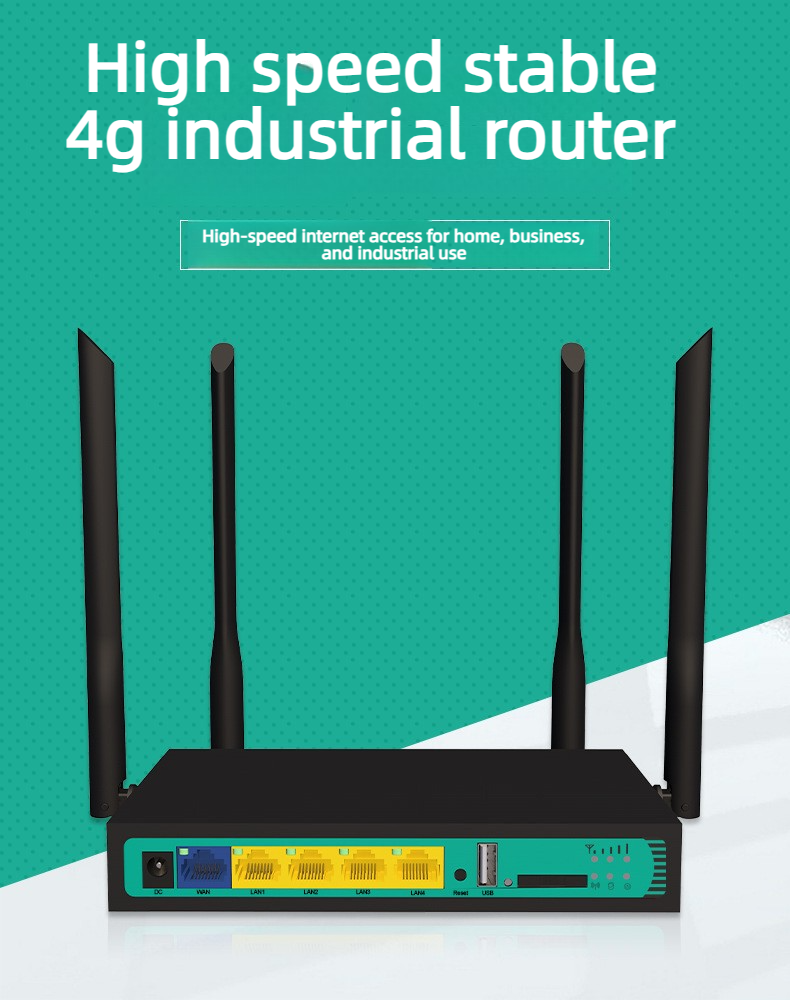

Croskylink CS-WE2416 4G SIM Card Router Industrial High-Speed Wall-Penetrating 300 Mbps Smart Watchdog Wireless Routers

Category

Item

Specification Details

Hardware Specifications

Hardware Specs

QCA9531-BL3ADDR2 128MBSPI 16MB

Protocol Standard

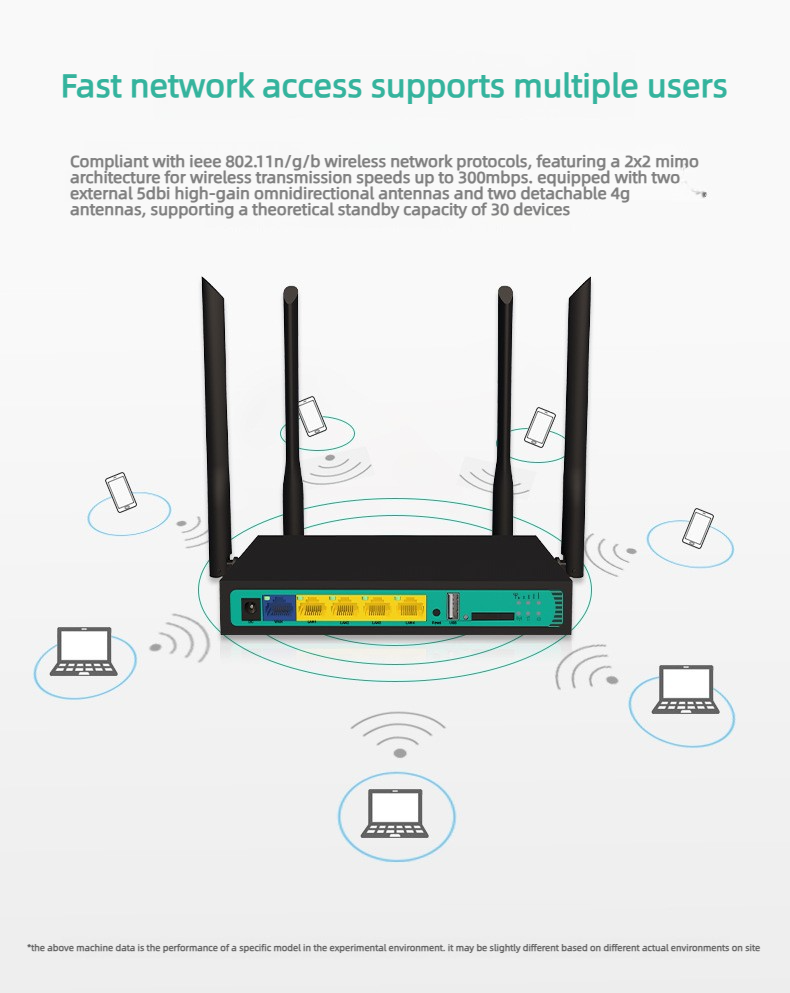

IEEE 802.11b/802.11g/802.11n/802.3/802.3u

Wireless Rate

2.4G up to 300Mbps

Operating Band

2.4G WiFi

Antennas

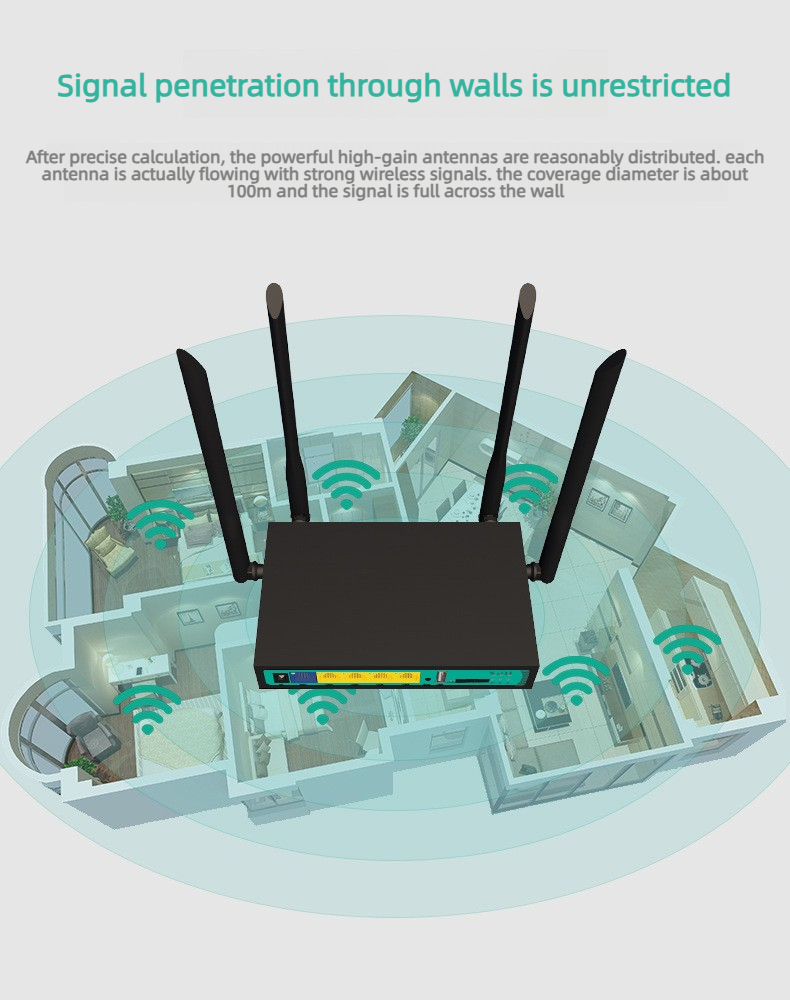

2 non-detachable 5dBi high-gain omnidirectional antennas; module antennas can be customized per customer requirements

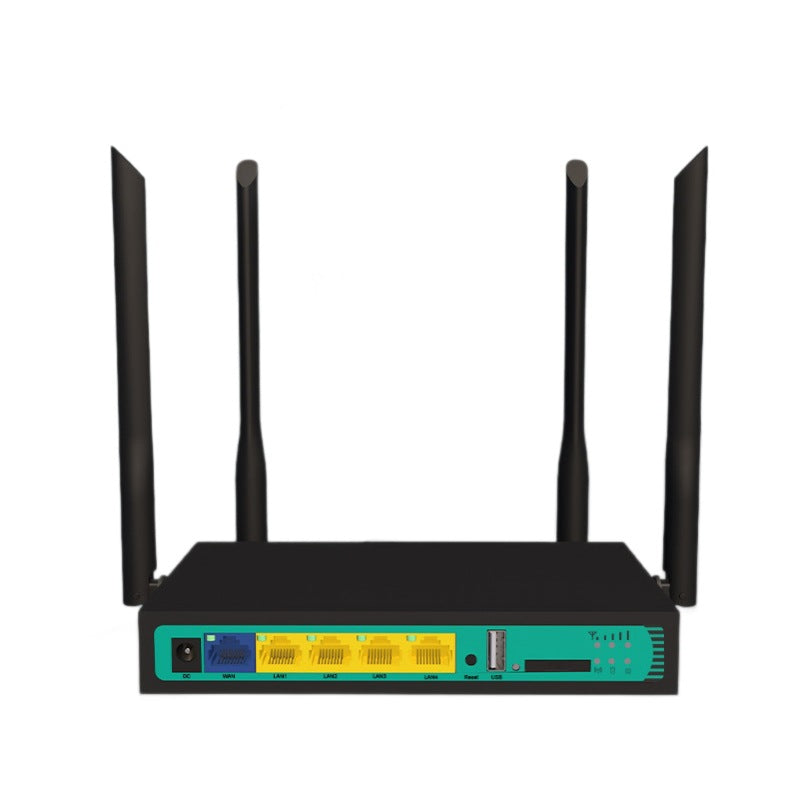

Interfaces

1×10/100M adaptive WAN port (with LED indicator), supports Auto MDI/MDIX

4×10/100M adaptive LAN ports (with LED indicators), supports Auto MDI/MDIX

1×mini PCIe slot; 1×SIM card slot; 1×USB 2.0 port

LED Indicators

Sequentially: 4G Signal 1, 4G Signal 2, 4G Signal 3, WiFi Indicator, WAN Indicator, Power Indicator

Power Adapter

DC 12V/1A

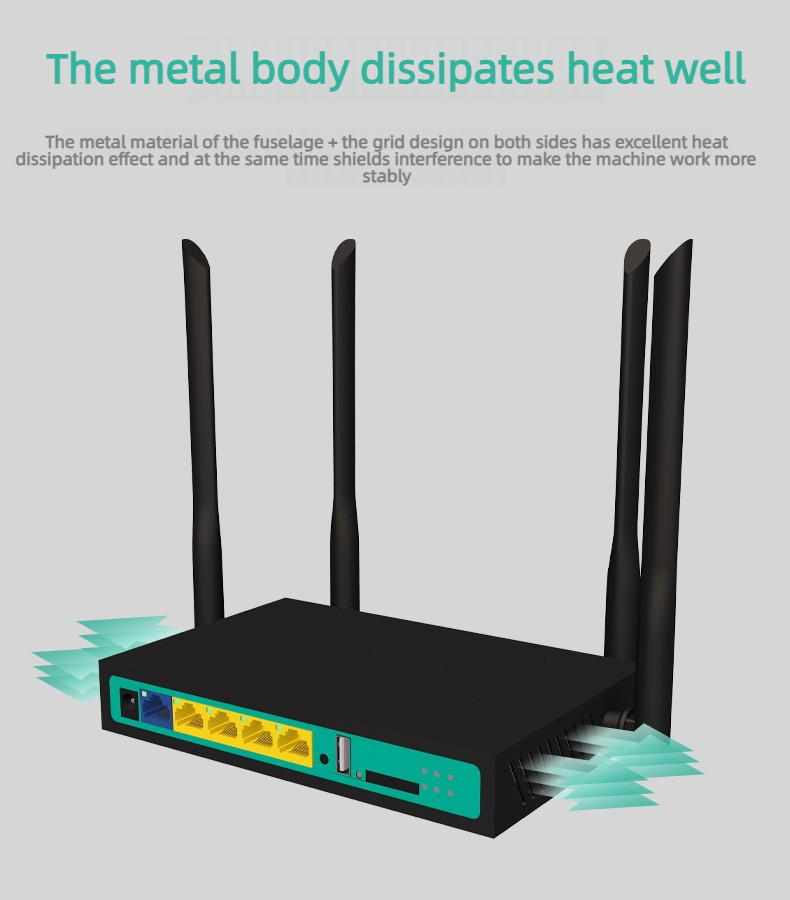

Housing Size

LWH = 109mm83mm29mm

Accessories & Packaging

1 power adapter, 1 piece of 1-meter network cable

Software Specifications

Software Specifications

Software Specifications

Software Specifications

Factory Default Settings

Default IP: 192.168.1.1Username/Password: root/admin

WAN Access Mode

PPPoE, Dynamic IP, Static IP

Security Settings

Wireless encryption, supports WPA, WPA2 encryption modes

Other Practical Functions

Configuration file import & export Web-based firmware upgrade

Bandwidth Control

Supported

Supported Systems

Original SDK, OpenWRT

Other Specifications

Operating Environment

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃

Operating Humidity: 10% ~ 90% RH, non-condensing

Storage Humidity: 5% ~ 90% RH, non-condensing
