Main features of the product:

• Adopting QCA9531-BL3A solution, 24Kc MIPS architecture CPU, with a clock speed of up to 550MHz
• 2.4G speed up to 300Mbps, supporting 2T2R MIMO technology
• Equipped with high-speed 128MB DDR2 and 16MB Nor Flash

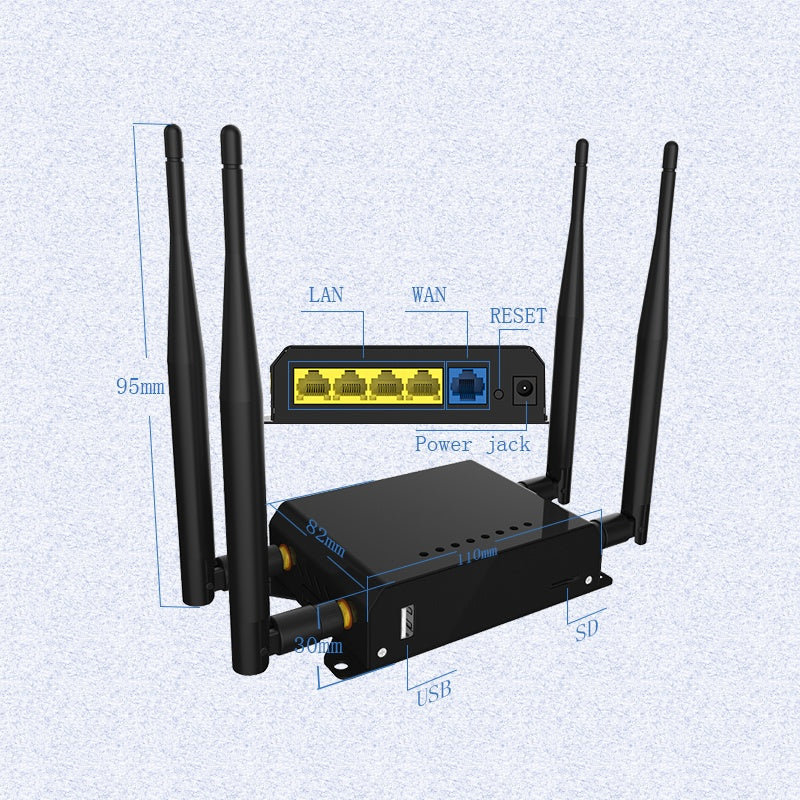

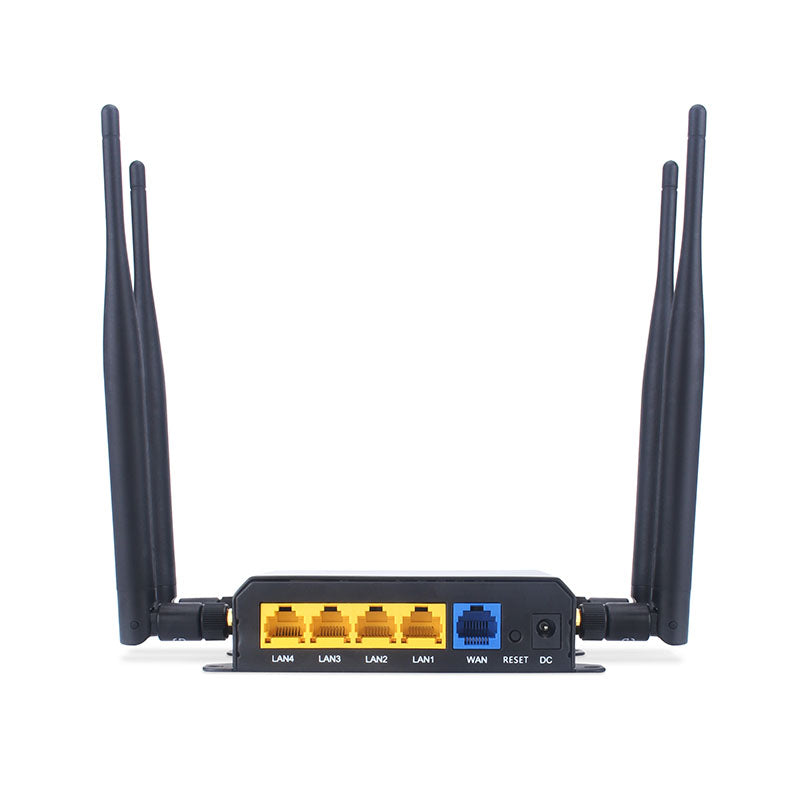

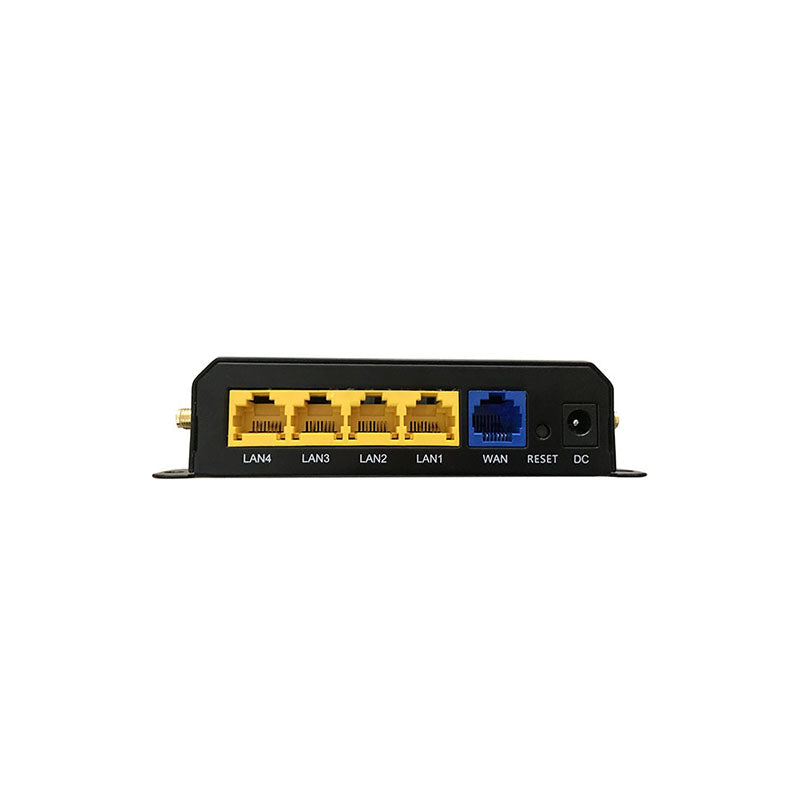

• 1WAN, 4LAN all 100M adaptive network ports, supporting automatic flipping (Auto MDI/MDIX)

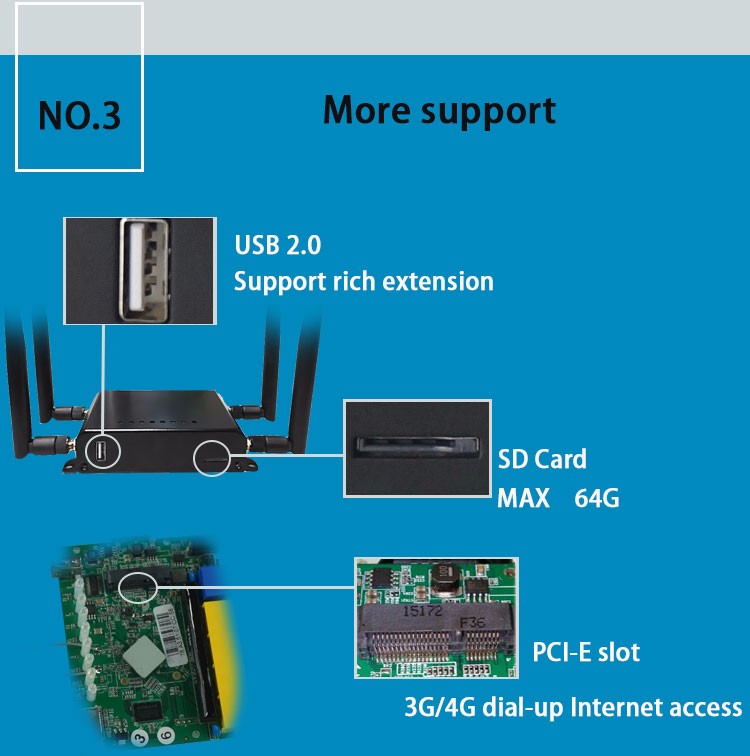

• Supports USB 2.0 and TF card storage interfaces, which can be used to expand SMABA or FTP network storage capabilities
• Support "one click flashing mode", that is, long press the reset button to enter the rescue flashing mode
• Built in 1 MINI-PCIe interface, can be used to connect 4G modules

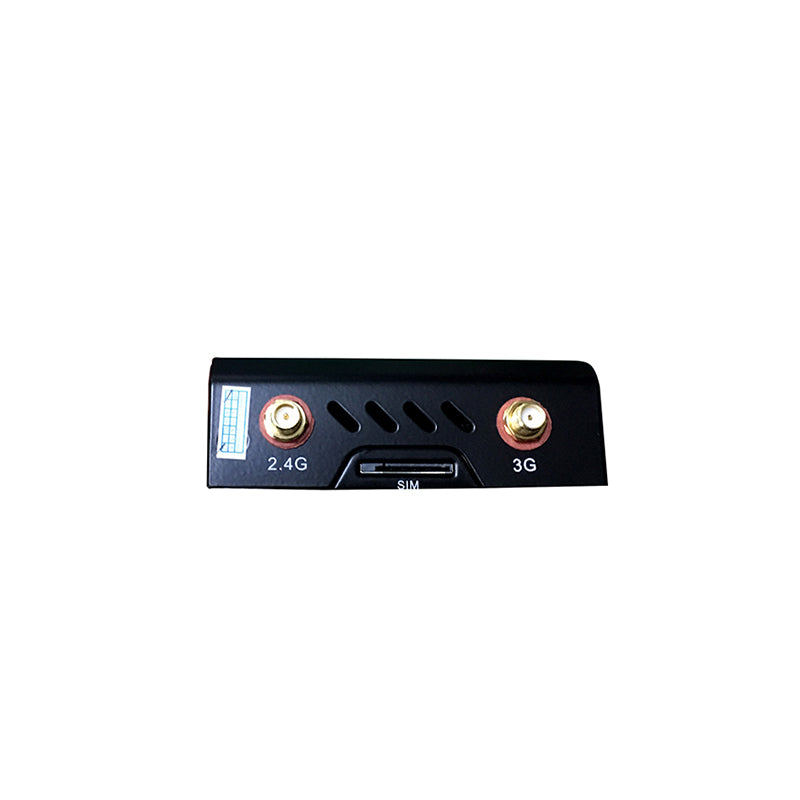

• 1 external standard SIM card interface, supporting SIM/USIM cards
• External high gain omnidirectional antenna, wireless signal 360 degree no dead degree
• This product supports hardware watchdog function, which will automatically restart the device when the routing system or 4G module fails

1. Overview

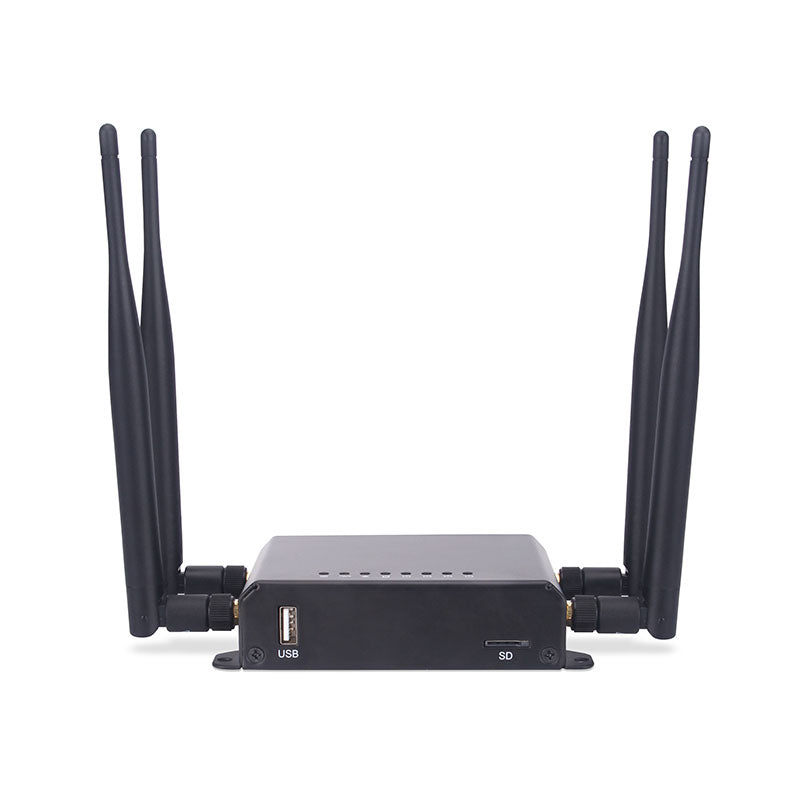

CS-WE826-Q-WD is a 4G router. It accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi and 100Mbps wired LAN.

2. Standard

Relevant specifications and standards:

• Related standards and specifications:
• USB 2.0 bus standard
• TF Card Interface Standard
• SIM/USIM interface standard
• IEEE802.11n/g/b
• IEEE802.3/802.3u
• The 4G mobile communication standard is determined by the selected 4G mobile communication module
