Croskylink CS-WE826-T2 Full-Network 4G Industrial WiFi Router DDR2 RAM 300 Mbps Smart Watchdog with SIM Card Slot Routers

Name: Croskylink CS-WE826-T2 Full-Network 4G Industrial WiFi Router DDR2 RAM 300 Mbps Smart Watchdog with SIM Card Slot Routers
Brand: CroSkylink
Price: 41.5 USD
Availability: InStock

$41.50 USD

~~$140.00 USD~~ $41.50 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

CS-WE826-T2 Black not include modules Black NA 4G Version Black European 4G version Black Australian 4G version

Product variants

Quantity

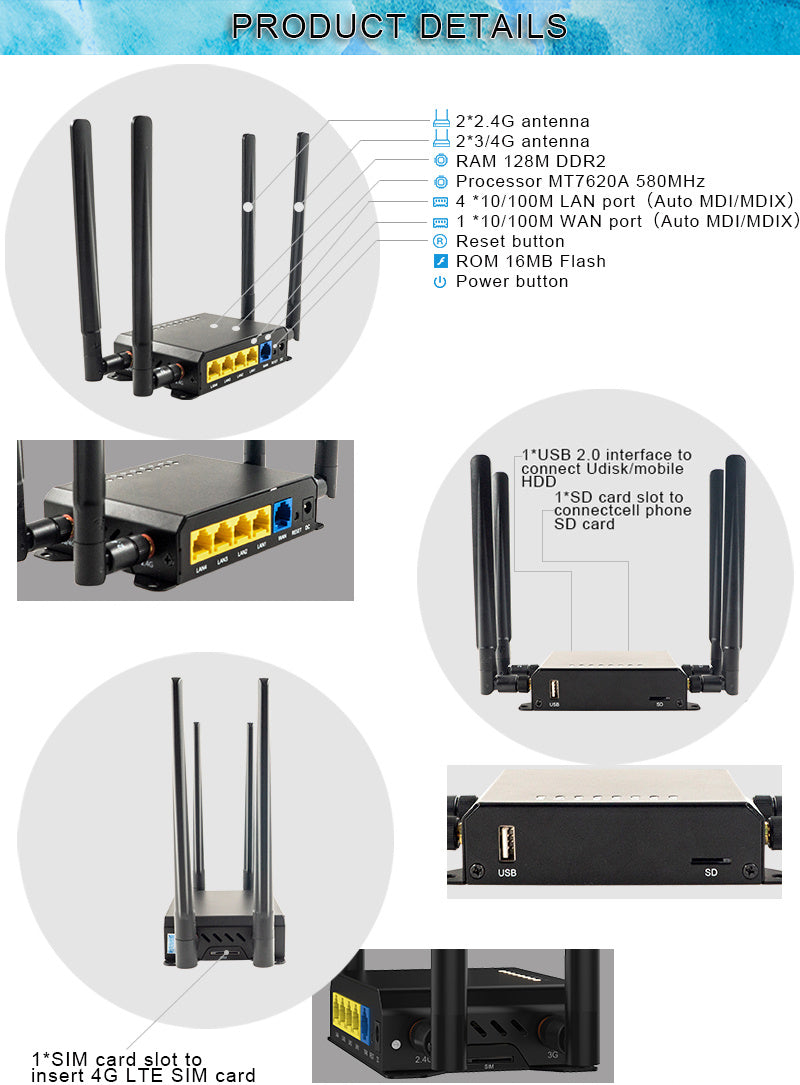

Main features of the product:

Adopting MT7620A solution, MIPS24KEc architecture CPU, with a clock speed of up to 580MHz
The MT7620A chip integrates 2.4G WIFI function, with a speed of up to 300Mbps
Equipped with high-speed 128MB DDR2 and 16MB Nor Flash

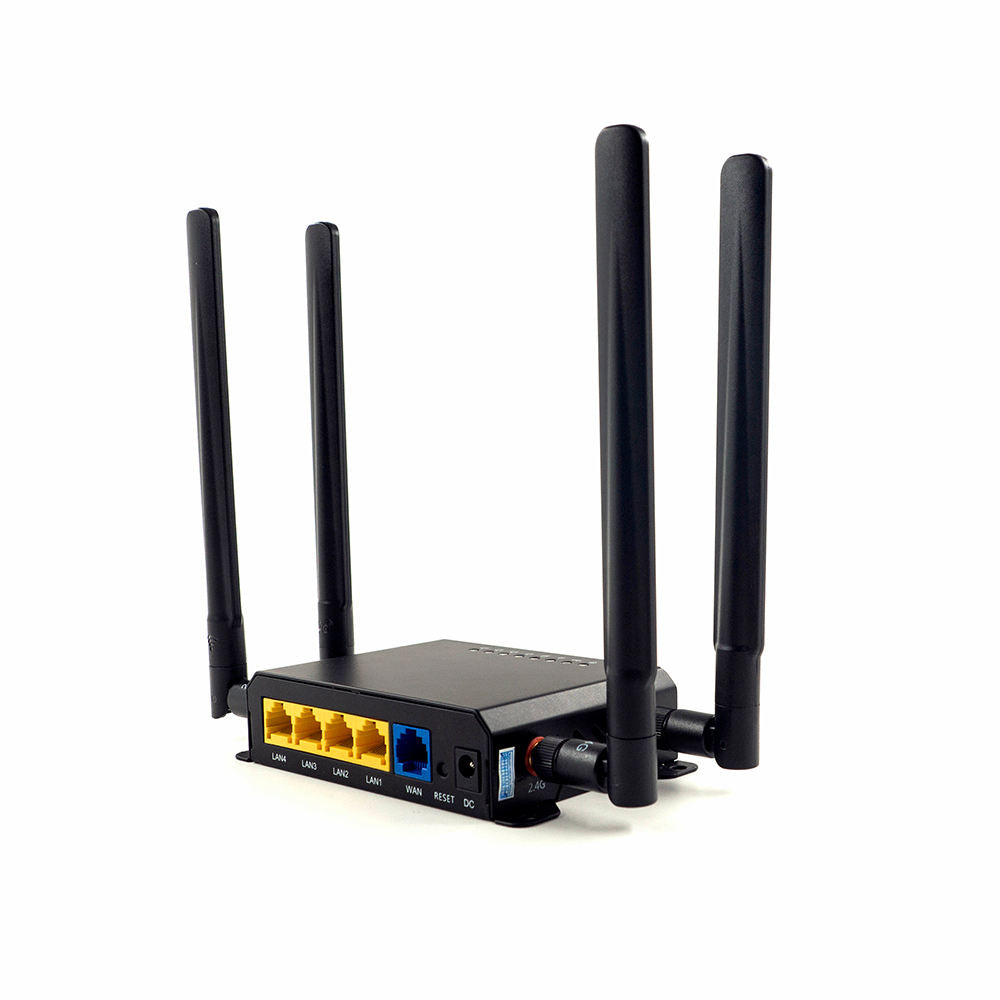

1WAN, 4LAN all 100M adaptive network ports, supporting automatic flipping (Auto MDI/MDIX)
Supports USB 2.0 and TF card storage interfaces, which can be used to expand SMABA or FTP network storage capabilities
Support "one click flashing mode", which means long press the reset button and then turn on the device to enter the rescue flashing mode
Built in mini PCIe standard interface, can be used to connect 4G mobile communication modules
External standard SIM card interface, supporting SIM/USIM cards
External high gain omnidirectional antenna, wireless signal 360 degree without dead corners

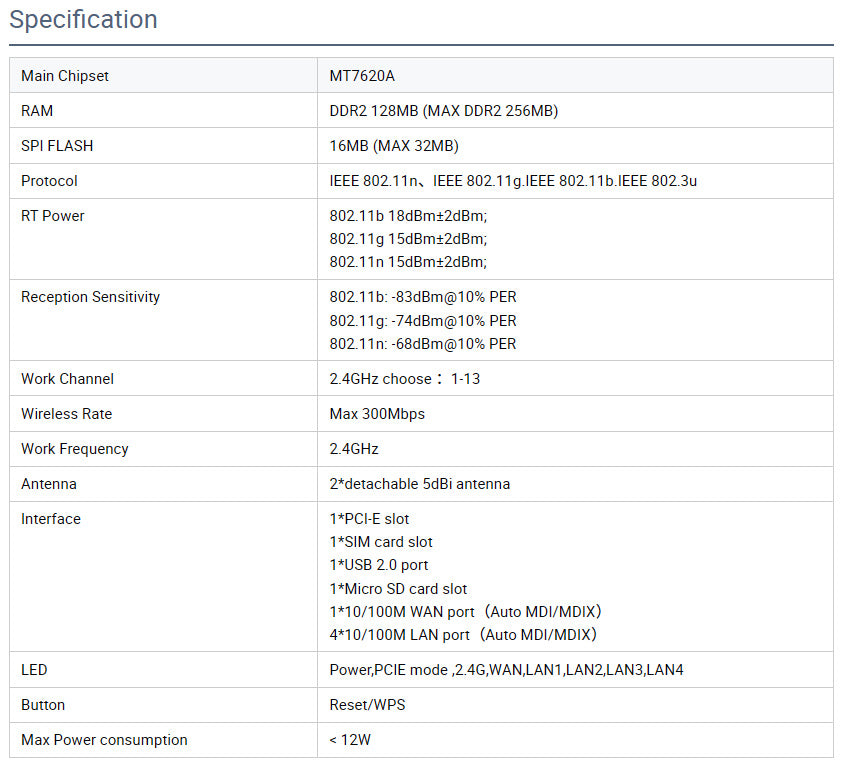

Parameter

Category	Details
Hardware
Specifications	MT7620A CPU with MIPS24KEc architecture, main frequency up to 580MHzDDR2 128MBNor Flash 16MB
Protocol Standards	IEEE 802.11n/g/b
Wireless Speed	2.4G WiFi: 300Mbps
Operating Frequency Band	2.4G WiFi
Antennas	2pcs omnidirectional 5dBi 2.4G antennas / 2pcs omnidirectional 5dBi 4G cellular communication antennas

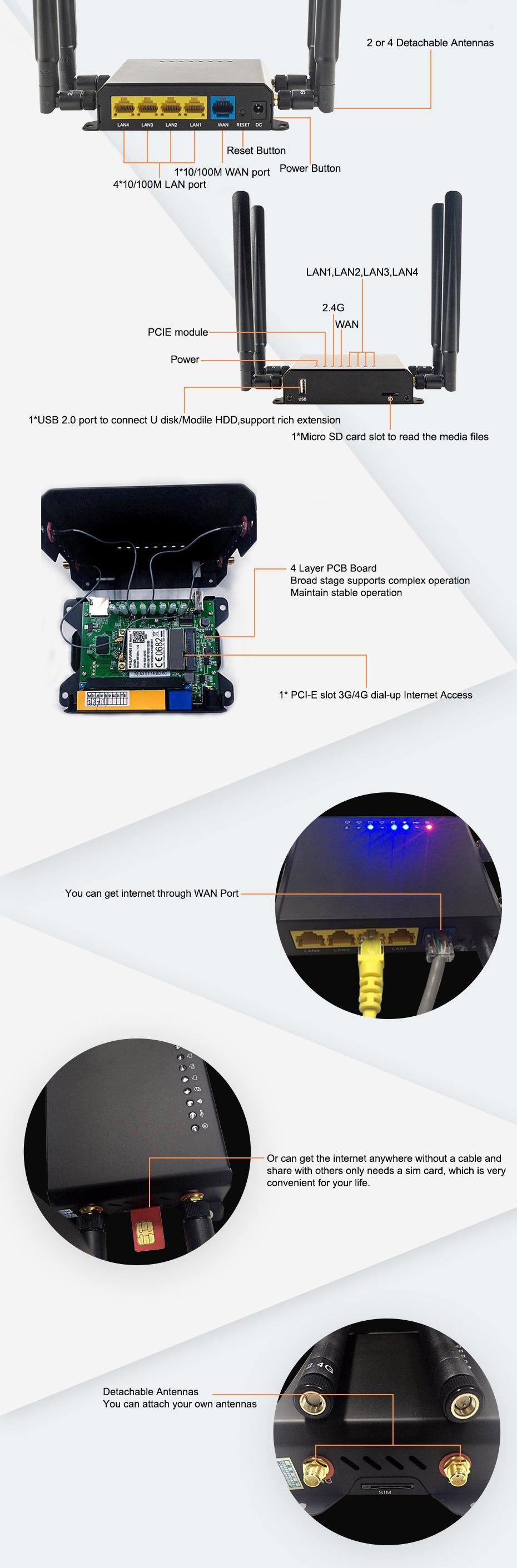

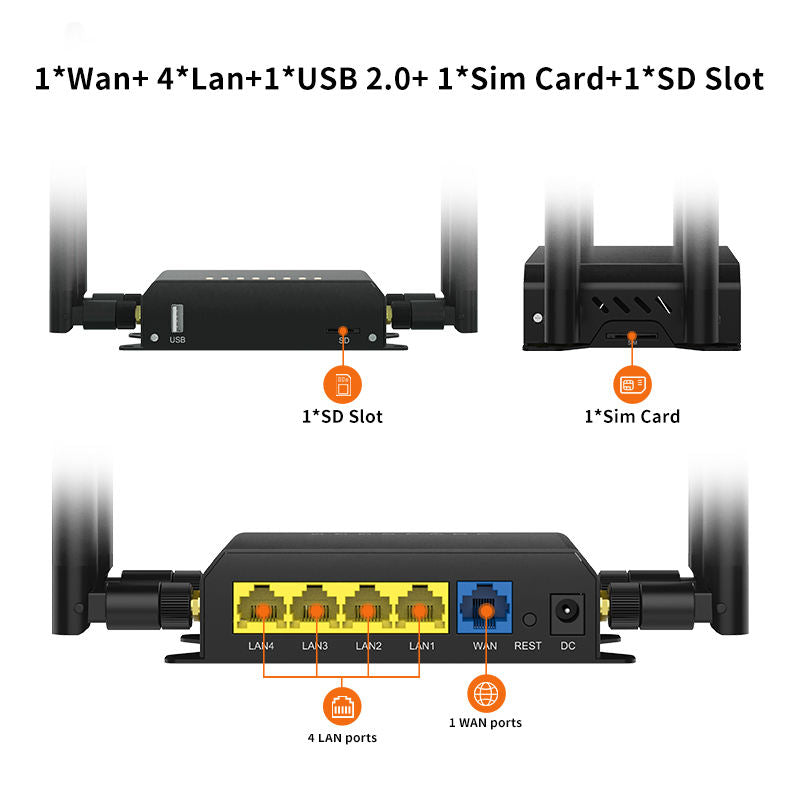

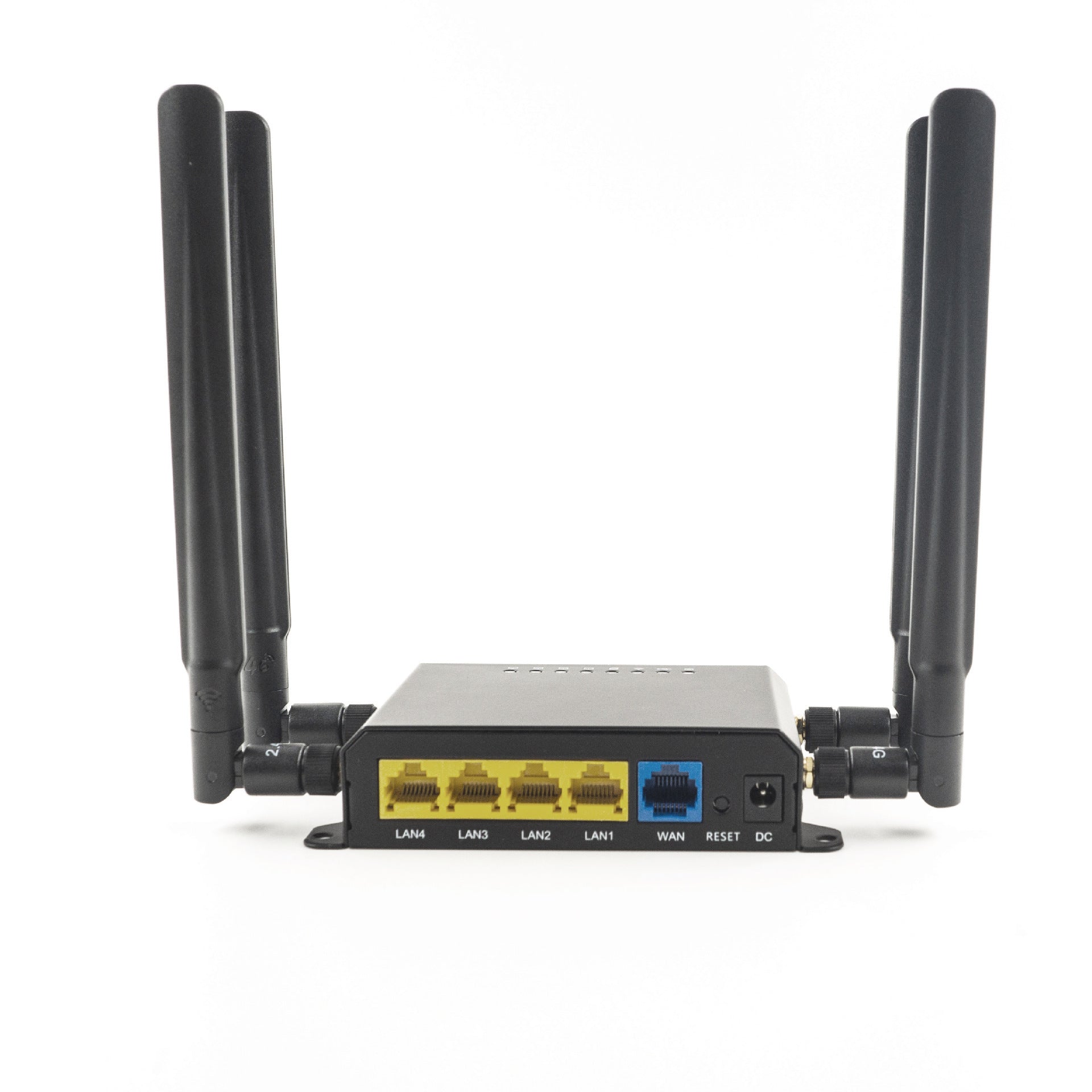

Interfaces	1. 1×WAN port, 4×100Mbps LAN ports with Auto MDI/MDIX, compliant with IEEE 802.3/802.3u2. 1×Standard SIM card (full-size) slot, supports SIM/USIM3. 1×Standard TF card slot4. DC 5.0*2.1mm power jack5. 1×Reset button6. 1×USB2.0 port
LED Indicators	1. LAN1 LED: Steady on with cable connected, blinks during data transmission2. WAN LED: Steady on with cable connected, blinks during data transmission3. 2.4G WIFI LED: Steady on when 2.4G WiFi enabled, blinks during data transfer; off if WiFi disabled or faulty4. 4G Cellular LED: Controlled by 4G module; steady on when module detected, blinks during data communication; off if module missing or faulty5. Power LED: Steady on when powered, off under power failure or no power input
Power Adapter	12V/1A ×1PCS

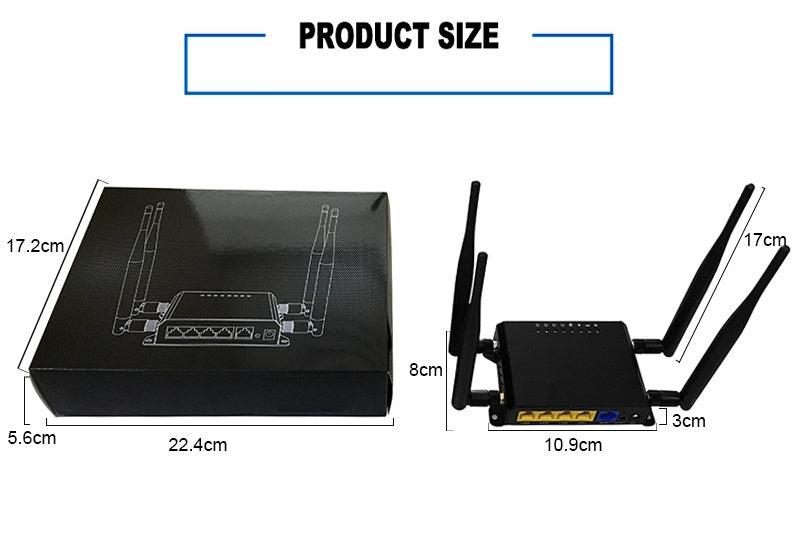

Housing Dimensions	LWH=1098329MM
Color	Black
Accessories & Packaging	12V/1A Power Adapter ×1PCSUser Manual ×1PCSCertificate of Conformity ×1PCSEthernet Cable ×1PCSSIM Card Adapter ×1PCSAntennas: 2pcs detachable black rod 2.4G 5dBi antennas, 2pcs detachable black rod 4G 5dBi antennas
Software
Factory Defaults	Default IP: 192.168.1.1Username/Password: root/admin
WAN Access Modes	PPPoE, Dynamic IP, Static IP
Security Settings	Wireless encryption, supports WPA, WPA2 and other security encryption modes
Other Practical Functions	Configuration file import & export Web-based firmware upgrade
Bandwidth Control	Supported
Supported Systems	Original SDK, OpenWRT
Other Specifications
Operating Environment	Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃ Operating Humidity: 10% ~ 90% RH, non-condensing Storage Humidity: 5% ~ 90% RH, non-condensing
