Main features of the product:

• Adopting the MT7981B solution, it features an ARM Cortex-A53 dual-core CPU with a clock speed of up to 1.3GHZ

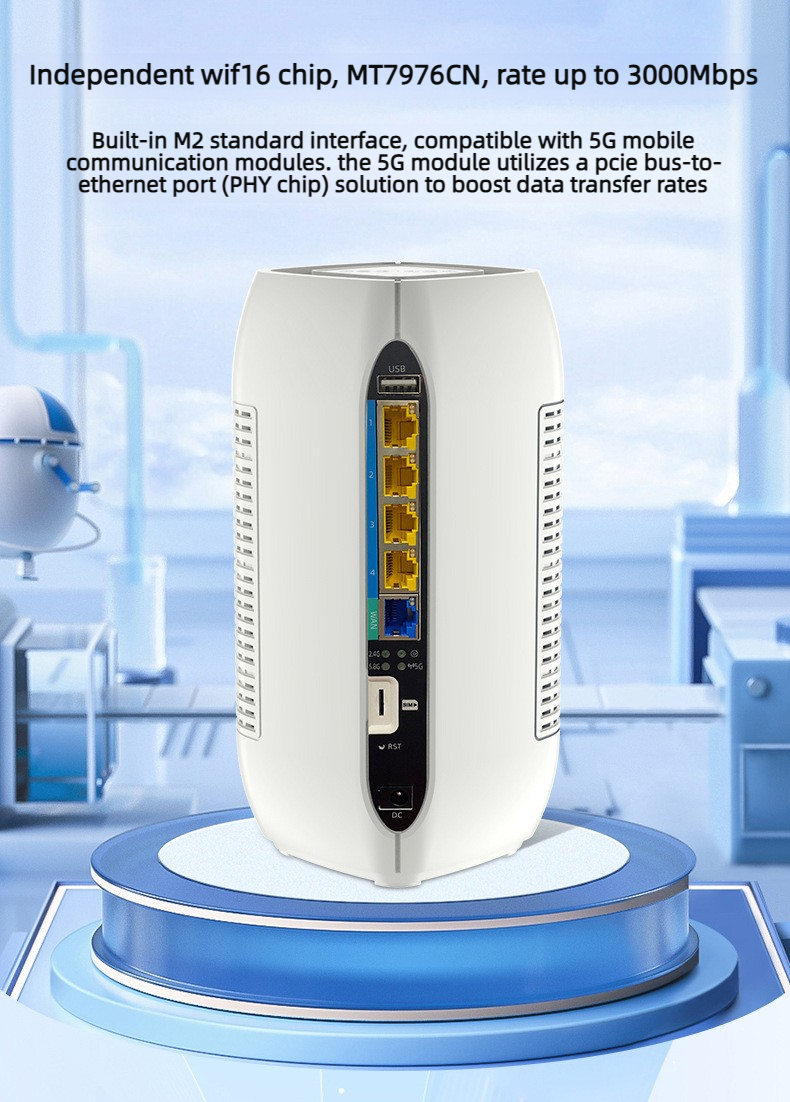

• Equipped with an independent WIFI6 chip, MT7976CN, achieving speeds up to 3000Mbps
• Equipped with high-speed 256MB DDR3L, paired with 128MB SPI Nand Flash

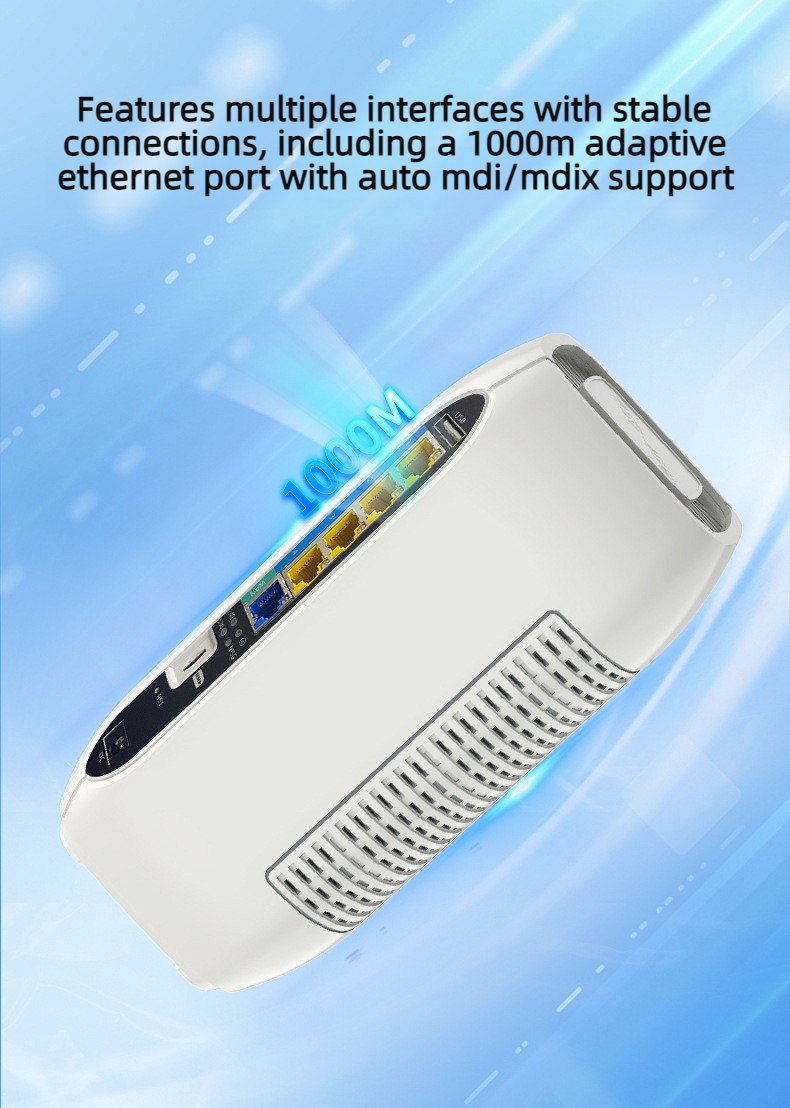

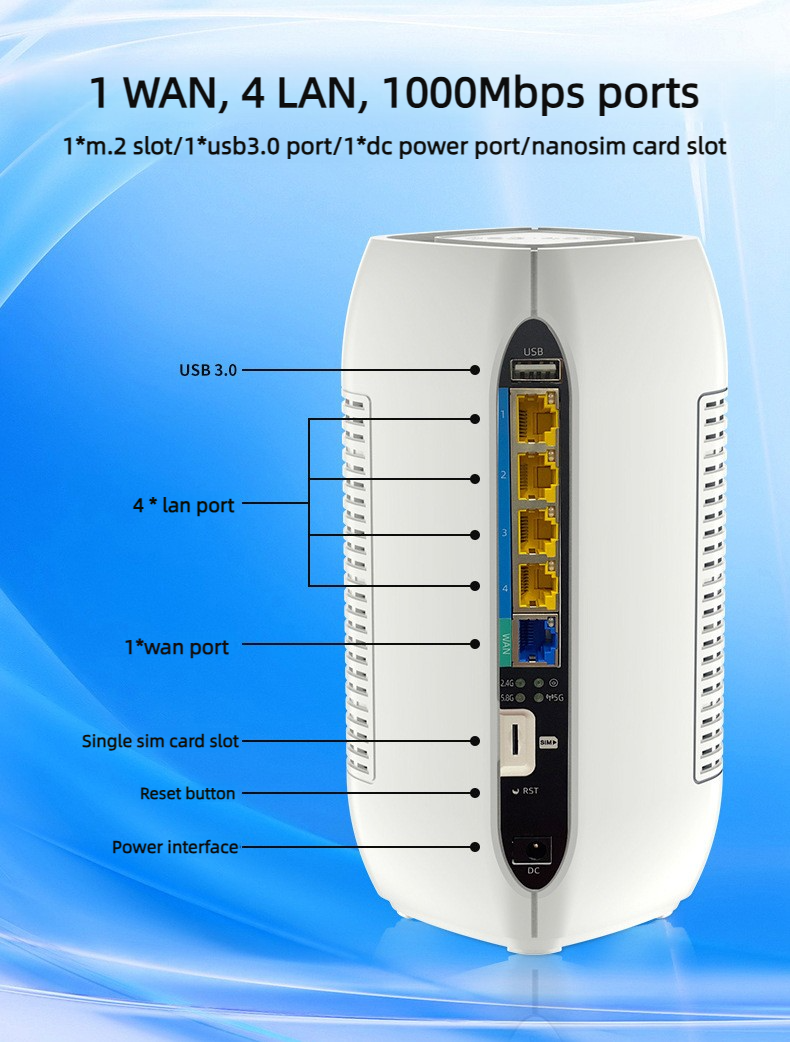

• 1WAN+4LAN 1000M adaptive network port, supporting automatic flipping (Auto MDI/MDIX)
• Support "one-click flashing mode", which means long pressing the reset button can enter rescue flashing mode
• Built-in M2 standard interface, which can be used to connect 5G mobile communication module
• 5G adopts a PCIE bus to Ethernet port (PHY chip) conversion solution to enhance the speed
• One external standard Nano SIM card (small card) interface, supporting SIM/USIM cards

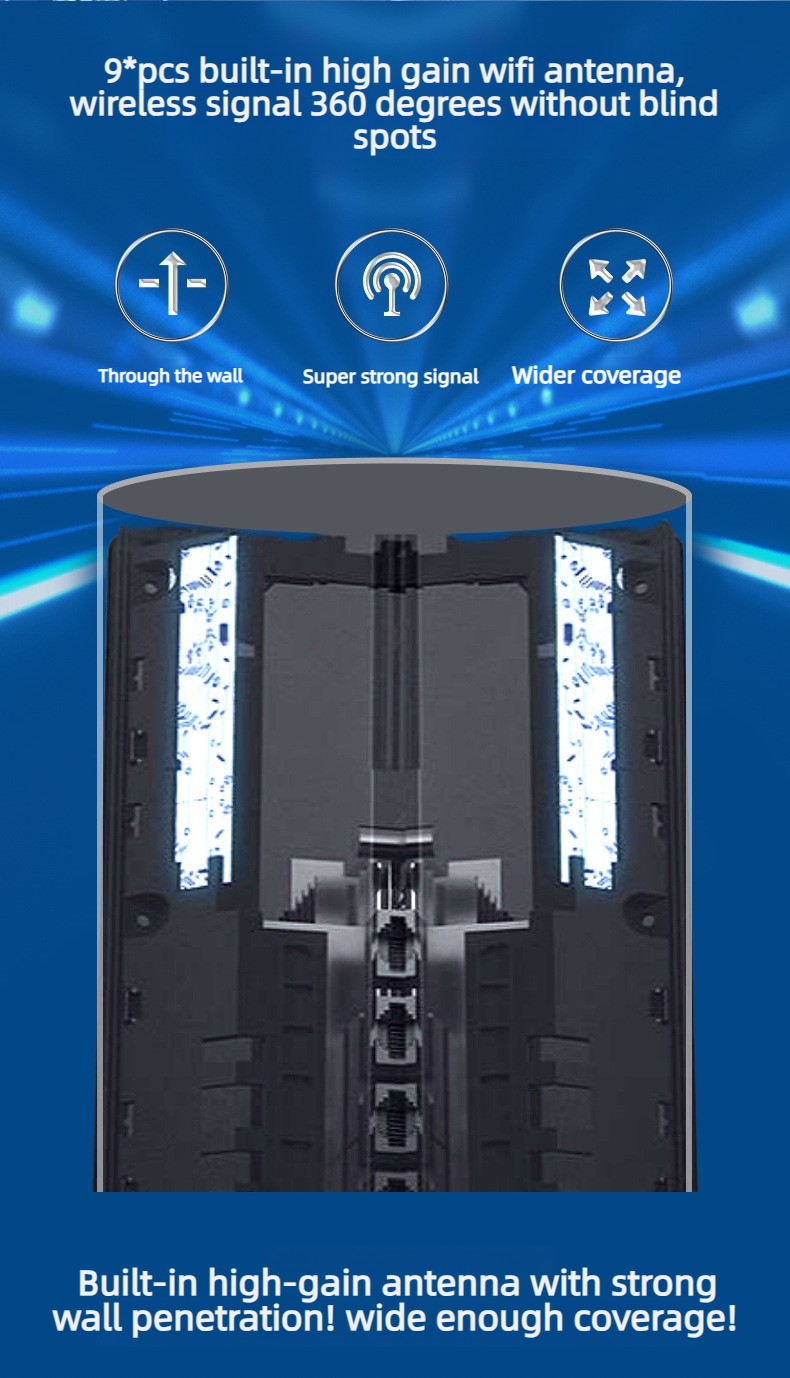

• Equipped with a high-gain WIFI antenna, the wireless signal covers 360 degrees without any dead zones

1.  Overview

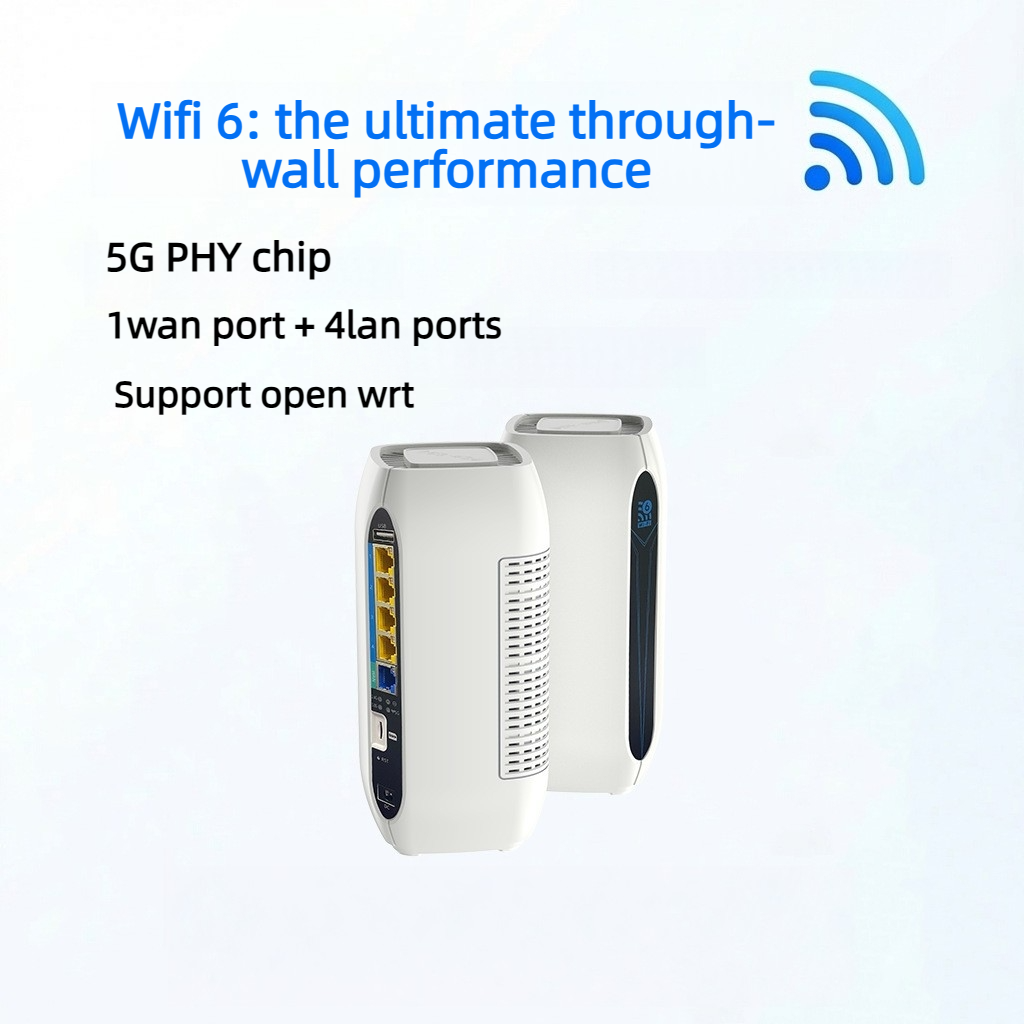

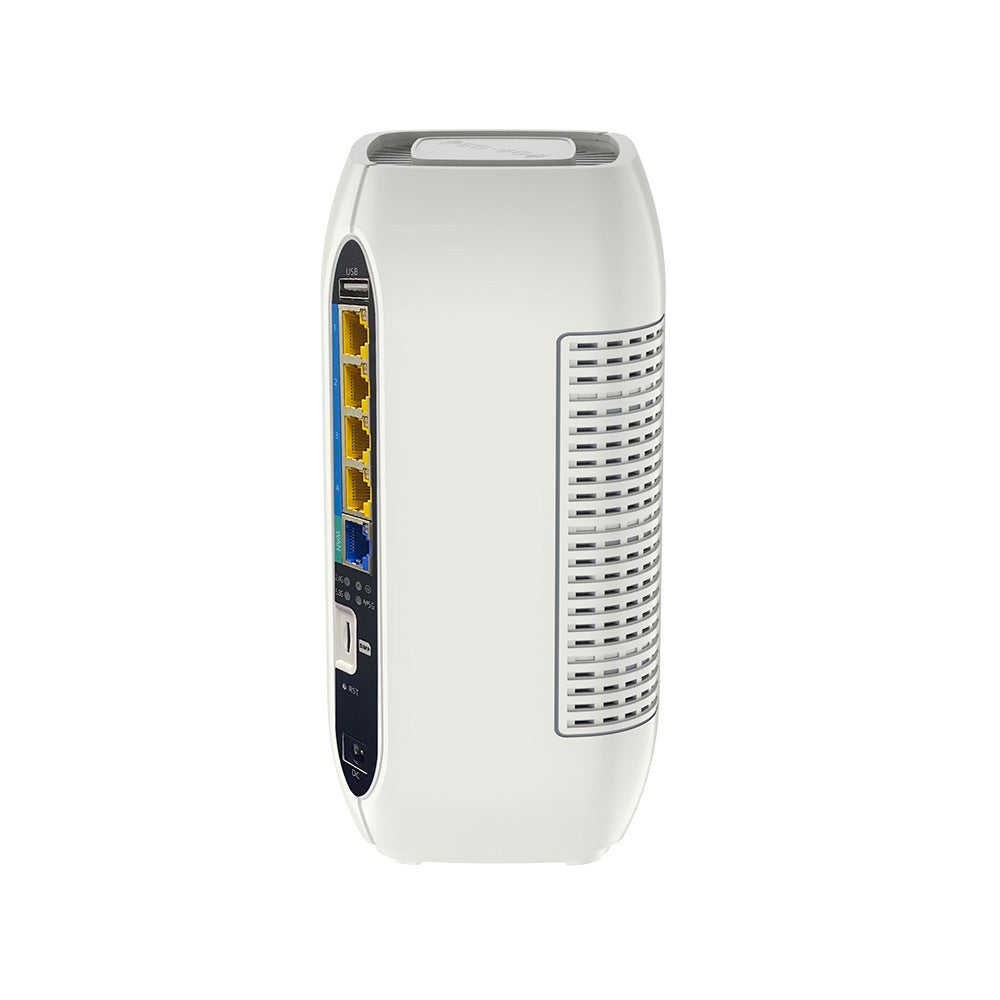

CS-Z8106AX-M2-S is a 5G+WIFI6 home CPE route, which accesses the Internet through 5G mobile communication dial-up or 1000 Mbps WAN port, and then shares the Internet network through wireless WiFi 6 and 1000 Mbps wired LAN. In addition, this product has added a pcie to Ethernet port chip, effectively improving 5G speed.

2. Standard

Relevant standards and specifications:

• USB3.0/USB2.0 bus standard
• PCI-Express bus standard
• SIM/USIM interface standard
• IEEE802.11n/g/b/a/ac/ax
• IEEE802.3/802.3u/802.ab
• PCI Express M.2 Specification Rev1.1
• The 5G mobile communication standard is specifically determined by the selected 5G mobile communication module
