Main features of the product:

• Adopting MT7981B solution, ARM Cortex-A53 dual core CPU with a clock speed of up to 1.3GHz

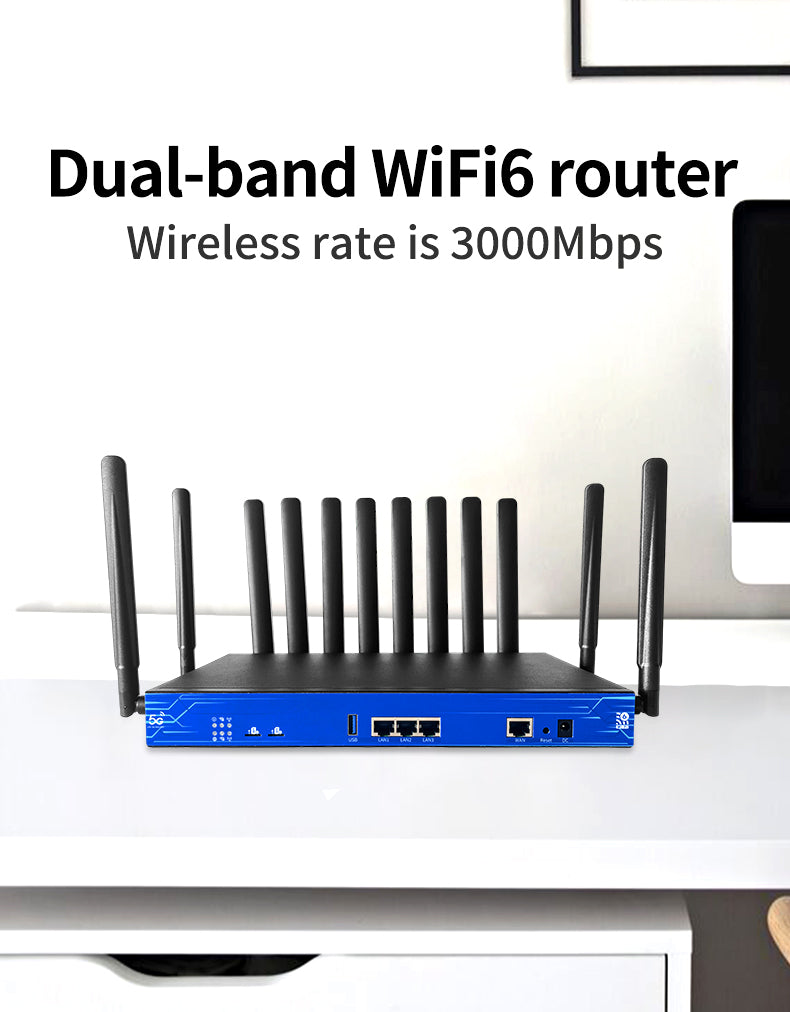

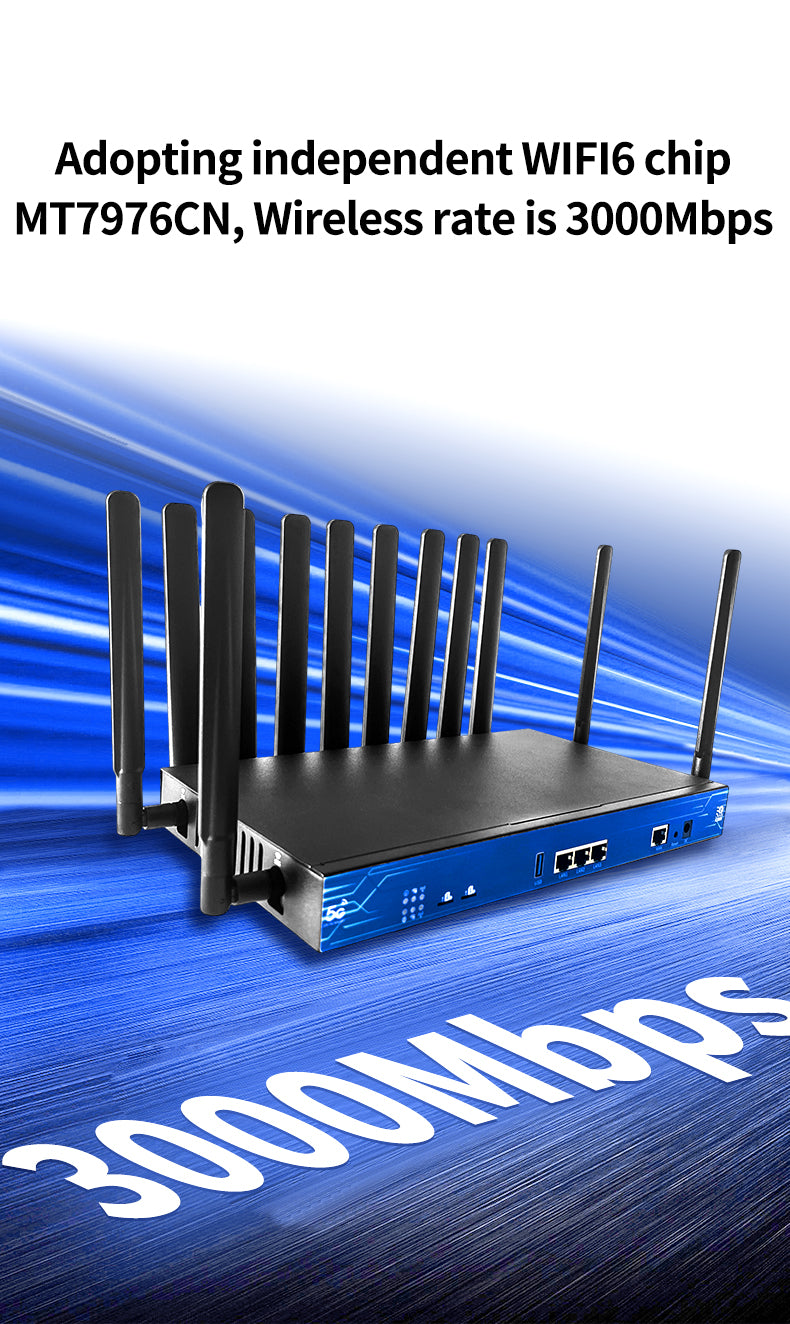

• Using an independent WIFI6 chip, MT7976CN， Up to 3000Mbps speed
• Equipped with high-speed 512MB DDR4 and 128MB SPI NAND Flash

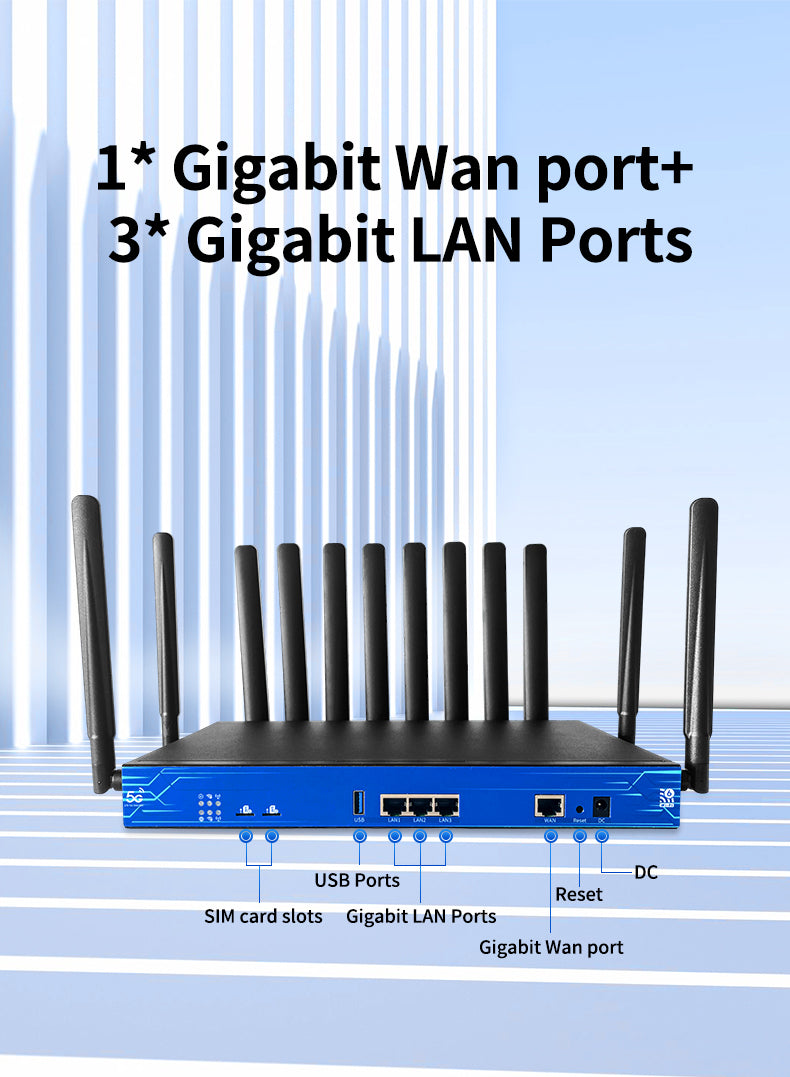

• 1WAN+3LAN 1000M adaptive network port, supporting automatic flipping (Auto MDI/MDIX)
• All 3 LAN ports support IEEE802.3af/at standard POE for powering other PD devices
• Support "one click flashing mode", which means long press the reset button to enter the rescue flashing mode ..
• Built in 4 M.2 standard interfaces, can be used to connect 5G/4G mobile communication modules

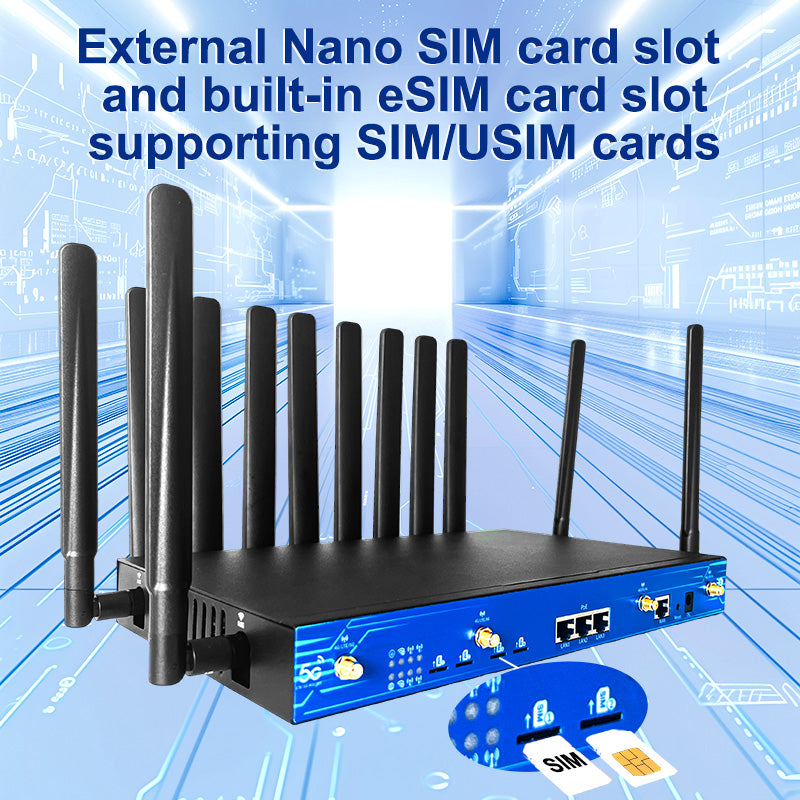

• External standard Nano SIM card (small card) interface and built-in eSIM (QFN-8 6mmx5mm) card interface, supporting SIM/USIM cards

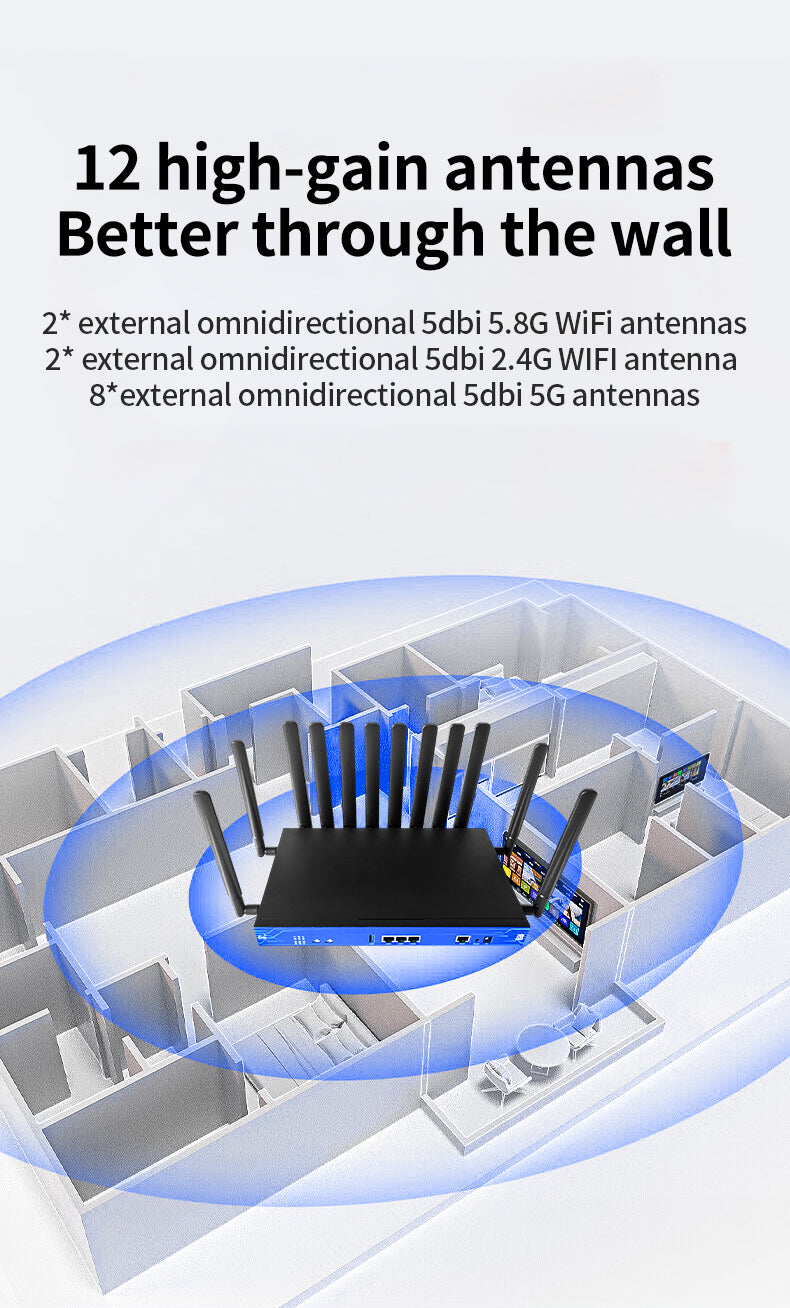

• External high gain WIFI antenna, wireless signal 360 degree without dead corners

1. Overview

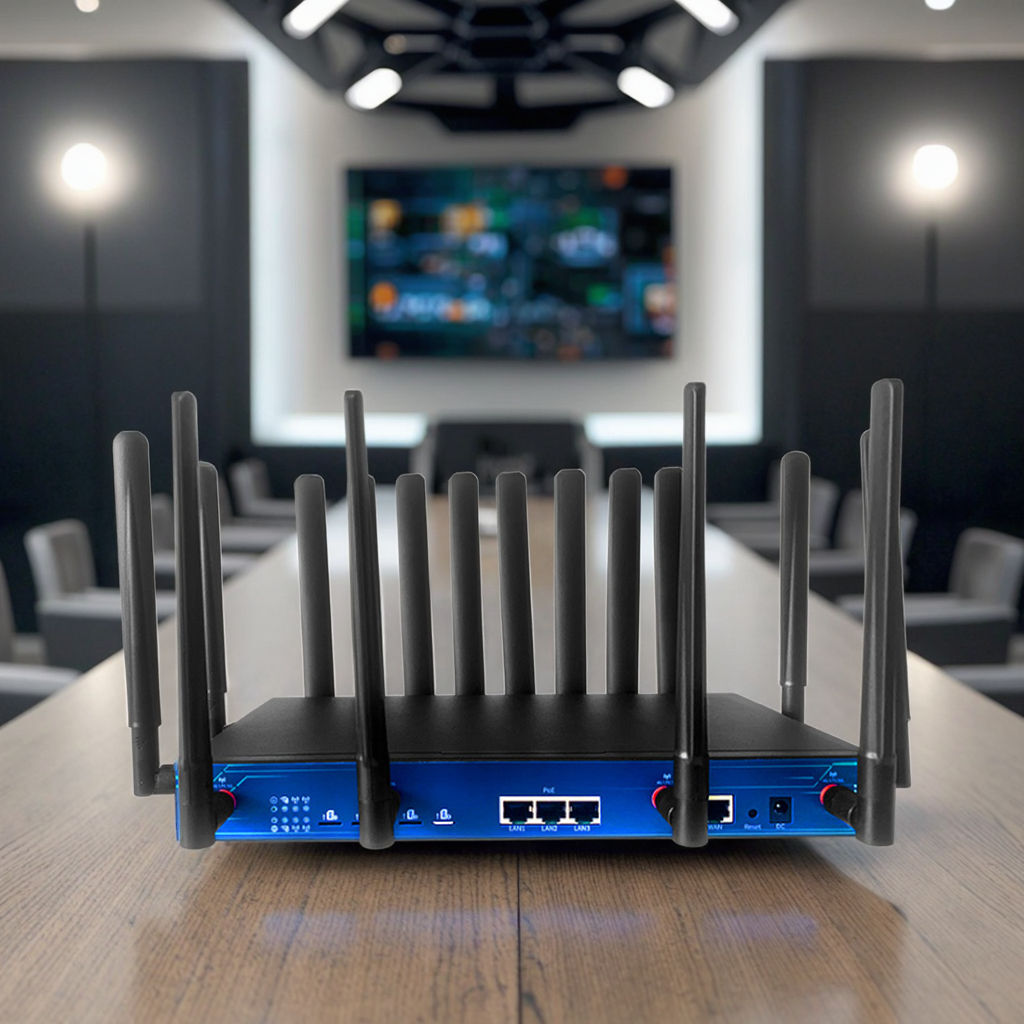

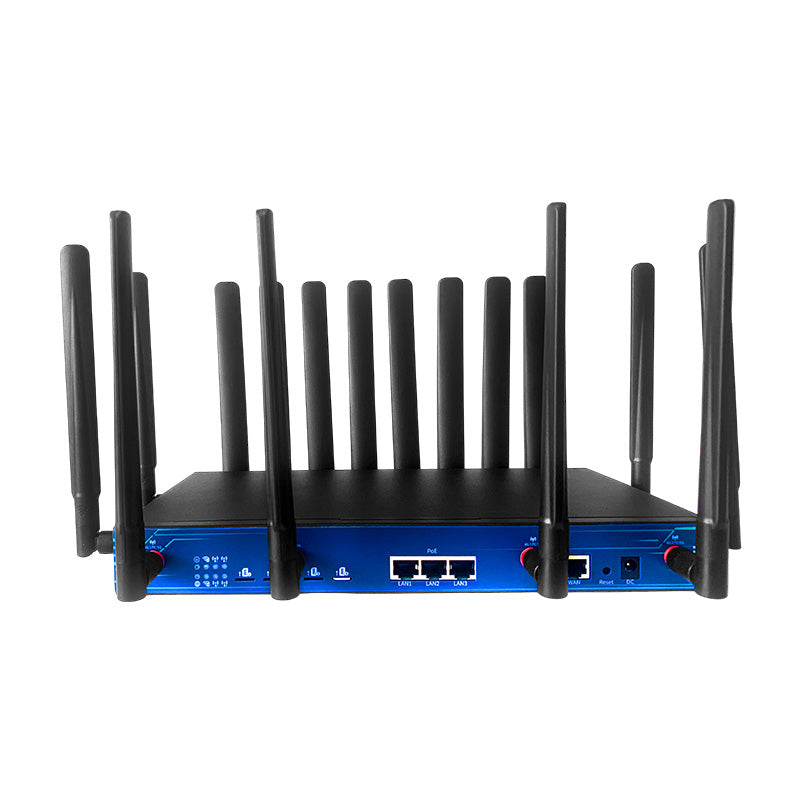

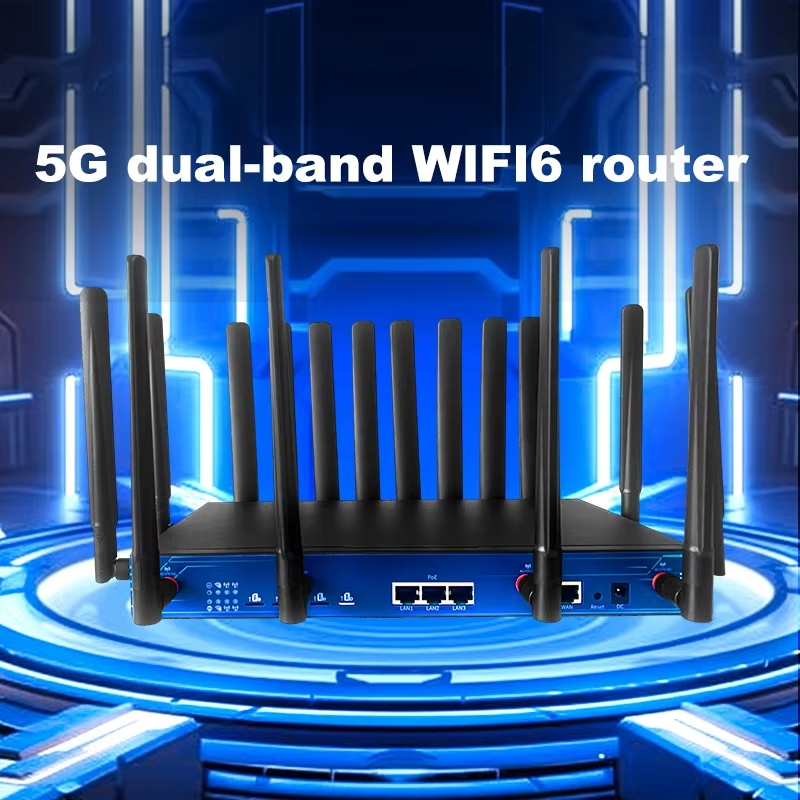

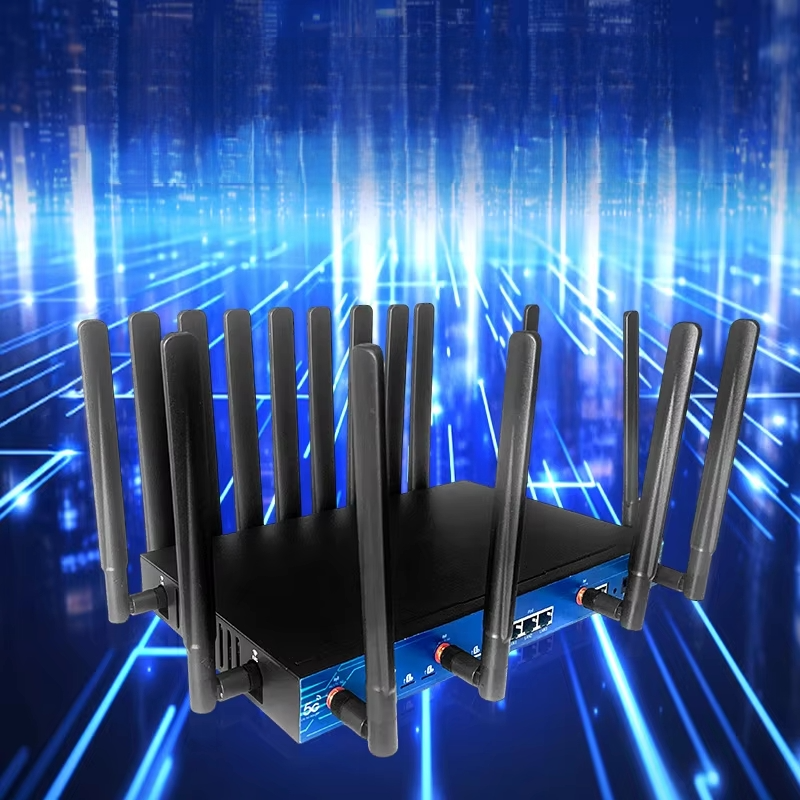

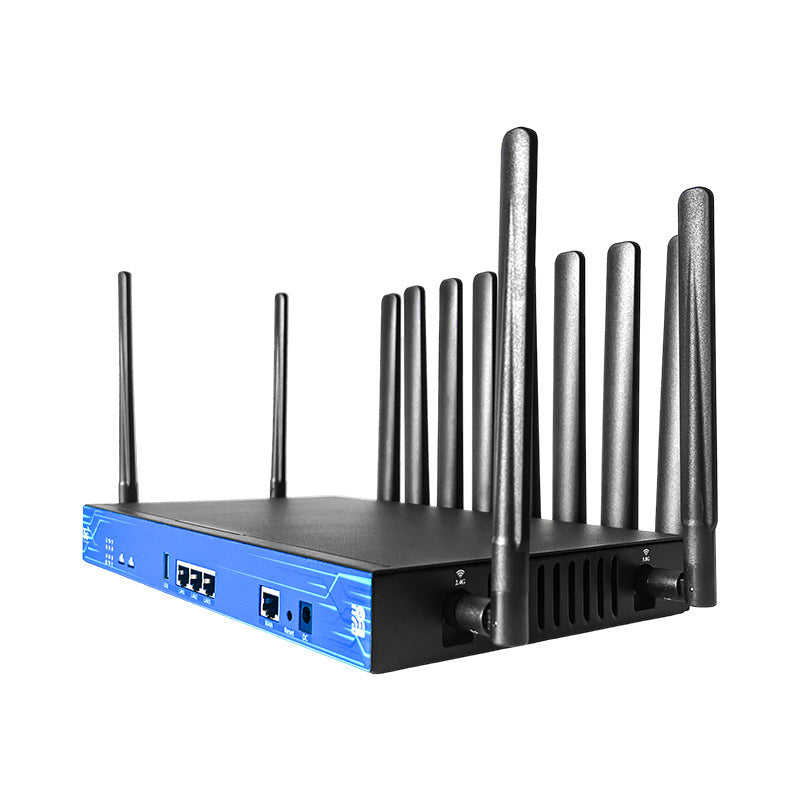

CS-Z8109AX-M2-T-PSE is a 5G/4G+WIFI6 CPE route that accesses the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN interface. 5G supports 2-way PHY chip to increase 5G speed Then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN. LAN ports support IEEE802.3af/at standard POE to power other PD devices.

2. Standard

Relevant specifications and standards:

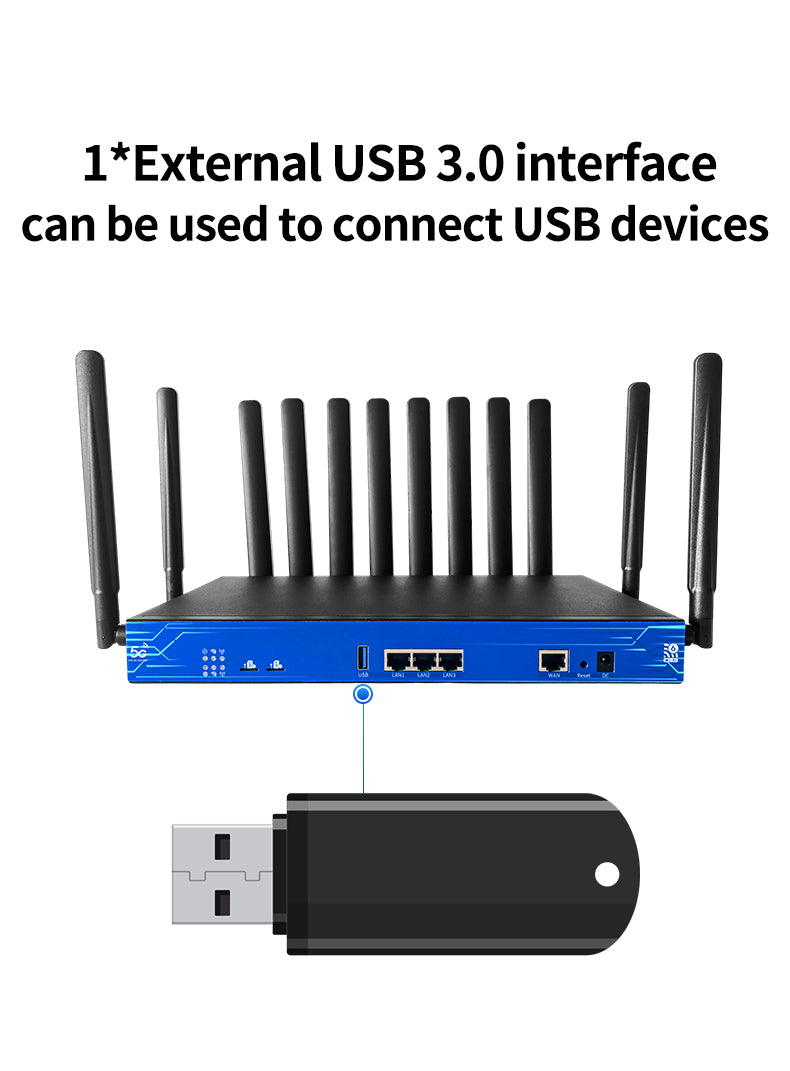

• USB 3.0/USB 2.0 bus standard
• SIM/USIM interface standard
• IEEE802.11n/g/b/a/ac/ax
• IEEE802.3/802.3u/802.ab
• IEEE802.3af/at
• PCI Express M.2 Specification Rev1.1
• The 5G mobile communication standard is determined by the selected 5G mobile communication module
