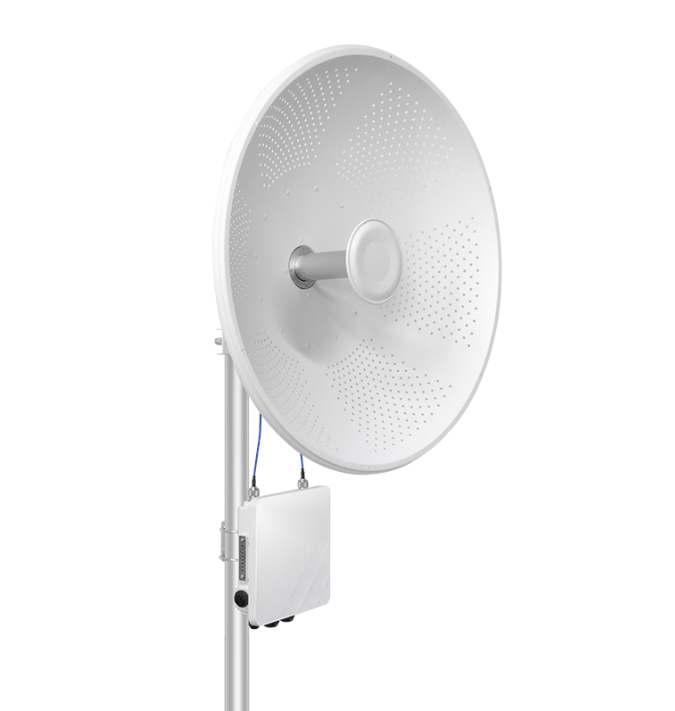

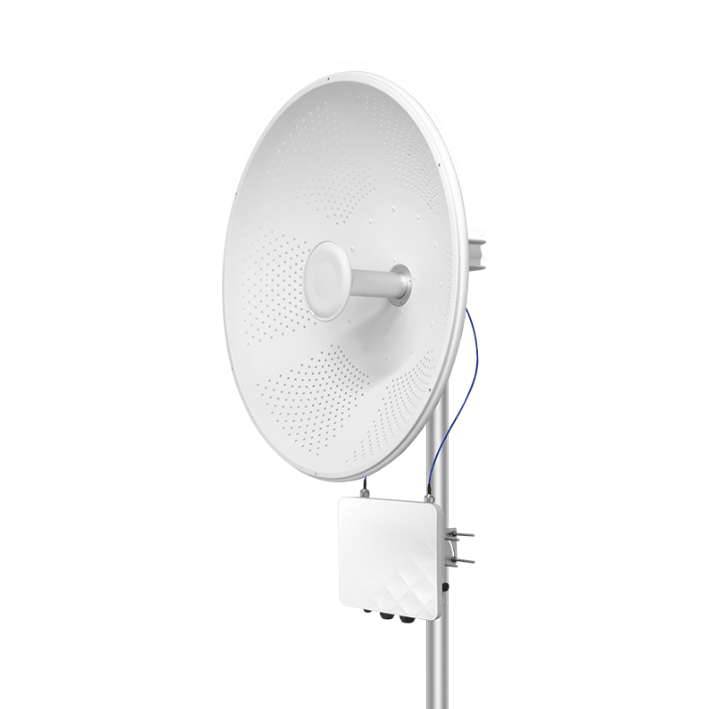

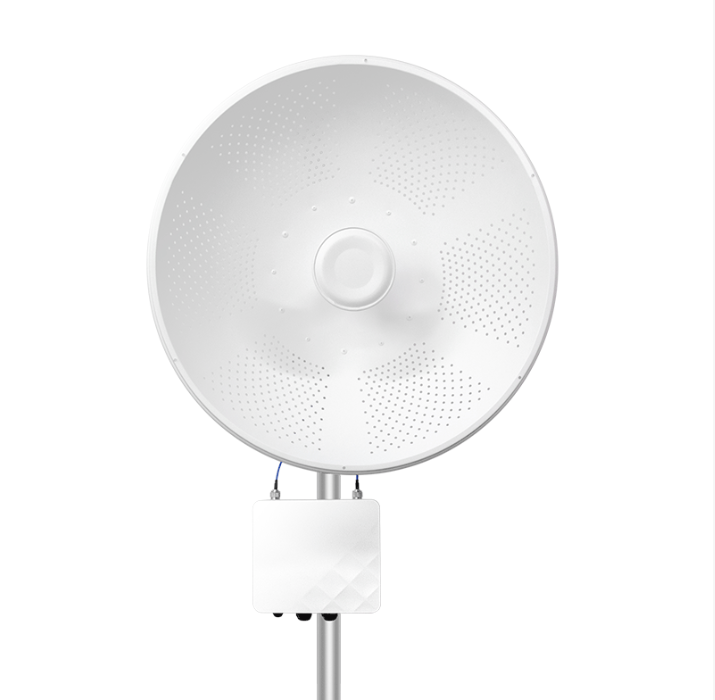

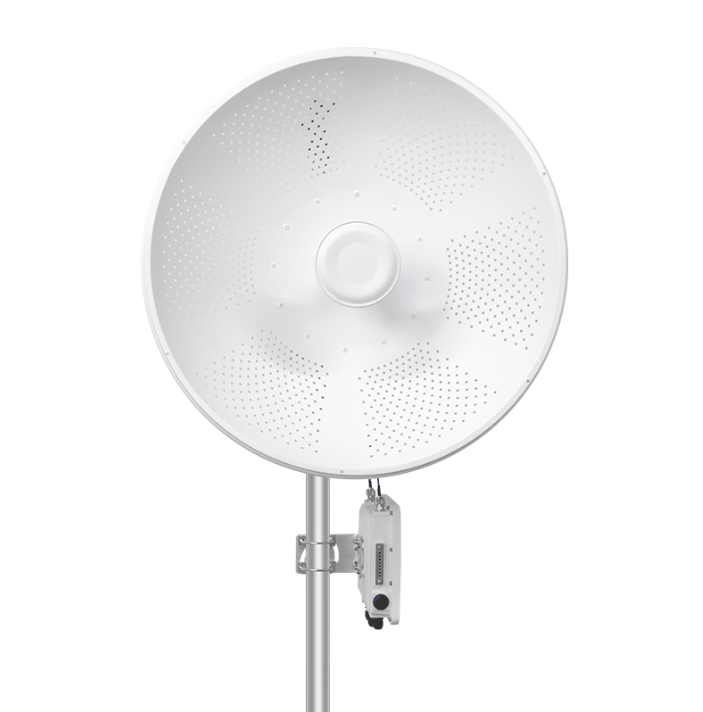

High Performance Wireless Bridge Outdoor Long Distance 30km 32dBi

Model: CS5632

Flash: SPI NOR 8MB SIP NAND 128MB

DDR: external 512MB

5G Band: 5.150GHz～5.850GHz

5G WIFI Protocol: 802.11 a / n /ac /ax

Maximum rate: 900+Mbps

Antenna: External 29dBi Parabolic Antenna

5G EVM: 802.11a: ≤-25 dB；802.11n: ≤-28 dB；802.11ac:≤-32dB; 802.11ax≤-35dB

Frequency deviation（ppm): ±20ppm

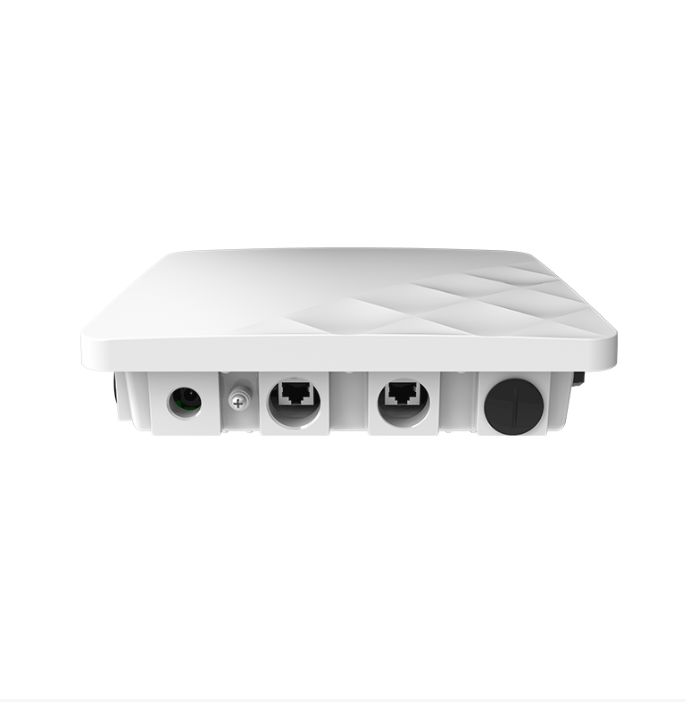

Port (WAN): 1*10/100/1000M WAN, support 48V POE

Port (LAN): 1*10/100/1000M LAN

Port(WAN/LAN): 1*1000M SFP

Power supply: DC2.0 12V/PoE 802.3at

Consumption: <10W

Size: 243mm*218mm*64mm

Weight: 3.9KG

Environment: Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 70°C；humidity：5％～95％（No condensation）

IP grade: IP67

ESD: Air +/-15K，Contact +/-8K

Surge protection: Common-Mode: 4K，Differential-Mode: 2K
