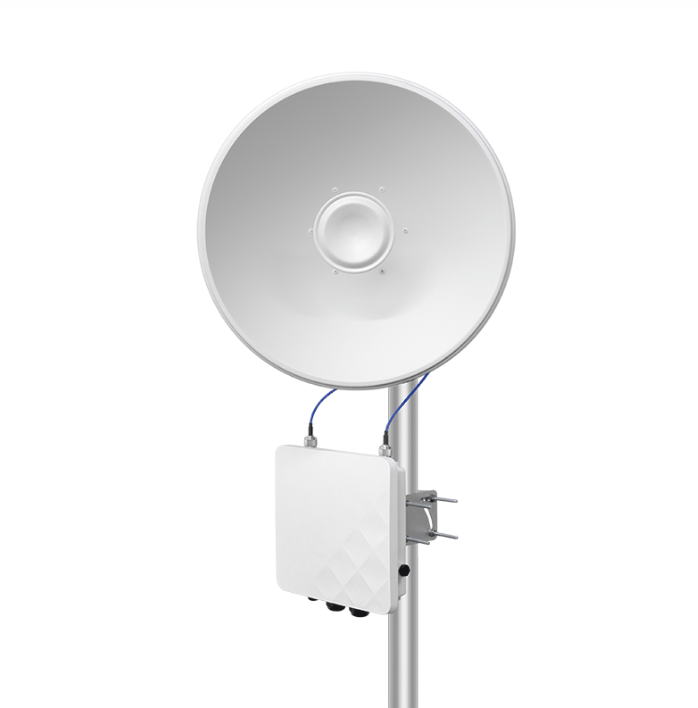

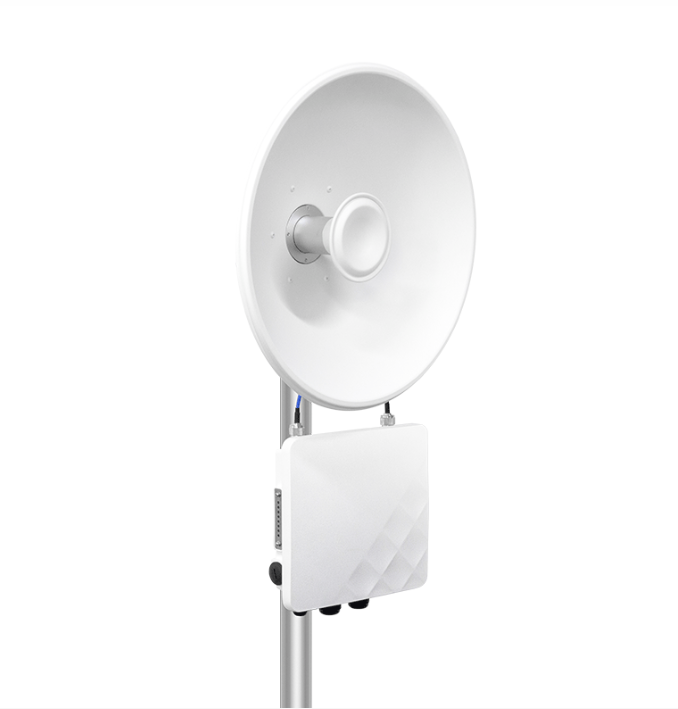

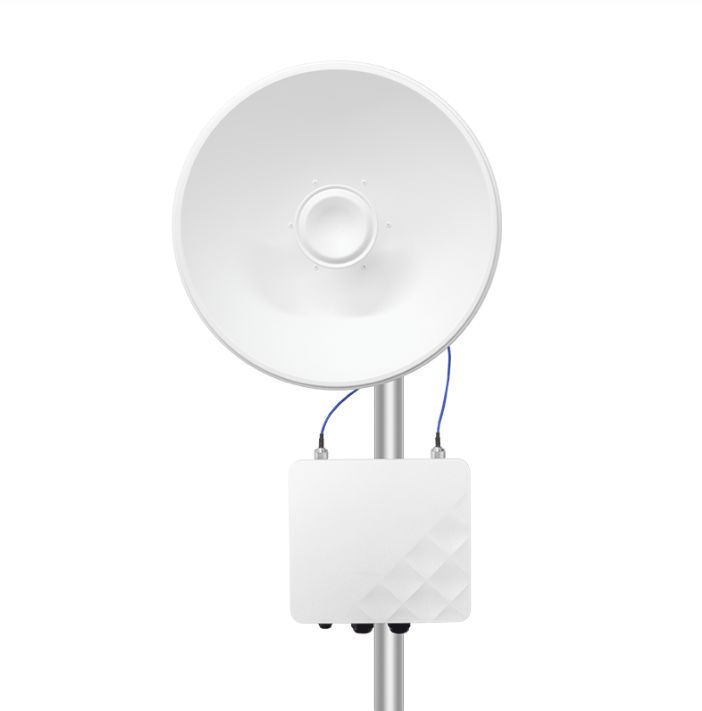

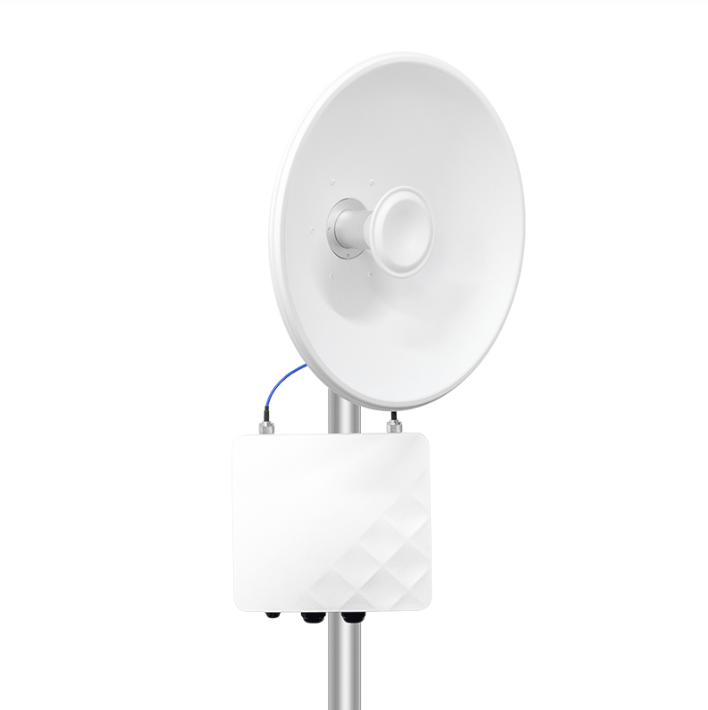

High Speed Wireless Bridge Outdoor Long Distance to 20km

Model: CS5629

Flash: SPI NOR 16MB

DDR: 64MB

5G Band: 5.150GHz～5.850GHz

5G WIFI Protocol: 802.11 a / n /ac

Maximum rate: 867Mbps

Antenna: External 29dBi Parabolic Antenna

5G EVM: 802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB

Frequency deviation（ppm): ±20ppm

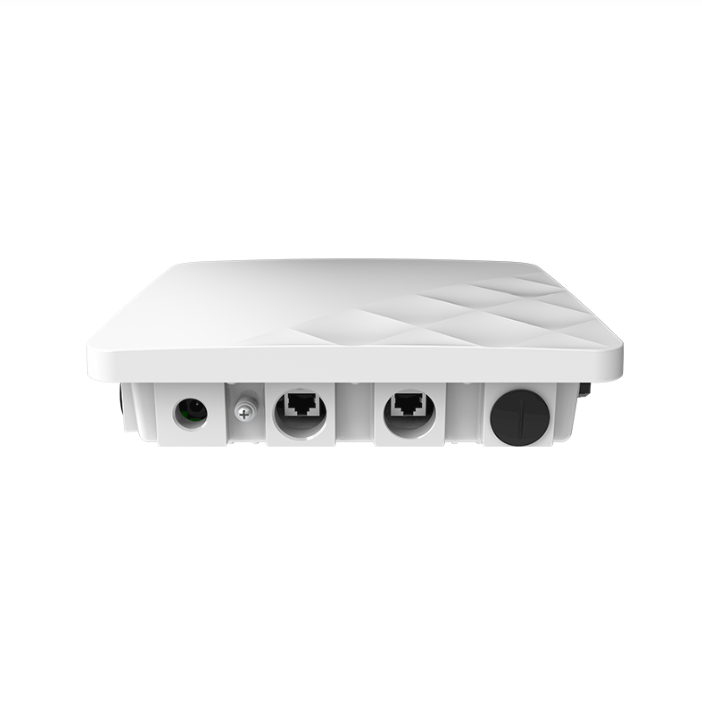

Port (WAN): 1*10/100/1000M WAN, support 48V POE

Port (LAN): 1*10/100/1000M LAN

Power supply: DC 12V/PoE 48V

Consumption: <15W

Size: 243mm*218mm*67mm

Weight: 3KG

Environment: Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 70°C；humidity：5％～95％（No condensation）

IP grade: IP67

ESD: Air +/-15K，Contact +/-8K

Surge protection: Common-Mode: 4K，Differential-Mode: 2K
