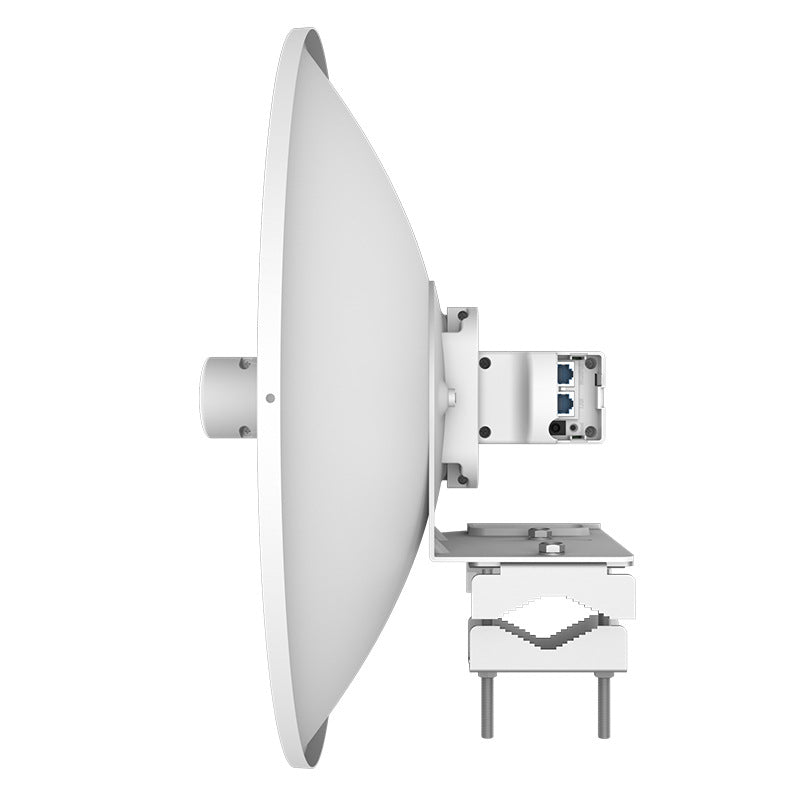

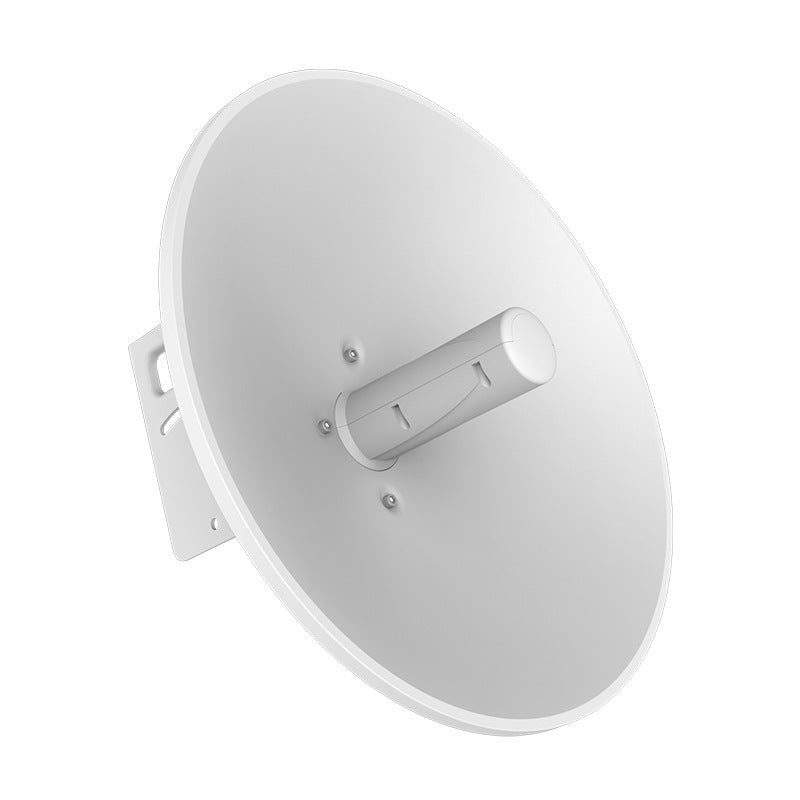

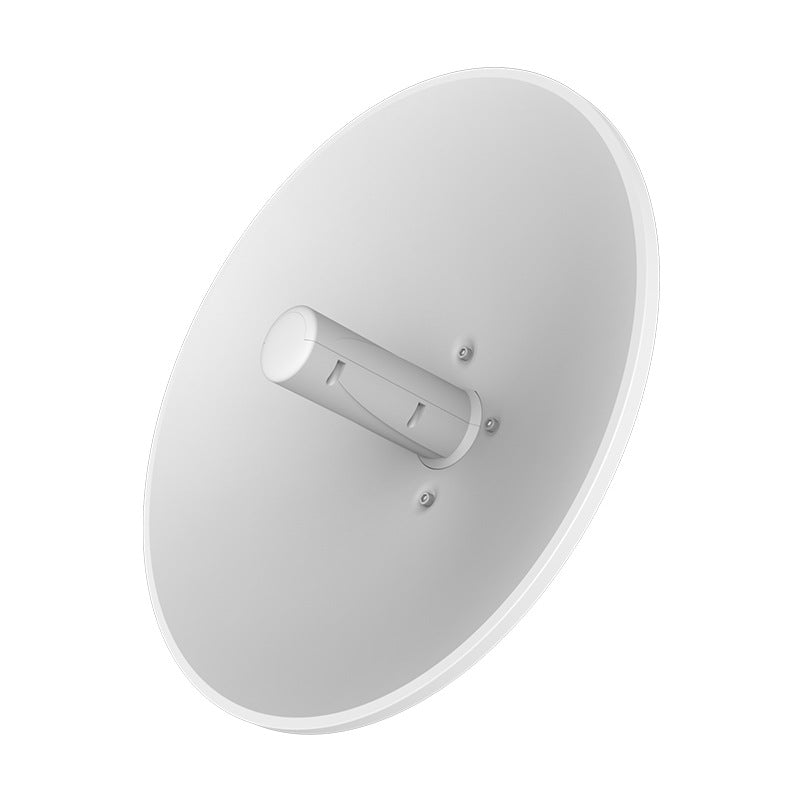

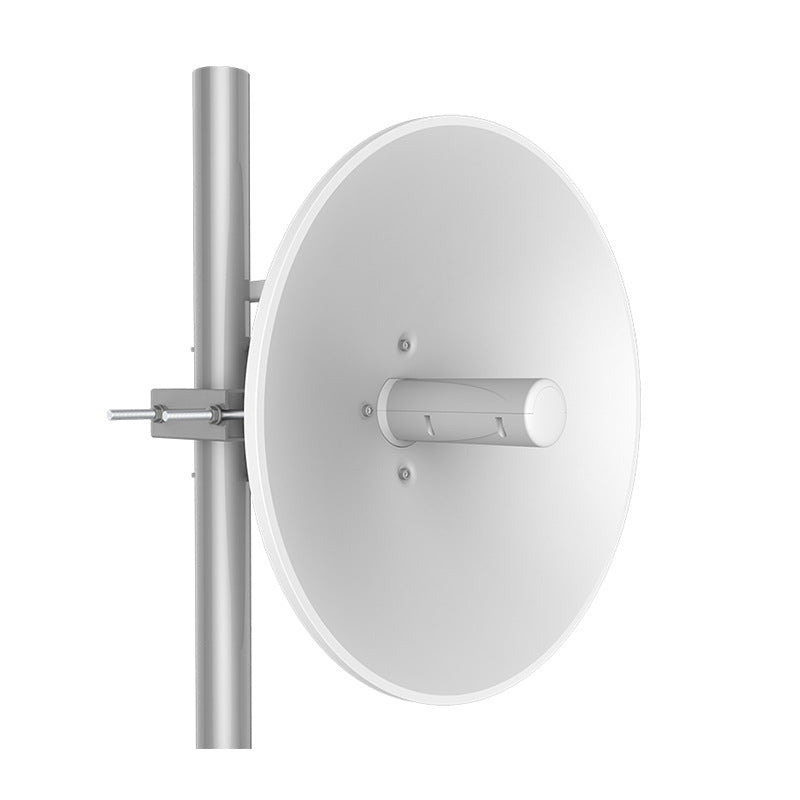

Outdoor Long Distance Wireless Antenna WiFi Bridge PTP Radio 11ac 15KM

Model: CS5-Pro

CPU: QCA9563+QCA9882+QCA8334

Flash: SPI NOR 16MB

DDR: 128MB

5G Band: 5.150GHz～5.850GHz

5G WIFI Protocol: 802.11 a / n /ac

Maximum rate: 900Mbps

Antenna: Integrated 25dBi dual polarization dish antenna

5G EVM: 802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB

frequency deviation（ppm): ±20ppm

Port (WAN): 1*10/100/1000M WAN, support 24-48V POE

Port (LAN): 1*10/100/1000M LAN

Power supply: PoE24~48V，DC 12~24V

Consumption: <15W

Size: Φ466mm*260mm

Weight: 2.9KG

Environment: Operating temperature: -20°C to 70°C
Storage temperature: -40°C to 70°C；humidity：5％～95％（No condensation）

IP grade: IP65

ESD: Air +/-8K，Contact +/-4K

Surge protection: Common-Mode: 4K，Differential-Mode: 2K

Working mode: Access Point (Automatic WDS), Access Point (TDMA3), Site (WDS/TDMA3), Site (ARPNAT)

Wireless: Intelligent dynamic polling, automatic channel selection, automatic modulation mode selection, automatic transmission power control (ATPC)

Wireless Safety: WPA/WPA2 personal encryption, WPA/WPA2 enterprise encryption, WACL, user isolation

Wireless QoS: TDMA implements 4 queue priority

Network mode: IPv4 IPv6

VLAN: Support VLAN and VLAN transparent transmission

WAN protocol: Static IP，DHCP client

Service: DHCP service, SNMP service, NTP client, route tracking, ping watchdog

Management: HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet

Built Tool: Site survey, connection testing, antenna calibration
